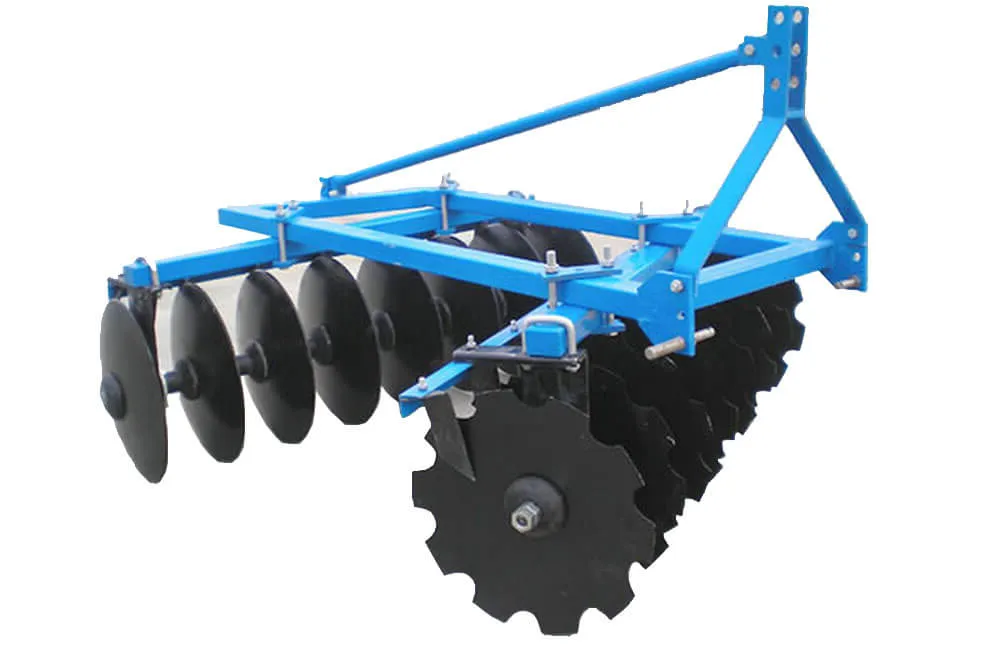

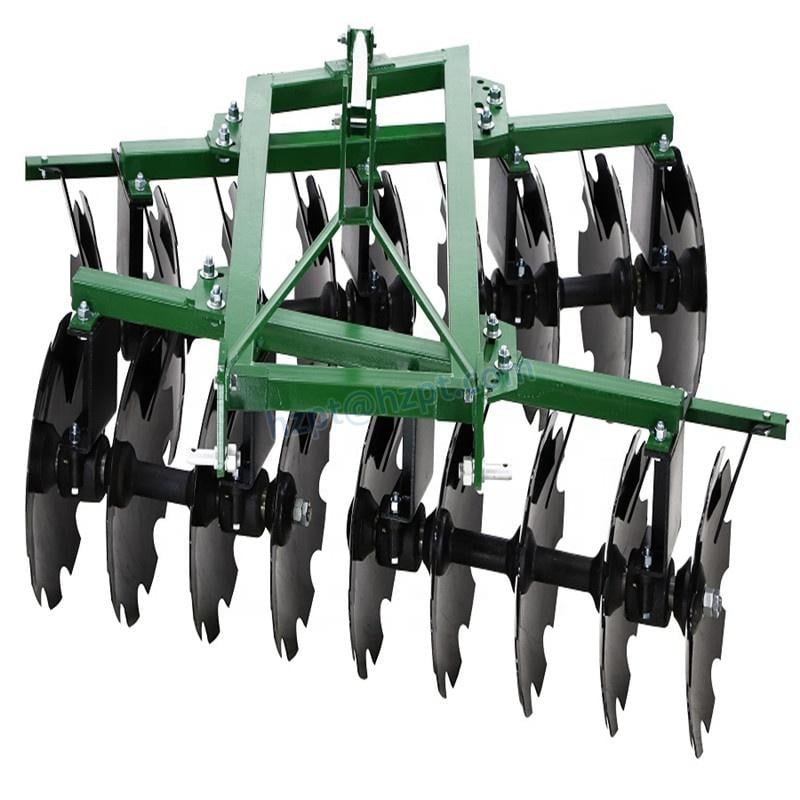

Looking for high productivity farm equipment? Consider our garden loose soil machinery ATV disc harrow for sale. This innovative piece of machinery is designed to break hardened surfaces and cut up straws efficiently. Powered by diesel and weighing 120kg, it features a one-point linkage and a disc diameter of 410mm. With a working width of 900mm and a depth of 140mm, this disc harrow is built to handle even the toughest of conditions. The 65Mn Spring steel disc is robust and durable, promising longevity and consistent performance.
The ATV disc harrow operates on a simple yet effective principle. The disc blades attached to the harrow penetrate the soil, breaking up hardened surfaces and cutting up straws. This not only loosens the soil but also enhances the mixing of residue into the soil, promoting healthy plant growth. The disc harrow is easy to install onto your ATV or another suitable vehicle; it simply requires a 50mm / 2'' hitch ball for attachment. Uninstallation is equally straightforward. To maintain the disc harrow in optimal condition, it's important to regularly check and tighten all bolts, keep the disc blades clean, and ensure the bearings are well lubricated. Additionally, the harrow comes with a one-year warranty, so any issues with core components such as the bearing, high-quality disc blade, or square shaft with tempering will be promptly addressed.
At Raydafon Group Co., Ltd., we pride ourselves on providing top-quality farm equipment to boost your productivity. Our garden loose soil machinery ATV disc harrow is no exception. With its high productivity and robust construction, it's an investment that pays for itself in no time. What's more, we provide after-sales video technical support, ensuring that any queries or issues you have are promptly resolved. We understand that modern farming requires efficient, durable, and reliable machinery - and that's exactly what we offer. Don't compromise on your farm's productivity. Contact us today to learn more about our ATV disc harrow and make your purchase. Your soil will thank you!
| Model | ATV-900 |
| Working width | 900mm |
| Working depth | 140mm |
| Diameter of disc | 410mm |
| Thickness of disc | 3mm |
| Weight | 120kg |
| Matched power | 12-15hp |
| No. of disc | 8pcs |
| Bearing | sealed bearing pedestal, with grease fitting ,can add oil after working |
| Linkage | ball head link |
Our disc harrows are securely packed in an iron case, with 10 sets fitting in a case of size 2200*1000*720mm. We can accommodate 90 to 110 sets in a 20' container, ensuring efficient shipping.
We offer a 2-year warranty on our products and provide spare parts alongside the product for free. Should any part fail due to quality during the warranty period, we will replace it for free. We accept payment through T/T 30% in Advance, and 70% T/T after Shipping, as well as L/C at sight. For more information, don't hesitate to contact us!
