Disc Blade for Cultivator Square Hole Round Plain 24"/610X 5mm Harvesters,disc Harrow and Disc Plough 12" ~ 44" 12~14''

Condition: New
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms, Retail
Weight (KG): 10 KG
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Best sales
Type: disc plough coulter blades, Square hole Round Plain disc blade
Use: Harvesters, Disc Harrow and Disc Plough
Size: 12
Thickness: 3mm ~ 12.5mm
Hole Size: 27x27mm, 42x42mm, optional
Color: Black,Blue,Red and so on
weight: 2.33-26.83kg
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Farms, Retail
Weight (KG): 10 KG
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Best sales
Condition: New
Type: disc plough coulter blades
Use: Harvesters
Size: 12
Thickness: 3mm ~ 12.5mm
Hole Size: 27x27mm, 42x42mm, optional
Color: Black,Blue,Red and so on
Use: Disc Harrow and Disc Plough
weight: 2.33-26.83kg
Type: Square hole Round Plain disc blade
Packaging Details: Neutral Cartons, Wooden case. It is available to provide colorful package according to your design or we make design for your brand if required
Port: Ningbo, Shanghai

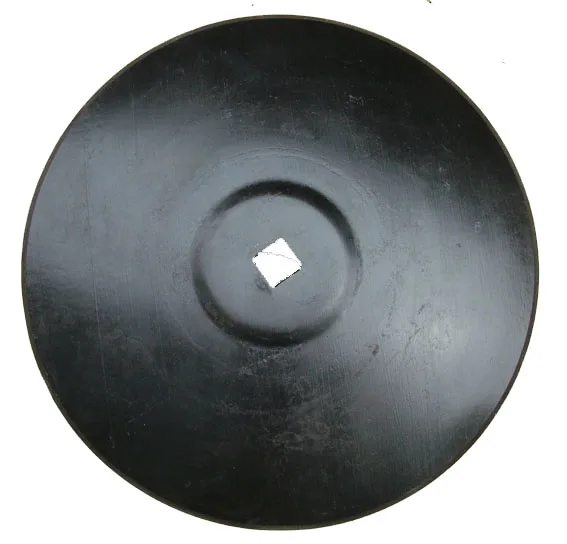

Product Overview COMBINE Harrow discA harrow disc is a harrow whose cutting edges are a row of concave metal discs, which may be scalloped, set at an oblique angle. It is an agricultural implement that is used to till the soil where crops are to be planted. It is also used to chop up unwanted weeds or crop remainders.*** Find Harrow disc at Ningbo Combine easily for your disc harrow or implement.*** We can provide different size of Harrow disc from 10'' to 44'' Plain or Notched.*** All our harrow discs are heat treated to provide maximum resistance to breaking.*** Can provide you two material, 65Mn and Boron steel used in different field.*** Raised Flat Center and Cone style harrow discs are also available. Details Images

Outer Dimater	Thickness	Plain -weight	Notch Nos	Notch weight
300mm/12''	3	1.6	6	1.1
330mm/13''	3	1.8	6	1.2
360mm/14''	3	2.3	7	1.9
410mm/16''	3	3.2	8	2.7
450mm/18''	3.25	4.3	9	3.8
450mm/18''	4	5.3	9	4.7
510mm/20''	3.5	5.8	10	5.6
510mm/20''	4	6.5	10	5.8
510mm/20''	4.5	7	10	6.5
510mm/20''	5	7.6	10	6.7
560mm/22''	4	8.1	10	7.5
560mm/22''	4.5	9	10	8
560mm/22''	5	9.5	10	9
560mm/22''	6	12	10	11
610mm/24''	5	11.3	10	10.5
610mm/24''	6	14.2	10	13
660mm/26''	5	14.1	10	13
660mm/26''	6	17	10	15.8
660mm/26''	7	20	10	18.5
660mm/26''	8	23	10	21
710mm/28''	6	20	10	18.5
710mm/28''	7	23	10	21.5
710mm/28''	8	26	10	24
710mm/28''	10	32	10	30.5
760mm/30''	8	29	10	28
760mm/30''	10	35	10	33.5
810mm/32''	8	35	10	33
810mm/32''	10	43	10	40
910mm/36''	12	68	14	60
960mm/38''	12.5	77	15	70
1016mm/40''	12.5	82	15	77
1116mm/44''	12.5	89	15	84

Type of HoleDifferent type of holes for your chosen. Type of EdgesThere kinds of edges are available according to the requirements. Concavity1. D and T are standard as listed in the label.2. H is according to our mould if no specified requirements.3. Center hole has 8 different shapes.4. If without hub, "d2"=0. Product packaging How to order it if you don't have drawing, you can provide us below information and we also can prepare the quotation to you. Or contact us!

S/N

Name

Size

Plain or Notched

Thickness(mm)

Hole Style

Shape

HConcavity (mm)

Edge type

Soil condition

An example for your reference

1

Harrow disc

500

Plain

4mm

G

A

53mm

B

heavy clay and with stumps

2

3

Why Choose Us 1??Guarantee Quality and Avoid your lossCOMBINE guarantees quality 100% - for any parts failing to meet the agreed standards, we offer 100% refund or free replacement. This can apparently avoid your loss and save your time to solve disputes. 2??Deliver Your Order In timeOur own production and regular stock in the warehouse can well manage your order and deliver them in time for the selling season. 3??Reduce Your CostWith experience since 2001, our genuine supply of over 6000 distinct wearing parts, can greatly reduce both selection risk and costs associated with time-sensitive, decentralized global purchasing.OEM quality but China price can optimize the cost performance to the best. Buying Guides Contact Us Whenever you need any information of our parts, please feel freely to contact us by Trade manager, Email, Call.We always be here for you! Title goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Disc Blade for Cultivator Square Hole Round Plain 24"/610X 5mm Harvesters,disc Harrow and Disc Plough 12" ~ 44" 12~14''

Introduction

The Disc Blade for Cultivator Square Hole Round Plain 24"/610X 5mm Harvesters is a crucial component in harvesting machinery. It is used for tilling soil, cutting weeds, and preparing the ground for planting. The disc blade comes in various sizes and shapes, and it is designed to be rugged and durable to withstand the harsh conditions of agricultural work.

Function

The disc blade is attached to the harvester and is responsible for cutting and tilling the soil. The blade spins rapidly and cuts through the soil, creating an optimal surface for planting. The disc blade also cuts through weeds and removes unwanted plants, allowing farmers to cultivate their crops more effectively.

Advantages of Our Product

• We can produce this product and can replace most commonly used models of parts for various brands
• We offer customization services
• Our products are made with high-quality materials and are built to last

Compatible Brands and Models

Brand	Model
John Deere	S700 Series
Claas	Lexion Series
New Holland	CR Series

Other Agricultural Machinery Parts

At our company, we offer a wide range of agricultural machinery parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Common Agricultural Harvester Wear Parts

The following are common wear parts for agricultural harvesters:

1. Blades/Cutting Parts: This includes the main cutting blade, guard, and blade drive belt.
2. Threshing Drum and Concave: If there is too much crop residue or grain separation is not clean, it may indicate severe wear of the threshing drum and concave, which requires inspection and timely replacement.
3. Separating Screen and Cleaning Fan Blades: Reduced speed of the grain conveyor or slow operation of the cutter may indicate aging and slack of the transmission belt, elongation of the chain, or wear of the driving gear, which requires the corresponding belt, chain, or gear to be replaced.
4. Conveying Chains and Sprockets: These parts are responsible for moving the crop from one place to another and are subject to heavy wear.
5. Rubber Tracks or Tires: These parts are crucial for the harvester's movement and can wear out over time.
6. Hydraulic Components: This includes hydraulic cylinders, hoses, seals, and other components that can wear out over time.
7. Bearings: Bearings are crucial components that can wear out due to heavy use.
8. Filters: Air filters, fuel filters, and oil filters can become clogged over time and need to be replaced to ensure the harvester runs smoothly.

When to Replace Harvesting Parts

The following are signs that indicate that certain parts of your harvester need to be replaced:

1. Poor Harvesting Results: If you notice too much crop residue or grain separation is not clean, it may indicate severe wear of the threshing drum and concave, which requires inspection and timely replacement.
2. Decreased Power or Overheating: Decreased engine power or overheating can be caused by clogged air filters or problems with the cooling system. You may need to replace the air filter or have the cooling system repaired.
3. Reduced Efficiency: Slow operation of the cutter or reduced material conveying speed may indicate aging and slack of the transmission belt, elongation of the chain, or wear of the driving gear, which requires the corresponding belt, chain, or gear to be replaced.
4. Difficulty Moving or Increased Noise: Loose or cracked rubber tracks or tires can cause difficulties in movement. Unusual noise during movement may indicate problems with bearings, which need to be replaced.
5. Unstable Hydraulic System: Slow or powerless lifting or turning may be caused by problems with the hydraulic pump, cylinder, valve, or seal. You may need to check and replace the corresponding components.
6. Leakage: Leaks of oil, hydraulic fluid, or fuel can indicate seal or component damage and require timely replacement.
