Finger Wheel Hay Rake (Hay Tedder) for Collect Grass RXHR-3 RXHR-4 RXHR-5

[embed]https://www.youtube.com/embedR7EALpVlwwc[/embed]

Finger Wheel Hay Rake (Hay Tedder) for Collect Grass RXHR-3 RXHR-4 RXHR-5

A finger wheel hay rake, also known as a hay tedder, is a farm implement used in haymaking processes to fluff and scatter hay after it has been cut. It consists of a rotating reel, often equipped with flexible tines or fingers, which lift and separate the hay to promote drying and even distribution. The primary function of a finger wheel hay rake is to speed up the drying process of freshly cut hay. By lifting the hay from the ground and gently tossing it in the air, the rake exposes a larger surface area to sunlight and airflow. This action helps to remove excess moisture and prevents the hay from becoming moldy or spoiled. The design of a finger wheel hay rake typically includes a reel with multiple spokes or arms, each equipped with several flexible tines or fingers. The reel is mounted on a wheeled frame that can be attached to a tractor or operated independently. As the wheels turn, the reel rotates, causing the fingers to comb through the hay and lift it off the ground. One of the key advantages of a finger wheel hay rake is its ability to work quickly and efficiently. By spreading the hay out in a wide swath, it allows for faster and more uniform drying. This is particularly important in areas where weather conditions may be unpredictable, as it helps to minimize the risk of hay spoilage due to rain or excessive moisture. Additionally, the use of a finger wheel hay rake helps to remove debris, such as stones or sticks, from the hay. The fingers combing through the hay collect these unwanted materials and deposit them back onto the ground, leaving behind a cleaner and more desirable product.

Finger Wheel Hay Rake RXHR-3 RXHR-4 RXHR-5 Specifications

Model	RXHR-3	RXHR-4	RXHR-5
Weight  kg	150	295	345
Working speed  km/h	5	10	15
Productivity  hectare/h	1	1.5~3.5	3~5
Fitted power  kw/hp	15/20	20/27	40/55
Working width  m	3	4	4.8
NO.of disc  pc	4	6	8
Disc diameter  m	1.46	1.46	1.46
No.of rakers  pc	40	40	40
grass width  m	1~1.5	1~1.5	1~1.5
Mounted type	Standard three point mounted

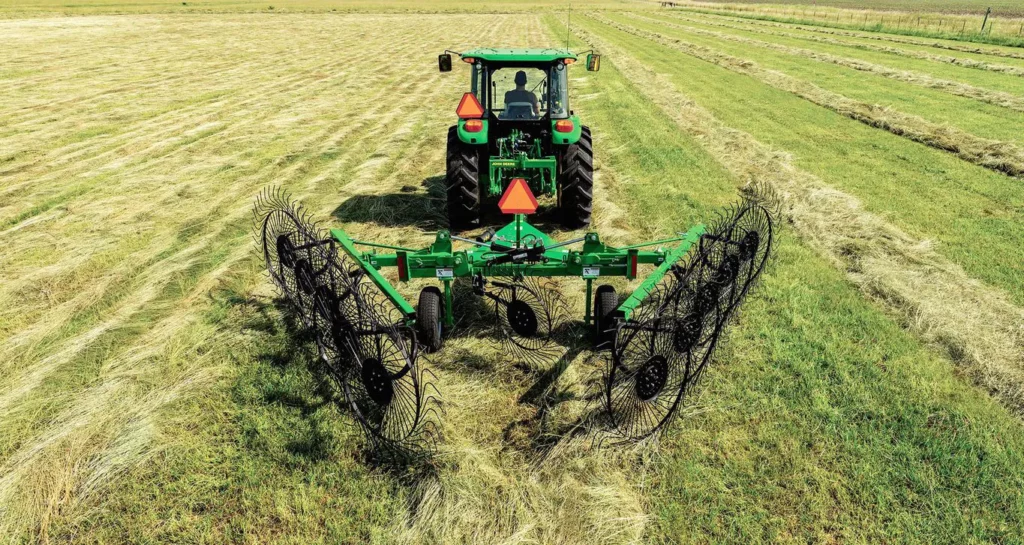

Advantages of Using the Finger Wheel Hay Rake (Hay Tedder)

Using a finger wheel hay rake, or hay tedder, offers several advantages in the haymaking process. Here are some key benefits: 1. Faster Drying: One of the primary advantages of using a finger wheel hay rake is that it speeds up the drying process of freshly cut hay. By lifting the hay off the ground and tossing it in the air, the rake exposes a larger surface area to sunlight and airflow. This increased exposure to heat and ventilation helps remove excess moisture from the hay, reducing the drying time significantly. 2. Improved Hay Quality: The finger wheel hay rake helps maintain the quality of the hay by evenly distributing it and preventing the formation of mold or mildew. By separating and fluffing the hay, the rake allows air to circulate more freely, minimizing the risk of moisture accumulation and rotting. This results in higher-quality hay that retains its nutritional value and is less prone to spoilage. 3. Efficiency and Time Savings: Using a finger wheel hay rake is much more efficient than manual raking methods. The implement can cover a large area quickly, reducing the time and labor required to rake the hay. This increased efficiency allows farmers to process more hay in a shorter period, optimizing productivity during critical harvest times. 4. Consistent Swath Formation: Finger wheel hay rakes are designed to create uniform swaths, which are important for subsequent baling or further processing. By spreading the hay evenly, the rake ensures that the drying and baling processes are more efficient and consistent. This helps farmers produce neat and compact bales that are easier to handle and store. 5. Debris Removal: As the fingers comb through the hay, they collect debris such as stones, sticks, or other foreign objects. This mechanism helps separate unwanted materials from the hay, leaving behind a cleaner and safer product. Removing debris also reduces the risk of damage to equipment, such as balers, during subsequent stages of the haymaking process. 6. Versatility: Finger wheel hay rakes are versatile implements that can be used in various field conditions and with different types of hay. They can handle both light and heavy hay crops, adapting to the specific needs of the farmer. The rake's flexibility allows farmers to adjust settings and configurations to achieve optimal results according to their requirements.

Working Principle of Finger Wheel Hay Rake (Hay Tedder)

The working principle of a finger wheel hay rake, often referred to as a hay tedder, revolves around its ability to aerate, spread, and turn hay or forage crops to facilitate faster and more uniform drying. These machines are essential in the haymaking process, allowing for quicker drying times, which is crucial for preserving the nutritional value of the hay. Here’s how they work: (1) Attachment to Tractor: The finger wheel hay rake is typically connected to a tractor or operated independently using its own power source. It is designed to be hitched to the tractor's three-point linkage system or mounted on its own wheeled frame. (2) Rotating Reel: The key component of the hay rake is a rotating reel, also known as a wheel or drum, which is positioned horizontally and perpendicular to the direction of travel. The reel is usually equipped with multiple spokes or arms that extend outward. (3) Flexible Tines or Fingers: Each spoke or arm of the reel is fitted with flexible tines or fingers. These tines are designed to be springy and have some degree of flexibility. They are spaced out along the length of the reel and extend outward, forming a comb-like structure. (4) Ground Contact: As the tractor moves forward, the reel of the hay rake makes contact with the ground, with the tines or fingers positioned close to the surface. The tines penetrate the hay or forage, lifting and separating it from the ground. (5) Lifting and Tossing Action: As the reel rotates, the tines or fingers lift the hay upward and backward, away from the ground. This lifting action serves to fluff and aerate the hay, helping to expose a larger surface area to sunlight and airflow. The hay is gently tossed in the air, causing it to spread out and separate, facilitating faster and more uniform drying. (6) Swath Formation: The rotating reel, with its tines or fingers, creates a wide swath of hay as it moves across the field. The swath is the path or strip of hay that is formed behind the rake. The width of the swath can be adjusted by altering the speed of the tractor or by adjusting the reel's position. (7) Debris Separation: As the tines or fingers comb through the hay, they also collect debris such as stones, sticks, or other foreign objects. These unwanted materials are lifted along with the hay but are separated and deposited back onto the ground as the hay is tossed in the air. This helps to remove debris from the hay, leaving behind a cleaner product. (8) Repeat Process: The rotating reel continues its operation as the tractor moves forward, repeating the lifting, tossing, and separation actions with each revolution. The process is continued until the desired area of the field is raked, and the hay is adequately fluffed and spread out for drying.

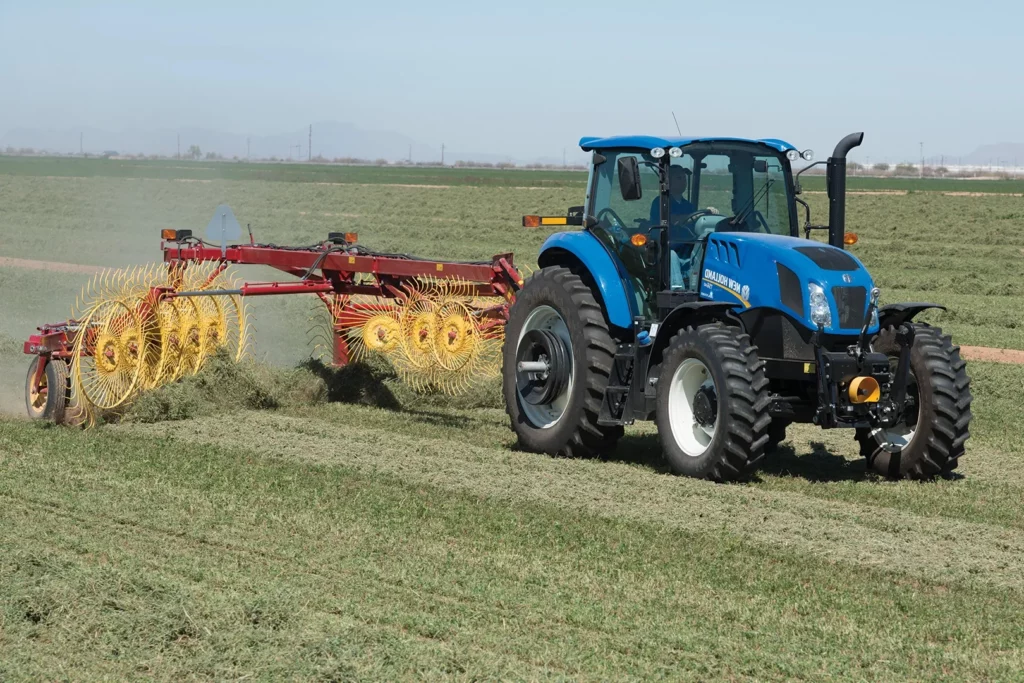

Applications of Finger Wheel Hay Rake (Hay Tedder)

The finger wheel hay rake, or hay tedder, has several agricultural applications that make it a valuable tool for farmers involved in haymaking and forage production. Here are some of its primary agricultural applications:

• Hay Drying: The primary application of a finger wheel hay rake is to facilitate the drying of freshly cut hay. By lifting and fluffing the hay, the rake exposes a larger surface area to sunlight and airflow, accelerating the drying process. This is especially useful in areas with unpredictable weather conditions, as it helps farmers minimize the risk of hay spoilage due to rain or excessive moisture.
• Hay Quality Improvement: Finger wheel hay rakes play a crucial role in maintaining and improving the quality of hay. By separating the hay strands and promoting airflow, the rake helps prevent the formation of mold and mildew, which can significantly reduce the nutritional value of hay and make it unsuitable for livestock consumption. The improved drying and aeration provided by the rake contribute to higher-quality hay with better color, aroma, and nutrient content.
• Swath Formation: Finger wheel hay rakes are used to create uniform swaths of hay in the field. By spreading the hay evenly, the rake prepares the crop for subsequent processing steps, such as baling or further conditioning. Consistent swath formation ensures that bales are uniformly sized and compact, making them easier to handle, transport, and store.
• Debris Removal: Another important application of a finger wheel hay rake is the removal of debris from the hay. As the rake's fingers comb through the hay, they collect stones, sticks, and other foreign objects, separating them from the crop. This helps farmers produce cleaner and safer hay, reducing the risk of damage to equipment during subsequent processing stages and ensuring the well-being of livestock that consume the hay.
• Forage Conditioning: Finger wheel hay rakes can also be used to condition forage crops such as alfalfa or grasses. By lifting and separating the forage, the rake promotes better airflow, which aids in the drying and curing of the crop. Conditioning forage crops with a hay rake can enhance their nutritional quality and make them more palatable for livestock.
