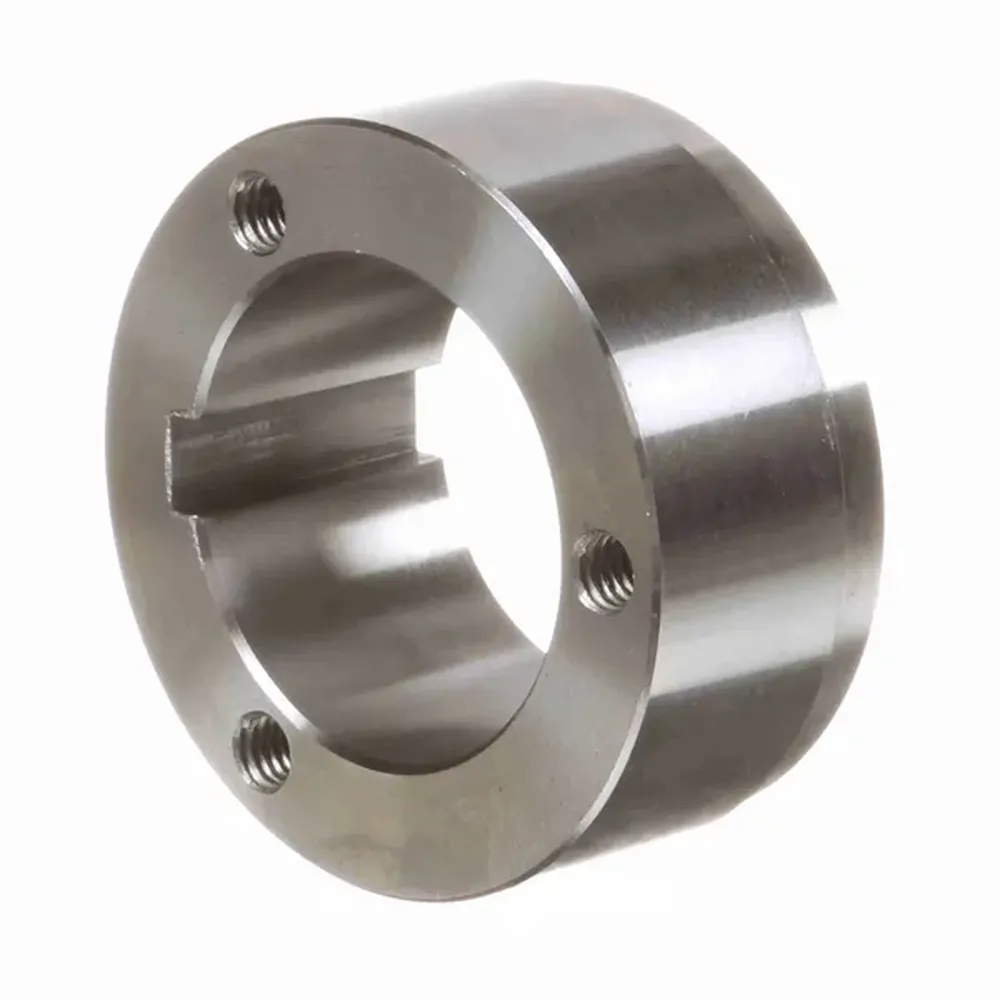

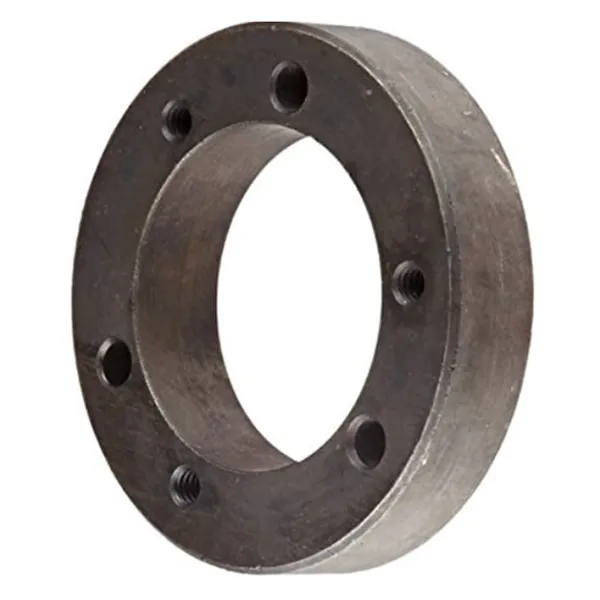

SH-A QD Weld-On Hubs

SH-A QD Weld-On Hubs

SH-A QD weld-on hubs are steel hubs that are specifically designed to be welded onto pulleys, sheaves, and sprockets to accept SH QD bushings. The SH-A QD weld-on hubs have a tapered bore that matches the tapered outer surface of the bushing, which ensures a secure and accurate fit. The SH-A hubs are also drilled and tapped for mounting bolts, making them easy to install.QD stands for Quick Detachable, and these hubs allow for quick and easy removal of the bushing for maintenance or replacement. This is a valuable feature in applications where the bushing is subject to frequent wear or damage.The SH-A QD weld-on hubs are a versatile and reliable solution for mounting SH QD bushings on a variety of equipment. They are made from high-quality steel and are precision machined to ensure long life and accurate performance.

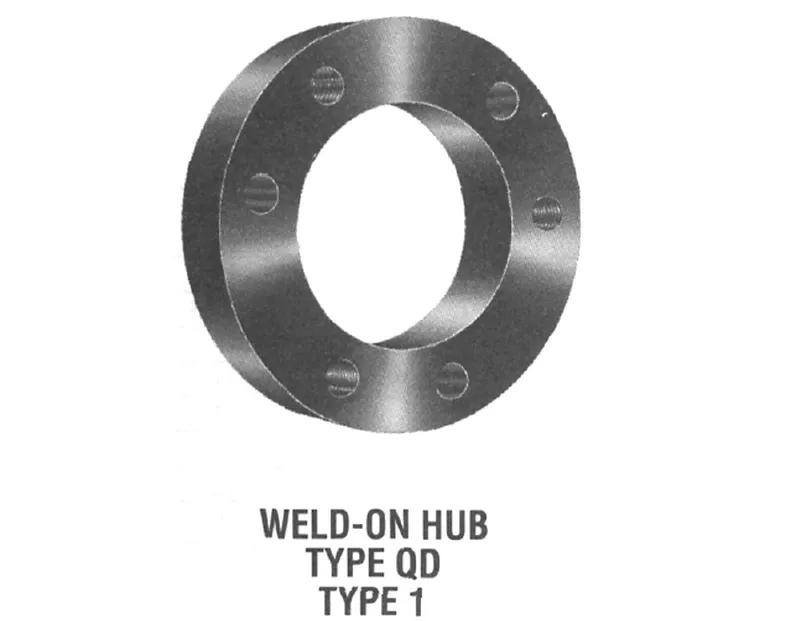

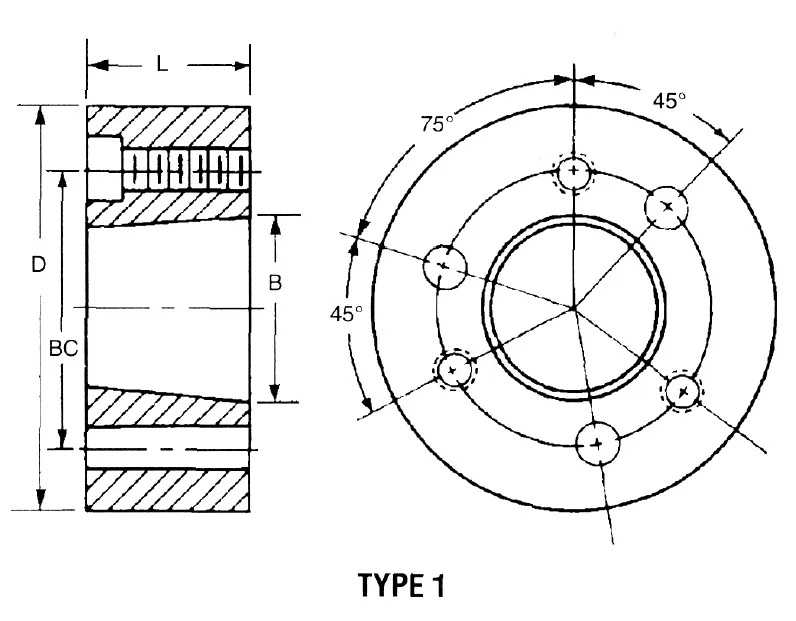

SH-A QD Weld-On Hubs Dimensions:

QD Hub Types		SH-A Weld-On Hubs
For Bushing		SH QD Bushings
Dimensions (Inches)	D	3.000"
	L	13/16"
	B	1.871"
	P	-
	L1	-
	BC	2 1/4"
Type Drilling		1"
Weight (lbs)		1 lbs

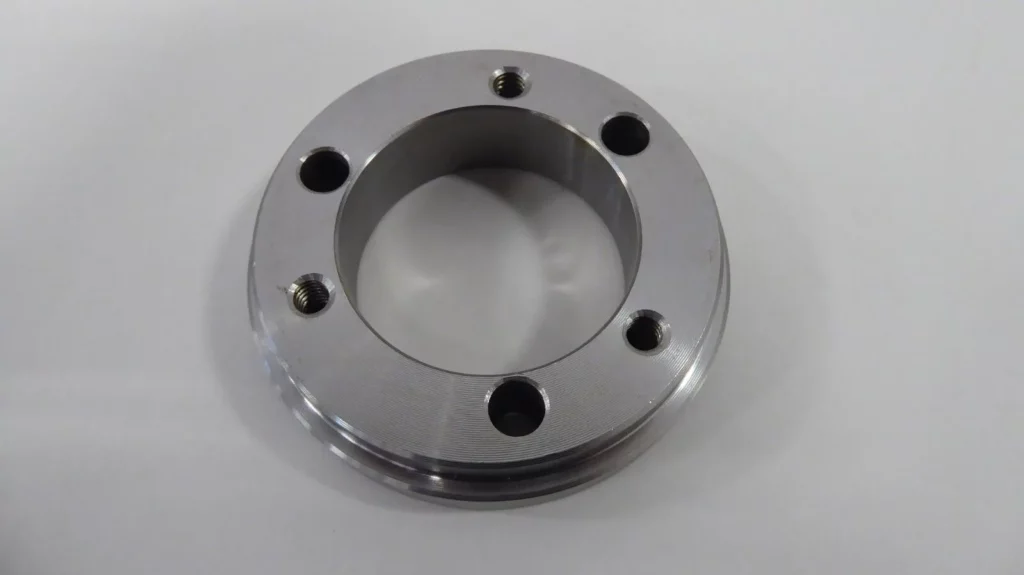

SH-A QD Weld-On Hubs Advantages:

The SH-A QD weld-on hubs for SH QD bushings offer several advantages in various industrial applications. Here are some of the key advantages:1. Easy Installation: These SH-A QD weld-on hubs are designed for quick and straightforward installation. They can be easily welded onto the shaft without requiring complex machining or additional components. This saves time and labor during the assembly process.2. Versatility: The SH-A QD weld-on hubs are compatible with SH QD Bushings, which are widely used in power transmission applications. This compatibility allows for easy interchangeability and flexibility in connecting different shaft sizes with various bushing sizes.3. Increased Shaft Strength: By SH-A QD weld-on hubs directly onto the shaft, the connection becomes extremely strong and rigid. This enhances the overall strength and durability of the shaft assembly, making it suitable for heavy-duty applications that involve high torque or load.4. Reduced Downtime: The SH-A QD weld-on hubs eliminate the need for set screws or keyways, which can become loose or wear out over time. This reduces the risk of shaft slippage or misalignment, minimizing unplanned downtime and maintenance costs.5. Space-saving Design: SH-A QD weld-on hubs provide a compact and space-saving solution by eliminating the need for additional coupling components. This is particularly advantageous in applications where space is limited or where a streamlined design is desired.6. Wide Application Range: The SH-A QD weld-on hubs are suitable for a broad range of industrial applications, including machinery, conveyors, pumps, and other power transmission systems. They can accommodate different shaft sizes and torque requirements, making them versatile for various industries.

QD Weld-On Hubs Vs Split Taper Weld-On Hubs:

QD weld-on hubs and split taper weld-on hubs are both types of weld-on hubs used in power transmission applications, but they differ in their design and installation process. Here are some key differences between the two types of weld-on hubs:Design: QD weld-on hubs feature a quick-detachable design that allows for easy interchangeability with QD bushings, while split taper weld-on hubs have a tapered design that provides a tight and secure fit onto the shaft.Installation: QD weld-on hubs are typically easier to install since they do not require any shaft keyway or set screws, whereas split taper weld-on hubs require precise machining to ensure a proper fit between the hub and the shaft.Shaft Strength: Split taper weld-on hubs provide a stronger and more rigid connection between the hub and the shaft, as the tapered design creates a mechanical lock between the two components. QD weld-on hubs may not be as strong as split taper weld-on hubs, as they rely on the external QD bushing for a secure connection.Flexibility: QD weld-on hubs offer more flexibility in terms of shaft size interchangeability, as they can be used with different QD bushings to accommodate different shaft sizes. Split taper weld-on hubs, on the other hand, are typically designed for a specific shaft size and require a new hub to be installed if the shaft diameter changes.Cost: QD weld-on hubs may be slightly more expensive than split taper weld-on hubs due to their quick-detachable design and compatibility with QD bushings. Split taper weld-on hubs are a more cost-effective option for applications where the shaft size is fixed and interchangeability is not required.Ultimately, the choice between QD weld-on hubs and split taper weld-on hubs depends on the specific application requirements. QD weld-on hubs are a good choice for applications that require frequent shaft size changes, where ease of installation and interchangeability are important. Split taper weld-on hubs are a better option for applications where a secure and rigid connection is needed, and where the shaft size is fixed.

QD Weld-On Hubs	Split Taper Weld-On Hubs

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT bushing hubs, steel hubs for split taper bushings, XH hubs, QD-type weld-on hubs, and welding hubs for taper bushings will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
