06B-2 Metric Roller Chain Sprockets

Wide Selection of Metric Roller Chain Sprockets Available for Immediate Delivery

Discover our extensive range of metric roller chain sprockets, ready for immediate shipment. Our sprockets are primarily crafted from high-quality steel and feature heat-treated teeth (up to 30 teeth) with standard stock bores. The heat-treated hardened teeth significantly enhance durability and performance, ensuring a longer lifespan than untreated options.All our metric roller chain sprockets are manufactured to meet ISO and DIN specifications, guaranteeing compatibility with other leading brands. This meticulous adherence to standards ensures optimal contact between the roller chain and sprocket, effectively preventing premature wear.

Why Choose Our Metric Roller Chain Sprockets?

Immediate Availability: Stocked and ready for quick dispatch.
Durable Design: Heat-treated teeth for extended performance.
Interchangeable: Compatible with various brands, ensuring seamless integration.

06B-2 Metric Roller Chain Sprockets Parameter:

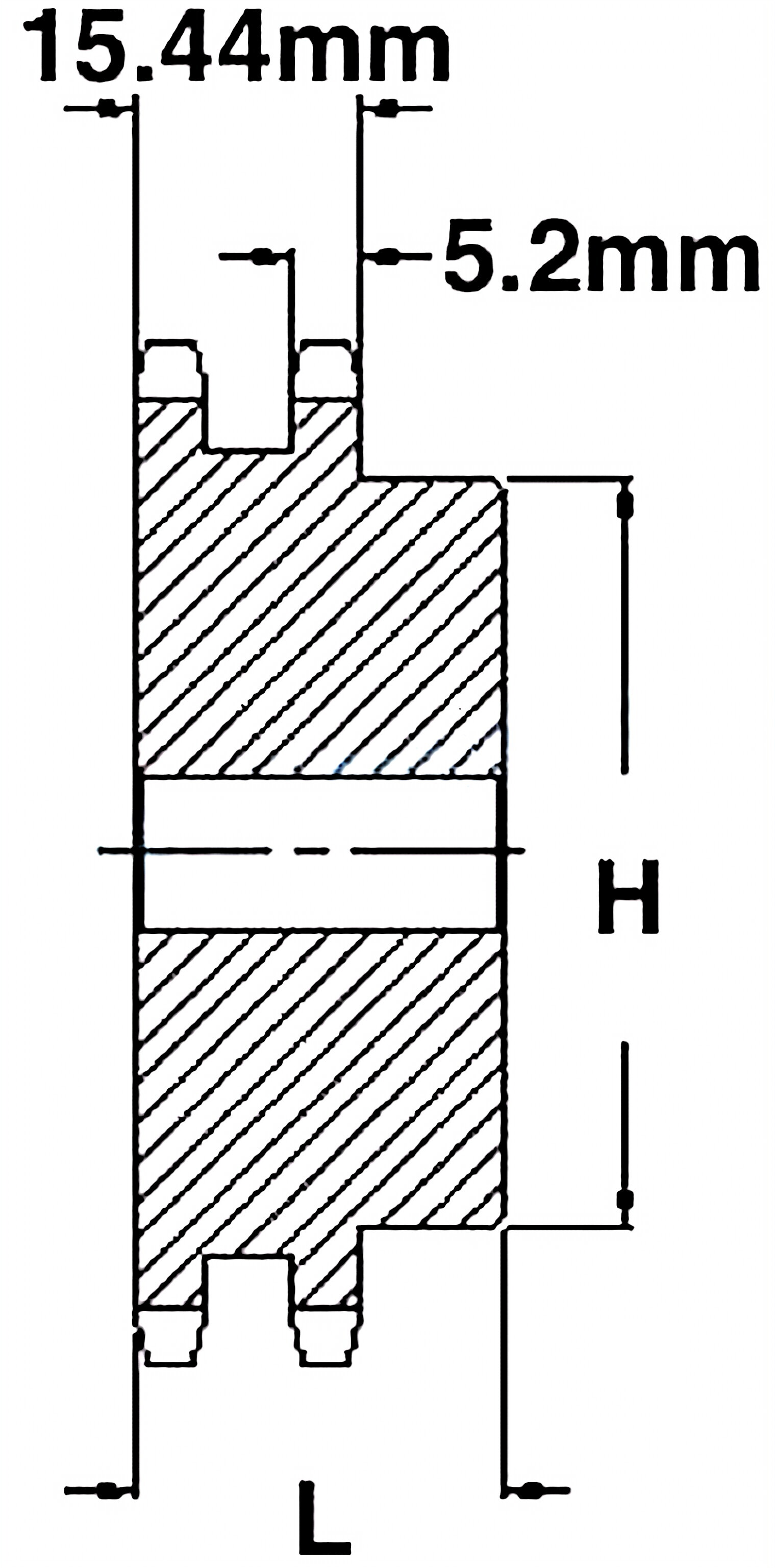

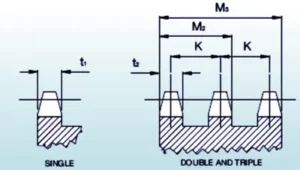

06B-2 B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Maximum Recommended Bore	Hub Diameter (H)	Length Thru Bore (L)	Weight (KG)
D06B12	12	36.80mm	10mm	16mm	25mm	25mm	0.16
D06B13	13	39.79mm	10mm	18mm	28mm	25mm	0.20
D06B14	14	42.80mm	10mm	18mm	31mm	25mm	0.25
D06B15	15	45.81mm	10mm	20mm	34mm	25mm	0.29
D06B16	16	48.82mm	12mm	20mm	37mm	30mm	0.34
D06B17	17	51.83mm	12mm	24mm	40mm	30mm	0.39
D06B18	18	54.85mm	12mm	25mm	43mm	30mm	0.45
D06B19	19	57.87mm	12mm	28mm	46mm	30mm	0.52
D06B20	20	60.89mm	12mm	30mm	49mm	30mm	0.59
D06B21	21	63.91mm	12mm	30mm	52mm	30mm	0.68
D06B22	22	66.93mm	12mm	35mm	55mm	30mm	0.75
D06B23	23	69.95mm	12mm	38mm	58mm	30mm	0.80
D06B24	24	72.97mm	12mm	39mm	61mm	30mm	0.84
D06B25	25	76.00mm	12mm	40mm	64mm	30mm	0.89
D06B26	26	79.02mm	12mm	42mm	67mm	30mm	0.91
D06B27	27	82.05mm	12mm	45mm	70mm	30mm	1.00
D06B28	28	85.07mm	12mm	48mm	73mm	30mm	1.07
D06B29	29	88.10mm	12mm	50mm	76mm	30mm	1.14
D06B30	30	91.12mm	12mm	52mm	80mm	30mm	1.22
D06B32	32	98.18mm	16mm	52mm	80mm	30mm	1.30
D06B35	35	106.26mm	16mm	52mm	80mm	30mm	1.42
D06B36	36	109.29mm	16mm	60mm	90mm	30mm	1.58
D06B38	38	115.35mm	16mm	60mm	90mm	30mm	1.72
D06B40	40	121.40mm	16mm	52mm	80mm	35mm	1.81
D06B42	42	127.46mm	19mm	60mm	90mm	35mm	2.05
D06B45	45	136.55mm	19mm	60mm	90mm	35mm	2.35
D06B48	48	145.64mm	19mm	60mm	90mm	35mm	2.75
D06B52	52	157.75mm	19mm	60mm	90mm	35mm	3.13
D06B57	57	172.91mm	19mm	60mm	90mm	35mm	3.47
D06B60	60	182.00mm	19mm	60mm	90mm	35mm	3.78
D06B68	68	206.24mm	19mm	60mm	90mm	35mm	4.43
D06B70	70	212.30mm	19mm	60mm	90mm	35mm	4.56
D06B72	72	218.37mm	19mm	60mm	90mm	35mm	4.89
D06B76	76	230.49mm	19mm	60mm	90mm	38mm	5.67
D06B84	84	254.74mm	19mm	60mm	90mm	38mm	7.10
D06B95	95	288.08mm	25mm	62mm	95mm	38mm	8.64
D06B96	96	291.11mm	25mm	62mm	95mm	38mm	8.75
D06B114	114	345.68mm	25mm	62mm	95mm	38mm	11.12

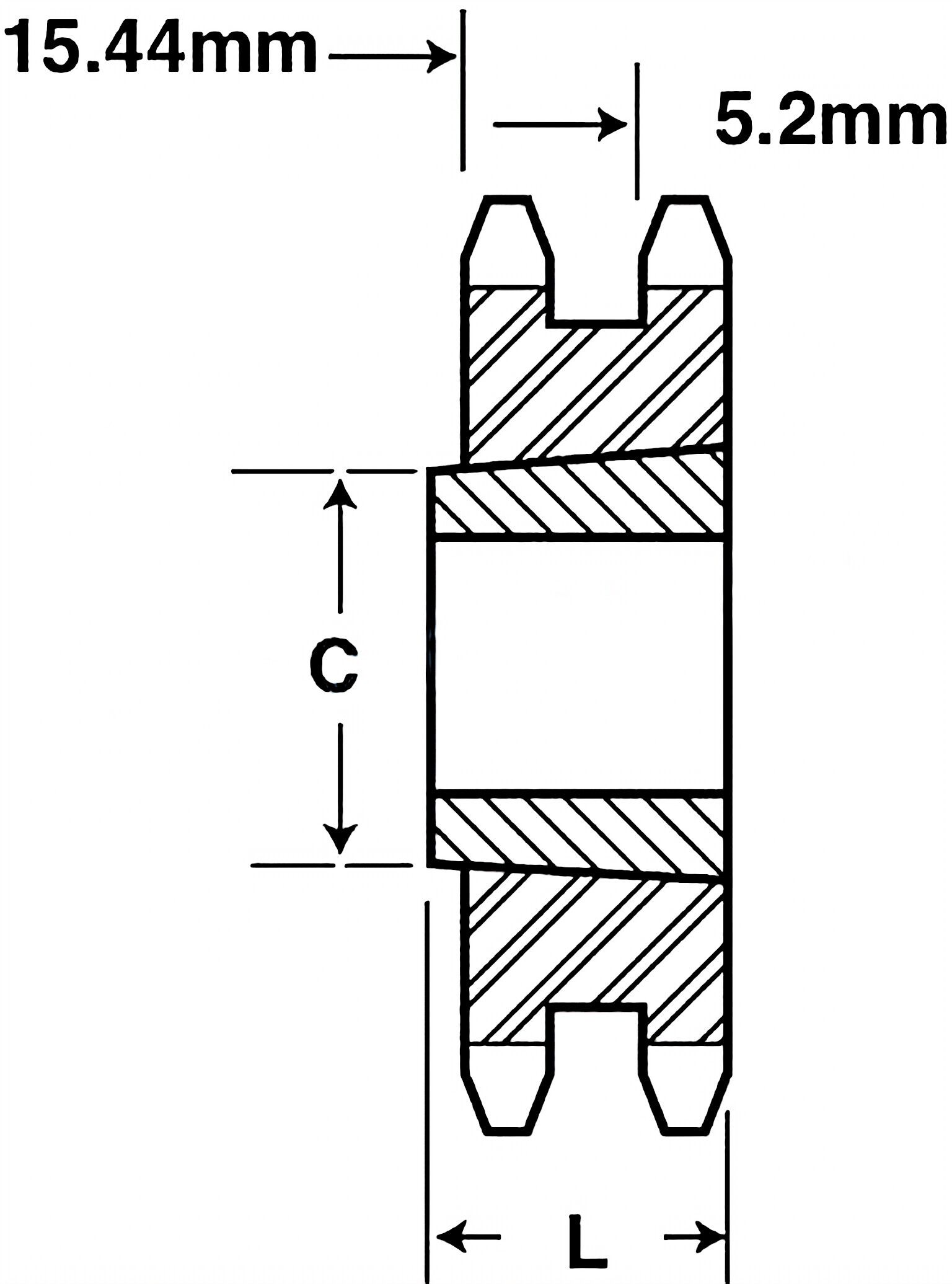

06B-2 Taper Bushed Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Bushing Number	Maximum Bushing Bore	(L)	(C)	Sprocket Weight (KG)	Bushing Weight (KG)
D06BTB19	19	57.87mm	1008	25.40mm	22.23mm	46.43mm	0.6	0.14
D06BTB20	20	60.89mm	1008	25.40mm	22.23mm	49.20mm	0.8	0.14
D06BTB21	21	63.91mm	1008	25.40mm	22.23mm	52.39mm	1.4	0.14
D06BTB22	22	66.93mm	1008	25.40mm	22.23mm	55.56mm	1.7	0.14
D06BTB24	24	72.97mm	1210	31.75mm	25.40mm	61.91mm	1.8	0.27
D06BTB25	25	76.00mm	1210	31.75mm	25.40mm	61.91mm	1.9	0.27
D06BTB26	26	79.02mm	1210	31.75mm	25.40mm	66.68mm	2.0	0.27
D06BTB30	30	91.12mm	1610	41.28mm	25.40mm	79.38mm	1.8	0.41
D06BTB32	32	97.18mm	1610	41.28mm	25.40mm	82.55mm	2.0	0.41
D06BTB35	35	106.26mm	1610	41.28mm	25.40mm	82.55mm	2.3	0.41
D06BTB38	38	115.34mm	1610	41.28mm	25.40mm	82.55mm	2.5	0.41
D06BTB40	40	121.40mm	1610	41.28mm	25.40mm	82.55mm	2.9	0.41
D06BTB45	45	136.55mm	1610	41.28mm	25.40mm	82.55mm	3.2	0.41
D06BTB48	48	145.64mm	1610	41.28mm	25.40mm	92.08mm	3.5	0.41
D06BTB54	54	163.82mm	1610	41.28mm	25.40mm	92.08mm	3.9	0.41
D06BTB57	57	172.91mm	1610	41.28mm	25.40mm	92.08mm	4.1	0.41
D06BTB60	60	182.00mm	1610	41.28mm	25.40mm	92.08mm	4.9	0.41
D06BTB70	70	212.30mm	1610	41.28mm	25.40mm	92.08mm	6.3	0.41
D06BTB76	76	230.49mm	1610	41.28mm	25.40mm	92.08mm	6.8	0.41
D06BTB95	95	288.08mm	1610	41.28mm	25.40mm	92.08mm	6.9	0.41

Unlocking Sprocket Secrets: Identification and Key Terms:

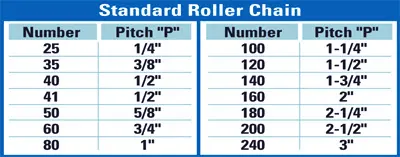

1. Chain Type and Pitch

Sprockets are specifically designed for use with certain types of chains. All chains are manufactured according to established standards, with ANSI being the most common in the United States. Each chain is identified by its "pitch," which refers to the measurement from the center of one roller pin to the center of the next. 06B-2 Metric Roller Chain Sprockets

ANSI chain pitch is consistently measured in increments of 1/8 inch, ensuring precision and compatibility across various applications. Understanding these specifications is crucial for selecting the right sprocket and chain combination for optimal performance. 06B-2 Metric Roller Chain Sprockets

In addition to ANSI, there are other roller chain standards, although they are less common in the United States. The second most popular standard is the British Standard chain, which measures chain pitch in increments of 1/16 inch from the center of one roller pin to the center of the next.Once you determine the chain pitch, it’s essential to consider the number of chain strands used in your application: single strand, double strand, or triple strand. Selecting the right sprocket is crucial; for example, a double-strand chain must operate on a double-strand sprocket to ensure proper functionality and performance. 06B-2 Metric Roller Chain Sprockets

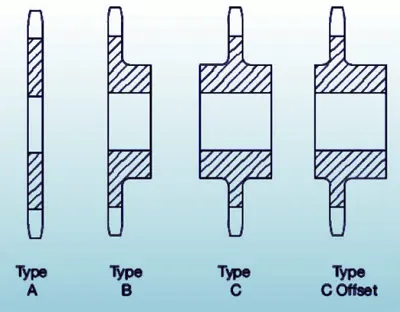

2. Sprocket hub style

While there are countless arrangements, most roller chain sprockets can be categorized into three main styles:

No Hub (A-Style): This design features a flat profile without any hub, making it versatile for various applications.
Hub Projection from One Side (B-Style): This style has a hub extending from one side, providing added support and alignment.
Hub Projections from Both Sides (C-Style): This design offers enhanced stability and load distribution by featuring hubs on both sides.

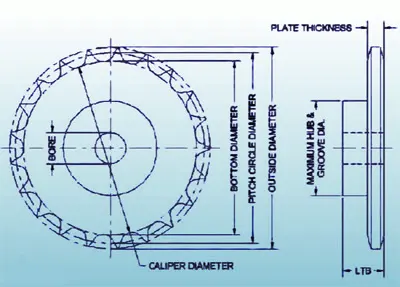

3. Number Of Sprocket Teeth Or Sprocket Diameter

The easiest way to identify the number of teeth on a sprocket is to count them directly. However, if the teeth are severely worn or missing, you can use the caliper diameter as an alternative method.What is Caliper Diameter?Caliper diameter refers to the measurement taken from the valley of one sprocket tooth to the valley of the opposite tooth on the other side. This measurement reflects the diameter of the sprocket plate, excluding the teeth themselves.For sprockets with an odd number of teeth, measure from the valley of one tooth to the valley closest to 180° on the opposite side. This technique can help you accurately identify the sprocket even when the teeth are not visible.Understanding these measurements is crucial for selecting the right sprocket for your application. If you need assistance, feel free to reach out for expert guidance! 06B-2 Metric Roller Chain Sprockets

The outside diameter of a sprocket is referred to as the hub diameter, a specification typically provided by the sprocket supplier. The hub diameter is influenced by several factors, including the size of the sprocket bore, the type of keyway used, and the need to maintain an adequate sprocket wall thickness. This thickness is essential for withstanding the forces exerted during operation.What is LTB?“LTB” stands for the inside hub diameter and indicates the length to which the hub is machined. This length must be sufficient to accommodate the appropriate keyway, ensuring it can endure the shear and torque stresses generated by the rotating shaft.Understanding these dimensions is crucial for selecting the right sprocket for your application. If you have questions or need further assistance, don’t hesitate to contact us for expert advice!

4. Keyway Dimensions And Set-Screw Locations

Sprockets are typically secured to the shaft using an ANSI-standard keyway along with one or more set screws. Based on the shaft diameter, ANSI standards define specific dimensions for keyways, including length, wid
