083 Metric Roller Chain Sprockets

Raydafon Group's 083 Metric Roller Chain Sprockets are precision-engineered for smooth power transmission in industrial machinery, offering durable materials and innovative design. Ideal for engineers and manufacturers, they reduce downtime and boost efficiency. Stand out with superior performance and reliability, solving wear issues for lasting satisfaction.

Send Inquiry

Product Description

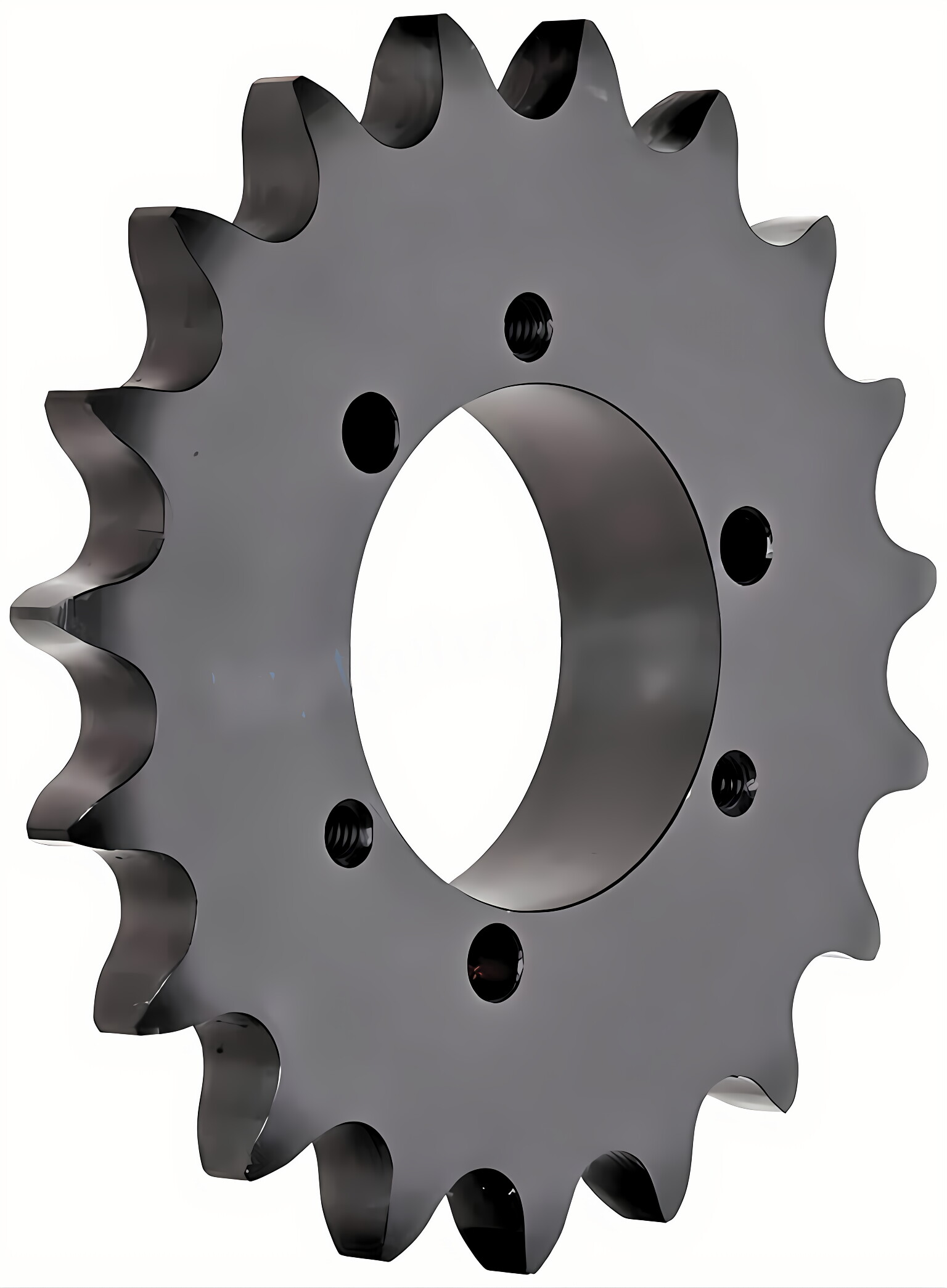

083 roller chain sprockets are manufactured for metric 083 roller chain and are manufactured in accordance with ISO, DIN, and BS228 standards. Our sprockets are precision manufactured from high-quality steel, directly interchange with other manufacturers, and are engineered for superb performance and durability. Common styles of these sprockets include B-Hub, C-Hub, and taper bushed type but others are available upon request. 083 Metric Roller Chain Sprockets

083 A-Plate Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter (O)	Outside Diameter (K)	Stock Bore (D)	Weight (kg)
*083A8*	8	33.18mm	39.5mm	8mm	0.018
*083A9*	9	37.13mm	43.4mm	8mm	0.020
*083B-10A*	10	41.10mm	47.4mm	8mm	0.030
*083B-11A*	11	45.07mm	51.4mm	8mm	0.040
*083B-12A*	12	49.07mm	55.4mm	8mm	0.050
*083B-13A*	13	53.06mm	59.4mm	8mm	0.060
*083B-14A*	14	57.07mm	63.4mm	8mm	0.070
*083B-15A*	15	61.09mm	67.4mm	8mm	0.080
083B-16A	16	65.01mm	71.4mm	10mm	0.090
*083B-17A*	17	69.11mm	75.4mm	10mm	0.100
*083B-18A*	18	73.14mm	79.4mm	10mm	0.120
*083B-19A*	19	77.16mm	83.5mm	10mm	0.130
*083B-20A*	20	81.19mm	87.5mm	10mm	0.170
083B-21A	21	85.22mm	91.5mm	10mm	0.185
083B-22A	22	89.24mm	95.5mm	10mm	0.200
083B-23A	23	93.27mm	99.6mm	10mm	0.225
083B-24A	24	97.29mm	103.6mm	10mm	0.250
083B-25A	25	101.33mm	107.6mm	10mm	0.260
083B-26A	26	105.36mm	111.7mm	12mm	0.285
083B-27A	27	109.40mm	115.7mm	12mm	0.310
083B-28A	28	113.42mm	119.7mm	12mm	0.335
083B-29A	29	117.46mm	123.8mm	12mm	0.350
083B-30A	30	121.50mm	127.8mm	12mm	0.370
083B-31A	31	125.54mm	131.8mm	12mm	0.395
083B-32A	32	129.56mm	135.9mm	12mm	0.420
083B-33A	33	133.60mm	139.9mm	12mm	0.470
083B-35A	35	141.68mm	148.0mm	12mm	0.540
083B-36A	36	145.72mm	152.0mm	16mm	0.550
083B-37A	37	149.76mm	156.1mm	16mm	0.580
083B-38A	38	153.80mm	160.1mm	16mm	0.610
083B-39A	39	157.83mm	164.1mm	16mm	0.645
083B-40A	40	161.87mm	168.2mm	16mm	0.690
083B-41A	41	165.91mm	172.7mm	16mm	0.725
083B-42A	42	169.95mm	176.7mm	16mm	0.760
083B-43A	43	173.99mm	180.8mm	16mm	0.800
083B-44A	44	178.03mm	184.8mm	16mm	0.835
083B-45A	45	182.07mm	188.9mm	16mm	0.870
083B-46A	46	186.10mm	192.9mm	20mm	0.900
083B-47A	47	190.14mm	196.9mm	20mm	0.930
083B-48A	48	194.18mm	201.0mm	20mm	1.000
083B-49A	49	198.22mm	205.0mm	20mm	1.010
083B-50A	50	202.26mm	209.1mm	20mm	1.045
083B-51A	51	206.30mm	213.1mm	20mm	1.050
083B-52A	52	210.34mm	217.1mm	20mm	1.055
083B-53A	53	214.37mm	221.2mm	20mm	1.150
083B-54A	54	218.43mm	225.2mm	20mm	1.280
083B-55A	55	222.46mm	229.3mm	20mm	1.100
083B-56A	56	226.50mm	233.3mm	20mm	1.300
*083B-57A*	57	230.54mm	237.3mm	20mm	1.310
083B-58A	58	234.58mm	241.4mm	20mm	1.445
083B-59A	59	238.62mm	245.4mm	20mm	1.480
083B-60A	60	242.66mm	249.5mm	20mm	1.560
083B-62A	62	250.75mm	257.5mm	20mm	1.650
083B-64A	64	258.82mm	265.5mm	20mm	1.800
083B-65A	65	262.6mm	269.7mm	20mm	1.850
083B-66A	66	266.90mm	273.7mm	25mm	1.900
083B-68A	68	274.99mm	281.8mm	25mm	2.050
083B-70A	70	283.07mm	289.9mm	25mm	2.080
083B-72A	72	291.16mm	298.0mm	25mm	2.350
083B-75A	75	303.27mm	310.1mm	25mm	2.450
083B-76A	76	307.33mm	314.1mm	25mm	2.500
083B-78A	78	315.40mm	322.2mm	25mm	3.100
083B-80A	80	323.48mm	330.3mm	25mm	3.700
083B-85A	85	343.69mm	350.5mm	25mm	3.730
083B-90A	90	363.90mm	370.7mm	25mm	3.775
083B-95A	95	384.11mm	390.9mm	25mm	5.650
083B-100A	100	404.31mm	411.1mm	25mm	5.700
083B-110A	110	444.74mm	451.5mm	25mm	6.000
083B-114A	114	460.90mm	467.7mm	25mm	6.700
083B-120A	120	485.16mm	492.0mm	25mm	6.800
083B-125A	125	505.37mm	512.2mm	25mm	6.750

083 B-Hub Sprockets:

Hot Tags: 083 Metric Roller Chain Sprockets Wholesale, Custom Roller Chain Sprockets Manufacturer, High-Quality Roller Chain Sprockets Supplier

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

How do I find the correct specifications for my replacement hydraulic cylinder?View More >>

Can locking assemblies be used in high-speed or high-temperature applications?View More >>

How do you select the right size and specifications for a welded through hole cylinder?View More >>

What are the design considerations for selecting a universal joint?View More >>

What safety precautions should I take when replacing machinery parts?View More >>

How to maintain and troubleshoot an industrial vibrating screen?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

Sprocket Size	Tooth Count	Pitch Diameter (O)	Outside Diameter (K)	Hub Diameter (N)	Stock Bore (D)	Maximum Bore	Length Thru Bore (L)	Weight (kg)
083B8	8	33.18mm	39.5mm	21mm	8mm	16mm	14mm	0.04
083B9	9	37.13mm	43.4mm	25mm	8mm	18mm	14mm	0.05
083-10B	10	41.10mm	47.4mm	28mm	8mm	21mm	14mm	0.07
083-11B	11	45.07mm	51.4mm	31mm	8mm	23mm	16mm	0.10
083-12B	12	49.07mm	55.4mm	25mm	8mm	26mm	16mm	0.18
083-13B	13	53.06mm	59.4mm	39mm	8mm	28mm	16mm	0.20
083-14B	14	57.07mm	63.4mm	43mm	8mm	31mm	16mm	0.24
083-15B	15	61.09mm	67.4mm	47mm	8mm	31mm	16mm	0.24
083-16B	16	65.01mm	71.4mm	50mm	10mm	35mm	18mm	0.30
083-17B	17	69.11mm	75.4mm	50mm	10mm	38mm	18mm	0.32
083-18B	18	73.14mm	79.4mm	50mm	10mm	40mm	18mm	0.33
083-19B	19	77.16mm	83.5mm	50mm	10mm	42mm	18mm	0.34
083-20B	20	81.19mm	87.5mm	50mm	10mm	44mm	18mm	0.42
083-21B	21	85.22mm	91.5mm	60mm	12mm	44mm	20mm	0.51
083-22B	22	89.24mm	95.5mm	60mm	12mm	44mm	20mm	0.53
083-23B	23	93.27mm	99.6mm	60mm	12mm	44mm	20mm	0.56
083-24B	24	97.29mm	103.6mm	60mm	12mm	44mm	20mm	0.56
083-25B	25	101.33mm	107.6mm	60mm	12mm	44mm	20mm	0.64
083-26B	26	105.36mm	111.7mm	70mm	16mm	44mm	20mm	0.72
083-27B	27	109.40mm	115.7mm	70mm	16mm	44mm	20mm	0.78
083-28B	28	113.42mm	119.7mm	70mm	16mm	44mm	20mm	0.77
083-29B	29	117.46mm	123.8mm	70mm	16mm	50mm	20mm	0.81
083-30B	30	121.50mm	127.8mm	70mm	16mm	50mm	20mm	0.83
083-31B	31	125.54mm	131.8mm	70mm	16mm	56mm	20mm	0.85
083-32B	32	129.56mm	135.9mm	70mm	16mm	56mm	20mm	0.87
083-33B	33
