3 Point Hitch Rotary Disc Mower for Hay Cutting
  • 3 Point Hitch Rotary Disc Mower for Hay Cutting3 Point Hitch Rotary Disc Mower for Hay Cutting

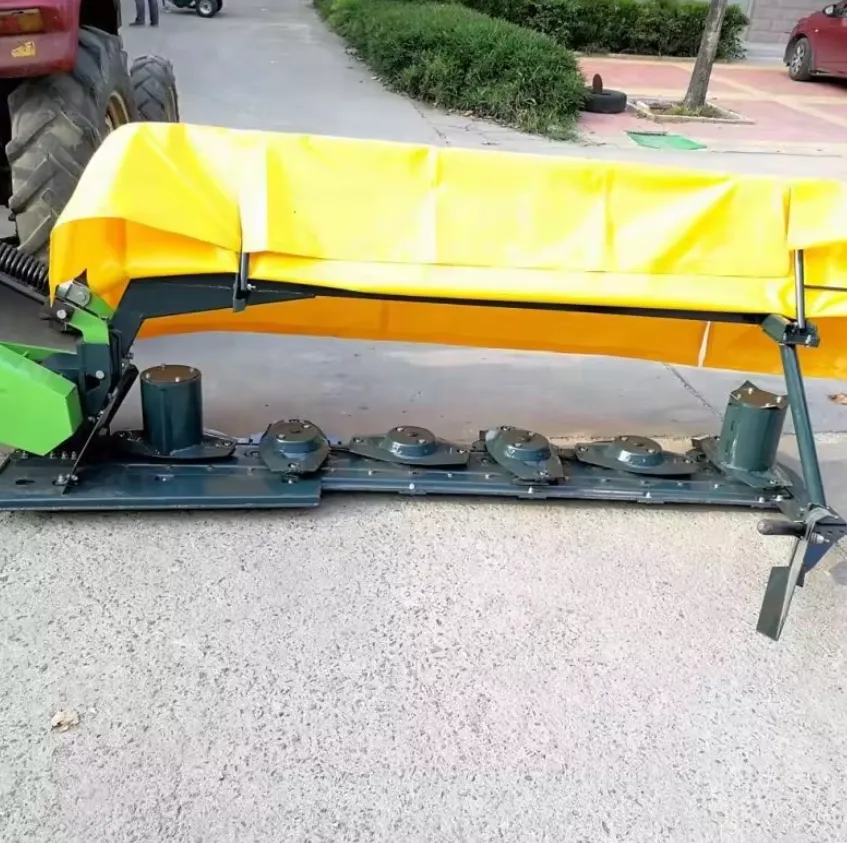

3 Point Hitch Rotary Disc Mower for Hay Cutting

Raydafon Group's 3 Point Hitch Rotary Disc Mower for Hay Cutting is the ultimate hay-cutting solution, designed with durable materials and advanced disc technology for efficient, clean cuts. Ideal for farmers and agriculture professionals, it handles tough fields effortlessly, saving time and labor. Feel the satisfaction of a job well done with reliable performance that stands out from competitors. Discover how Raydafon Group can enhance your farming experience today with our quality-built mower.
[embed]https://youtu.be/H7-7kBC6MpI[/embed] A 3-point hitch rotary disc mower is a type of agricultural implement used for cutting and harvesting grass, hay, or other crops. It is designed to be attached to the rear of a tractor using a three-point hitch system, which provides stability and control during operation. This type of mower is commonly used in farming, landscaping, and other agricultural applications. The key components of a 3-point hitch rotary disc mower include a cutting unit, a power transmission system, and the mounting structure. The cutting unit typically consists of multiple rotating discs, each equipped with several cutting blades. These blades spin rapidly and cut the vegetation as the mower moves forward. The power transmission system is responsible for transferring power from the tractor's power take-off (PTO) to the cutting discs. The mounting structure connects the mower to the tractor's three-point hitch, ensuring proper alignment and stability during operation. One of the main advantages of a rotary disc mower is its ability to cut large areas of vegetation quickly and efficiently. The rotating discs and sharp cutting blades allow for a clean and precise cut, resulting in a well-groomed appearance. Additionally, the three-point hitch design ensures easy attachment and detachment, making it convenient for farmers and operators to switch between different implements as needed. Another benefit of a 3-point hitch rotary disc mower is its versatility. It can be adjusted to different cutting heights and angles, allowing the operator to adapt to varying field conditions and achieve the desired cutting results. Some models also offer additional features such as a swivel hitch, which enables the mower to follow the contours of the terrain, ensuring an even cut on uneven surfaces. 3 Point Hitch Rotary Disc Mower for Hay Cutting

Specifications of the 3 Point Hitch Rotary Disc Mower

Specifications
RXDM1300
RXDM1700
RXDM2150
RXDM2550
Matched Power
18-50hp
35-80hp
40-85hp
45-90hp
3-Point Linkage
Cat. I or II
Cat. I or II
Cat. I or II
Cat. I or II
Length
2080mm
2533mm
2950mm
3270mm
Width
1180mm
1180mm
1280mm
1280mm
Height
780mm
780mm
780mm
780mm
Weight
280kgs
370kgs
400kgs
450kgs
Working Width
1300mm
1700mm
2150mm
2550mm
Number of Disk
2 or 3 pcs
4pcs
5pcs
6pcs
Working Speed
4-10km/h
4-10km/h
4-10km/h
4-10km/h

Benefits of Using the 3 Point Hitch Rotary Drum Mower

The 3-point hitch rotary drum mower, a vital tool for efficient grass cutting and haymaking, brings a host of benefits to the agricultural sector. Its design, which integrates rotating drums equipped with cutting blades, offers a unique set of advantages over traditional mowers and other haymaking equipment. Here's a look at the benefits of using a 3-point hitch rotary drum mower: 1. Efficiency and Productivity: Thanks to its powerful cutting action and wide coverage area, the rotary drum mower can cut large fields in a relatively short period, increasing overall productivity. The robust design of the drum mower makes it capable of cutting through dense, thick, or tall grasses where other types of mowers might struggle, ensuring work continues even in challenging conditions. 2. Clean and Uniform Cut: The sharp blades on the rotating drums provide a clean cut, which is vital for the quick and even drying of hay. A clean cut also means healthier regrowth of forage crops, contributing to sustainable pasture management. The design minimizes the crushing or bruising of the crop, preserving the quality of the forage and ensuring higher nutritional value. 3. Durability and Low Maintenance: Rotary drum mowers are built to last, with a simple yet sturdy design that can withstand the rigors of heavy use without frequent breakdowns. Compared to more complex mowing systems, the rotary drum mower has fewer moving parts, leading to lower maintenance costs and less downtime for repairs. 4. Adaptability: These mowers perform well on uneven ground, gently following the contours of the land to ensure an even cut across the field. The 3-point hitch design allows for compatibility with a wide range of tractor sizes, making it accessible for farms of various scales. 5. Low Maintenance: Rotary drum mowers generally require minimal maintenance compared to some other types of mowers. Regular cleaning, blade sharpening or replacement, and lubrication of moving parts are typically the primary maintenance tasks. 3 Point Hitch Rotary Disc Mower for Hay Cutting

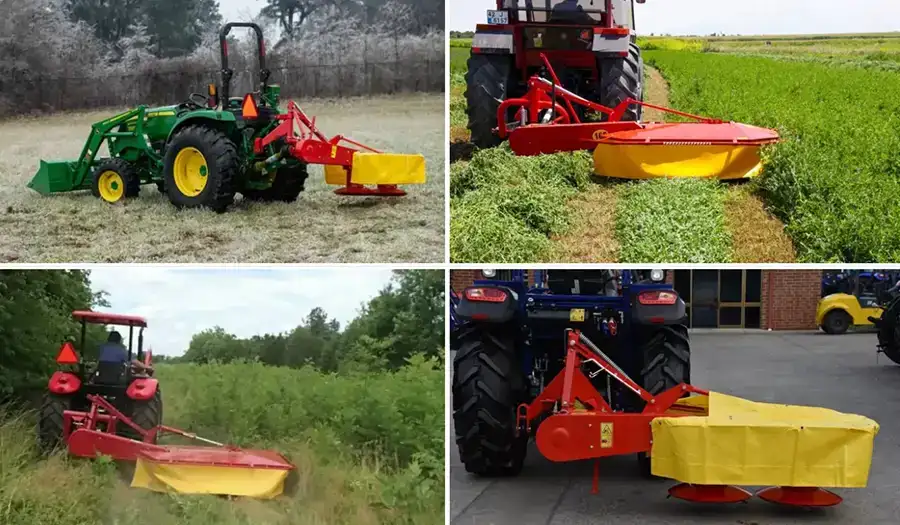

Common Applications of the 3 Point Hitch Rotary Drum Mower

The 3-point hitch rotary drum mower is a versatile agricultural implement that can be used for various applications in cutting and harvesting different types of crops and vegetation. Here are some common applications of the 3-point hitch rotary drum mower: (1) Grass Cutting: One of the primary applications of the rotary drum mower is cutting grass in agricultural fields, meadows, pastures, or lawns. It can efficiently mow large areas of grass, ensuring a neat and well-maintained appearance. (2) Hay Cutting: The rotary drum mower is commonly used for cutting hay, whether it's for livestock feed or for baling and storage. It can cut the hay at the desired height and efficiently prepare it for drying and subsequent baling. (3) Forage Harvesting: The rotary drum mower is often used in the harvesting of forage crops such as alfalfa. It can effectively cut the crop at the appropriate stage of maturity for optimal nutritional value and facilitate the subsequent drying and baling process. (4) Corn Stalk and Straw Cutting: Rotary drum mowers can be utilized to cut corn stalks and straw after harvest. This helps in managing crop residues and preparing the field for subsequent agricultural practices, such as tilling or mulching. (5) Wheat and Barley Cutting: The rotary drum mower can be used to harvest small grains like wheat and barley. It can effectively cut the crop close to the ground, facilitating the collection of the harvested grain for further processing. (6) Orchard Maintenance: Rotary drum mowers are also suitable for maintaining orchards or vineyards. They can be used to trim grass and vegetation between tree rows, keeping the area clean and reducing the competition for nutrients and water. 3 Point Hitch Rotary Disc Mower for Hay Cutting

Working Principle of the 3 Point Hitch Rotary Drum Mower

The 3-point hitch rotary drum mower operates on straightforward yet effective mechanical principles, making it a reliable and efficient tool for cutting grass and forage crops. Here's an overview of its working principle:

1. Attachment and Power Source

  • 3-Point Hitch Connection: The mower is attached to the tractor via a three-point hitch system. This standardized connection provides stability and allows for quick attachment and detachment, as well as easy lifting for transport or maneuvering around obstacles.
  • Power Take-Off (PTO) Drive: The mower is powered by the tractor’s PTO shaft. This shaft transfers the engine’s mechanical power to the mower. Once the PTO is engaged, it drives the mower’s gearbox, which in turn powers the rotary drums.

2. Rotary Drum Cutting Mechanism

  • Rotating Drums: The core components of the mower are the rotary drums. These are cylindrical units equipped with sharp blades. The number of drums can vary, but they all rotate on a horizontal axis parallel to the ground.
  • Blade Action: Mounted on the outer edge of each drum are multiple cutting blades. As the drum rotates, these blades spin at high speed, cutting the grass or crop cleanly and efficiently. The rotation of the drums and blades is powered by the gearbox, which converts the PTO’s rotational speed to the optimal speed for cutting.

3. Cutting Process

  • Movement and Cutting: As the tractor moves forward, the rotating drums cut a wide swath of grass or forage. The mower’s forward speed and the drum rotation speed work together to ensure a uniform and efficient cutting action.
  • Adjustability for Terrain: The height of the mower can be adjusted via the three-point hitch, allowing it to accommodate different types of terrain and crop heights. This adaptability ensures a consistent cut across various field conditions.

4. Efficiency and Cleanliness of Cut

  • Efficient Cutting Action: The fast rotation of the drum blades results in a clean, sharp cut, minimizing damage to the plants and promoting healthier regrowth. The efficiency of the cut is enhanced by the mower's ability to handle thick and tall vegetation.
  • Minimal Soil Disturbance: The design of the mower, combined with the precise cutting action of the rotating drums, ensures minimal disturbance to the soil, reducing the risk of soil erosion and promoting sustainable land management practices.

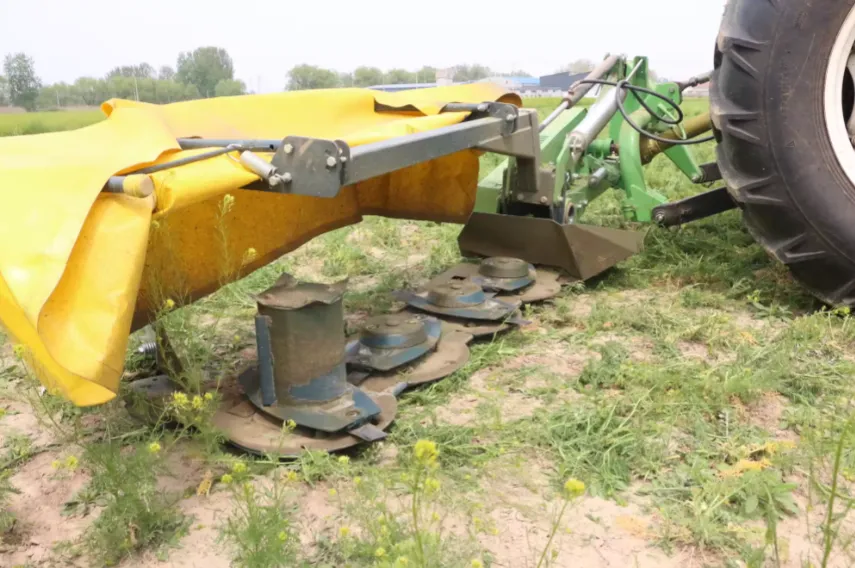

3 Point Hitch Rotary Disc Mower for Hay Cutting

Installation Process of the 3 Point Hitch Rotary Drum Mower to Tractor

Installing a 3-point hitch rotary drum mower to a tractor involves a series of steps that ensure a safe and effective connection for optimal operation. It's important to follow both the tractor's and the mower's instruction manuals closely, as specific models might have unique requirements or additional safety precautions. Below is a general guide to help you through the installation process:

Preparation

  • Read the Manuals: Begin by thoroughly reviewing the owner's manuals for both the tractor and the drum mower. Pay special attention to any specific installation instructions or safety warnings.
  • Inspect the Equipment: Ensure both the tractor and mower are in good working condition. Check for any damaged or worn parts that may need replacing before installation.

Step-by-Step Installation

1. Position the Mower

  • Park the tractor on a flat, stable surface and ensure it's turned off with the parking brake engaged.
  • Position the rotary drum mower directly behind the tractor, aligning it with the three-point hitch.

2. Attach the Three-Point Hitch

  • Connect the mower's lower hitch pins to the tractor's lower hitch arms. Secure the pins with locking clips to prevent disconnection.
  • Attach the top link between the mower and the tractor's top hitch point. Adjust the length of the top link to ensure the mower is level with the ground. Secure with a pin and locking clip.

3. Connect the PTO Shaft

  • Align the mower's PTO shaft with the tractor's PTO stub. Ensure the locking pins on the PTO shaft collar are properly engaged with the tractor's PTO stub. This may require slight rotation of the shaft or stub to fit.
  • Check the length of the PTO shaft. It should have enough overlap to accommodate the movement without being so long as to crumple or too short to disconnect when lifting or during operation.
  • Ensure all safety shields and guards on the PTO shaft are correctly installed and in good condition.

4. Hydraulic Connections (If Applicable)

  • If your drum mower uses hydraulic components for lifting or adjusting, connect the hydraulic hoses from the mower to the tractor's hydraulic outlets as per the manufacturer's instructions.

5. Final Checks

  • Double-check all connections to ensure they're secure. Ensure the mower is properly attached and the PTO shaft is correctly aligned.
  • Raise and lower the mower using the tractor's hydraulic controls to ensure it moves freely without any obstructions.
  • Start the tractor and engage the PTO at a low RPM to check for any unusual noises or movements. Ensure the mower rotates smoothly and correctly.

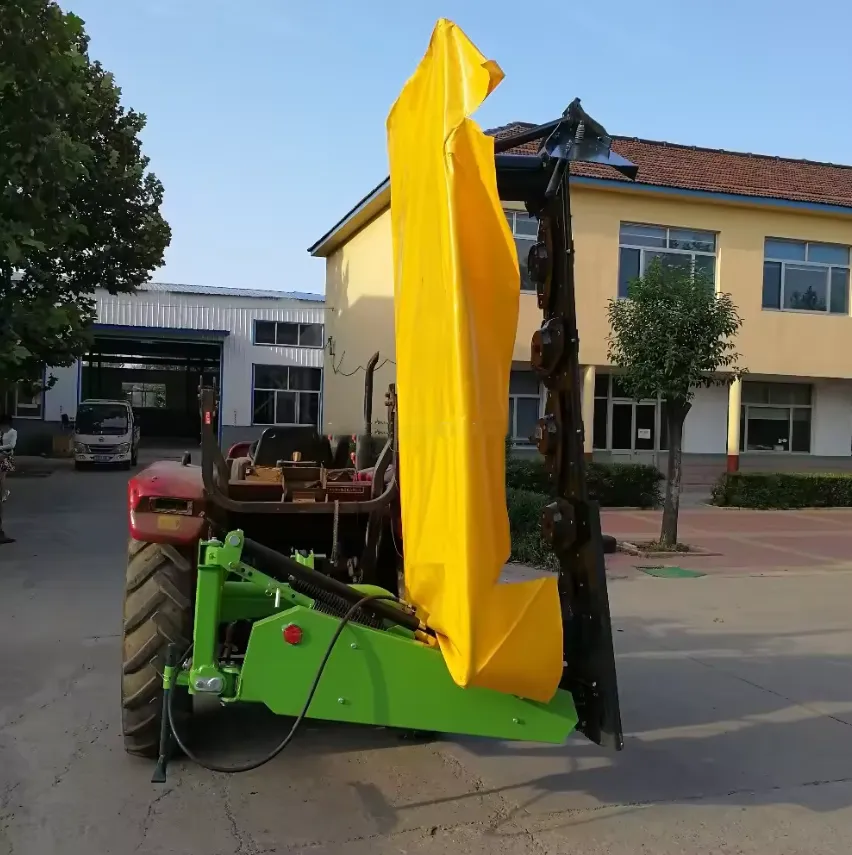

3 Point Hitch Rotary Disc Mower for Hay Cutting

Operation Precautions of the 3 Point Hitch Disc Drum Mower

Operating a 3-point hitch disc or drum mower requires adherence to specific precautions to ensure safety and efficiency. While disc and drum mowers have some differences in design and operation, many of the precautions for using them safely and effectively overlap. Here are some key operation precautions to consider:

Before Operation

  • Read the Manuals: Familiarize yourself with the mower's and tractor's operating manuals. Understanding the equipment's features, adjustments, and safety warnings is crucial.
  • Inspect the Equipment: Check the mower for any loose parts, damage, or wear. Ensure all safety guards and devices are in place and functional. Inspect the PTO shaft, connections, and blades for integrity.
  • Check the Work Area: Remove any obstacles, such as rocks, large branches, or debris, from the mowing area to prevent damage to the mower and ensure safety.

During Operation

  • Engage PTO Slowly: When starting the mower, gradually engage the PTO to prevent sudden jolts or damage to the equipment.
  • Maintain a Safe Speed: Operate the tractor at a speed that allows for effective cutting but is safe for the terrain and conditions. Too fast can lead to missed spots or damage; too slow may overload the mower.
  • Monitor for Obstacles: Always be vigilant for obstacles or changes in terrain that could harm the mower or cause an accident. Stop the mower to remove obstacles if needed.
  • Avoid Sharp Turns: Make wide, gradual turns to prevent damage to the mower, especially when it is lowered and engaged. Sharp turns can strain or damage the PTO shaft and mower.
  • Use Caution on Slopes: Be careful when mowing on slopes to prevent tipping. Mow up and down slopes rather than across to enhance tractor stability.

After Operation

  • Clean the Mower: Remove any debris, grass, or dirt that has accumulated on the mower. This helps prevent rust and keeps moving parts functional.
  • Disengage and Lower the Mower Safely: After mowing, disengage the PTO before turning off the tractor's engine. Lower the mower to the ground safely to avoid any potential injury or damage.
  • Conduct Regular Maintenance: Regularly check the mower's blades for sharpness, wear, or damage, and perform any recommended maintenance as outlined in the manual.

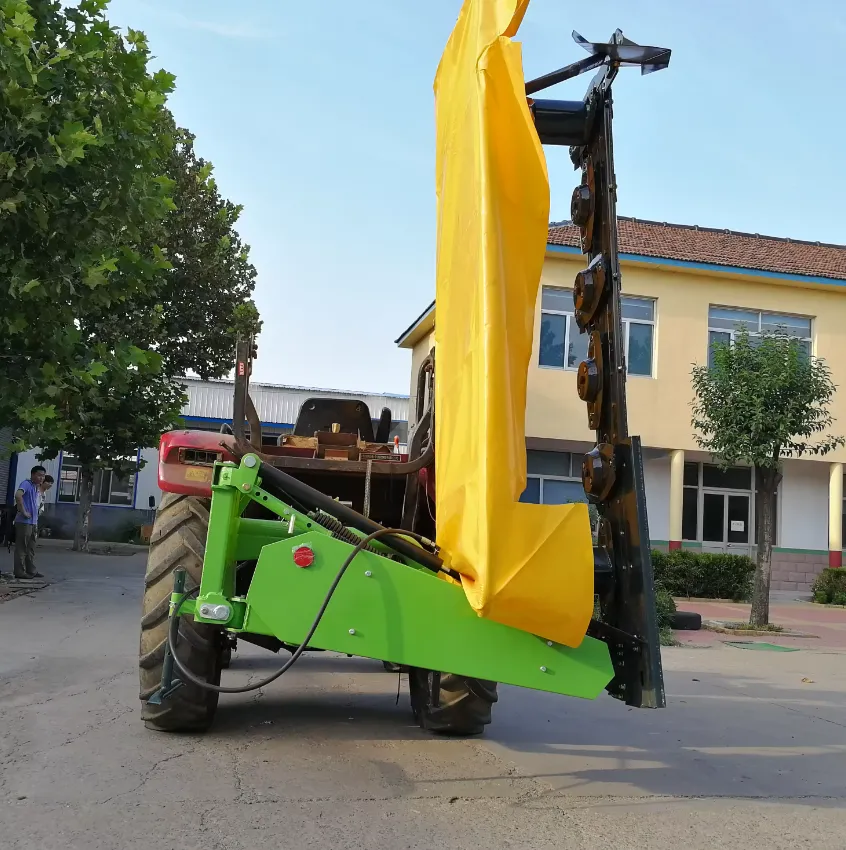

3 Point Hitch Rotary Disc Mower for Hay Cutting

Why Choose Raydafon's Disc Drum Mower?

Raydafon Agricultural Machinery Co., Ltd. offers unmatched quality and service when it comes to agricultural machinery. The company boasts over 100 employees, including 20 technical staff and five senior R&D personnel. Its state-of-the-art production lines equipped with top-notch machinery ensure high-quality products. With over ten years of experience in production, Raydafon provides a wide range of farming machinery and accessories. Our main products are PTO shafts, agricultural gearboxes, sickle bar mower, rotary mowers, flail mowers, lawn mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. The above series of products are complete in specifications, excellent in performance, and reliable in quality. Our products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. 3 Point Hitch Rotary Disc Mower for Hay Cutting

Our Professionalism and Certifications

We take pride in our professionalism and our international certifications. All our products are ISO certified, ensuring that they meet international quality standards. Our technical team is highly skilled and experienced, ensuring that our products are designed and manufactured to the highest standards.

Customized Services

We understand that our clients have diverse needs. As such, we offer customized services to meet your specific needs. Whether it??s the color of the mower or its functionality, we can tailor our products to match your requirements.

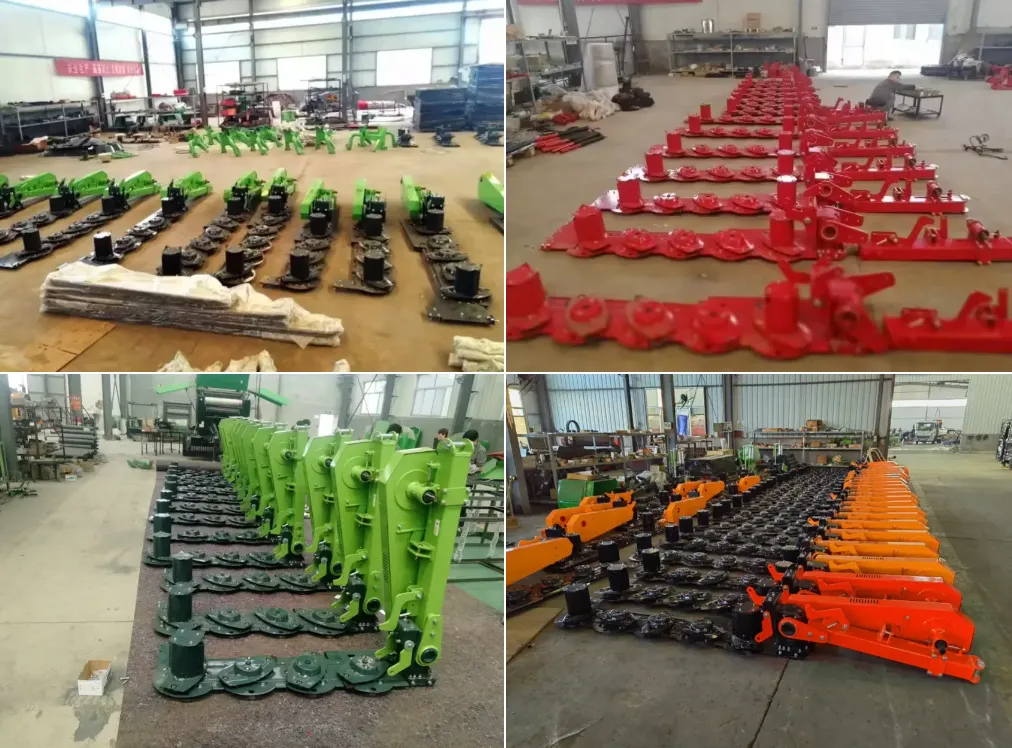

Production Facilities

We have state-of-the-art production facilities equipped with advanced machinery. This includes lathing, milling, planing, stamping, cutting plate, and electric welding. These facilities enable us to produce high-quality products consistently.

After-Sales Services

We offer excellent after-sales services, including overseas third-party support. This ensures that you have the support you need whenever you need it. Author: Yjx
