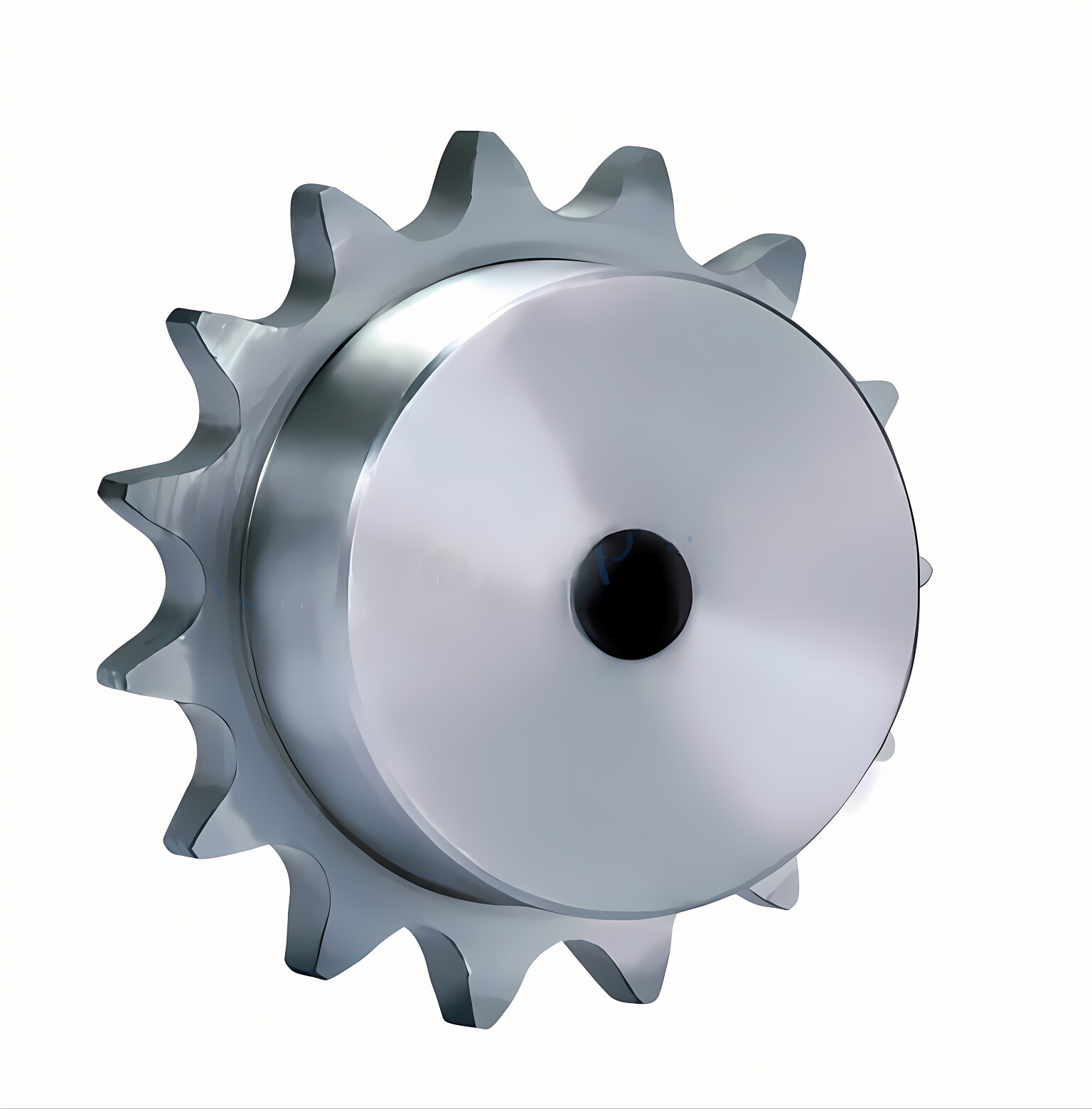

32B Chain Sprockets

Discover Raydafon Guoup’s 32B Chain Sprockets—durable, precision-engineered components for seamless power transmission in industrial machinery. Crafted from high-grade steel, these sprockets ensure smooth operation, reduce wear, and boost efficiency, perfect for engineers, maintenance teams, or heavy-duty applications. Experience reliability that tackles downtime head-on, setting Raydafon Guoup apart with innovative design—choose top-tier performance.

Send Inquiry

Product Description

32B sprockets are the metric equivalent to ANSI 160. Though they have the same pitch, a 160 sprocket will not work with a 32B chain because of other slight dimensional differences. We supply standard stock-bore A, B, and C-Hub sprockets as well as taper bushed style. However, we also supply custom bored and custom configurations 32B sprockets from our in-house machining facility. 32B Chain Sprockets

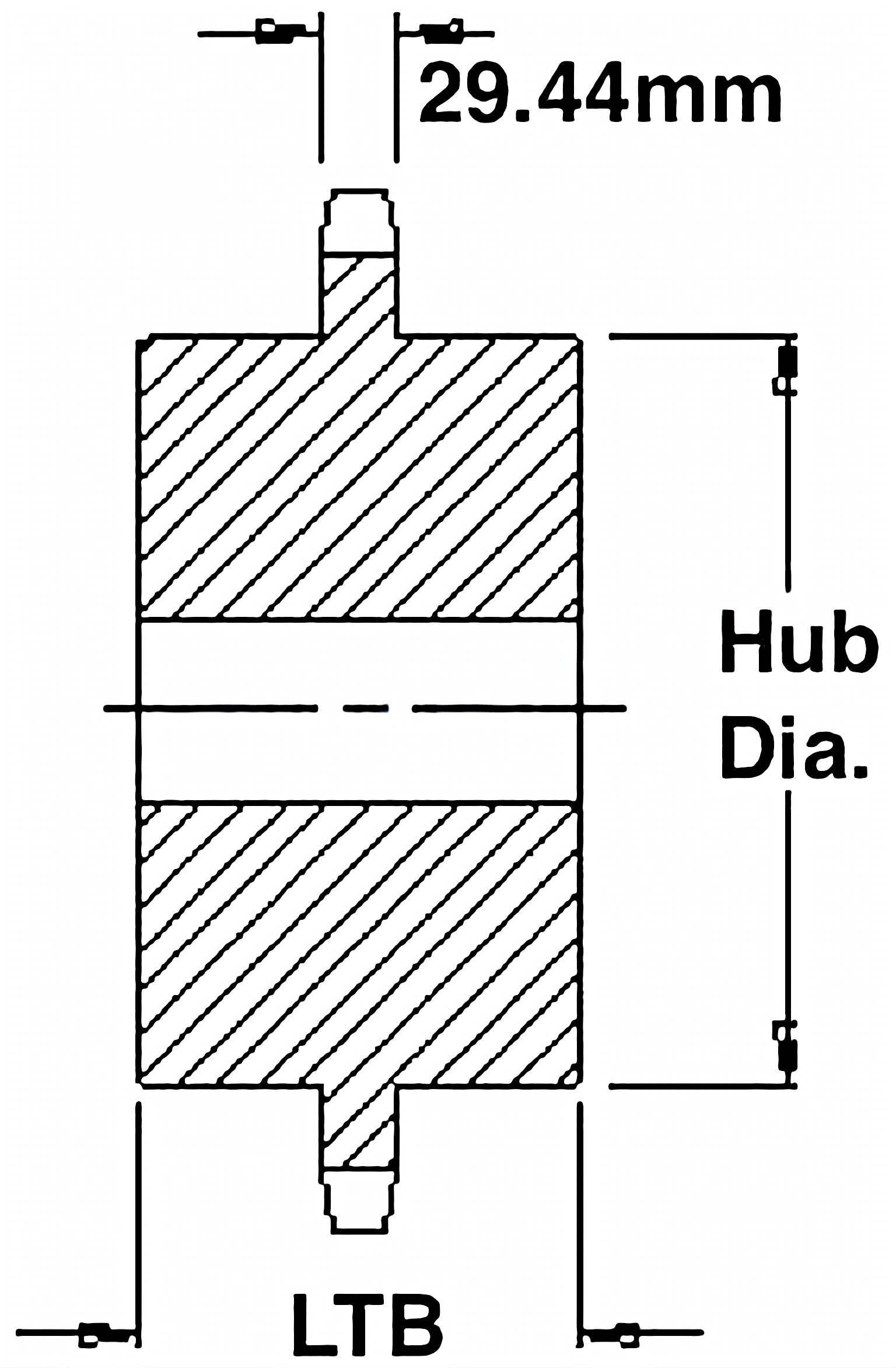

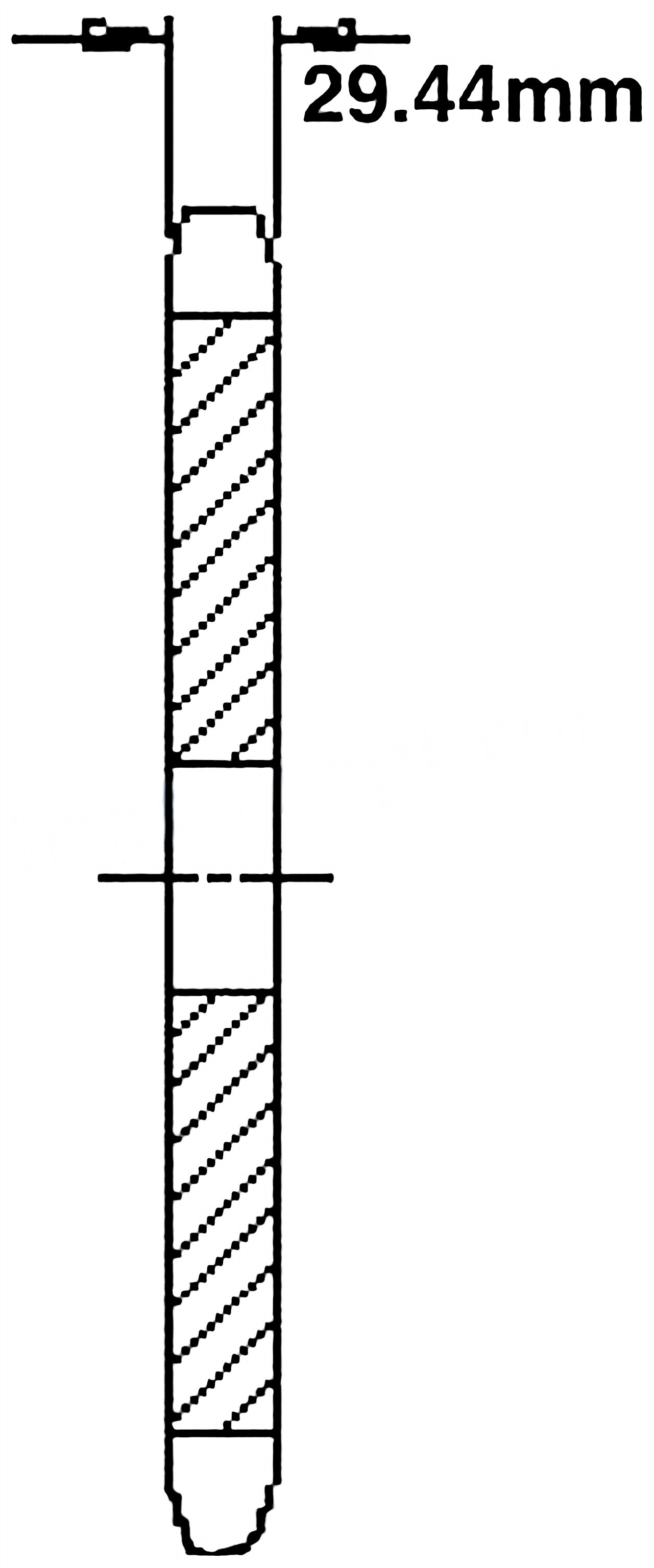

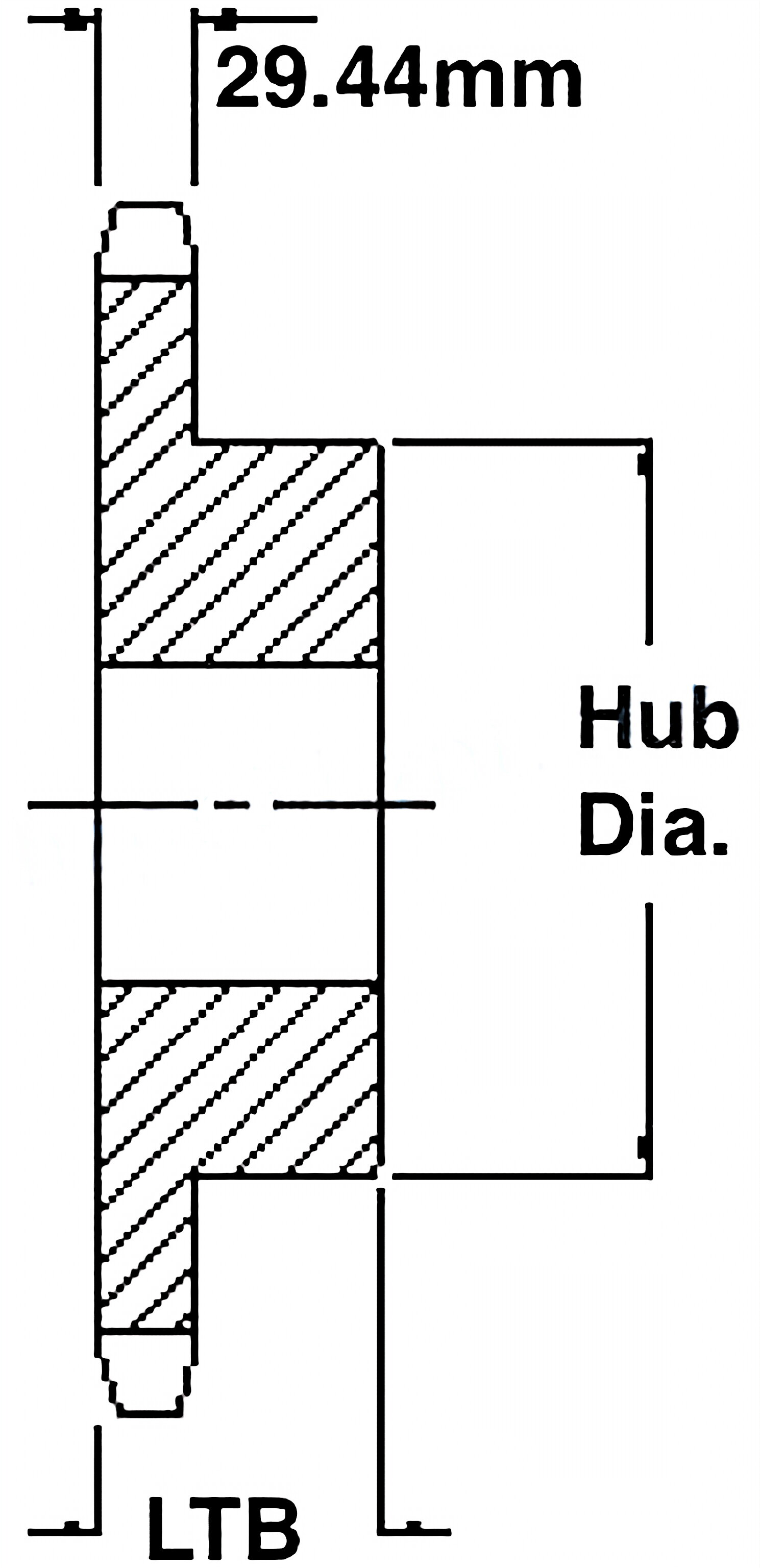

Type A, B, and C 32B Sprockets

Size	Pitch Diameter (mm)	Stock Bore (mm)	Max. Bore (mm)	Hub Dia. (mm)	LTB (mm)	Weight (kg)	Stock Bore (mm)	Weight (kg)
32B11	180.31	40	83	120	80	9.04	32	5.00
32B12	196.28	40	89	133	80	11.11	32	6.02
32B13	212.27	40	102	152	70	12.61	32	7.12
32B14	228.29	40	102	152	70	14.97	32	8.32
32B15	244.33	40	102	178	70	17.32	40	9.50
32B16	260.39	40	103	178	70	18.78	40	11.64
32B17	276.46	40	103	178	70	20.23	40	12.35
32B18	292.55	40	103	178	70	21.88	40	13.96
32B19	308.64	40	103	178	70	23.53	40	15.57
32B20	324.74	40	133	178	70	25.37	40	17.36
32B21	340.84	40	133	178	70	27.20	40	19.15
32B22	356.96	40	133	178	70	29.23	40	21.13
32B23	373.07	40	133	178	70	31.25	40	23.10
32B24	389.19	40	133	178	76	35.33	40	25.26
32B25	405.32	40	133	178	76	36.80	40	27.41
32B26	421.45	40	133	181	76	39.41	40	30.25
32B27	437.58	40	133	181	76	42.02	40	33.10
32B28	453.72	40	133	181	76	44.62	40	35.94
32B29	469.85	40	133	181	76	47.23	40	38.78
32B30	485.99	40	133	181	76	49.84	40	41.63
32B32	518.28	40	139	203	76	58.02	40	47.31
32C38	615.17	40	139	203	114	86.78	40	64.37
32C40	647.47	40	139	203	114	91.35	40	72.98
32C42	679.78	40	139	203	114	95.95	40	81.60
32C45	728.25	40	139	203	127	116.97	40	94.52
32C48	776.72	40	139	203	127	130.43	40	107.44
32C54	873.68	40	139	203	127	157.34	40	133.29
32C57	922.16	40	139	203	127	170.79	40	146.21
32C60	970.65	40	139	203	127	184.25	40	164.35
32C68	1099.96	40	139	203	127	220.13	40	212.73
32C72	1164.62	40	139	203	152	282.31	40	236.91
32C76	1229.28	40	139	203	152	297.99	40	261.10

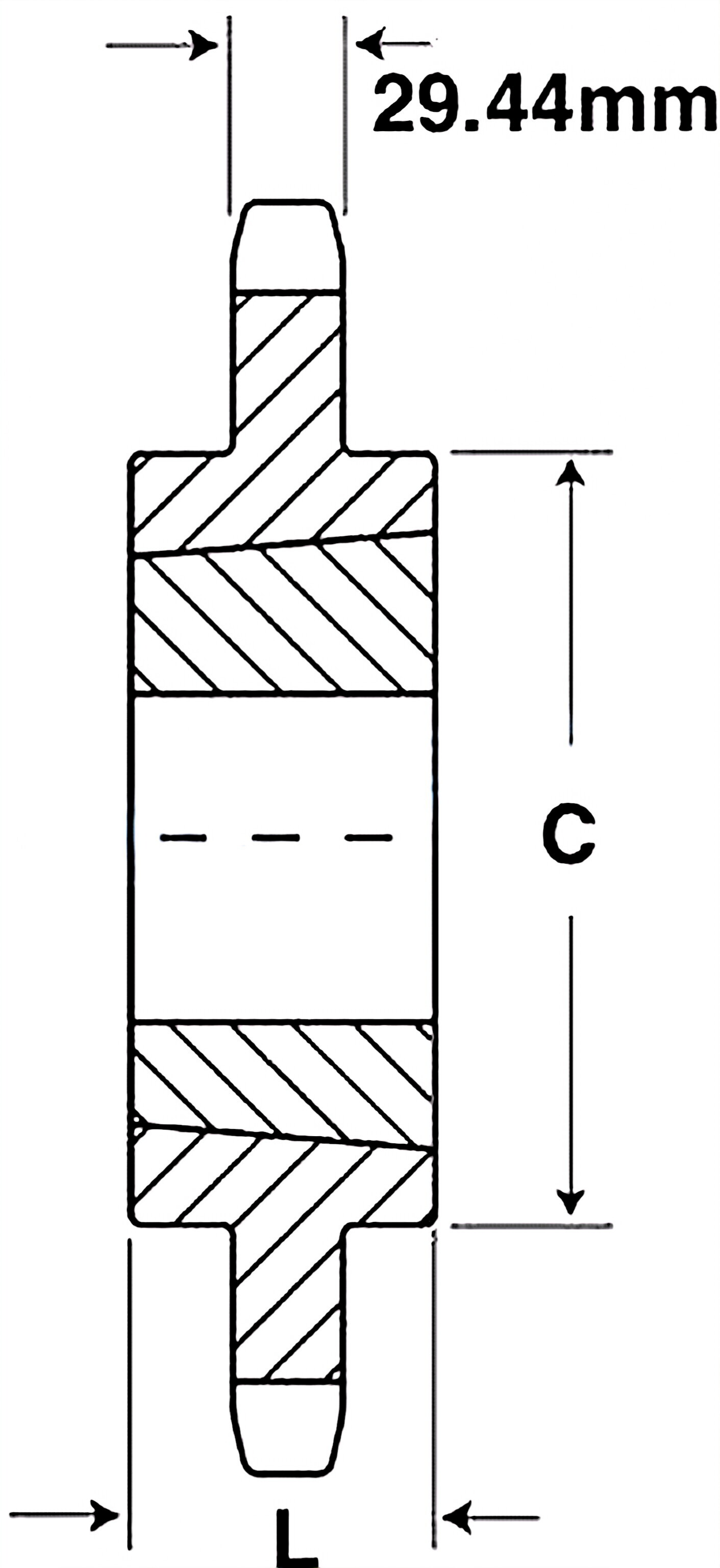

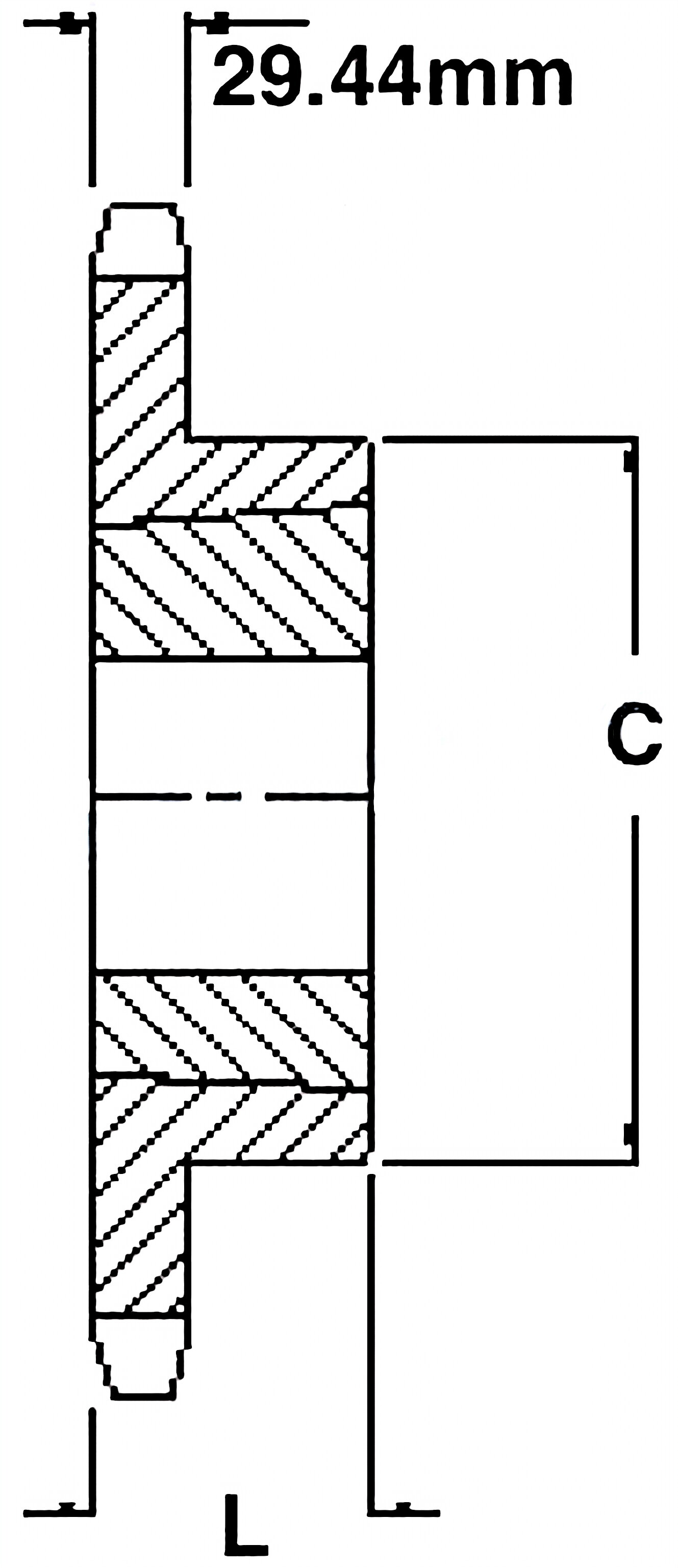

Taper Bushed 32B Sprockets

Size	Pitch Diameter (mm)	Stock Bore (mm)	Max. Bore (mm)	Hub Dia. (mm)	LTB (mm)	Weight (kg)	Stock Bore (mm)	Weight (kg)
32BTB11H	180.31	2517	63.50	44.45	107.95	4.51	32	5.00
32BTB12H	196.28	3020	76.20	50.80	133.35	5.27	32	6.02
32BTB13H	212.27	3020	76.20	50.80	133.35	6.38	32	7.12
32BTB14H	228.29	3020	76.20	50.80	133.35	6.87	32	8.32
32BTB15H	244.33	3535	88.90	88.90	165.10	11.80	40	9.50
32BTB16H	260.39	3535	88.90	88.90	165.10	13.38	40	11.64
32BTB17H	276.46	3535	88.90	88.90	165.10	14.98	40	12.35
32BTB18H	292.55	3535	88.90	88.90	165.10	16.12	40	13.96
32BTB19H	308.64	3535	88.90	88.90	165.10	17.25	40	15.57
32BTB20H	324.74	3535	88.90	88.90	165.10	21.10	40	17.36
32BTB21H	340.84	3535	88.90	88.90	165.10	24.94	40	19.15
32BTB22H	356.96	3535	88.90	88.90	165.10	27.79	40	21.13
32BTB23H	373.07	3535	88.90	88.90	165.10	30.64	40	23.10
32BTB24H	389.19	3535	88.90	88.90	165.10	33.48	40	25.26
32BTB25H	405.32	3535	88.90	88.90	165.10	36.32	40	27.41
32BTB26H	421.45	3535	88.90	88.90	165.10	39.16	40	30.25
32BTB27	437.58	3535	88.90	88.90	165.10	42.00	40	33.10
32BTB28	453.72	3535	88.90	88.90	165.10	44.84	40	35.94
32BTB30	486.99	3535	88.90	88.90	165.10	50.52	40	38.78
32BTB32	518.28	3535	88.90	88.90	165.10	56.20	40	41.63
32CTB38	615.17	4040	101.60	101.60	219.08	68.10	40	47.31
32CTB40	647.47	4040	101.60	101.60	219.08	77.08	40	64.37
32CTB45	728.25	4040	101.60	101.60	219.08	99.53	40	72.98
32CTB48	776.72	4040	101.60	101.60	219.08	113.01	40	81.60
32CTB54	873.68	4040	101.60	101.60	219.08	139.95	40	94.52
32CTB57	922.16	4545	114.30	114.30	247.65	136.20	40	107.44
32CTB60	970.65	4545	114.30	114.30	247.65	158.84	40	133.29
32CTB64	1035.30	4545	114.30	114.30	247.65	189.03	40	146.21
32CTB70	1132.29	4545	114.30	114.30	247.65	234.32	40	164.35
