4.5x16'' 2.5x16'' 3x16'' Rubber Hollow Seeding Seeder Planter Drill Firming Gauge wheels for planter

4.5x16'' 2.5x16'' 3x16'' Rubber Hollow Seeding Seeder Planter Drill Firming Gauge wheels for planter

The product mentioned in the keyword is a set of rubber gauge wheels used in seeders or planters. These gauge wheels are responsible for compacting the soil after seeds are planted, ensuring consistent seed depth and preventing seed drift. These particular gauge wheels come in three sizes: 4.5x16'', 2.5x16'', and 3x16''.

  The gauge wheel tire is mounted on the planter frame and is positioned next to the seed disc opener. It helps in controlling the depth of the disc opener, ensuring proper seed placement, and preventing the seeds from being planted too deep or shallow.

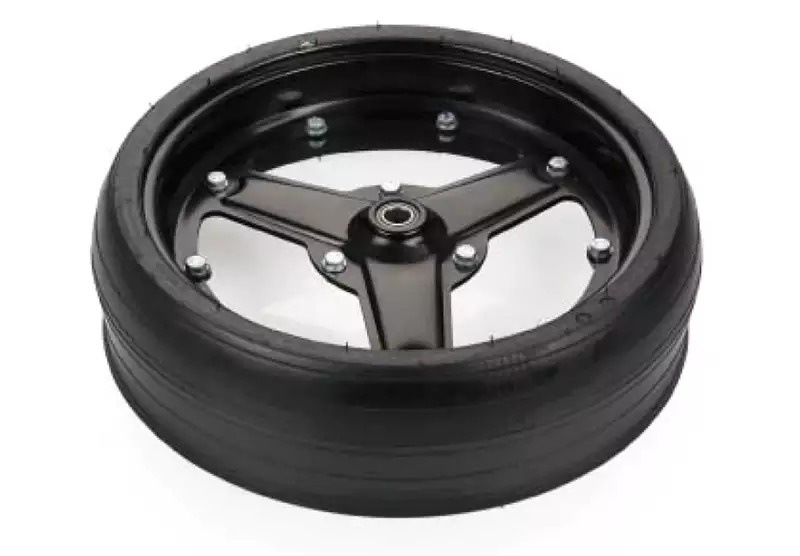

Item name	Guage wheel for seeding machine
Item No.	2K1076 /SM1076
Size/ Dimension	115x400 (4.5x16'')
Mounting hole	16.25 (0.64'')
Single weight	6.75kgs
Recommend	** New Design

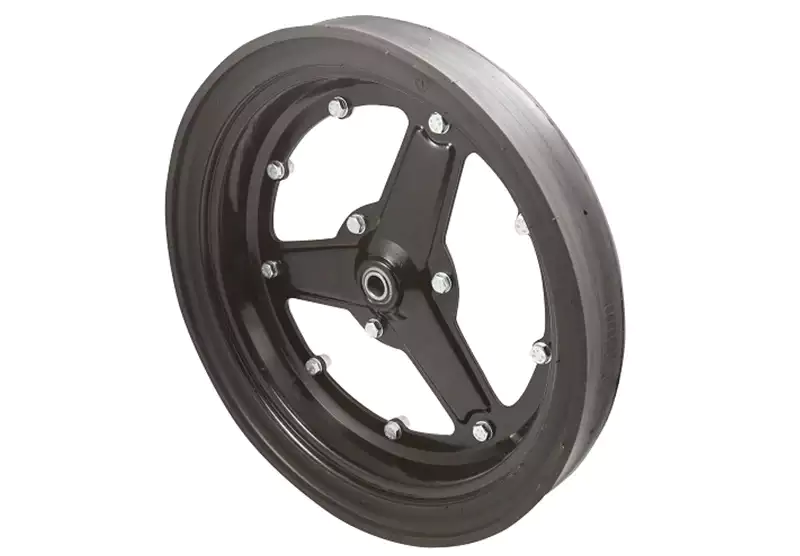

Item name	Guage wheel for seeding machine
Item No.	2K1077 /SM1077
Size/ Dimension	80x400 (3x16'')
Mounting hole	16.25 (0.64'')
Single weight	5.86kgs
Recommend	** New Design

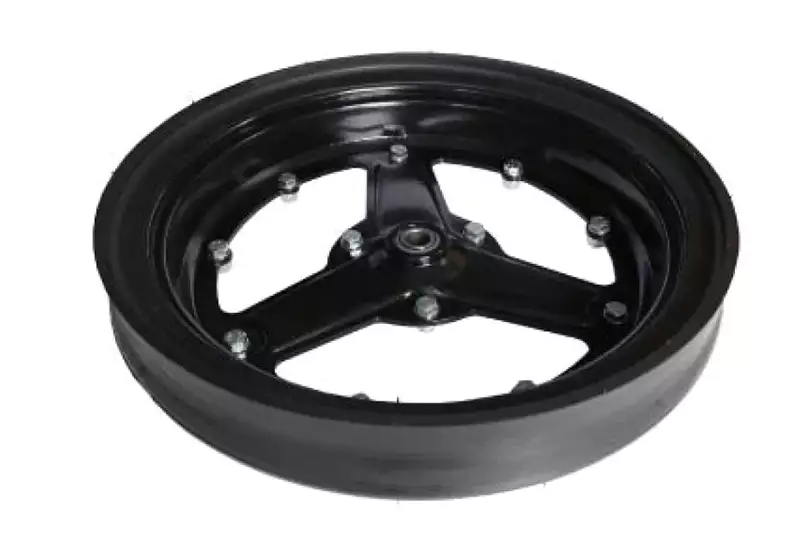

Item name	Guage wheel for seeding machine
Item No.	2K1078 /SM1078
Size/ Dimension	65x400(2.5x16'')
Mounting hole	16.25 (0.64'')
Single weight	5.6kgs
Recommend	** New Design

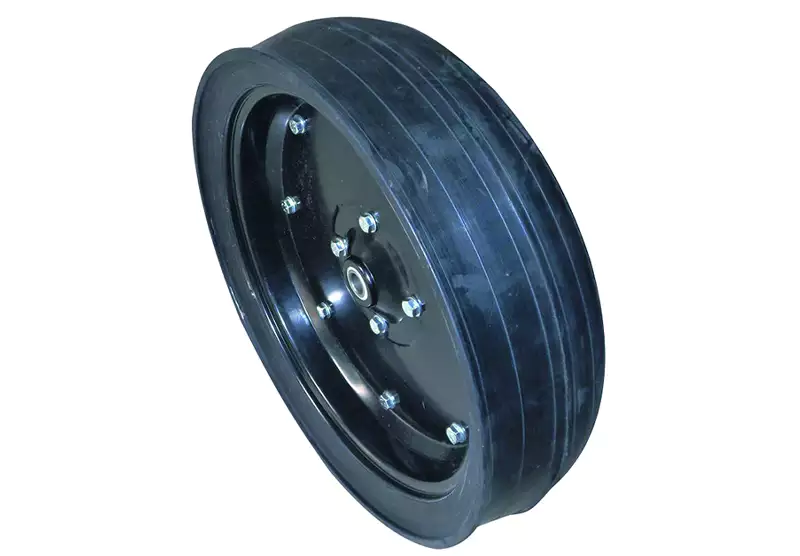

Item name	Guage wheel for seeding machine
Item No.	2K1016 /SM1016
Size/ Dimension	115x400 (4.6x16'')
Mounting hole	16.25 (0.64'')
Single weight	6.75kg

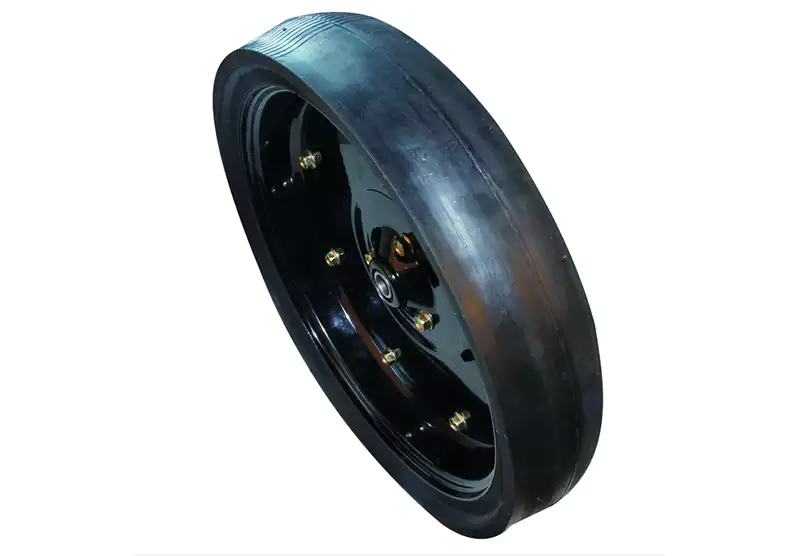

Item name	Guage wheel for seeding machine
Item No.	2K1021 /SM1021
Size/ Dimension	80x400 (3x16'')
Mounting hole	16.25 (0.64'')
Single weight	5.86kgs

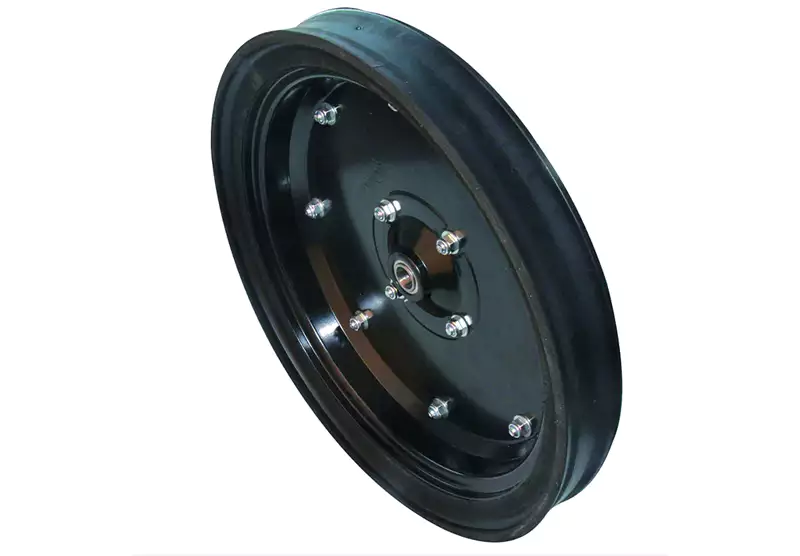

Item name	Guage wheel for seeding machine
Item No.	2K1025 /SM1025
Size/ Dimension	65x400 (2.5x16'')
Mounting hole	16.25 (0.64'')
Single weight	5.6kgs

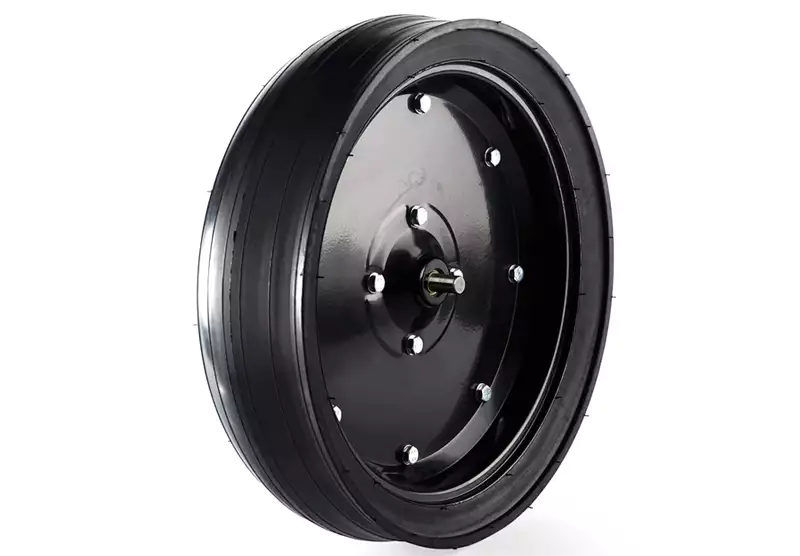

Item name	Guage wheel for seeding machine
Item No.	2K1038 /SM1038
Size/ Dimension	115x400 (4.5x16'')
Mounting hole	15.92 (0.627'')
Single weight	6.75kgs

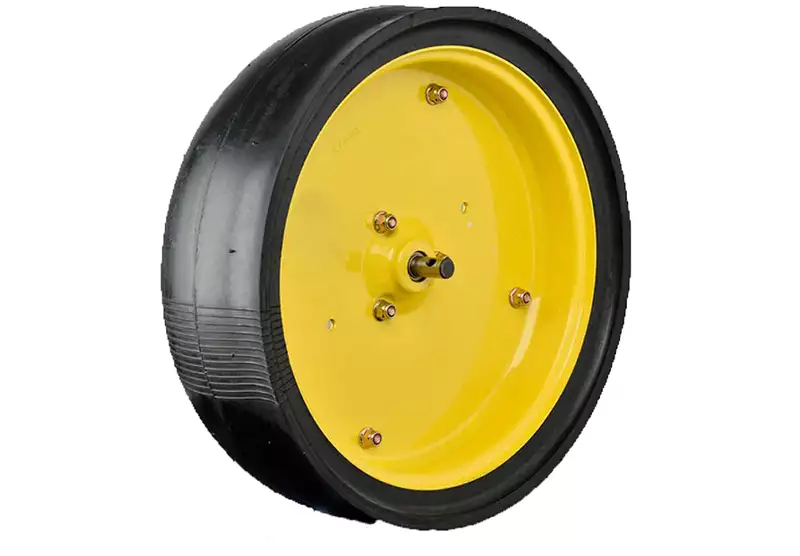

Item name	Guage wheel for seeding machine
Item No.	2K1056 /SM1056
Size/ Dimension	115x400 (4.5x16'')
Mounting hole	16  (0.627'')
Single weight	6.75kgs

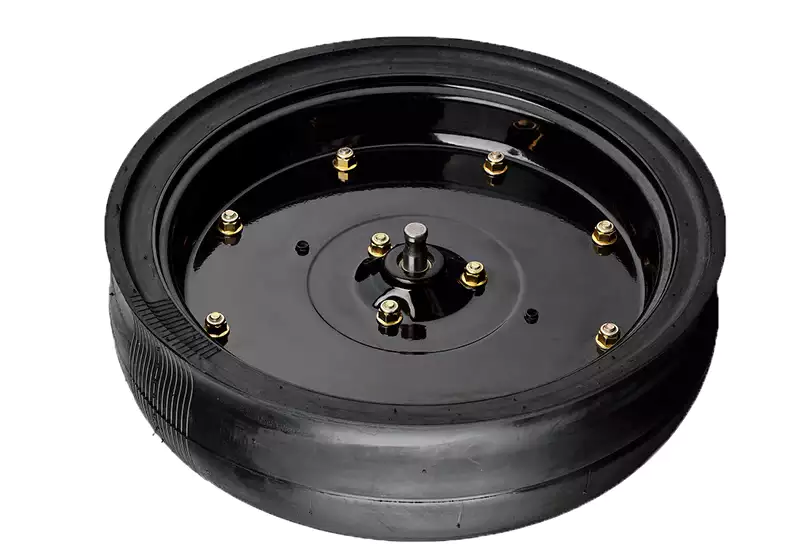

Item name	Guage wheel for seeding machine
Item No.	2K1066 /SM1066
Size/ Dimension	115x400 (4.5x16'')
Mounting hole	16 (0.627'')
Single weight	6.75kgs

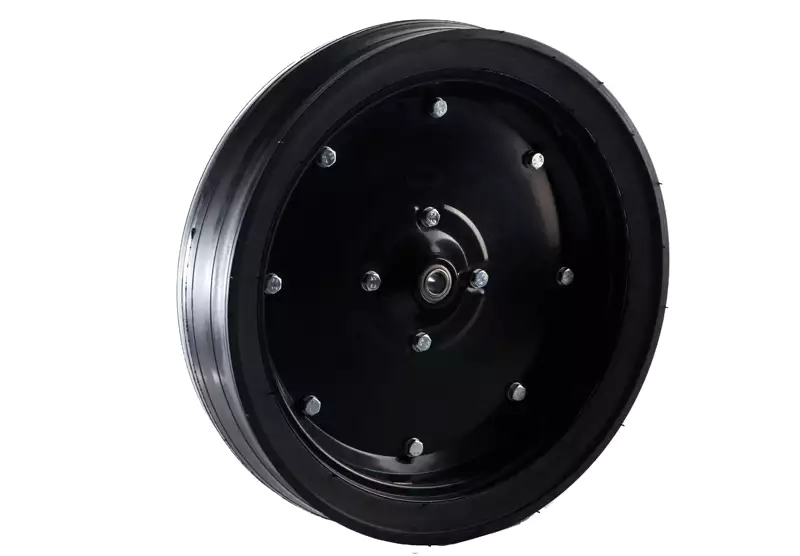

Item name	Guage wheel for seeding machine
Item No.	2K1090 /SM1090
Size/ Dimension	115x400 (4.5x16')'
Mounting hole	16.25 (0.64'')
Single weight	6.75kgs

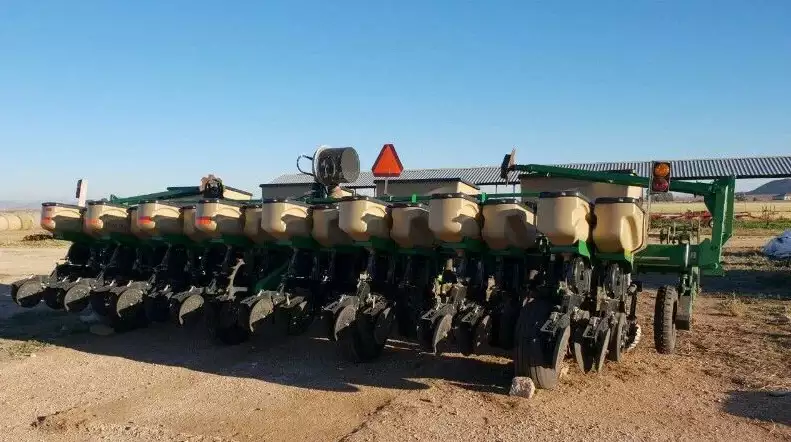

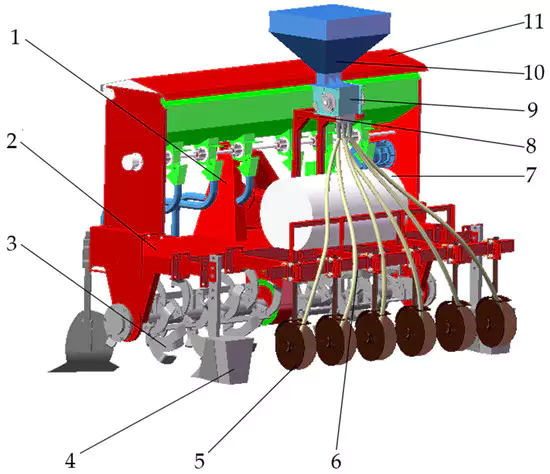

Usage in Seeder (Planter)

The gauge wheels are typically mounted on the frame of the seeder or planter, behind the double disc opener. As the planter moves forward, the double disc opener cuts through the soil and creates a furrow. The gauge wheels then compact the soil over the seed, ensuring proper seed-to-soil contact and consistent depth. This results in better seed germination rates and a more even crop.

Production and Advantages

We produce these gauge wheels and they can replace similar parts in most popular seeder or planter models. Our advantages include:

• Superior quality: Our gauge wheels are made with high-quality materials and precision manufacturing processes to ensure excellent wear resistance, corrosion resistance, and stability. This extends the lifespan of the product, reducing the frequency of replacements and maintenance costs.
• Wide compatibility: Our gauge wheels are compatible with most popular brands and models of seeders or planters on the market, ensuring that you can find high-quality matching parts for your machine.
• Rich product line: We provide a complete set of seeder or planter parts, including ditchers, seed plates, gearboxes, seed tubes, and seed-metering devices, to meet all of your purchasing needs in one place.
• Professional technical support: We have a professional technical team to support custom specifications and provide installation and technical consultation services.

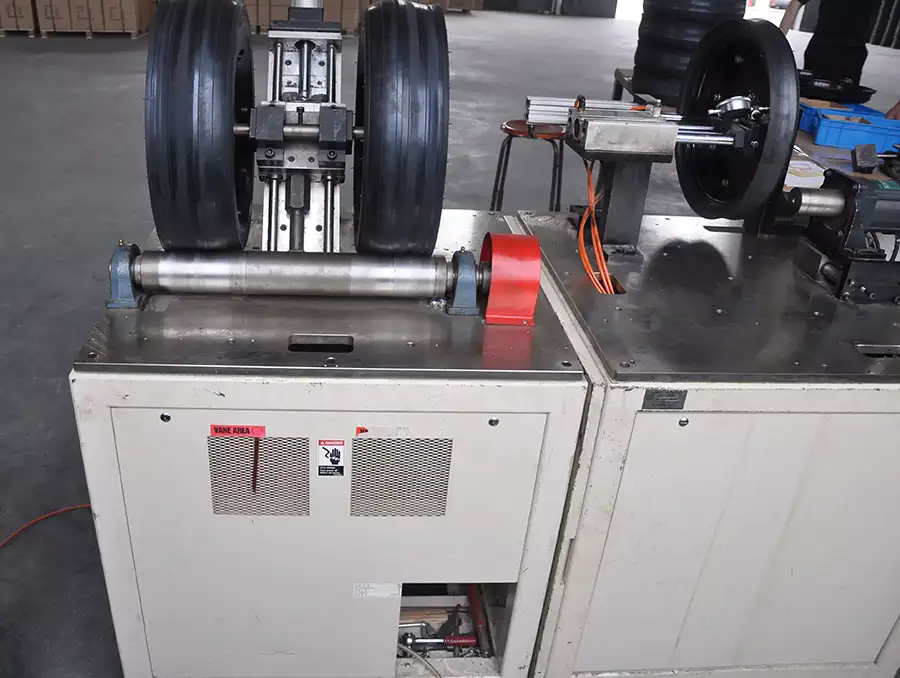

• Strict quality control system: We rigorously test and inspect all of our products to ensure that their performance meets or exceeds industry standards.

Compatible Seeder (Planter) Brands and Models

The following table lists some of the popular brands and models that our gauge wheels can be adapted to.

Brand	Model
John Deere	1700, 7200, 7300
Kinze	2000, 3000, 4000, 4900, 6400, 6600
White	5100, 5700, 6100

In addition to gauge wheels for seeders or planters, we also provide other agricultural machinery parts such as agricultural chains, gearboxes, pulleys, sprockets, couplings, PTO shafts, and concaves. See our website for more information.

Advantages Explained

1. Superior quality: Our gauge wheels are made of high-quality materials and manufactured with precision to ensure long-lasting wear resistance, corrosion resistance, and stability. This means fewer replacements and lower maintenance costs for our customers.
2. Wide compatibility: Our gauge wheels are compatible with most popular brands and models of seeders or planters, ensuring that you can find high-quality matching parts for your machine.
3. Rich product line: We provide a complete set of seeder or planter parts, including ditchers, seed plates, gearboxes, seed tubes, and seed-metering devices, to meet all of your purchasing needs in one place.
4. Professional technical support: Our professional technical team can support custom specifications and provide installation and technical consultation services.
5. Strict quality control system: We implement a rigorous quality management system with multiple quality inspection procedures to ensure that each product meets or exceeds industry standards.

Commonly Worn Seeder (Planter) Parts

Here are some commonly worn parts in seeders or planters and what they do:

1. Openers or Furrow Openers: These are key components at the front of the planter that come into direct contact with the soil and are responsible for digging planting furrows. They can wear out quickly, especially in hard or rocky soil.
2. Metering Units or Seed Plates: These plates control the quantity and uniformity of each seed planted. They may become deformed, worn, or lose accuracy after long periods of use.
3. Drive Chains and Sprockets: These parts in the planter's power transmission system are prone to wear, stretching, or breaking due to continuous high-load operation.
4. Seals and Bearings: These parts on the rotating components of the seeder or planter, such as the metering unit and drive shaft, can become worn, leaky, or fail due to long-term operation, stress, and contamination.
5. Seed Tubes: These tubes transport seeds from the seed plates to the furrow opener. They can become damaged due to seed abrasion or impact with foreign objects.
6. Closing Wheels or Press Wheels: These devices cover and compress soil after planting to help seeds germinate and grow. Their material can wear thin or break due to soil abrasion.
7. Electrical and Hydraulic Components: Components such as sensors, controllers, solenoid valves, and hydraulic cylinders on the planter may fail due to operating conditions and environmental factors.

When to Replace Worn Seeder (Planter) Parts

If you notice any of the following signs in your seeder or planter, it may be time to replace worn parts:

1. Uneven planting: If your planter is producing uneven seeding depth, seed spacing, or significant skips, this may be due to worn seed plates or damaged furrow openers. Check and replace the components as necessary.
2. Increased noise: If you hear unusual sounds in the chain drive system, such as rattling or slack, this may indicate severe wear or damage to the chains or sprockets.
3. Unstable planting depth: If the depth adjustment mechanism of your planter fails, you may start to see inconsistent seeding depth. Check the hydraulic cylinder, air cylinder, or spring in the lifting mechanism and replace if necessary.
4. Poor soil coverage: If the closing wheels or press wheels are worn or damaged, they may not effectively cover the seeds with soil, reducing germination rates. Replace the components if you notice excessive wear or structural damage.
5. Reduced power or heavy vibration: Check for worn drive shafts and bearings if you notice increased vibration or resistance while operating the planter. Additionally, check the belt drive system for wear, aging, or looseness and replace the belt if necessary.
