The double acting double axis MDC series compact mold cylinder is an innovative hydraulic cylinder designed specifically for mold applications. With its advanced features, reliable performance, and compact design, this cylinder offers exceptional functionality and efficiency in various industrial settings. Whether used in injection molding machines, die-casting equipment, or other mold-related applications, the double acting double axis MDC series compact mold cylinder provides precise control and optimal productivity.· MDC is a compact hydraulic cylinder (cx) with an electrical box and ram rod to control the neutron position of the mold accurately.· Hydraulic cylinder suitable for plastic mold use.

Compact Mold Cylinder Model Description:

Compact Mold Cylinder Characteristic Data:

Compact Mold Cylinder Structure Chart:

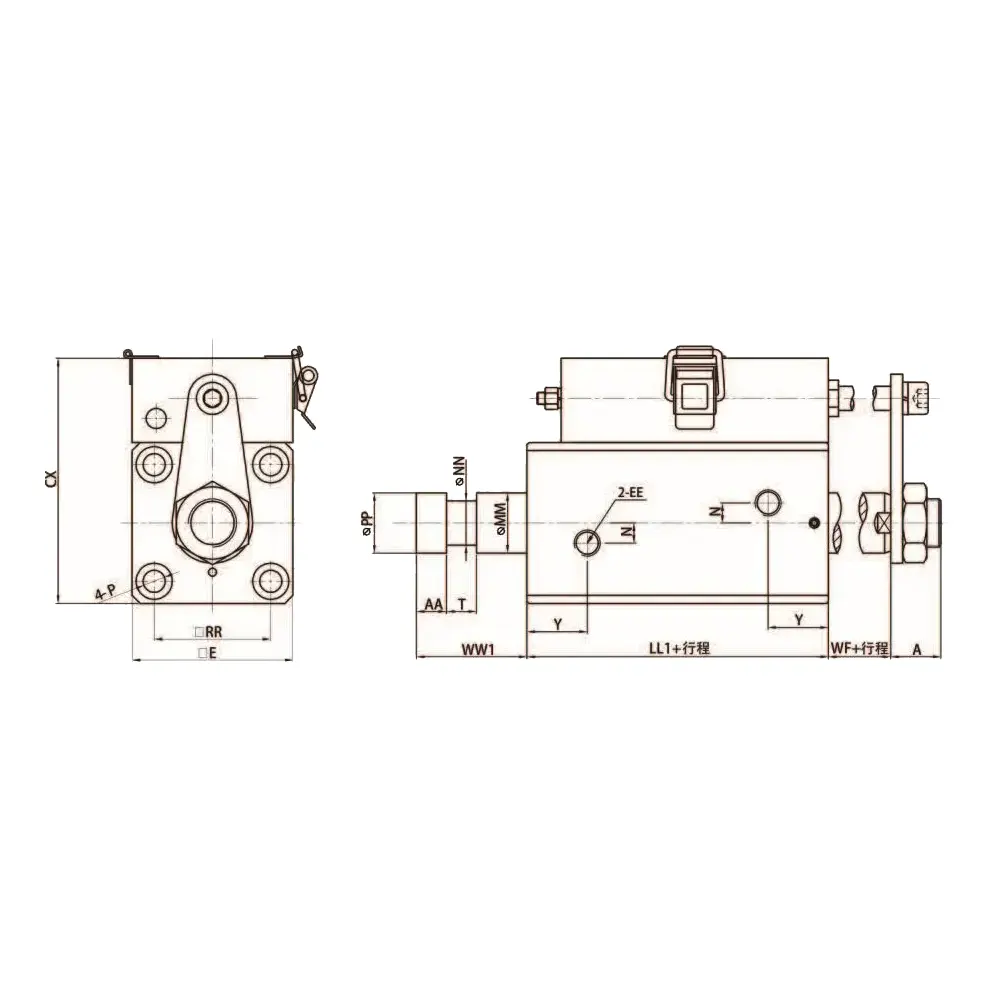

Piston Rod Connection Size Diagram:

Electrical Box Buckle Position, Oil Port Position, And Distribution Outlet Position:

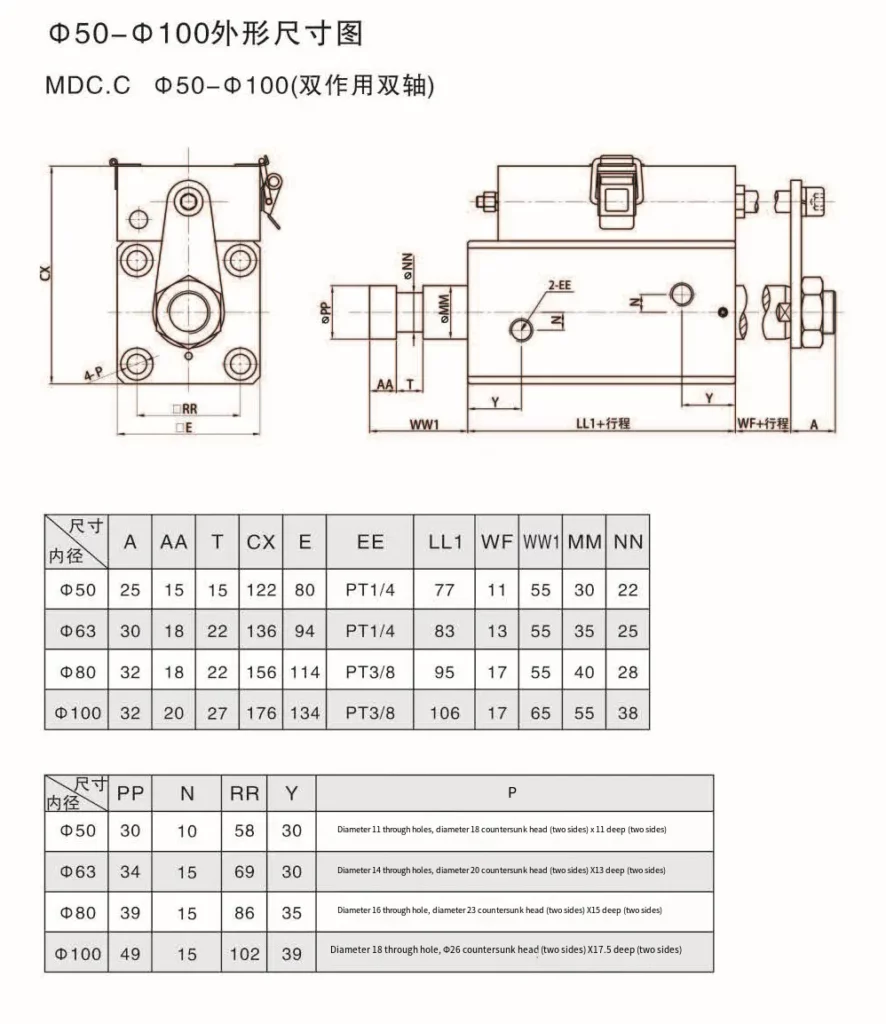

50-100 50-100 Double Acting Double Axis MDC Series Compact Mold Cylinder Parameter:

Usage Method Of 50-100 Double Acting Double Axis MDC Series Compact Mold Cylinder:

1. Double Acting Design:
   • The Double Acting Double Axis MDC Series Compact Mold Cylinder operates in both directions, allowing for bi-directional movement.
   • This design enables efficient and precise control over the mold's opening and closing actions, enhancing operational flexibility.
2. Double Axis Configuration:
   • This cylinder is designed for double-axis movement, providing linear motion along two perpendicular directions.
   • The double-axis configuration allows for complex mold actions, such as part ejection or core movement, improving mold versatility.
3. Compact and Space-Saving:
   • The MDC Series Compact Mold Cylinder features a compact design that optimizes space utilization in mold systems with limited clearance.
   • Its space-saving construction allows for easy integration into tight spaces, ensuring efficient use of available workspace.
4. High Precision and Stability:
   • This cylinder offers precise and stable movement, ensuring accurate control over mold actions during the manufacturing process.
   • It delivers consistent and repeatable results, ultimately contributing to high-quality production and reduced waste.
