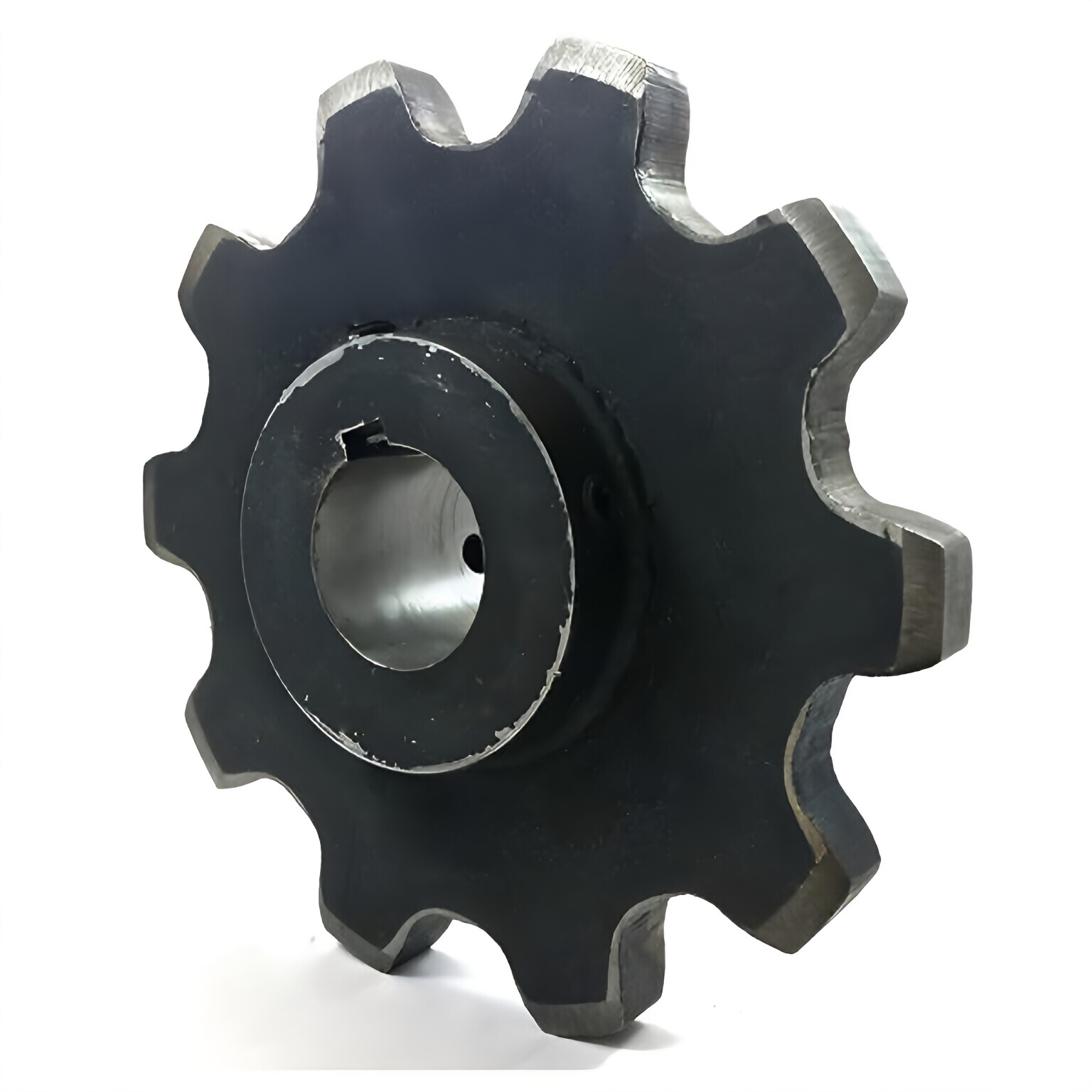

856-Series Sprockets

Raydafon Guoup's 856-Series Sprockets deliver unmatched durability for industrial machinery, featuring advanced steel alloys and precision engineering. Ideal for engineers and manufacturers, they ensure smooth, reliable operation, reducing downtime and boosting productivity. Experience efficiency with this superior, reliable component choice.

Send Inquiry

Product Description

856 series engineer class sprocket is used for a wide verity of chain sizes. These sizes include 856 and SBS856 size chains. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts as well as dimensions for each size.

Cast 856-Series Sprockets

Tooth Face at Pitch Line: 2.125" - Roller Diameter: 1.190"

Sprocket Size	Tooth Count	Pitch Diameter	Style	Hub Diameter	Length Thru Bore	Maximum Bore	Weight (LBS)
C856C7	7	13.83"	C	6.50"	5.00"	4.75"	122.0 LBS
C856C8	8	15.68"	C	6.50"	5.00"	4.75"	130.0 LBS
C856C10	10	19.42"	C	7.00"	5.00"	4.75"	200.0 LBS
C856C11	11	21.30"	C	7.00"	5.00"	4.75"	230.0 LBS
C856C12	12	23.18"	C	7.00"	5.50"	5.00"	245.0 LBS
C856C13	13	25.07"	C	7.50"	5.50"	5.00"	260.0 LBS
C856C14	14	26.96"	C	7.50"	5.50"	5.00"	285.0 LBS
C856C15	15	28.86"	C	7.50"	5.50"	5.00"	300.0 LBS

We aslo offer a full range of both precision roller chain and engineered.Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.
