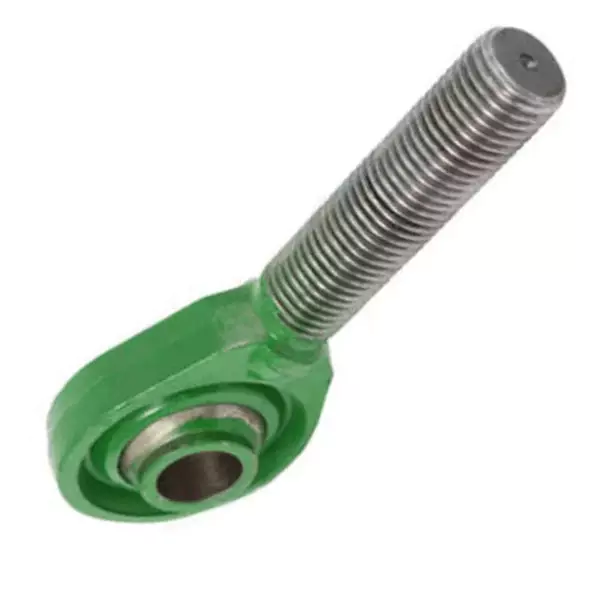

AL159969 Top Link End

Raydafon Group's AL159969 Top Link End is a durable steel connector designed for heavy-duty lifting and rigging applications. Its precision-engineered design ensures superior strength and safety, ideal for construction, industrial, and marine use. Experience enhanced reliability and peace of mind with our innovative, corrosion-resistant finish.

Send Inquiry

Product Description

AL159969 Top Link End

▍Replacement Parts

AL159969 Top Link End Suits John Deere Tractor: 6020 2090MC 6090RC 6100MC 6100RC 6105M 6110RC 6115M 6120 6125M 6130 6140M 6150M 6220 6230 6230PREMIUM 6300 6320 6330 6330PREMIUM 6400 6410 6420 6420S 6430 6430PREMIUM 6506 6510 6520 6530 6530PREMIUM 6600 6610 6620 6630 6630 PREMIUM 7130PREMIUM 7220 7230 PREMIUM 7320

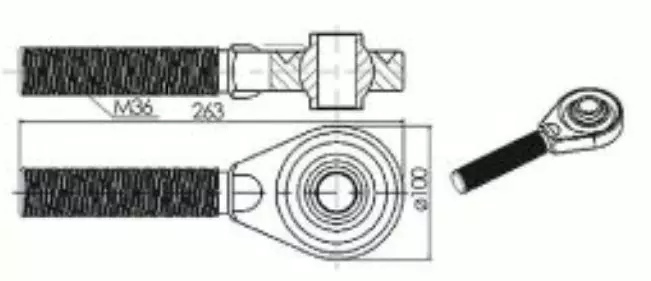

▍Parameters of AL78068 Toplink End

Ball End	Cat.3
Length	260mm (10 1/4”)
Thread length	185mm (7 1/4”)
Thread size	M36 x 3” Metric
Ball Bore Diameter mm	31.8mm (1 1/4”)
Ball Bore Diameter Inches	1.25
Ball Bore Diameter mm	31.8
Ball Width Inches	2
Ball Width mm	50.8
Category	3
End Radius Inches	1 3/4
End Radius mm	44.5
Finish	Zinc Yellow
Length inches	10 1/4
Length mm	260
Note	One Side Swaged
RH LH	LH
Thread	Metric
Thread Length inches	7.25
Thread length mm	185
Thread size:	M36 x 3

The parameters may differ from the actual ones.

▍Maintenance of Top link End

There are several types of common Top Link End for maintenance Regular maintenance: in order to ensure the normal operation of the main engine, a maintenance cycle is set according to the requirements of the main engine and the design theory and application experience of the Top Link End. Fault repair: stop the machine for inspection and repair in case of Top Link End fault. Early warning maintenance: the advanced Top Link End fault diagnosis technology is applied to stop real-time monitoring of the application status of the Top Link End, put forward a warning before the bearing fault occurs, and stop maintenance. During the operation of the Top Link End, there must be sound, temperature, vibration and other phenomena. Therefore, as for the maintenance of the running Top Link End, we can find the abnormal changes of the bearing by listening, touching, observing and using the bearing fault diagnosis instrument, and judge whether the Top Link End is in the normal working state according to the changed state.

▍Parts by equipment type

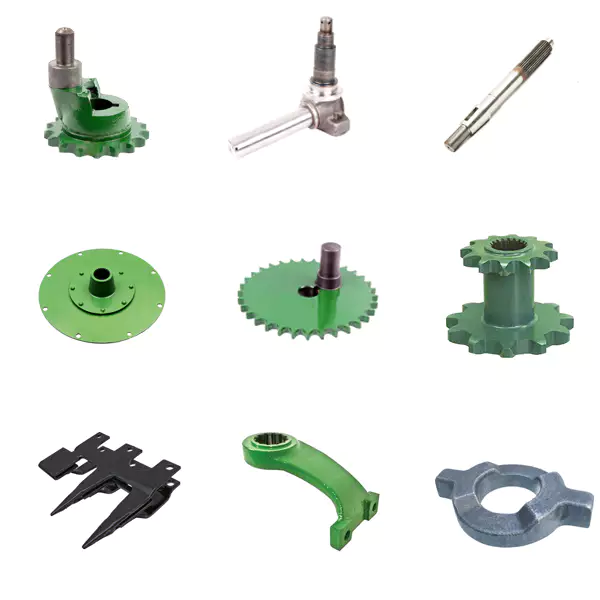

We can supply the following repair replacement parts for John Deere agricultural machinery equipment and accept customization Our products widely applicable for those tractor and engines such as Massey Ferguson, John deere, UTB, Fiat, Ford,New Holland, Perkins, Deutz and so on. Our products have covered more than 6000 kinds of parts. AL159969 Top Link End

▍Related Products

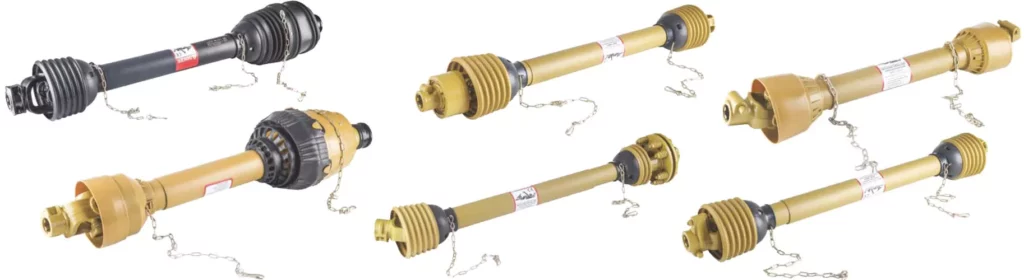

▍We Also Supply PTO Shafts & Agricultural Gearboxes

If you also need the PTO shafts, click here：https://hzpt.com/agricultural-pto-shaft/ AL159969 Top Link End

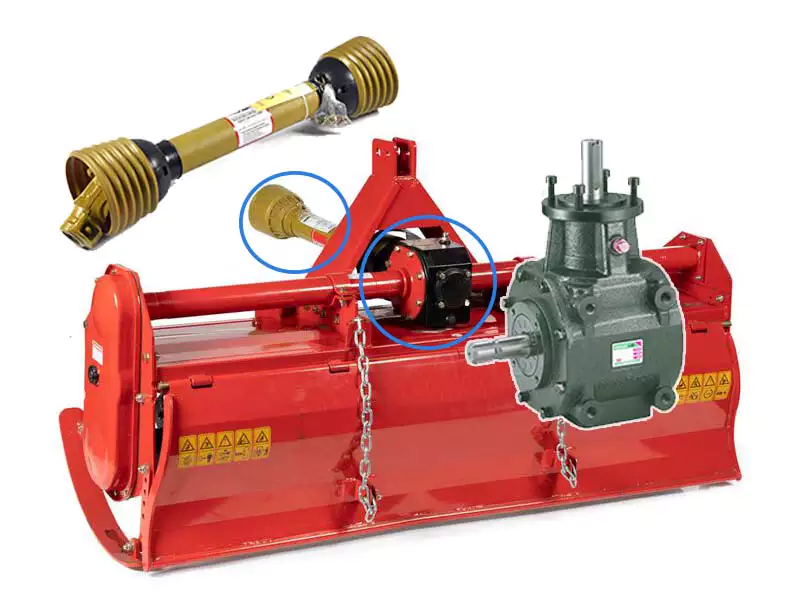

We Also Supply Agricultural Gearboxes AL159969 Top Link End
