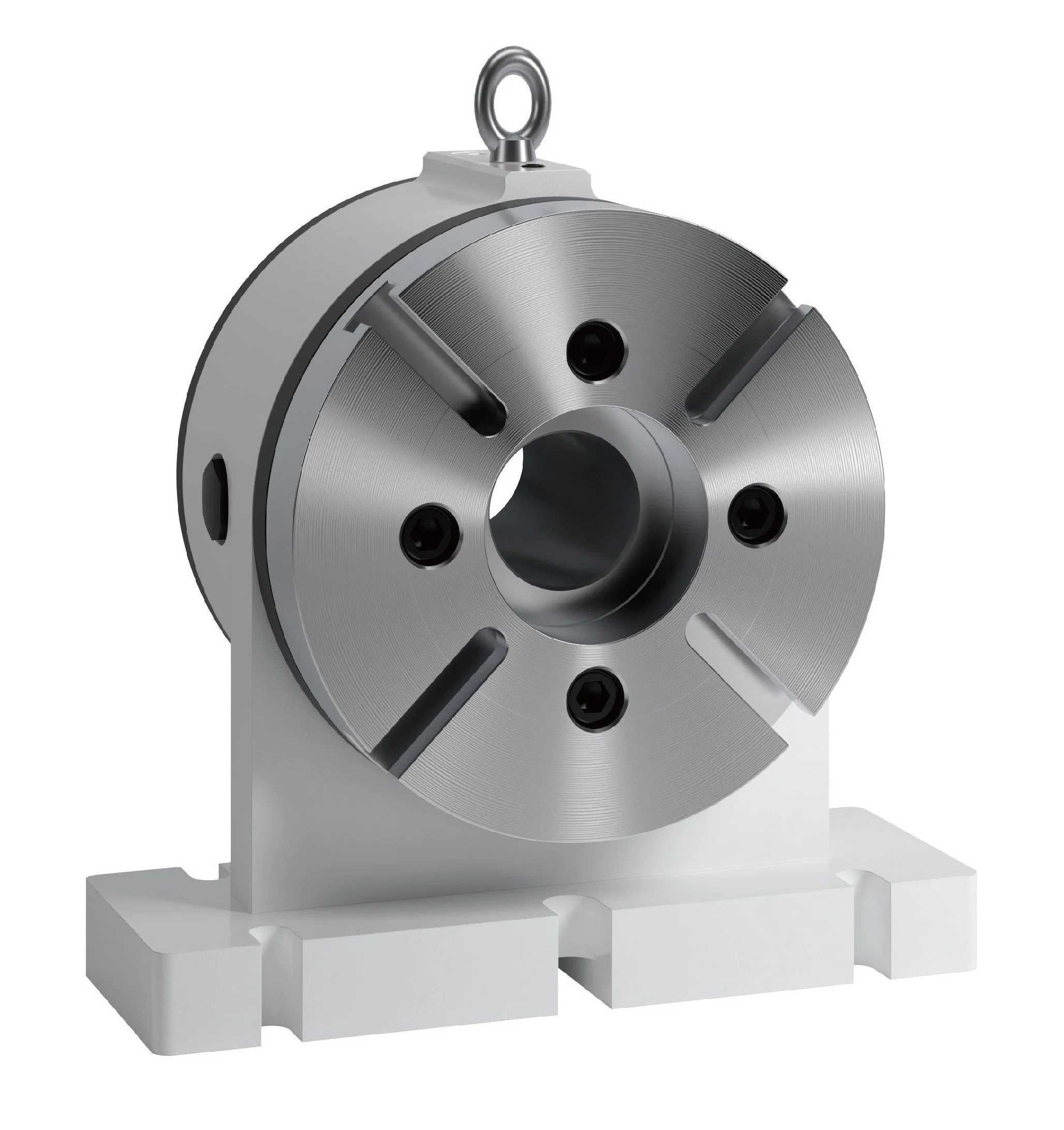

AR-210 Machine Tooling Accessories Universal Dividing Head Use Hydraulic Brake 210mm Disc Tailstock

Product Overview

The AR-210 Universal Dividing Head Tailstock, developed by Raydafon, is a key component of CNC rotary tables. It plays a crucial role in mechanical manufacturing, aiding in the precise positioning and firm holding of workpieces during machining operations. The tailstock's unique design and functionality enhance the overall performance of CNC rotary tables, making it an indispensable accessory in the machining industry.

The Structure of Tailstock

The tailstock is intricately designed and consists of various components, each serving a specific function. It includes a pressure regulation device for adjusting the hydraulic pressure, a fixing device to secure the workpiece, and a support device to ensure stability during operation. These components work in unison to provide efficient and precise results.

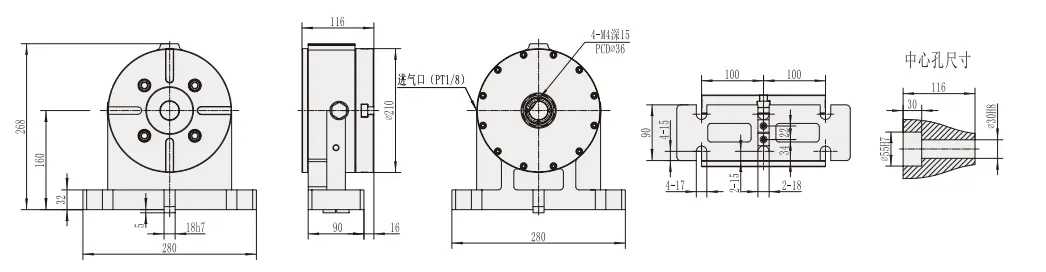

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Width of bottom guide key	Weight
AR-210	φ210mm	φ55H7mm	φ30mm	160mm	12H7mm	18H7mm	32Kg

Working Principle

The tailstock operates by securely holding the workpiece in place, adjusting its position as needed and working in tandem with other mechanical components of the CNC rotary table. It ensures the workpiece is firmly held in place, allowing for precision machining.

Materials and Manufacturing Process

Manufactured primarily from stainless steel, the tailstock is durable and robust. The manufacturing process involves various stages, including casting, machining, and heat treatment, ensuring the highest quality product.

Application and Advantages

The tailstock finds extensive application in various industrial production settings due to its unique capabilities and advantages. It plays a critical role in enhancing the precision and efficiency of machining operations.

Choosing the Right Tailstock

When selecting a tailstock, there are several factors to consider such as size and shape of the workpiece, material of the workpiece, technical requirements, and budget. The AR-210 tailstock is versatile and adaptable, making it suitable for a wide range of applications.

Why Choose Raydafon?

Raydafon, a leading supplier of CNC turntables, is dedicated to developing innovative and technologically advanced products that meet the rapidly evolving needs of its customers. The company's commitment to honesty, harmony, and technological advancement has positioned it as a reliable professional service provider and a leading brand in China's machine tool industry.Raydafon's products, including the AR-210 tailstock, are used in various processing equipment across diverse industries such as 3C, automotive, energy, military, and aerospace. With its robust R&D and superior service, Raydafon continues to provide efficient and reliable solutions to its customers.We encourage you to explore our AR-210 tailstock and contact us for any inquiries or purchases.

FAQs

Q: How does the tailstock enhance the functionality of CNC turntables?A: The tailstock aids in the secure positioning and holding of workpieces during machining operations, enhancing precision and efficiency.Q: What are the key factors to consider when selecting a tailstock?A: When selecting a tailstock, consider the size and shape of the workpiece, material of the workpiece, technical requirements, and budget.Q: Why choose Raydafon's AR-210 tailstock?A: Raydafon's AR-210 tailstock is versatile, durable, and designed for efficient and precise machining. The company's commitment to quality and customer satisfaction makes it an excellent choice.Edited by Zqq
