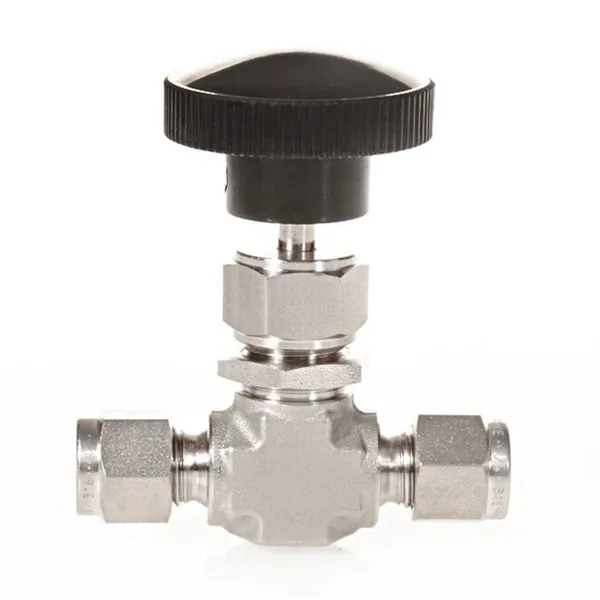

BNH Series Integral Bonnet Needle Valves

BNH Series Integral Bonnet Needle Valves

Integral bonnet needle valves are a type of control valve commonly used in various industries to regulate and control the flow of fluids. These valves feature a compact design that integrates the bonnet and the body into a single unit, providing a robust and reliable solution for fluid control applications.The primary purpose of integral bonnet needle valves is to precisely control the flow rate of fluids, especially in situations where a high level of accuracy is required. They are often used in systems that handle high-pressure or high-temperature fluids, such as in oil and gas, chemical processing, power generation, and other industrial applications.

BNH Series Integral Bonnet Needle Valve Features:

• One-piece forged body
• Easy external adjustments by packing nut.
• Compact design.
• Handle color options are available
• Leak-tight performance testing for every valve with nitrogen at the maximum working pressure.
• Maximum working pressure: BNH Series-Stainless steel: 5000 psig (345 bar)
• Working temperature:PTFE:-65°F to 450°F（-54°C to 232℃）PEEK:-65°F to 500°F（-54Cto 260°℃）

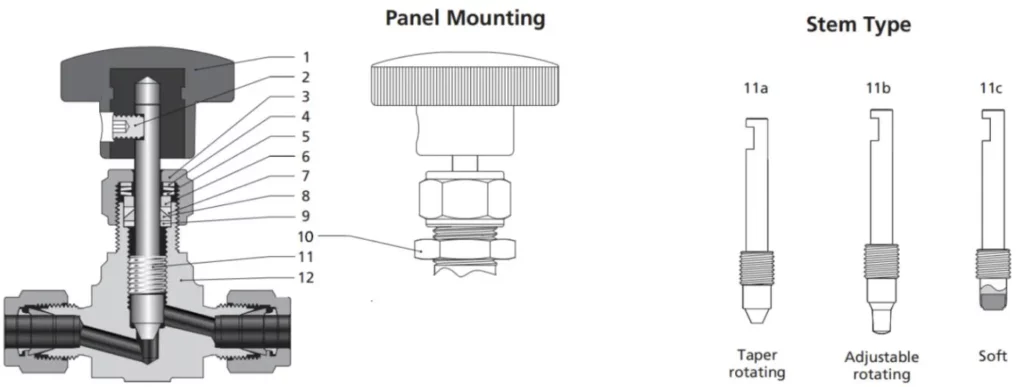

Integral Bonnet Needle Valve Standard Materials of Construction:

Item

Component

Valve Body Material

316 SS

Brass

Steel

1

Handle

Anodized aluminum or stainless steel or black knob

2

Set Screw

Stainless steel

3

Packing Bolt

304 SS/A276

Brass C36000/B16

Alloy 400/B164

4

Washer

316 SS/A276

5

Packing Spring

S17700/A693

6

Washer

316 SS/A276

7

Upper Packing

PTFE/PEEK

8

Lower Packing

9

Packing Washer

316 SS/A276

10

Panel Nut

17-4PH

11a

Stem

Chrome-plated 316 SS/A276

11b

Stem

PCTFE/D1430

PEEK

11c

Stem

Chrome-plated 316 SS/A276

12

Body

316 SS/A182

Brass C37700/B283

Alloy

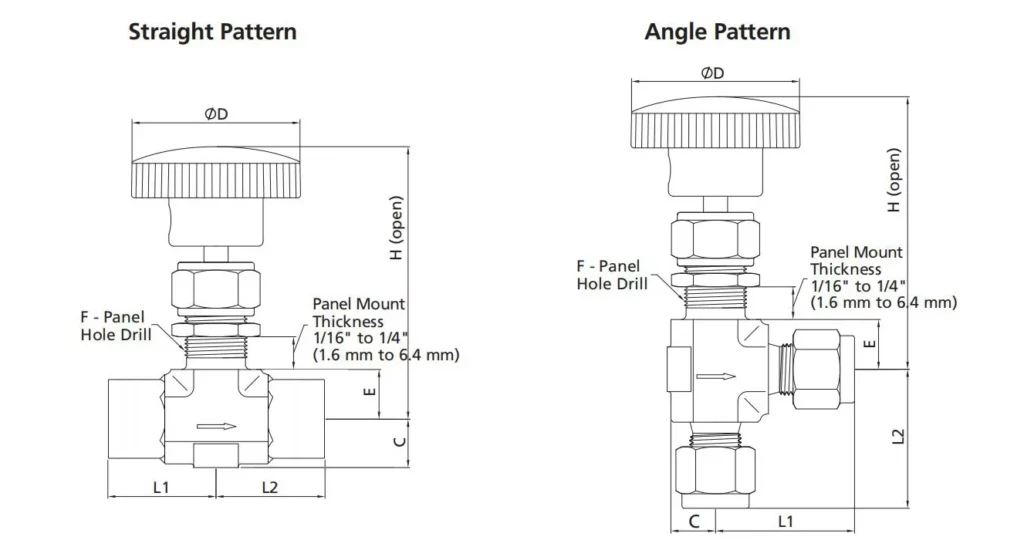

BNH Series Integral Bonnet Needle Valve Dimensions:

Basic OrderingNumber	Connection Type and Size		Orifice in(mm)	Cv	Dimension, in.(mm)
	Inlet	Outlet			L1	L2	C	D	E	F	H
-BNH-FN2-3	1/8 Female NPT	1/8 Female NPT	0.12(3.0)	0.20	0.81(21.6)	0.81(21.6)	0.39(10.0)	1.38(35.0)	0.44(11.2)	0.53(13.5)	2.50(63.5)
-BNH-FN4-4	1/4 Female NPT	1/4 Female NPT	0.16(4.0)	0.35	1.06(27.0)	1.06(27.0)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-FN6-5	3/8 Female NPT	3/8 Female NPT	0.2(5.1)	0.56	1.06(27.0)	1.06(27.0)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-FN8-6	1/2 Female NPT	1/2 Female NPT	0.25(6.4)	0.70	1.50(38.1)	1.50(38.1)	0.75(19.1)	3.00(76.2)	0.75(19.1)	1.03(26.2)	3.91(93.3)
-BNH-FN12-7	3/4 Female NPT	3/4 Female NPT	0.29(7.5)	0.95	1.63(41.3)	1.63(41.3)	0.75(19.1)	3.00(76.2)	0.75(19.1)	1.03(26.2)	3.91(93.3)
-BNH-MN2-3	1/8 Male NPT	1/8 Male NPT	0.08(3.0)	0.20	0.81(21.6)	0.81(21.6)	0.39(10.0)	1.38(35.0)	0.44(11.2)	0.53(13.5)	2.50(63.5)
-BNH-MN4-4	1/4 Male NPT	1/4 Male NPT	0.16(4.0)	0.35	0.98(25.0)	0.98(25.0)	0.39(10.0)	1.38(35.0)	0.44(11.2)	0.53(13.5)	2.50(63.5)
-BNH-MN6-5	3/8 Male NPT	3/8 Male NPT	0.2(5.1)	0.56	1.12(28.4)	1.12(28.4)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-MN8-6	1/2 Male NPT	1/2 Male NPT	0.25(6.4)	0.70	1.50(38.1)	1.50(38.1)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-MN12-7	3/4 Male NPT	3/4 Male NPT	0.29(7.5)	0.95	1.63(41.3)	1.63(41.3)	0.75(19.1)	3.00(76.2)	0.75(19.1)	1.03(26.2)	3.91(93.3)
-BNH-FT2-2	1/8” Tube	1/8” Tube	0.08(2.0)	0.09	0.98(25.0)	0.98(25.0)	0.39(10.0)	1.38(35.0)	0.44(11.2)	0.53(13.5)	2.50(63.5)
-BNH-FT4-4	1/4” Tube	1/4” Tube	0.16(4.0)	0.35	1.12(28.4)	1.12(28.4)	0.39(10.0)	1.38(35.0)	0.44(11.2)	0.53(13.5)	2.50(63.5)
-BNH-FT6-5	3/8” Tube	3/8” Tube	0.20(5.1)	0.56	1.29(32.8)	1.29(32.8)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-FT8-6	1/2” Tube	1/2” Tube	0.25(6.4)	0.70	1.40(35.6)	1.40(35.6)	0.50(12.7)	1.88(47.8)	0.50(12.7)	0.78(19.8)	2.97(75.5)
-BNH-FT12-7	3/4” Tube	3/4” Tube	0.29(7.5)	0.95	1.90(48.3)
