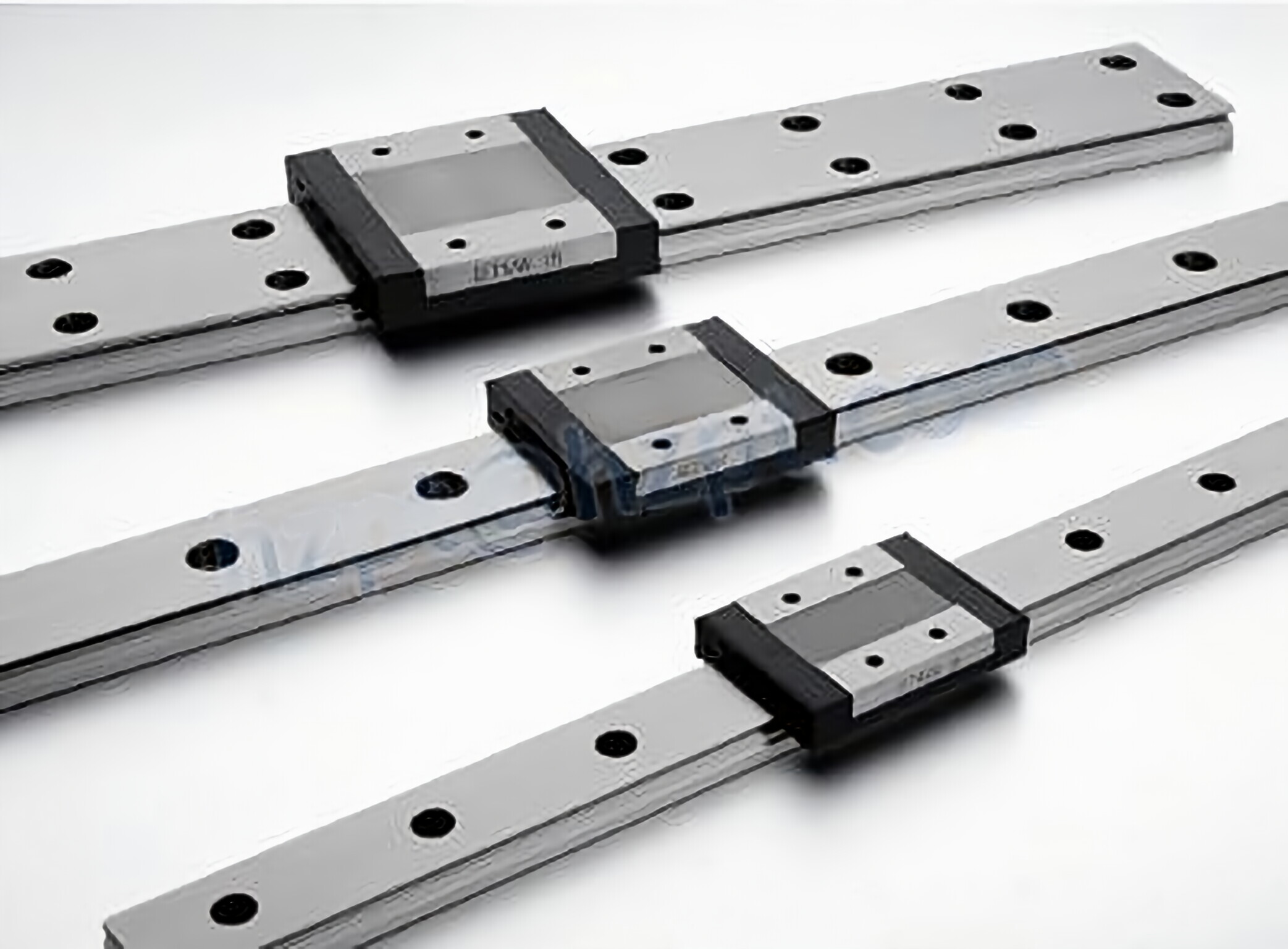

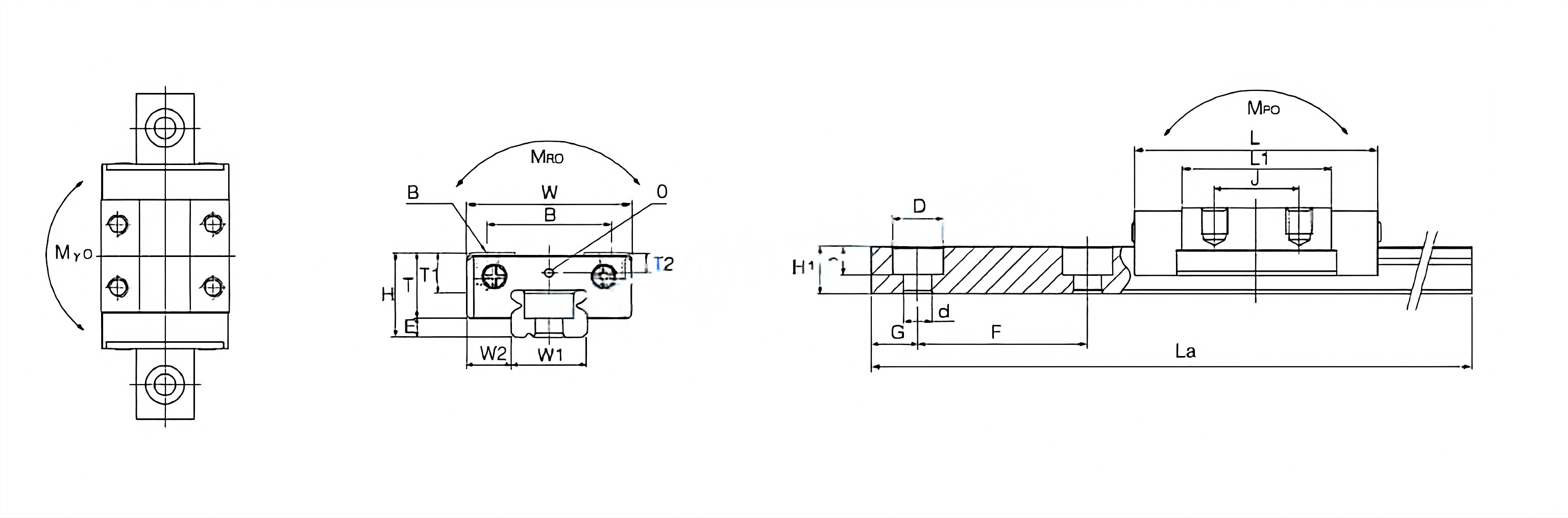

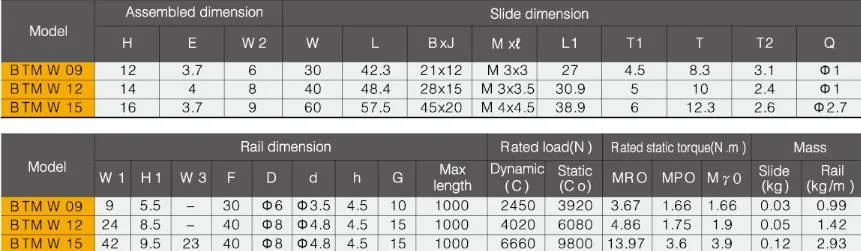

BTMW Miniature Linear Guideway (Wide-Type)

BTM Miniature Linear Guideway (Standard-Type)

Linear guideways are manufactured using production techniques that ensure high precision and excellent quality. We offer a broad lineup of products with high load capacity and excellent dust-proof performance to meet the needs of various industries, such as machine tools, semiconductor manufacturing, general industrial, and medical equipment. We can quickly and reliably meet expanding customer needs by offering a wide range of products, such as miniature linear guides with unique specifications.

Nomenclature Explanation of Ball Screw

Accuracy Grade

The method of accuracy grade for check and accept s according to Chinese standards Jb/T7175.2-93. This standard is equal to forcingmanufacture of the same line.1. The accuracy is classified as moving accuracy, and general accuracy six grades the items, and allowable error can see in the table.2. Since the tack on the railway is fixed on damp by screw before finish ground, there is an error when in space on the state of freedomBesides that, the track needs a screw to fix on the base element while.Operating. it is stipulated that the linear guideway should be fixed on a particular flat while accepting.3.W/hen there are more than two blocks on the benchmark railway, the variation value W1'of Blocks from beginning to end shouldaccording to the rule in the table and the value of W/1of media, the block should be smaller than that.

Moving Accuracy

General Accuracy

Advantages of Miniature Linear Guides

Miniature linear guides are a simple, cost-effective alternative to traditional recirculating linear guides. Its unique two-piece design and interchangeability allow it to be used in various applications. It is compatible with various slider sizes and rail lengths.There are several things to consider when choosing a miniature linear guide. First, make sure the product has the specifications you need. If it is used to protect load-sensitive equipment, it is essential to consider the corresponding design requirements. This will ensure that it does not damage sensitive equipment. If you need a high-speed, high-performance unit, make sure it has a high-quality stainless steel coating.Another advantage of the miniature linear guide is its high rigidity. Its low cross-sectional height supports heavy loads while ensuring smooth and continuous movement. The high rigidity also ensures that the balls will not fall out even if the LM block is removed from the LM rail.
