CA Monaural Type Heavy Rod Hydraulic Cylinder

CA Monaural Type Heavy Rod Hydraulic Cylinder

The CA Monaural Type Heavy Rod Hydraulic Cylinder is a high-performance hydraulic component designed to meet the rigorous demands of heavy-duty industrial applications. With its robust construction, impressive force output, and reliable operation, this hydraulic cylinder offers superior power and durability. Whether it's lifting, pushing, or pulling, the CA Monaural Type Heavy Rod Hydraulic Cylinder delivers exceptional performance to optimize industrial operations.Essential Characteristics Of Heavy Rod Hydraulic Cylinder:Robust Construction: This hydraulic cylinder is built with high-quality materials, ensuring strength and longevity. The sturdy construction enables it to withstand heavy loads, high pressures, and challenging working conditions, making it suitable for demanding industrial tasks.High Force Output: The CA Monaural Type Heavy Rod Hydraulic Cylinder provides substantial force output, making it ideal for applications requiring significant power. With its large piston diameter and high-pressure capabilities, it delivers exceptional strength to easily handle heavy-duty tasks.Monaural Design: This hydraulic cylinder features a monaural design, providing simplicity and ease of installation. The monaural configuration simplifies the mounting process and reduces the complexity of hydraulic system integration, offering convenience and time-saving benefits.Precise Control: Equipped with precision-machined components and high-quality seals, the CA Monaural Type Heavy Rod Hydraulic Cylinder ensures accurate and reliable operation. It provides precise control over the movement and positioning of loads, enabling efficient and precise handling.

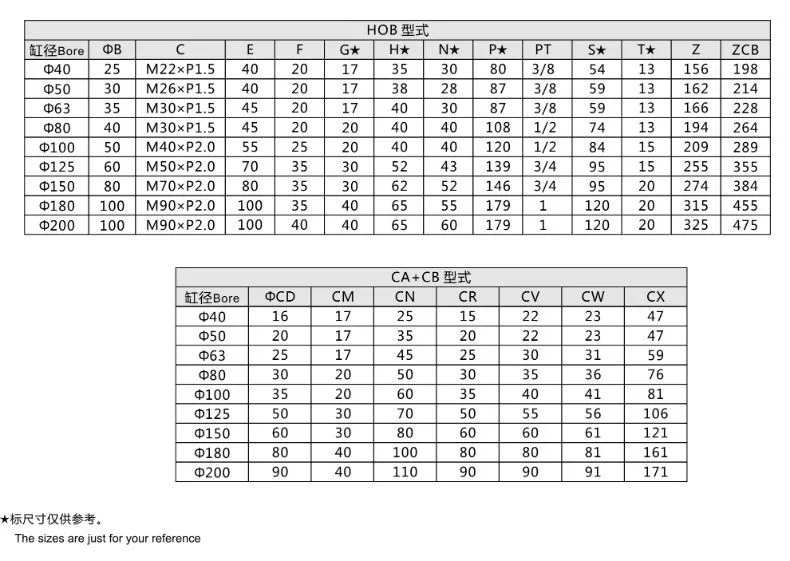

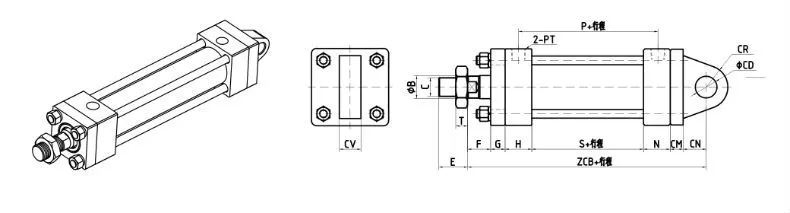

CA Monaural Type Heavy Rod Hydraulic Cylinder Parameter:

Usage Method Of CA Monaural Type Heavy Rod Hydraulic Cylinder:

1. Mounting: Begin by securely mounting the CA Monaural Type Heavy Rod Hydraulic Cylinder using appropriate mounting brackets or fixtures. Ensure proper alignment and stability during the installation process to prevent misalignment or stress on the cylinder.
2. Hydraulic System Integration: Connect the hydraulic lines to the cylinder's ports, following the manufacturer's instructions and guidelines. Integrate the cylinder into the hydraulic system by connecting it to a suitable hydraulic pump or power unit. Ensure compatibility with the cylinder's specifications and operating requirements.
3. Control and Operation: Utilize the control valves in the hydraulic system to regulate the flow of hydraulic fluid into and out of the cylinder. Adjust the control settings as per the desired linear motion and force output. Test the cylinder's movement to verify its functionality and responsiveness.

Maintenance Of CA Monaural Type Heavy Rod Hydraulic Cylinder:

Regular maintenance is crucial to ensure optimal performance and longevity of the CA Monaural Type Heavy Rod Hydraulic Cylinder. Follow these maintenance guidelines:

1. Regular Inspection: Conduct routine inspections to identify signs of wear, damage, or leaks. Inspect the cylinder body, piston rod, seals, and other components for abnormalities. Address any issues promptly to prevent further damage or operational inefficiencies.
2. Lubrication: Apply the recommended lubricant to the moving parts of the cylinder, including the rod and seals. Regular lubrication minimizes friction, reduces wear, and ensures smooth operation. Follow the manufacturer's guidelines for lubrication intervals and use the appropriate lubricant type.
3. Seal Replacement: If you notice seal deterioration or leakage, replace the seals using genuine manufacturer-approved parts. Damaged or worn seals can compromise the cylinder's performance and may lead to hydraulic fluid leaks.
4. Cleaning: Clean the cylinder by removing dirt, debris, and other contaminants. Use a non-abrasive cleaner and ensure all components are thoroughly dried before reassembly. Regular cleaning promotes optimal performance and prevents premature wear or damage.

How Do You Rebuild A Hydraulic Cylinder？

Rebuilding a hydraulic cylinder involves disassembling the cylinder, inspecting and replacing worn or damaged components, and reassembling the cylinder with new seals and other necessary parts. Here is a general step-by-step guide on how to rebuild a hydraulic cylinder:

1. Safety Precautions: Before starting the rebuild process, ensure that the hydraulic system is depressurized and that all hydraulic fluid has been drained. Wear appropriate safety gear, such as gloves and safety glasses, to protect yourself.
2. Cylinder Removal: Disconnect the hydraulic cylinder from the equipment or machinery it is attached to. This may involve removing mounting brackets, fittings, or other connections. Follow the manufacturer's instructions or equipment manuals for guidance specific to your hydraulic cylinder.
3. Disassembly: Carefully disassemble the hydraulic cylinder, following these steps:a. Remove the end caps: Typically, hydraulic cylinders have two end caps—one at each end. Unscrew the bolts or screws holding the end caps in place and carefully remove the caps.b. Extract the piston: Once the end caps are removed, gently slide out the piston assembly from the cylinder barrel. Take note of the orientation and arrangement of any seals or bearings.c. Remove seals and other components: Remove all seals, bearings, and any other components from both the piston and cylinder barrel. Inspect each component for wear, damage, or signs of leakage.
4. Inspection and Replacement: Inspect all components, including the piston, cylinder barrel, seals, bearings, and other parts. Look for signs of wear, scoring, pitting, or other damage. Replace any components that show signs of excessive wear or damage.a. Seals: Replace all seals with new ones, ensuring they are the correct size and type for your hydraulic cylinder. Lubricate the new seals with hydraulic fluid before installation.b. Other Components: If any bearings, bushings, or other components show signs of wear or damage, replace them with new ones per the manufacturer's specifications.
5. Cleaning: Clean all components thoroughly, removing dirt, debris, or old hydraulic fluid. Use a suitable cleaning agent to ensure all parts are completely dry before reassembly.
6. Reassembly: Follow these steps to reassemble the hydraulic cylinder:a. Install new seals: Carefully install new seals onto the piston and inside the cylinder barrel. Ensure proper orientation and alignment of the seals.b. Insert the piston: Gently slide the piston assembly back into the cylinder barrel, taking care not to damage the new seals.c. Reattach end caps: Place the end caps back onto the cylinder barrel and secure them with the appropriate bolts or screws. Tighten them to the manufacturer's recommended torque specifications.
7. Hydraulic Fluid Replacement: Fill the hydraulic cylinder with the recommended hydraulic fluid, ensuring it is the correct type and at the appropriate level. Bleed any air from the system as per the manufacturer's instructions.
8. Testing: Reconnect the hydraulic cylinder to the equipment or machinery and test its operation. Check for any leaks or abnormal behavior. Ensure that the cylinder functions smoothly and performs as expected.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of heavy rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle heavy rod hydraulic cylinders, Aerial work vehicle heavy rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The heavy rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
