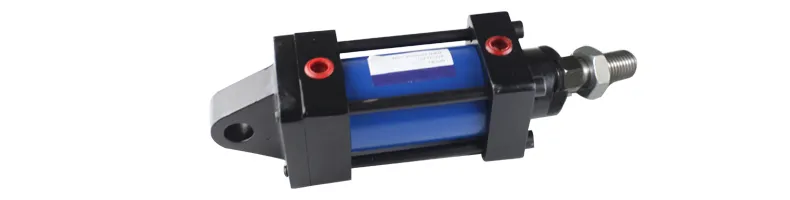

CA Monoaural Type Light Rod Hydraulic Cylinder

CA Monoaural Type Light Rod Hydraulic Cylinder

The CA Monoaural Type Light Rod Hydraulic Cylinder is an advanced hydraulic cylinder designed to optimize precision and efficiency in various industrial applications. With its monoaural design and light rod construction, this cylinder offers exceptional performance, reliability, and ease of use.Key Characteristics and Benefits Of Light Rod Hydraulic Cylinder:Monoaural Design: The cylinder features a monoaural design with a single rod extending from one end. This design provides compactness and simplifies installation, making it suitable for applications with limited space.Light Rod Construction: The light rod construction utilizes lightweight materials like aluminum or composites. This results in reduced overall weight, enabling faster operation, reduced energy consumption, and improved efficiency.Enhanced Precision: The CA Monoaural Type Cylinder ensures precise linear motion control. It delivers accurate positioning and smooth movement, making it ideal for applications that require high precision, such as robotics, automation systems, and packaging machinery.Compact and Space-Saving: With its compact size, the cylinder is well-suited for installations where space is a constraint. Its small footprint allows for easy integration into machinery and systems without compromising performance.

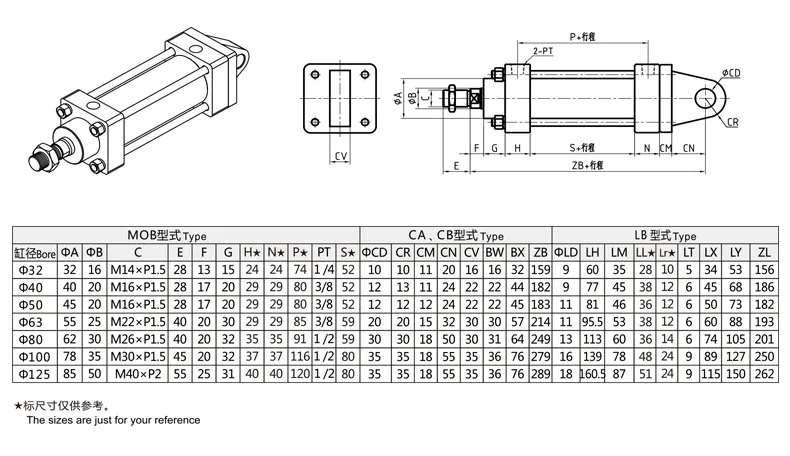

CA Monoaural Type Light Rod Hydraulic Cylinder Parameter:

Usage Method Of CA Monoaural Type Light Rod Hydraulic Cylinder:

1. Mounting: Securely mount the cylinder using appropriate fasteners, ensuring stability and proper alignment.
2. Hydraulic Connections: Connect the hydraulic lines to the designated ports on the cylinder. Ensure tight fittings to prevent leakage.
3. Power Source: Connect the cylinder to a reliable hydraulic power source, such as a hydraulic pump or power unit.
4. Testing and Adjustment: Before operation, thoroughly check all connections and ensure they are secure. Test the cylinder's movement by activating the hydraulic system and verifying smooth linear motion.

How To Repack A Hydraulic Cylinder?

Repacking a hydraulic cylinder involves replacing the seals and other components to restore proper functioning. Here's a step-by-step guide on how to repack a hydraulic cylinder:

1. Preparation: Gather the necessary tools and equipment, including new seals, seal lubricant, a seal removal tool, a cylinder repair kit (if available), and safety gear such as gloves and eye protection.
2. Safety First: Before starting any work on the hydraulic cylinder, ensure the system is depressurized. Relieve the pressure by opening the hydraulic system's relief valve and draining the hydraulic fluid.
3. Cylinder Removal: If the cylinder is easily accessible, remove it from the equipment or machine. In some cases, performing the repacking while the cylinder is still attached may be more practical.
4. Disassembly: Carefully disassemble the hydraulic cylinder, following the manufacturer's instructions. Take note of the order in which components are removed to aid in reassembly.
5. Seal Removal: Use a seal removal tool or a suitable alternative to remove the old seals from the cylinder. Do not damage the cylinder bore or other components during this process.
6. Cleaning: Thoroughly clean the cylinder bore and all components using a suitable solvent to remove any dirt, debris, or old seal remnants. Ensure that all surfaces are clean and free of contaminants before proceeding.
7. Seal Replacement: Install the new seals according to the manufacturer's instructions and specifications. Apply a thin layer of seal lubricant to the seals to aid in their proper seating and reduce friction during operation.
8. Component Inspection: While the cylinder is disassembled, inspect other components, such as piston rods, rod bearings, and piston heads, for wear or damage. Replace any worn or damaged parts as necessary.
9. Reassembly: Carefully reassemble the hydraulic cylinder, ensuring that all components are correctly aligned and properly tightened. Refer to the manufacturer's guidelines for torque specifications and assembly orders.
10. Testing: Once the hydraulic cylinder is reassembled, reconnect it to the hydraulic system and perform a thorough test. Activate the system and check for any leaks or abnormal behavior. Verify that the cylinder operates smoothly and without any issues.
11. System Bleeding: If necessary, bleed the hydraulic system to remove any air trapped in the lines. Follow the manufacturer's instructions for the specific hydraulic system to ensure proper bleeding.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of light rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle light rod hydraulic cylinders, Aerial work vehicle light rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The light rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
