CNC Forming Gear Grinding Machine

Introduction to the CNC Forming Gear Grinding Machine

The CNC Forming Gear Grinding Machine is a cutting-edge machine tool designed to provide precise and efficient gear grinding operations. It incorporates FANUC's advanced system for five/six-axis three-linkage control, ensuring exceptional control and accuracy. The gear grinding movement is achieved through the coordinated motion of a high-rigidity and high-torque torque motor (A-axis) and a linear motor (X-axis). By simplifying the transmission system, this machine guarantees efficient forward and reverse continuous grinding and ensures superior processing accuracy.The machine supports not only standard tooth shape machining but also CAD tooth shape import for special teeth.At Raydafon, we are proud to offer our high-quality CNC Forming Gear Grinding Machines, designed with precision and durability in mind. Our machines are engineered to meet the highest standards of quality, ensuring superior performance and reliability. With competitive pricing, we invite customers to inquire about our products and discover the exceptional value we provide. Trust Raydafon for your gear grinding needs and experience the difference in quality and service.

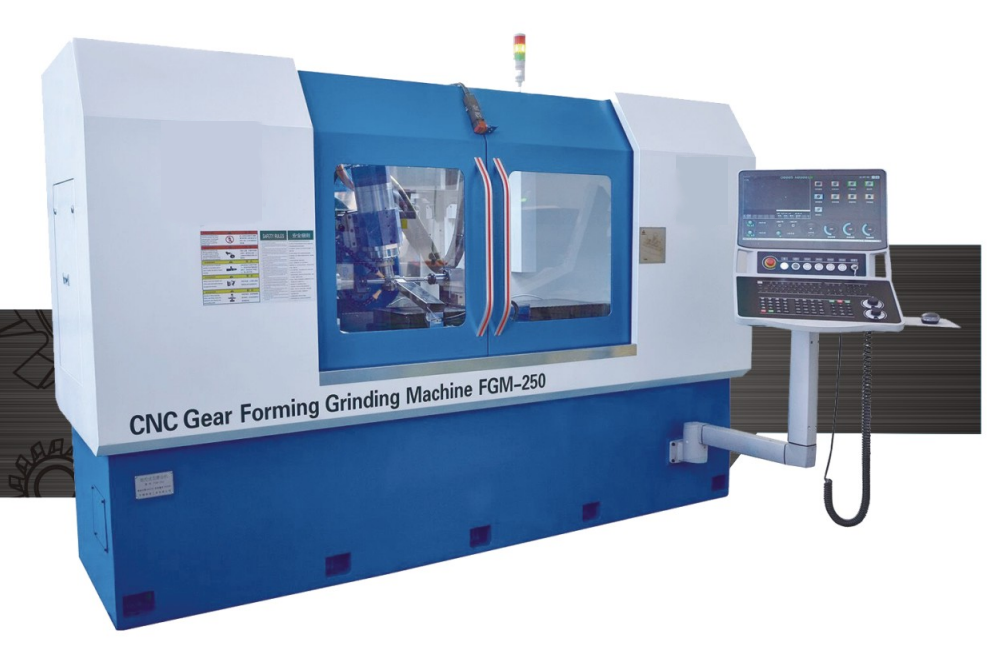

Specifications of CNC Gear Forming Grinding Machine FGM-250



Features of the CNC Forming Gear Grinding Machine

• Advanced Control System: The machine utilizes FANUC's system for precise and reliable gear grinding operations. Its five/six-axis three-linkage control enables seamless coordination and exceptional control precision.

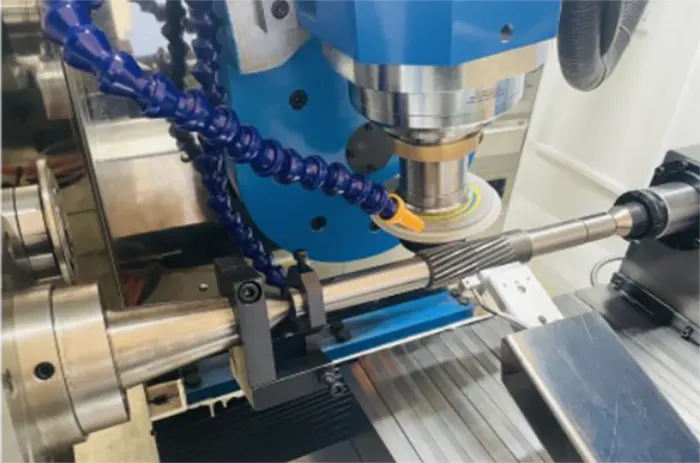

• Efficient Grinding Process: With the torque motor (A-axis) and linear motor (X-axis), the machine achieves efficient forward and reverse continuous grinding, delivering superior processing efficiency.
• Enhanced Grinding Accuracy: The high-rigidity and high-torque torque motor, combined with the linear motor, ensures outstanding processing accuracy, meeting the most demanding precision requirements.
• GPM Modification Software: The machine incorporates the fully independently developed GPM modification software, enabling online adjustment of the grinding wheel and the trimming of various tooth shapes. This flexibility enhances productivity and versatility.
• High-Power Spindle: The grinding wheel spindle employs a high-power and high-torque electric spindle, ensuring efficient grinding performance and maintaining excellent quality standards.
• Support for Special Tooth Shapes: The machine not only processes standard tooth shapes but also supports the CAD tooth shape import function, allowing for the grinding of special teeth.

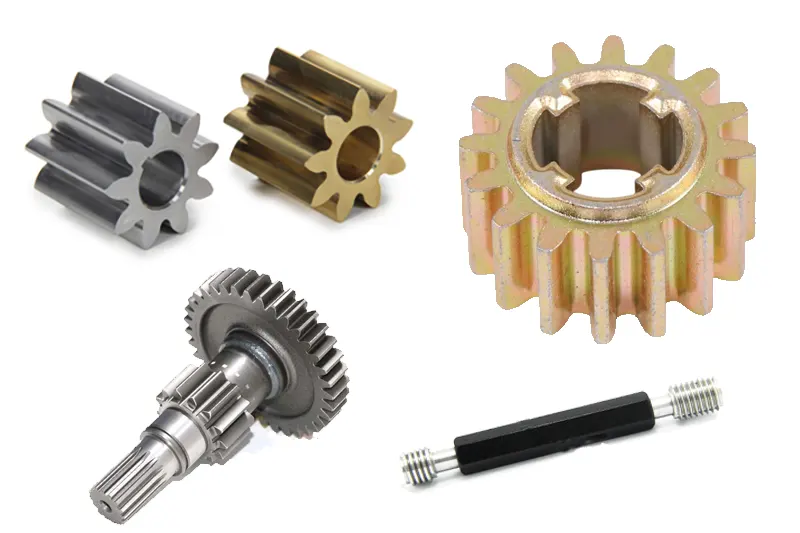

Applications of the CNC Forming Gear Grinding Machine

The CNC Forming Gear Grinding Machine finds extensive applications across various industries, including:

• Gears that have small number of teeth
• Oil pump gears
• High-precision shaft gears
• High-precision plug gauges

Why Choose Our CNC Forming Gear Grinding Machines？

Quality Manufacturing and Competitive Pricing

As a leading manufacturer of CNC Forming Gear Grinding Machines, we take pride in our ability to deliver high-quality products. Our company is dedicated to precision engineering, utilizing advanced technology, rigorous quality control processes, and skilled craftsmanship. We offer our machines at competitive prices without compromising on performance or durability.

Professional Customer Service

We understand the importance of exceptional customer service. Our team of experts is committed to providing comprehensive support, including technical assistance, product inquiries, and tailored solutions for your specific needs. We strive to ensure your satisfaction and build long-lasting relationships based on trust and reliability.

About Us

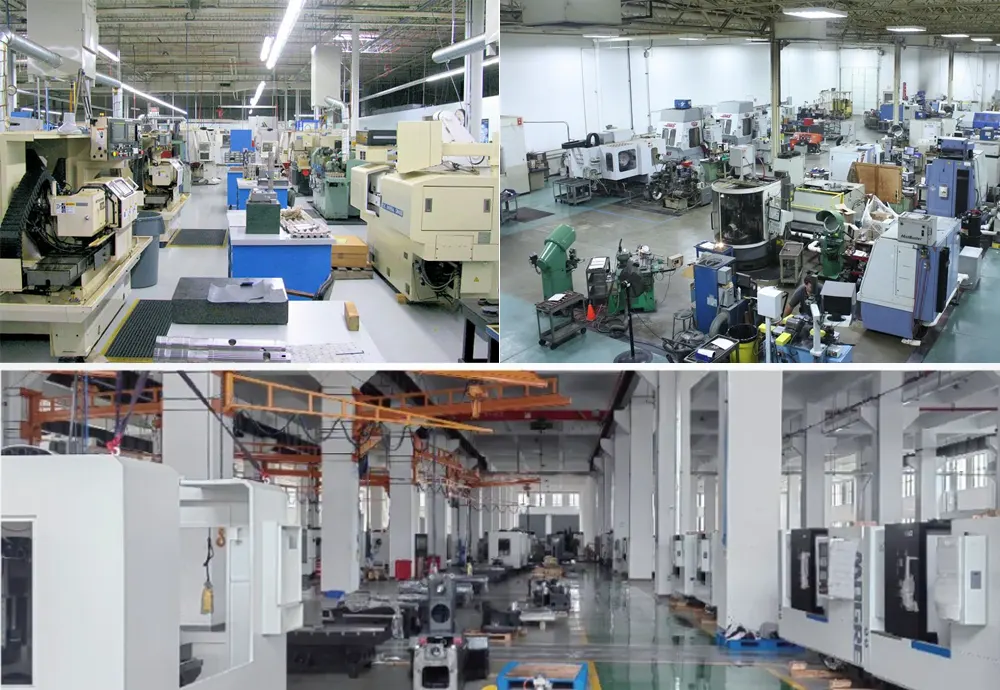

EVERPOWER-TAINUO TOOL CO., LTD. is a professional CNC machine tool manufacturer with a team of experienced engineers and operators. Our products are designed with computer-optimized design and produced using full CNC processing technology and a complete quality control system (ISO9001 certification), ensuring that each product meets our customers’ needs. With excellent quality and cost-effectiveness, our customer base is currently growing at a rate of 10 units per month. Our company produces around 80 machine tools each year, including CNC worm thread grinding machines, shaping machines, and other specialized grinding machines. Our high-efficiency, high-precision performance, and independently developed software have made our products popular with customers worldwide. We adhere to the principle of “excellent quality, advantageous price, effective supply, and quality service,” and we invite customers to explore our products and contact us to purchase!

Our Testing Equipment

Take Action Now!

Discover the precision and efficiency of our CNC Forming Gear Grinding Machine and empower your gear grinding operations. Explore our product range and take advantage of the exceptional features and capabilities our machines offer. Contact us today to discuss your requirements and experience the transformative impact our machines can have on your manufacturing processes.

Q&A

Q: How does the CNC Forming Gear Grinding Machine ensure precise grinding?A: The machine incorporates a high-rigidity and high-torque torque motor (A-axis) and a linear motor (X-axis) that work in perfect coordination. This combination, along with the simplified transmission system and advanced control software, ensures precise and accurate gear grinding.Q: Can the CNC Forming Gear Grinding Machine handle special tooth shapes?A: Yes, the machine is equipped with the GPM modification software, enabling online adjustment of the grinding wheel to accommodate various tooth shapes. It also supports the import of CAD tooth shapes, allowing for the grinding of special teeth as required.Q: What kind of support can I expect from your company?A: We are committed to providing exceptional customer service. Our dedicated team is available to assist you with technical support, answer product inquiries, and provide tailored solutions based on your specific requirements. We aim to ensure your satisfaction and success with our CNC Forming Gear Grinding Machines.
