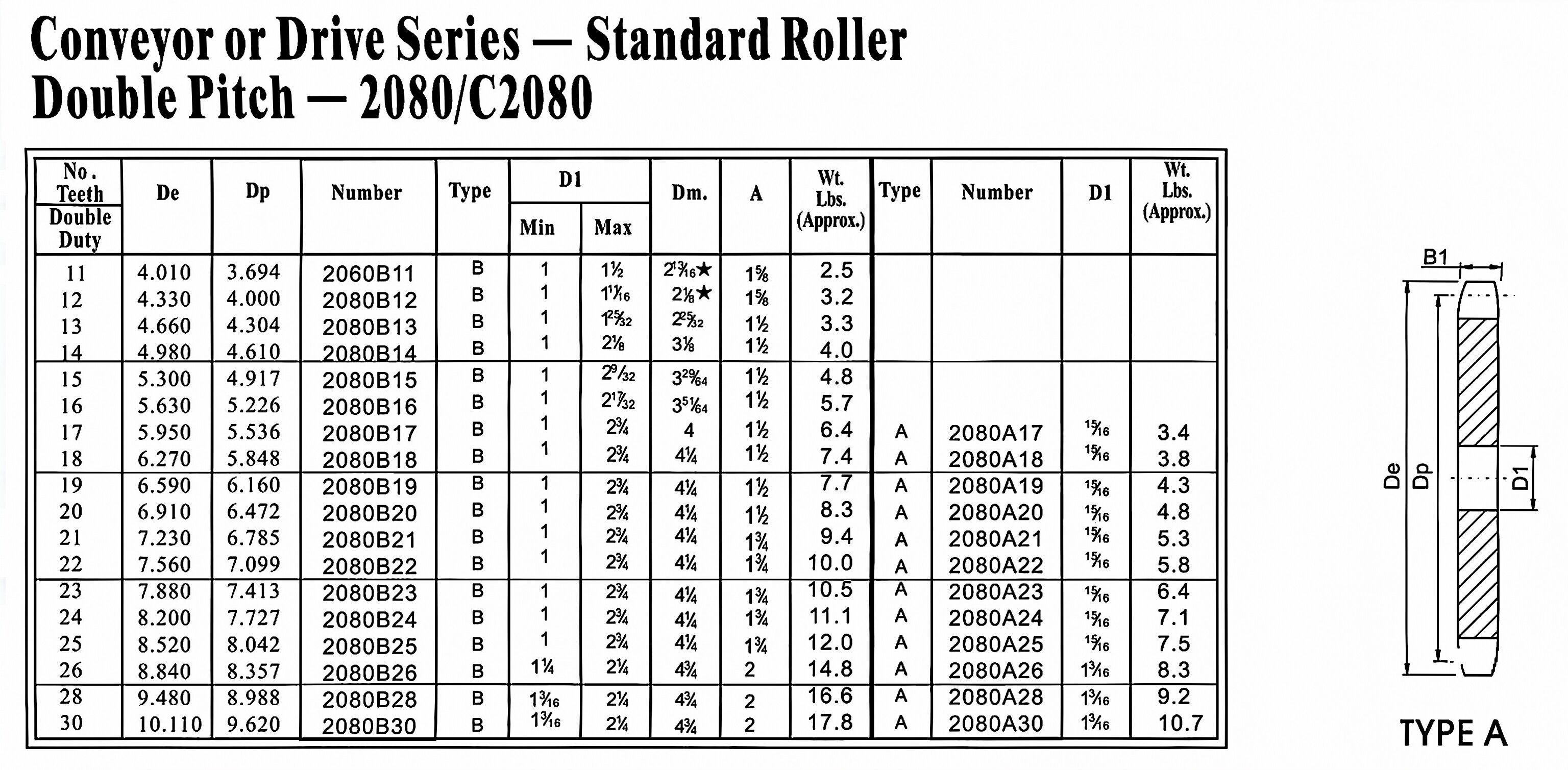

Double Pitch Sprocket 2080A with standard roller

Introduction to Double Pitch Sprocket 2080A with standard roller

The Double Pitch Sprocket 2080A with standard roller is an essential component used in transmission systems. It is a type of sprocket with a double pitch design and is widely used in various industries for power transmission.

Definition and Basic Structure

The Double Pitch Sprocket is defined as a sprocket with a larger pitch diameter than the standard sprocket. It has two sets of teeth, with the second set having a longer pitch. This design allows for a larger distance between teeth, resulting in increased load capacity and smoother operation.

Main Features of Double Pitch Sprocket

• Greater tooth spacing: The double pitch design provides a larger distance between teeth, allowing for smoother engagement with the chain.
• Higher load capacity: Due to the increased tooth spacing, the double pitch sprocket can handle higher loads compared to standard sprockets.
• Smooth operation: The unique design of the double pitch sprocket ensures smooth and reliable operation, minimizing noise and vibration.

Material Selection for Double Pitch Sprocket

Double pitch sprockets are commonly made from three types of materials: carbon steel, alloy steel, and stainless steel.

• Carbon steel: Known for its strength and affordability, carbon steel is suitable for general-purpose applications.
• Alloy steel: With added alloying elements, alloy steel offers improved strength, durability, and resistance to wear and corrosion.
• Stainless steel: Ideal for environments with high humidity or exposure to corrosive substances, stainless steel provides excellent corrosion resistance.

Manufacturing Process of Double Pitch Sprocket

Our manufacturing process for double pitch sprockets involves several stages:

1. Raw material preparation: Selecting high-quality materials for sprocket production.
2. Forging or casting: Shaping the sprocket into the desired form through forging or casting methods.
3. Machining: Precision machining to achieve accurate dimensions and smooth surfaces.
4. Teeth rolling: The teeth are formed using a rolling process to ensure precise tooth profiles and optimal strength.
5. Heat treatment: Applying heat treatment techniques to enhance the hardness and toughness of the sprocket.
6. Surface treatment: Various surface treatments are used to improve the sprocket's resistance to corrosion and wear.
7. Quality testing: Rigorous quality inspection to ensure the sprocket meets the required standards and specifications.

Customization Services

We offer customization services for double pitch sprockets in the following areas:

• Material selection: Tailoring the sprocket material based on specific requirements and environmental conditions.
• Tooth profile design: Designing the tooth profile to optimize performance and ensure precise chain engagement.
• Bore size and keyway: Customizing the sprocket's bore size and keyway to fit specific shaft dimensions.

Frequently Asked Questions (FAQ)

1. What is the advantage of using a Double Pitch Sprocket?

Answer: The Double Pitch Sprocket offers a larger tooth spacing, higher load capacity, and smoother operation compared to standard sprockets.

2. Can a Double Pitch Sprocket be used with any chain?

Answer: Yes, a Double Pitch Sprocket can be used with compatible chains designed for double pitch applications.

3. What industries commonly use Double Pitch Sprockets?

Answer: Double Pitch Sprockets find applications in industries such as conveyor systems, packaging, material handling, and agricultural machinery.

4. How do I determine the correct size of a Double Pitch Sprocket?

Answer: The size of the Double Pitch Sprocket depends on factors such as chain pitch, number of teeth, and the specific application. Consulting with an expert is recommended to ensure proper sizing.

5. Can I get a Double Pitch Sprocket with a custom design?

Answer: Yes, we offer customization services for Double Pitch Sprockets, including material selection, tooth profile design, and bore size customization.

Author: Miya
