Double Pitch Sprocket 2080B with standard roller

Introduction

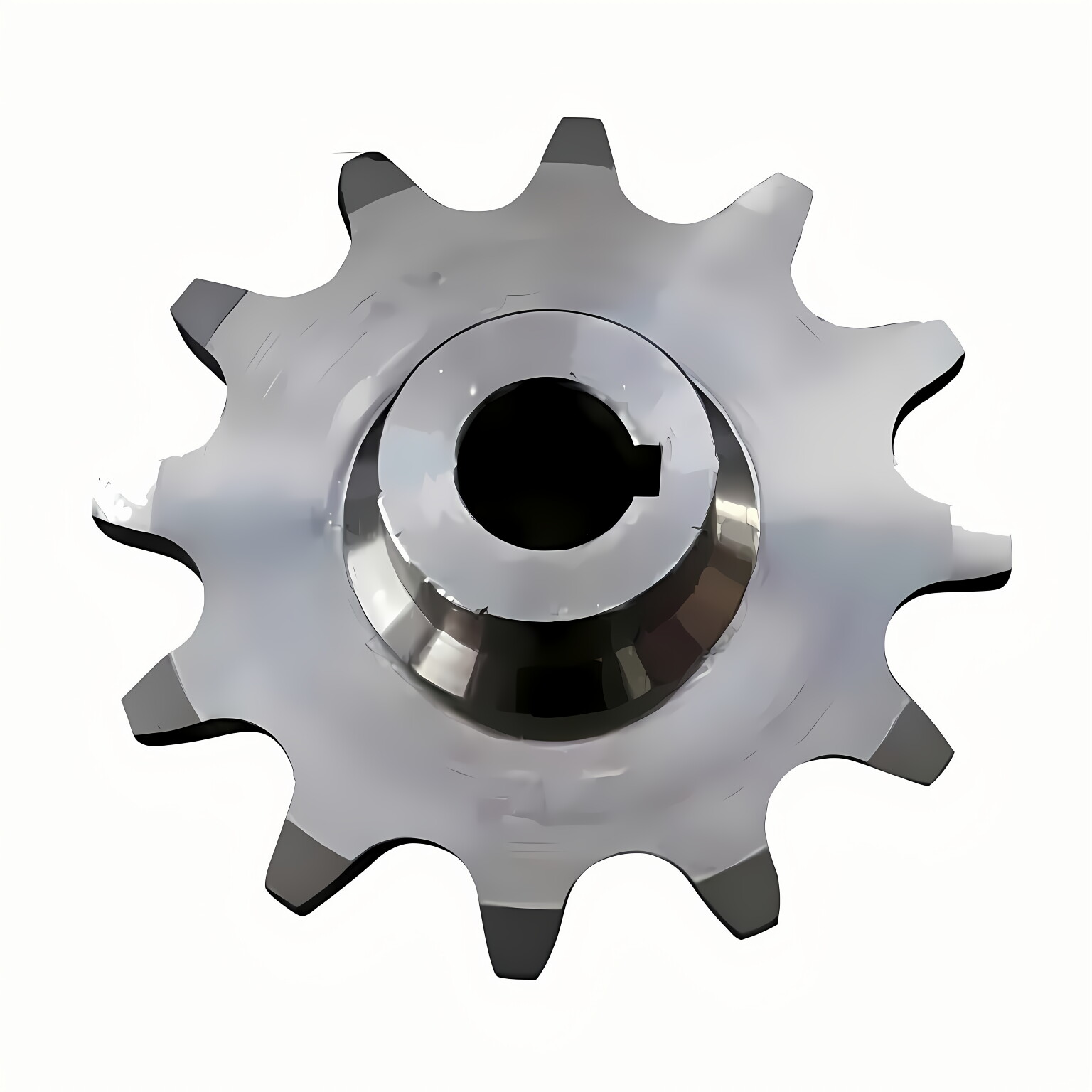

Double Pitch Sprocket 2080B with standard roller is a type of chain sprocket that is commonly used in power transmission systems. It is designed to function as an efficient and reliable power transfer mechanism. The following image shows what Double Pitch Sprocket 2080B with standard roller looks like:

Definition and Basic Structure

• Definition: A Double Pitch Sprocket is a chain sprocket with a larger pitch than standard sprockets. It is designed to be used with double pitch roller chains, which have a pitch that is twice that of standard roller chains.
• Basic Structure: A Double Pitch Sprocket consists of a hub and teeth. The hub is the central part of the sprocket that fits onto a shaft, while the teeth are the projecting parts that engage with the chain links. The teeth are designed to fit the roller chain with clearance to ensure smooth operation.

Main Features

Double Pitch Sprocket 2080B with standard roller has the following features:

• More significant pitch: Double Pitch Sprockets have a larger pitch than standard sprockets, which allows for a greater distance between teeth. This feature is beneficial in applications where high speed and a low number of teeth are required.
• Higher load capacity: The design of Double Pitch Sprockets allows for a higher load capacity, making them suitable for heavy-duty applications.
• Smooth operation: Double Pitch Sprockets have a larger pitch than standard sprockets, which helps reduce the impact loading between the sprocket and the chain, resulting in smoother operation.

The following image shows the main features of Double Pitch Sprocket 2080B with standard roller:

Materials

Double Pitch Sprockets can be made from various materials, including carbon steel, alloy steel, and stainless steel. The choice of material depends on the application requirements. Carbon steel is the most widely used material due to its cost-effectiveness, while alloy steel and stainless steel are suitable for applications that require higher strength, corrosion resistance, or high-temperature performance.

Manufacturing Process

Double Pitch Sprockets are manufactured using the following process:

• Raw Material Preparation: Raw materials are selected based on the material requirements and specifications.
• Forging or Casting: The hub of the sprocket is forged or cast into shape.
• Machining: The hub and teeth of the sprocket are machined to the required dimensions and tolerances.
• Teeth Rolling: The teeth of the sprocket are rolled to ensure precise tooth profile and surface finish.
• Heat Treatment: The sprocket is heat-treated to achieve the desired hardness and toughness.
• Surface Treatment: The sprocket is treated to improve its wear resistance and corrosion resistance.
• Quality Inspection: The sprocket undergoes various tests and inspections to ensure its quality and performance.

The following image shows the manufacturing process of Double Pitch Sprocket:

Customization Services

We offer customization services for Double Pitch Sprockets that include:

• Material Selection: We can help you choose the right material for your application.
• Tooth Profile Design: We can design the tooth profile to meet your specific requirements.
• Bore and Keyway: We can customize the bore and keyway to match your shaft specifications.

FAQs

• What is a Double Pitch Sprocket?
  A Double Pitch Sprocket is a type of chain sprocket with a larger pitch than standard sprockets. It is designed to be used with double pitch roller chains, which have a pitch that is twice that of standard roller chains.
• What are the main features of Double Pitch Sprockets?
  Double Pitch Sprockets have a larger pitch, higher load capacity, and offer smooth operation.
• What materials are Double Pitch Sprockets made from?
  Double Pitch Sprockets can be made from carbon steel, alloy steel, and stainless steel.
• What is the manufacturing process for Double Pitch Sprockets?
  The manufacturing process for Double Pitch Sprockets includes raw material preparation, forging or casting, machining, teeth rolling, heat treatment, surface treatment, and quality inspection.
• What customization services are available for Double Pitch Sprockets?
  We offer customization services for material selection, tooth profile design, and bore and keyway customization.

Author: Miya
