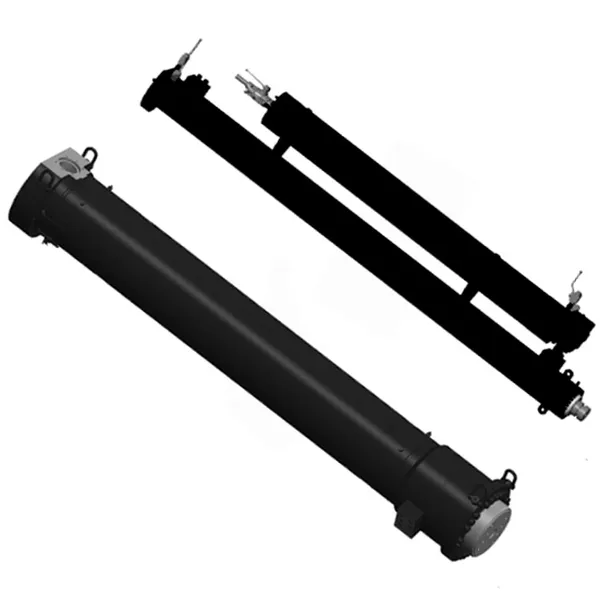

Drilling Platform Steel Wire Rope Tensioner Cylinder

Drilling Platform Steel Wire Rope Tensioner Cylinder

A drilling platform steel wire rope tensioner cylinder is a type of hydraulic cylinder that is used to provide tension to the wire rope on a drilling platform. The cylinder is typically mounted on the platform deck and is connected to the wire rope through a pulley system. When the cylinder is activated, it generates thrust force that pulls on the wire rope, increasing the tension in the rope.

The drilling platform steel wire rope tensioner cylinder is an essential component of the drilling rig's safety system. The tension in the wire rope helps to prevent the rope from sagging or slackening, which could lead to a loss of control of the drill bit. The cylinder also helps to compensate for the rig's motions, such as heave, roll, and pitch.

The drilling platform steel wire rope tensioner cylinder is a critical piece of equipment that helps to ensure the safety and efficiency of the drilling operation. The cylinder must be strong and durable enough to withstand the harsh conditions of the offshore environment. It must also be corrosion-resistant and easy to maintain.

Here are some of the features and benefits of a drilling platform steel wire rope tensioner cylinder:

• Provides thrust force to tension the wire rope
• Mounted on the platform deck for easy access and maintenance
• Connected to the wire rope through a pulley system
• Strong and durable construction
• Corrosion-resistant
• Easy to maintain

Drilling Platform Steel Wire Rope Tensioner Cylinder Specifications:

Product Name	Drilling Platform Steel Wire Rope Tensioner Cylinder
Features:	Provide thrust force and provides tension to the wire rope through the pulley
Bore diameter:	Up to 620mm
Rod diameter:	Up to 580mm
Thrust force:	Maximum 8500KN
Specifications:	Provide 889KN, 1112KN, 1245KN, and other cylinders with different tension requirements
Applications:	Jack-up Offshore Platform

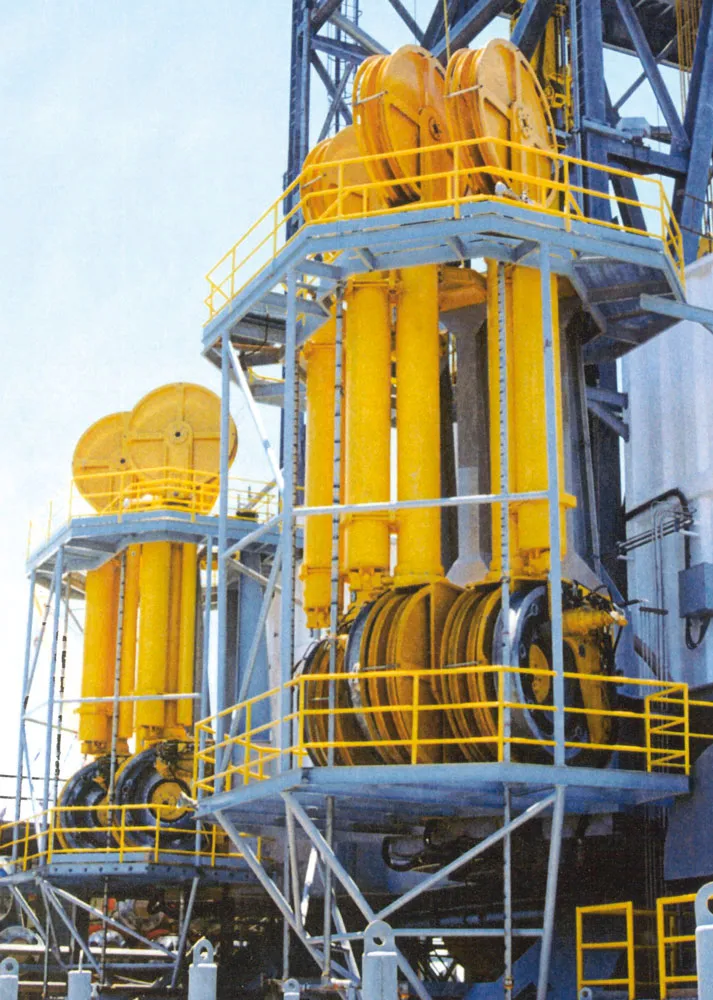

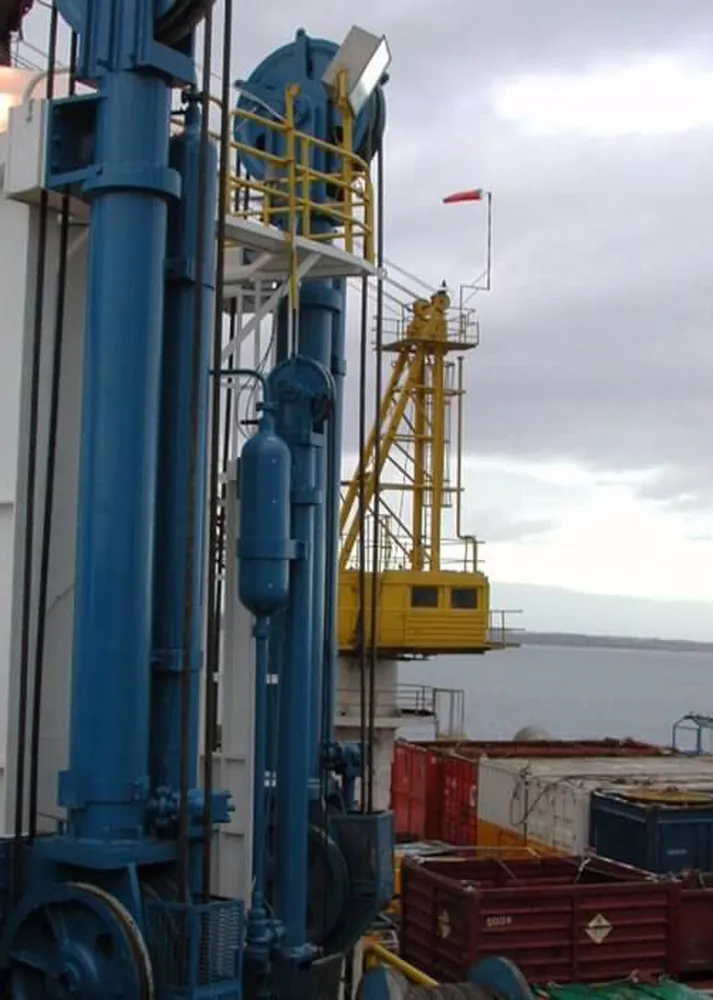

Drilling Platform Steel Wire Rope Tensioner Cylinder Advantages:

The drilling platform steel wire rope tensioner cylinder offers several advantages that contribute to its significance in offshore drilling platforms. Here are some key advantages:1. Precise Tension Control: The steel wire rope tensioner cylinder allows for precise control over the tension applied to the steel wire ropes. By adjusting the hydraulic pressure, operators can achieve the desired tension levels, ensuring optimal performance of the wire ropes during drilling operations.2. Enhanced Safety: The steel wire rope tensioner cylinder is equipped with safety features that help prevent over-tensioning or sudden releases of tension. These features, such as pressure sensors and safety mechanisms, ensure the safe operation of the drilling equipment and protect personnel and assets from potential accidents.3. Improved Operational Efficiency: By maintaining the appropriate tension in the wire ropes, the steel wire rope tensioner cylinder helps optimize the efficiency of drilling operations. Proper tension ensures smooth and controlled movement of the drill string, hoisting of heavy loads, and handling of equipment, leading to increased productivity and reduced downtime.4. Durability and Reliability: The steel wire rope tensioner cylinder is constructed from high-strength materials capable of withstanding the harsh offshore drilling environment. This ensures its durability and reliability, even in challenging conditions such as corrosive saltwater, high pressures, and extreme temperatures.5. Versatility: The steel wire rope tensioner cylinder can be used with different sizes and types of steel wire ropes, making it adaptable to various drilling applications. It provides a flexible solution for maintaining tension in wire ropes used in different tasks, including drilling, hoisting, and load handling.6. Maintenance and Serviceability: The steel wire rope tensioner cylinder is designed for ease of maintenance and serviceability. Components can be accessed and inspected, and regular maintenance tasks can be performed to ensure the optimal functioning of the cylinder. This helps minimize downtime and contributes to the overall efficiency of drilling operations.

Choose the Right Drilling Platform Steel Wire Rope Tensioner Cylinder

When choosing the right drilling platform steel wire rope tensioner cylinder for your needs, there are several factors to consider. Here are some important considerations to help guide your decision:(1) Load Capacity: Determine the maximum load capacity required for your drilling operations. Consider the weight of the loads to be handled, including the drill string, equipment, and any additional loads. Ensure that the steel wire rope tensioner cylinder you choose can handle the anticipated loads without exceeding its capacity.(2) Rope Diameter and Type: Take into account the diameter and type of steel wire ropes used in your drilling operations. Different steel wire rope tensioner cylinders are designed to accommodate specific rope diameters and types. Ensure that the cylinder you select is compatible with the ropes you will be using.(3) Operating Environment: Consider the operating environment in which the steel wire rope tensioner cylinder will be used. Offshore drilling platforms are subjected to harsh conditions, including corrosive saltwater, high pressures, and extreme temperatures. Choose a tensioner cylinder constructed from materials that can withstand these conditions and maintain optimal performance.(4) Tension Control Capability: Evaluate the level of tension control required for your drilling operations. Some applications may require precise and fine-tuned tension control, while others may have more forgiving requirements. Select a steel wire rope tensioner cylinder that offers the appropriate range and control mechanisms to meet your specific needs.(5) Safety Features: Prioritize the safety features offered by the steel wire rope tensioner cylinder. Look for features such as pressure sensors, position sensors, and safety mechanisms that prevent over-tensioning or sudden releases of tension. These features enhance safety during drilling operations and protect personnel and equipment.(6) Maintenance and Serviceability: Consider the ease of maintenance and serviceability of the steel wire rope tensioner cylinder. Look for cylinders that allow convenient access for inspections, maintenance tasks, and component replacements. This will help minimize downtime and ensure the long-term reliability of the cylinder.

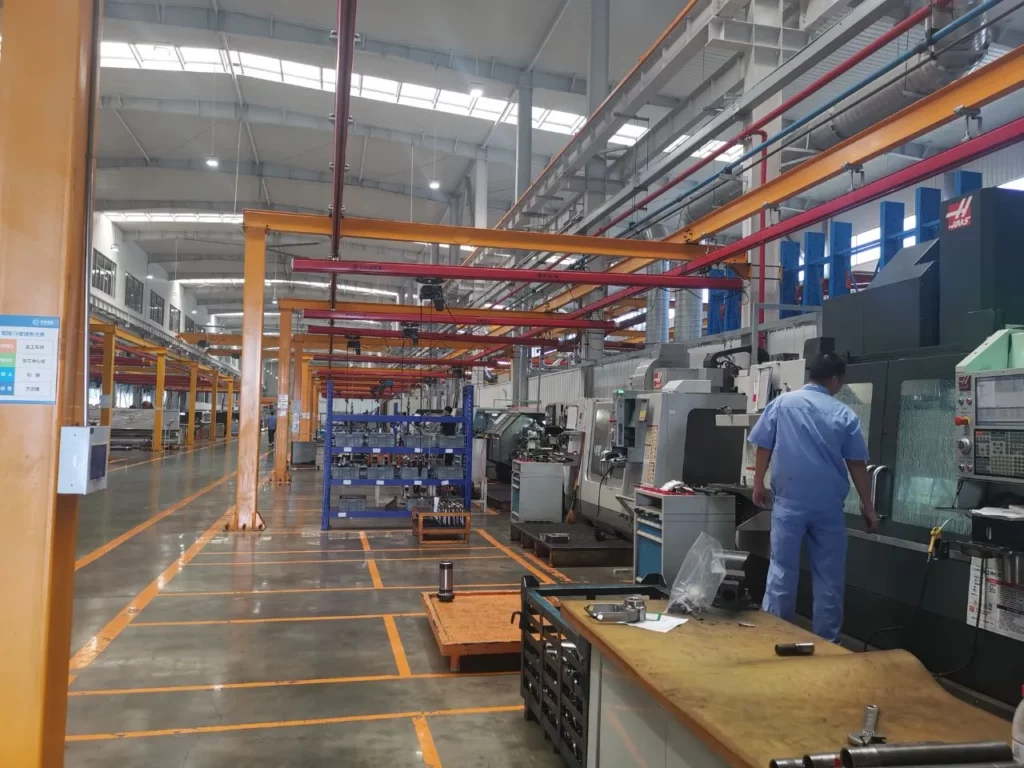

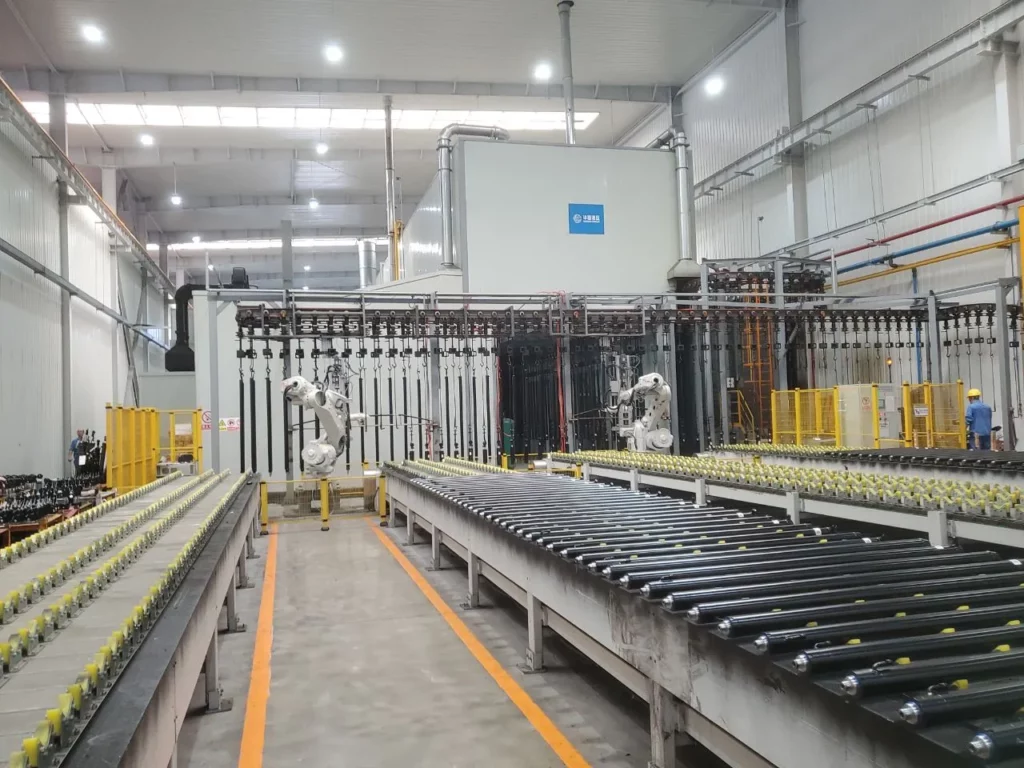

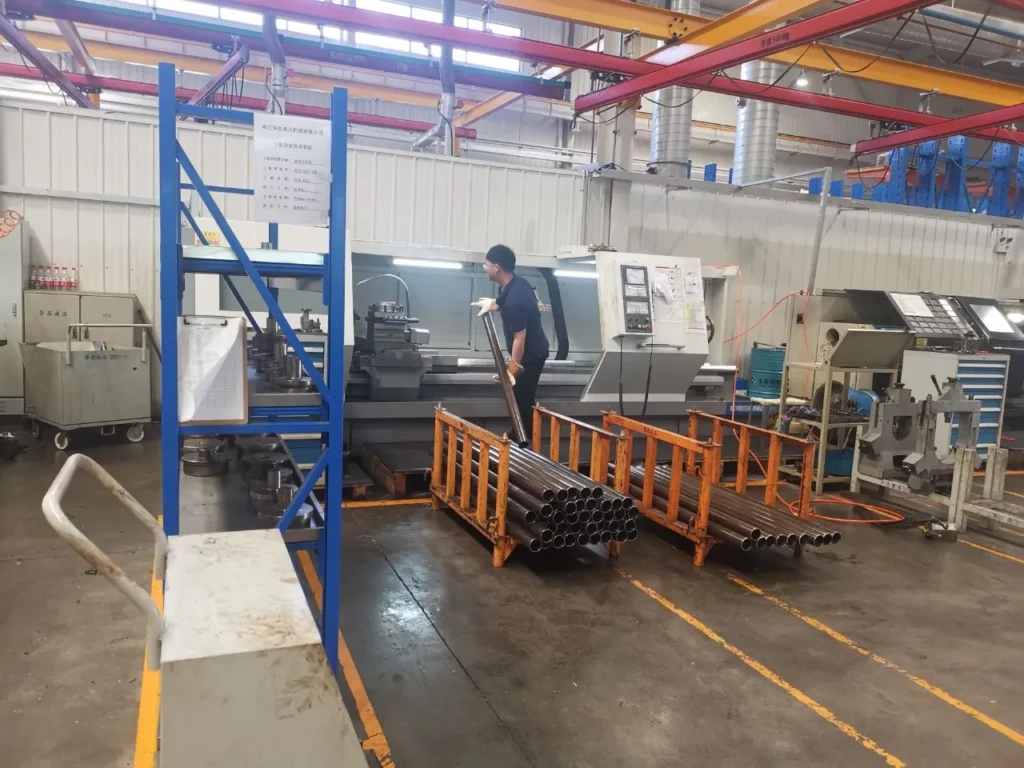

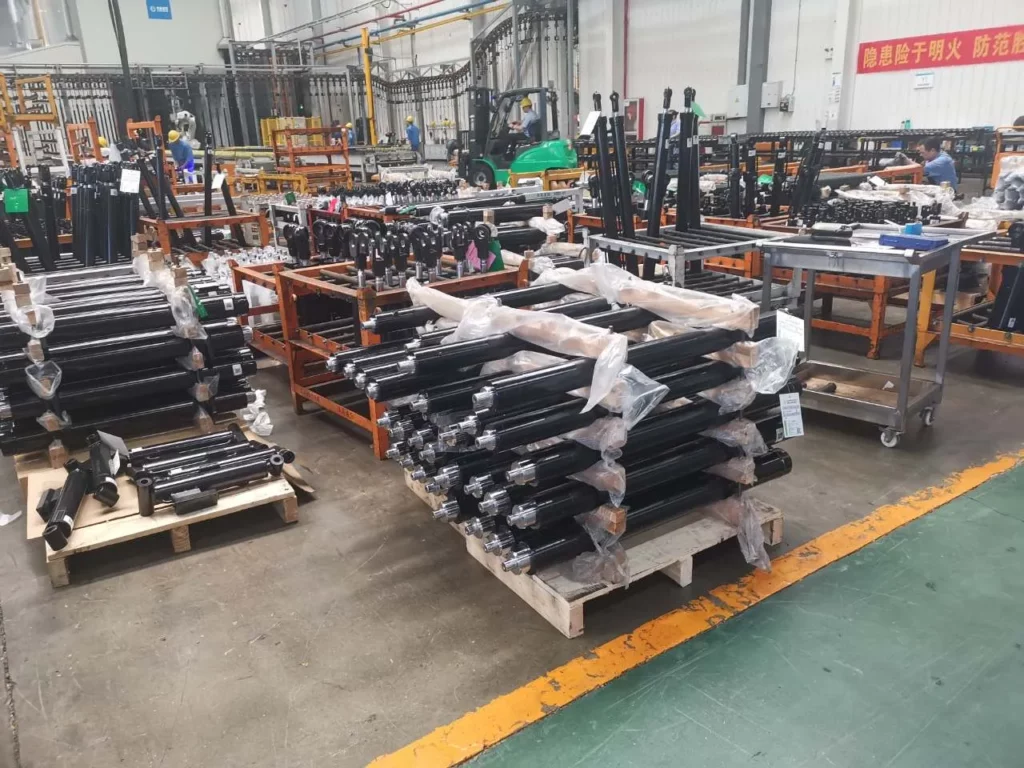

China Drilling Platform Cylinder Manufacturers

Many mechanical equipment on offshore drilling platforms is driven by hydraulic pressure, among which various hydraulic cylinders play a pivotal role. Raydafon hydraulic cylinders designed for harsh offshore environments can meet the demanding requirements of offshore drilling platforms in terms of safety, anti-corrosion performance, and heavy-duty operations. Special structure design, using well-known seal brand to ensure excellent sealing performance. In view of the long-term low-temperature environment, advanced welding methods are used, and the welding seam is inspected with a 3D stereo microscope with a super depth of field, which fully meets the needs of various third-party inspection organizations and customers.We have a patented marine environment anticorrosive coating solution, which can provide customers with better and more suitable solutions according to the marine climate characteristics of different regions and the different areas of use of hydraulic cylinders. Make the hydraulic cylinder cope with the working environment of high temperature, high humidity, and high salt spray with better performance. Whether it is deep sea operations, polar operations, or other difficult and dangerous environments, Raydafon has always maintained close cooperation and communication with customers and provides expert consultants. We constantly tried new technologies to ensure excellent product performance.Moreover, we go beyond just drilling platform cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
