H137215 Gear for John Deere Combine

H137215 Gear for John Deere Combine

▍Application

A spare part for gear drive of John Deere combine harvesters.

▍Destination

The transfer of torque between the shafts of nodes with perpendicular axes. This spare part is used for replacing worn out or damaged parts during repairs.

▍Properties

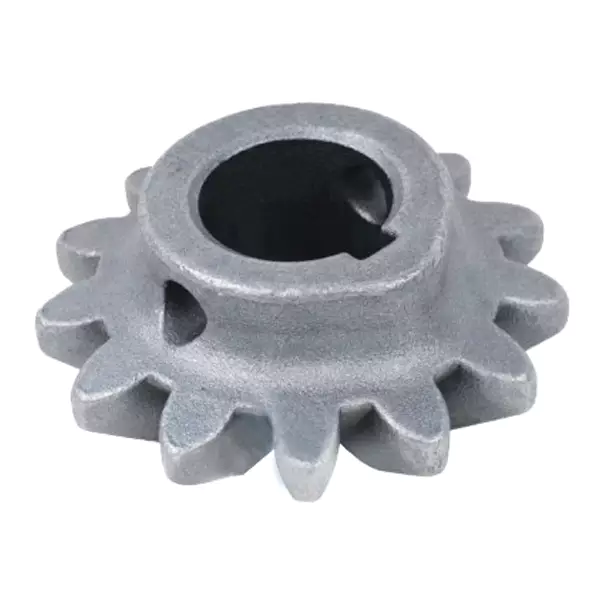

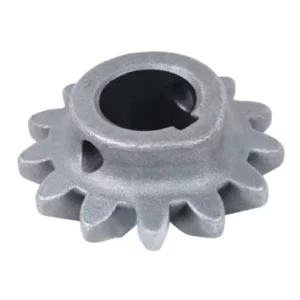

Bevel gear gear in the central hole of which splines (or a keyway) are made for connecting with the shaft. The surface is thermally processed in order to enhance its strength and wear resistance.

▍Parameters Of H137215 Gear

Weight , W	kg	0.35
Inner diameter , d	mm	25
Outer diameter , D	mm	72
Number of teeth , Z		13
Mounting holes diameter , Dm	mm	7
Height , H	mm	33
Edge Diameter , De	mm	41
Key slot	mm	4x6x25

▍Fits Models Of H137215 Gear

H137215 Gear can be adapted to Combine Harvester John Deere: 3300 4400 4420 6600 6602 6622 7700 7701 7720 7721 8820 9400MAXIMIZER 9410 9450 9500 9500SH 9510 9510SH 9550 9550CTS 9550CTSII

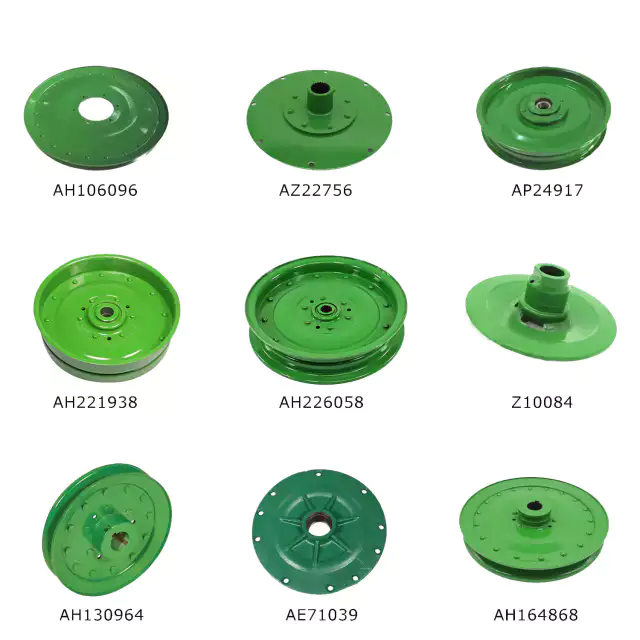

▍Related Products

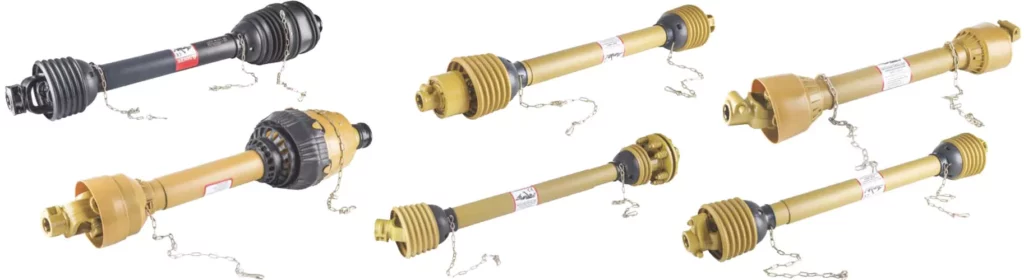

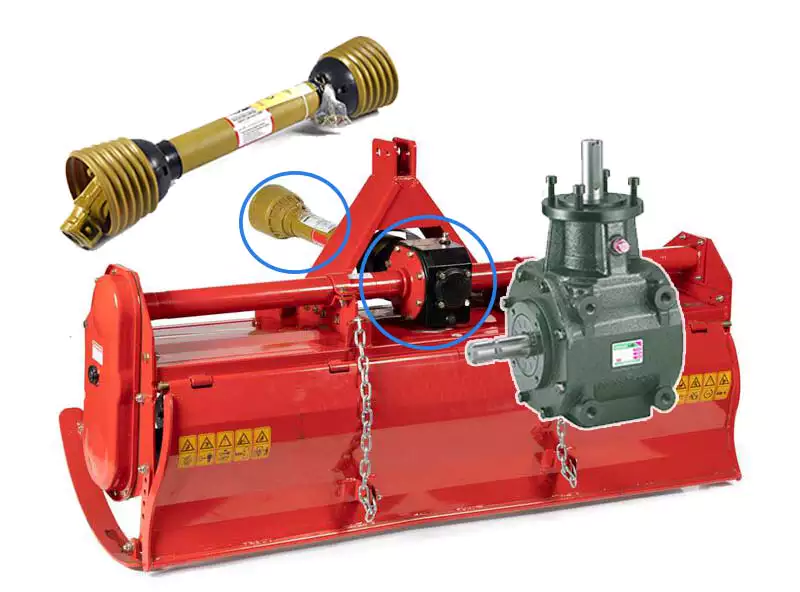

▍We Also Supply PTO Shafts & Agricultural Gearboxes
