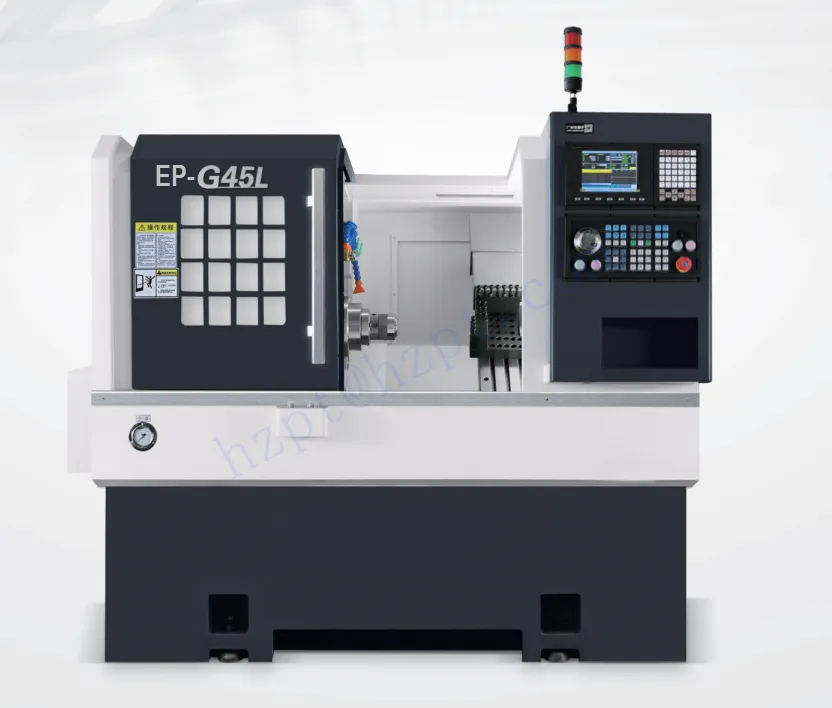

RDF-G Series Gang Tool CNC Lathe RDF-G36L RDF-G45L RDF-G46L RDF-G52L RDF-G75L RDF-G81L

Standard Configuration:

SYNTEC CNC system / SYNTEC or Yaskawa X, Z axis servo motors / Taiwanese PMI, HIWIN ball screws, linear guides

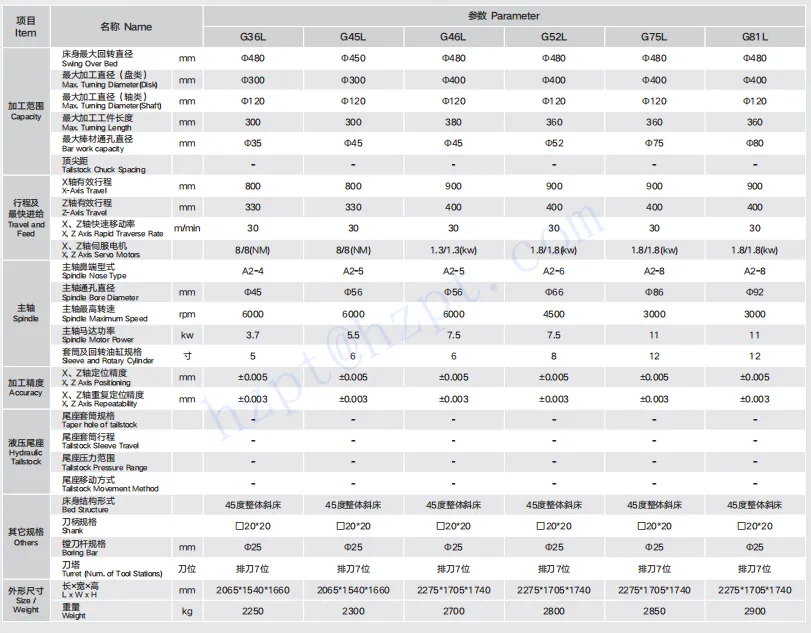

Parameter

Machine Tool Features

• High Rigidity and Low Vibration Design:This machine tool is engineered with a 45° slant bed saddle structure, which significantly enhances its rigidity and stability. The entire assembly has undergone finite element analysis optimization, ensuring that the distribution of internal ribs within the bed is strategically designed for maximum strength and minimal vibration. This results in improved machining accuracy and extends the overall lifespan of the machine, making it ideal for precision manufacturing applications.
• Advanced CNC System:The lathe is equipped with a state-of-the-art New Generation CNC System, which controls the position, speed, and cutting depth of the tools based on pre-programmed instructions. This sophisticated control system ensures high-precision machining of parts, allowing for intricate designs and complex geometries to be produced consistently. The user-friendly interface of the CNC system enhances operational efficiency, enabling operators to quickly set up and modify machining parameters as needed.
• High-Quality Linear Motion Components:To further enhance performance, the machine is fitted with high-grade Taiwanese PMI and HIWIN P3-level ball screws and linear guides. These components are renowned for their exceptional accuracy and durability, providing smooth motion and reduced friction during operation. The combination of these high-quality linear motion systems ensures that the machine can achieve precise movements and maintain tight tolerances, which is crucial for meeting the demands of modern manufacturing standards.

These features collectively position this machine tool as a reliable and efficient solution for various machining requirements, ensuring high-quality output and operational excellence in diverse industrial applications.

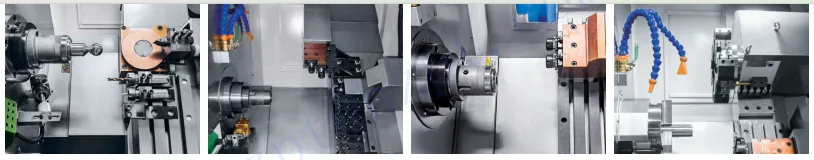

Auxiliary Extension

Workpiece Display

Workshop

We have been pursuing high-end technology and investing in high-precision equipment to make first-class products, which will create a world full of miracles for us. We exist for miracles.

About Raydafon

Raydafon was founded in 2006 and has established itself as a national high-tech enterprise specializing in the research and development, production, sales, and service of CNC machine tools. With a keen understanding of market trends, Raydafon delivers comprehensive solutions tailored to meet the diverse needs of its customers.The company’s product portfolio includes a wide array of advanced machinery, such as turning and milling centers, vertical machining centers, turret and row tool CNC lathes, as well as solutions for industrial automation. These products are employed across various industries, including automotive, telecommunications, new energy, engineering machinery, and chemicals, showcasing their versatility and reliability.Raydafon places a strong emphasis on product research and development, continuously striving for technological progress. The company is dedicated to fostering ongoing technological innovation, which significantly enhances its competitiveness in the market. By prioritizing quality and innovation, Raydafon aims to lead the way in the CNC machine tool industry, ensuring that it meets the evolving demands of its clients and contributes to the advancement of manufacturing technologies.
