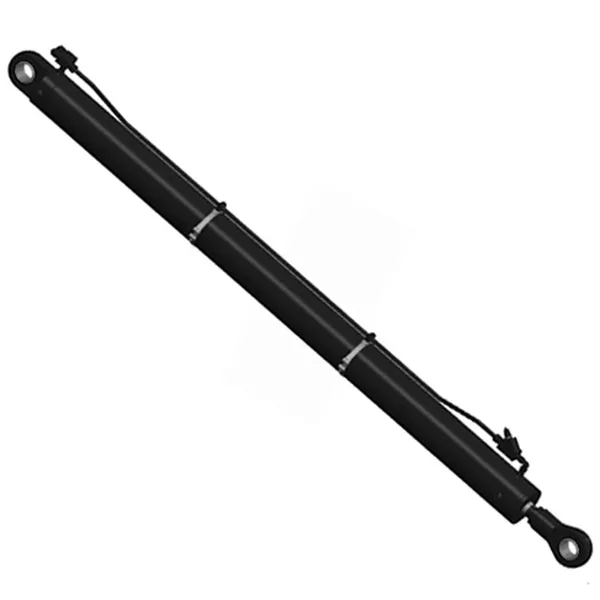

Ro-ro Platform Main Operating Cylinder

Ro-ro Platform Main Operating Cylinder

A ro-ro platform main operating cylinder is a large hydraulic cylinder that is used to raise and lower the ro-ro platform on a ro-ro vessel. The ro-ro platform is a flat deck that vehicles drive onto and off of the vessel. It is raised and lowered using the main operating cylinder to load and unload vehicles.

The main operating cylinder is typically located at the center of the ro-ro platform and is connected to the platform using a series of struts. The cylinder is filled with hydraulic fluid and has a piston at each end. When hydraulic fluid is pumped into one side of the cylinder, the piston on that side moves up, raising the ro-ro platform. When hydraulic fluid is pumped into the other side of the cylinder, the piston on that side moves down, lowering the ro-ro platform.

The ro-ro platform main operating cylinder is a critical component of the ro-ro vessel and must be able to withstand the weight of the vehicles being loaded and unloaded. It is also important that the cylinder be able to operate smoothly and efficiently to minimize loading and unloading times.

Ro-ro platform main operating cylinders are typically made of high-strength steel and are lined with a wear-resistant material. They are also equipped with a number of safety features, such as pressure relief valves and overspeed governors, to prevent accidents.

The main ro-ro platform operating cylinder is a complex piece of machinery that requires regular maintenance and inspection to ensure that it is operating safely and efficiently.

Ro-ro Platform Main Operating Cylinder Specifications:

Product Name	Ro-ro Platform Main Operating Cylinder
Features:	Retract the springboard and ramp
Bore diameter:	100mm～400mm
Rod diameter:	50mm～180mmStroke≤7300mm
Thrust force:	Maximum 3500KN(Cylinder diameter: 125mm/pressure28MPa)
Applications:	Ro-ro Platform

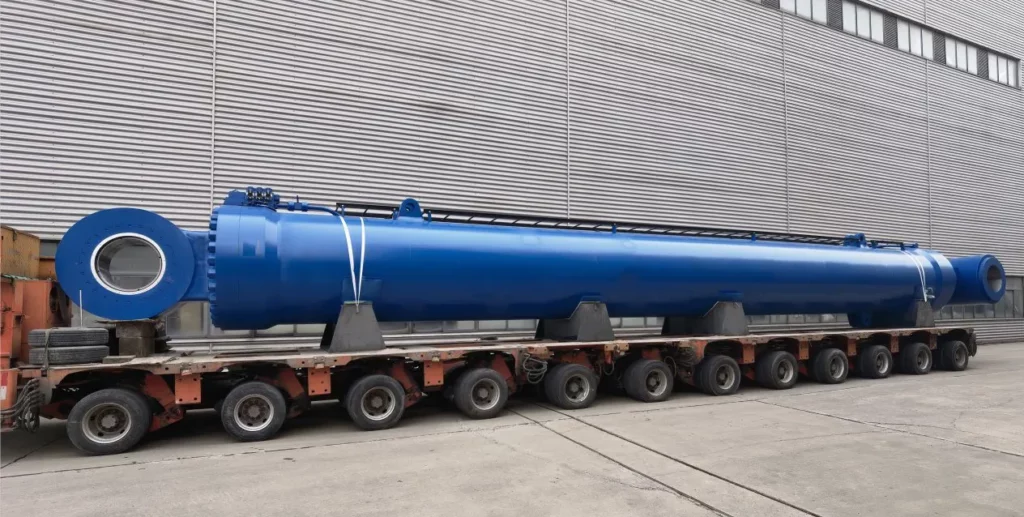

Features of Ro-ro Platform Main Operating Cylinder:

Ro-ro platform main operating cylinders are a critical component of roll-on/roll-off (ro-ro) vessels and platforms. They are responsible for raising and lowering the platform, which allows vehicles to roll on and off the vessel or platform. Features of ro-ro platform main operating cylinders include:

1. Large size: Ro-ro platform main operating cylinders are typically very large, with diameters of up to 10 feet and strokes of up to 20 feet. This is necessary to lift and lower the heavy platform, which can weigh up to several hundred tons.2. High pressure: Ro-ro platform main operating cylinders operate at very high pressures, typically in the range of 1,000 to 3,000 psi. This is necessary to generate the force required to lift and lower the platform.3. Durability: Ro-ro platform main operating cylinders must be highly durable, as they are subjected to a great deal of wear and tear. They are typically made of high-strength steel and are designed to withstand a long service life.4. Precision: Ro-ro platform main operating cylinders must be very precise, as they must be able to lift and lower the platform with a high degree of accuracy. This is necessary to prevent damage to the platform and the vehicles that are being loaded and unloaded.

Maintenance of Ro-ro Platform Main Operating Cylinder:

The main operating cylinder on an Ro-ro platform is a critical component that must be properly maintained to ensure safe and reliable operation. The following are some of the key maintenance tasks that should be performed on a regular basis:

(1) Inspection: The main operating cylinder should be visually inspected for any signs of wear, damage, or corrosion. This should be done at least once a week, or more often if the platform is operating in harsh conditions.(2) Lubrication: The main operating cylinder should be lubricated according to the manufacturer's recommendations. This will help to reduce friction and wear, and extend the life of the cylinder.(3) Seal inspection: The seals on the main operating cylinder should be inspected regularly for signs of wear or damage. If any seals are found to be damaged, they should be replaced immediately.(4) Cylinder cleaning: The main operating cylinder should be cleaned regularly to remove any dirt, debris, or corrosion. This can be done by using a mild detergent and water.(5) Cylinder pressure testing: The main operating cylinder should be pressure tested regularly to ensure that it is in good condition and can withstand the operating pressures. This should be done by a qualified technician.

In addition to the above maintenance tasks, the main operating cylinder should also be inspected and serviced by a qualified technician at least once a year. This will involve a more thorough inspection of the cylinder, including the pistons, bearings, and other internal components. Any damaged or worn components should be replaced immediately.

China Ro-ro Platform Cylinder Manufacturers

According to the humid environment with high salt spray corrosion, our hydraulic cylinder adopts advanced plasma spraying and supersonic flame spraying process coating, which is sufficient to resist the strong corrosion of seawater, and the optimized structural design can ensure the cylinder Fatigue life. In the 140-meter piling offshore platforms project, we organized an excellent and professional project team to tailor a hydraulic cylinder solution with superior performance and strictly follow the standards of the China third-party inspection organization.Ro-ro offshore platforms are water "warehouses" that can travel across the ocean. It uses a springboard to load and unload cargo vehicles in a ro-ro way. Its main feature is high loading and unloading efficiency. With the loading and unloading requirements, the springboards, cabin doors, sliding doors, and other mechanisms on the offshore platforms must complete operations such as opening or closing, which requires various hydraulic cylinders of different sizes and strokes to perform the completion. Raydafon can provide a complete set of hydraulic cylinders according to the needs of ro-ro offshore platforms, such as bow cylinders, bow springboard cylinders, ramp cylinders, stern cylinders, lifting platform winch cylinders, etc.Moreover, we go beyond just ro-ro platform cylinders. We also supply a diverse range of hydraulic cylinders, including industrial vehicle hydraulic cylinders, aerial work vehicle cylinders, mobile machinery cylinders, industrial engineering cylinders, construction machinery cylinders, forklift hydraulic cylinders, agricultural machinery cylinders, crane hydraulic cylinders, sanitation machinery cylinders, excavator hydraulic cylinders, offshore hydraulic cylinders, energy technology cylinders, tunnel boring machine cylinders, and more. Our extensive product lineup caters to various industries and applications, providing solutions for your hydraulic needs.
