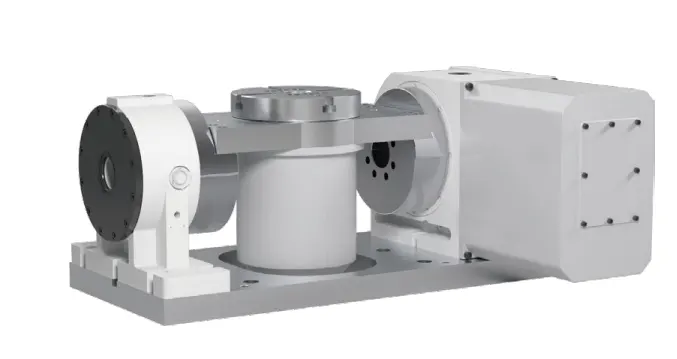

RTS-170 Rotary Table Horizontal and Vertical 5 Axis Indexing Table for CNC Milling Machine

As an e-commerce SEO copywriting expert, this article will provide a comprehensive introduction to the RTS-170 Rotary Table Horizontal and Vertical 5 Axis Indexing Table for CNC Milling Machine. This product from Raydafon (Ningbo Raydafon) is a high-quality, high-performance CNC rotary table designed for various applications in CNC machines.

What is a CNC Rotary Table and Its Role in CNC Machines

CNC rotary tables are crucial components of CNC machines. They are responsible for the precise rotation of workpieces during machining. The RTS-170 model is a versatile tool capable of operating both horizontally and vertically. It is designed for high precision, high performance, and high efficiency, making it an essential tool for various machining tasks.

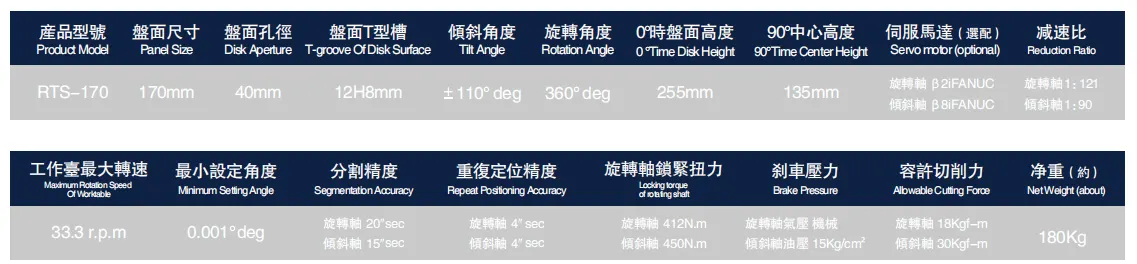

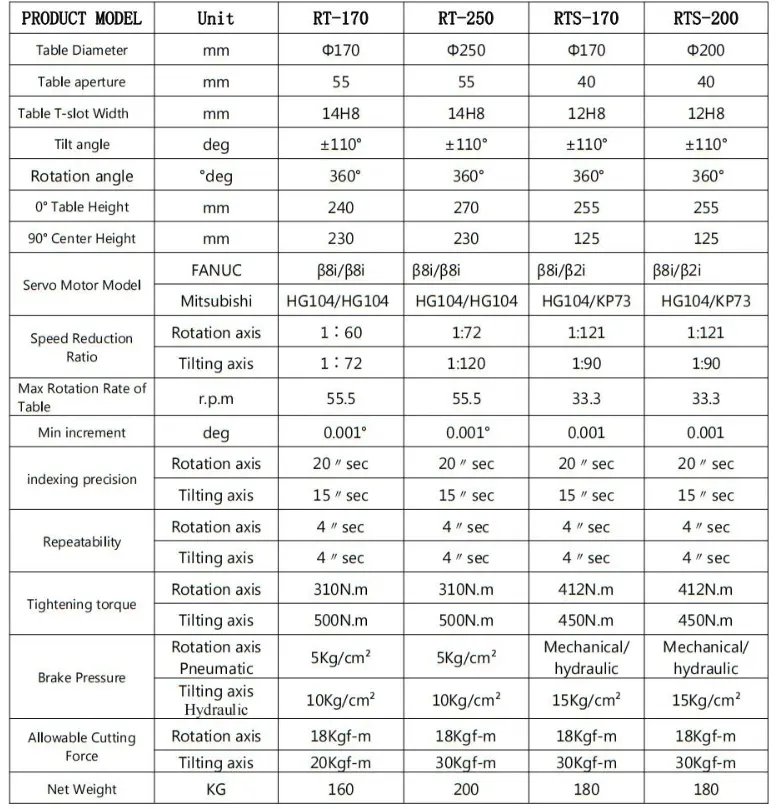

Product Specifications

Certification	ISO9001:2015
Application	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure	Vertical And Horizontal
Material	Stainless Steel
Type	Precision Rotary Table
N.W.	180 Kg
Customization	Available | Customized Request

Key Features

• High precision: Ensures accurate positioning of workpieces during machining.
• High performance: Capable of handling heavy-duty tasks with ease.
• High efficiency: Automates the rotation of workpieces, enhancing productivity.
• Five axis machining: Allows for complex machining tasks.
• Modular design: Enables easy customization according to specific machining requirements.

Working Principle of CNC Rotary Tables

CNC rotary tables consist of three basic parts: the spindle, the drive mechanism, and the control system. The spindle is the axis around which the workpiece or tool rotates. The drive mechanism provides power to the spindle, and the control system regulates the speed and direction of the spindle. This setup allows for precise control and positioning of workpieces during machining, thereby enhancing the quality of the final product.

Applications of CNC Rotary Tables

This CNC rotary table is suitable for various machines, including Punching Machines, Grinding Machines, Slotting Machines, Milling Machines, Drilling Machines, and Boring Machines. Its high precision and performance make it an ideal tool for enhancing productivity in these machines.

Advantages of CNC Rotary Tables

CNC rotary tables offer several advantages. They improve production efficiency by automating the rotation of workpieces or tools. They also ensure precise positioning of workpieces or tools during rotation, enhancing product quality. Furthermore, they reduce labor costs by minimizing the need for manual intervention.

Worm Gear System in CNC Rotary Tables

The worm gear system is a crucial component of CNC rotary tables. It consists of a worm (a screw-like device) and a worm gear (a gear with teeth that mesh with the worm). This system offers a high transmission ratio, allowing for greater torque output in a compact space. It provides precise positioning and stable rotational motion, making it ideal for tasks that require fine control and stability.

Why Choose Raydafon?

Raydafon is a leading supplier of CNC rotary tables, known for its innovation and state-of-the-art production technology. We design and manufacture CNC rotary tables that meet the specific needs of our customers. Our commitment to honesty, harmony, and technological excellence sets us apart in the industry. We partner with domestic and foreign machine tool manufacturers to develop four-axis and five-axis high-precision rotary tables for various processing fields. Our products are widely used in non-standard automated special machines, metal cutting machines, and various processing equipment in 3C, automotive, energy, military, aerospace, and other fields.

FAQs

Q: Are you a trading company or manufacturer?

A: We are a manufacturer with more than 15 years of experience.

Q: Do you offer customized products and packaging?

A: Yes, we provide OEM services and can customize both the product and the packaging according to your needs.

Q: How long is the warranty period?

A: We offer a one-year warranty on our products.

Take the first step towards a more efficient and productive machining process. Explore our high-quality CNC rotary tables and contact us today to make a purchase. Your satisfaction is our priority.Edited by Zqq.
