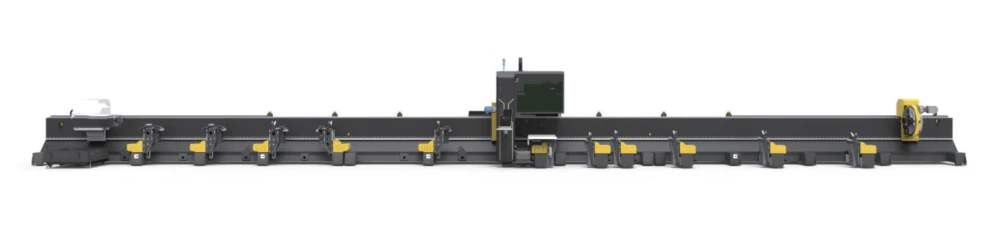

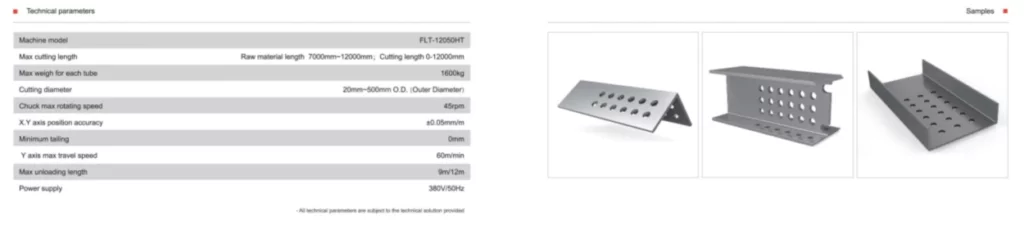

Vertical three chucksFLT-12080HT

Main application fields of vertical three-chuck

Automotive IndustryEngine Components: Machining engine parts such as crankshafts, camshafts, and drive shafts.Wheel and Brake Manufacturing: For holding brake drums, wheels, and other round automotive components during machining.Aerospace IndustryTurbine Manufacturing: In the precision machining of aerospace turbine components.Aerospace Component Machining: For various parts like shafts, housings, and cylindrical aerospace components.Manufacturing of Electrical ComponentsElectric Motor Production: In the production of electric motor components, such as armatures and rotors.Large Coil Manufacturing: For handling and machining large coils used in electrical applications.Pipe and Tubing IndustryPipe Threading and Grooving: In operations involving cutting threads or grooves into pipes and tubes.Oil and Gas Equipment: Manufacturing parts for the oil and gas industry, such as drilling components.Construction Equipment ManufacturingHeavy Machinery Parts: For machining parts used in construction machinery, like axles and hydraulic cylinders.Renewable Energy SectorWind Turbine Components: Machining parts for wind turbines, including shafts and other rotational components.Heavy-Duty Mechanical ComponentsLarge Bearing and Gear Manufacturing: For the production of large bearings, gears, and similar components in heavy machinery.Rail IndustryRailway Axles and Wheelsets: Used in the manufacturing and maintenance of railway axles and wheelsets.Precision InstrumentationOptical Components: For precision machining of components in optical instruments.

Basic principles of vertical three chuck

esign and ComponentsThree Jaws: The system typically consists of three jaws or chuck grips arranged in a circular pattern. These jaws can be adjusted radially (inward and outward) to accommodate various sizes of workpieces.Vertical Orientation: In a vertical chuck, the workpiece is held vertically, which can be advantageous for certain types of machining operations.OperationClamping Mechanism: The three jaws move simultaneously and symmetrically. When activated, they converge towards the center of the chuck, gripping the workpiece from three equidistant points. This ensures a balanced and firm hold.Adjustable Grip: The jaws can be adjusted to fit different diameters of workpieces, making the chuck versatile for handling a range of sizes.Chuck ActuationManual or Power Actuated: Chucks can be manually operated using a chuck key or power-actuated through hydraulic, pneumatic, or electric means, depending on the precision and force required.Workpiece PositioningCentering Accuracy: The three-point grip centers the workpiece precisely, which is crucial for operations requiring high accuracy, likeCNC machining.Rotation Capability: In machining operations, the chuck allows the workpiece to be rotated around the vertical axis, enabling uniform access for tools to the workpiece’s surface.ApplicationsMachining Operations: Used in turning, drilling, milling, and other machining operations, especially where vertical access to the workpiece is required.Symmetrical Workpieces: Particularly suitable for cylindrical or round objects that need to be machined symmetrically.AdvantagesStable and Secure Hold: Provides a firm grip, reducing vibrations and increasing machining accuracy.Uniform Force Distribution: The three jaws distribute clamping force evenly, minimizing the deformation of the workpiece.
