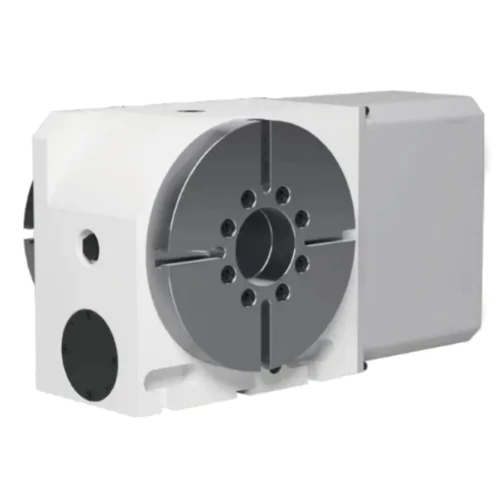

WT-255-2P CNC Rotary Table

Introduction to WT-255-2P CNC Rotary Table

WT-255-2P CNC Rotary Table is an excellent choice for any application requiring high-precision rotary motion. Its combination of accuracy, versatility, and compact design makes it a valuable asset for any machine shop.

WT-255-2P CNC Rotary Table Features

1. Design featuring a wide aperture,
2. Ideal for machining heavy loads
3. Boasting exceptional segmentation accuracy, rigidity, performance, and efficiency
4. Robust braking structure system.

WT-255-2P CNC Rotary Table Technical Specifications

The following table presents the detailed specifications of this product:

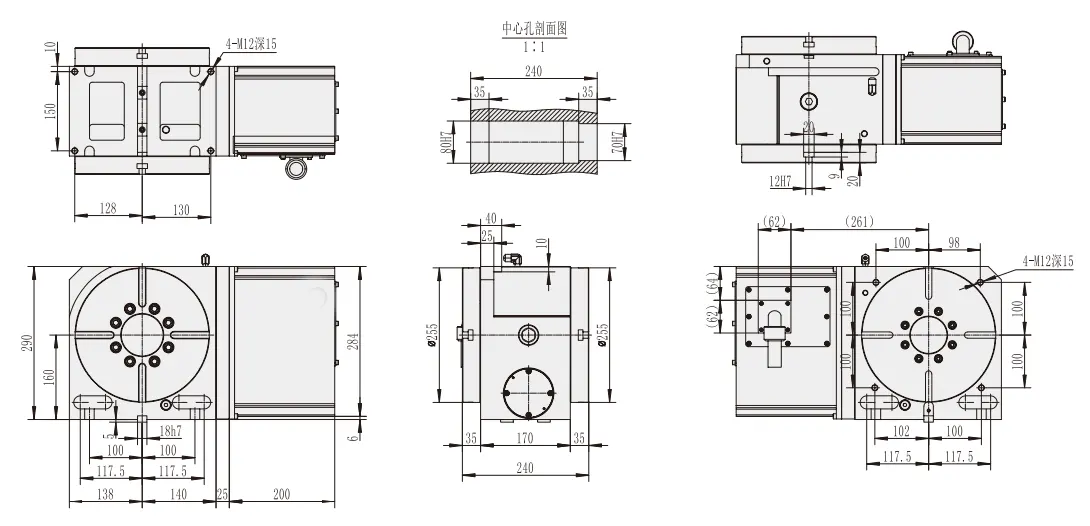

Dimension Parameters

Dimension Parameters

Product Model	Disk Diameter	Center Diameter	Spindle Hole	Center Height	T-Slot Width	Positioning Button	Min lncrement
WT-255-2P	255mm	80H7mm	80mm	160mm	12H7mm	18H7mm	0.001°
Segmentation accuracy	Repeat positioning	Locking Mode	Servo Motor	Speed ReductionRatio	Maximum Speed	Allowable Work Inertia	Allowable Cutting Torque	Weight（Without Motor）
15 ″	4 ″	70kg.m	β8is;HF-154	1:120	33.3r.p.m	20.3kg.cm.sec2	55Kg.m	110Kg

Max.load

Vertical: 100KGTailstock applied: 250KG

WT-255-2P CNC Rotary Table Applications



• Machining complex parts with multiple axes
• Engraving and milling
• Inspection and measurement
• Robotics and automation



WT-255-2P CNC Rotary Table Benefits



• Enhanced precision and accuracy in machining operations
• Increased productivity through automation
• Improved flexibility in part design and manufacturing
• Reduced setup time and costs

About Raydafon

Raydafon is one of the leading suppliers of CNC Rotary Table. With a commitment to R&D innovation and production technology, Raydafon designs customer-centric CNC rotary tables. The company prides itself on its ability to keep pace with the rapidly changing needs of its customers. Raydafon's main products are 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for tool machine tools. The company also offers solutions for CNC precision rotary tables or swing mechanisms.We encourage you to explore this product and contact us for any purchase inquiries. Trust in Raydafon for all your CNC turntable needs.Edited by Zqq.
