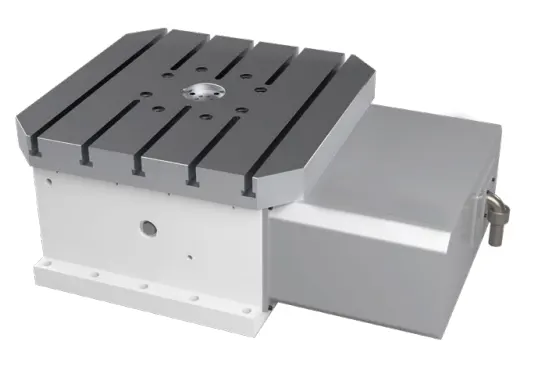

WT-H550 5 Axis 550mm Indexing Table for CNC Machine Rotary Table

What is a CNC Rotary Table?

A CNC Rotary Table is a precision work positioning device used in metalworking, which allows the operator to rotate the workpiece, thus providing access to multiple sides of the object. The Raydafon's WT-H550 5 Axis 550mm Indexing Table for CNC Machine Rotary Table is a versatile and highly precise tool that enhances the functionality of your CNC machines.

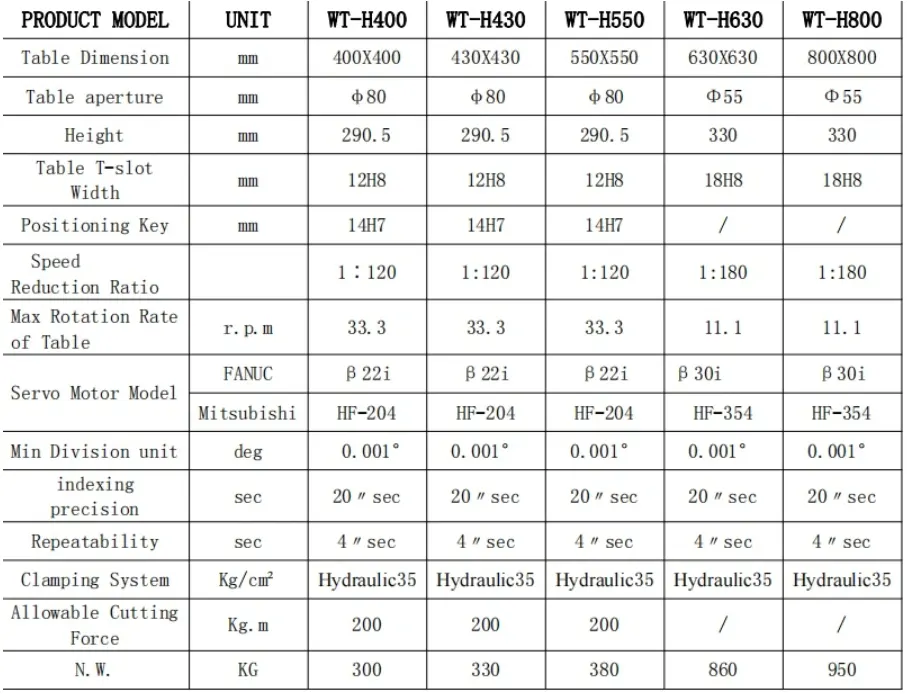

Product Specifications

Certification:	ISO9001:2015
Application:	Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine
Structure:	Horizontal
Material:	Stainless Steel
Type:	Precision Rotary Table
N.W.:	300 Kg

Key Features of the WT-H550 CNC Rotary Table

• Horizontal micro-positioning table: Offers precise positioning for intricate machining tasks.
• Suitable for horizontal processing machines: The compact design allows it to be easily integrated with various types of machines.
• Hydraulic lock: Ensures the stability of the workpiece during machining, providing accurate results.
• Heavy-duty cutting: Made of high-quality stainless steel, it can withstand heavy-duty cutting operations.
• Simultaneous machining: The 5 Axis design allows for simultaneous machining, greatly improving production efficiency.

Working Principle of CNC Rotary Tables

CNC Rotary Tables are composed of three main components: the spindle, the drive system, and the control system. The spindle is the axis on which the workpiece or tool rotates. The drive system provides power to the spindle, and the control system controls the speed and direction of the spindle.

Applications of the WT-H550 CNC Rotary Table

The WT-H550 CNC Rotary Table can be used with a variety of machines, such as Punching Machine, Grinding Machine, Slotting Machine, Milling Machine, Drilling Machine, Boring Machine and more. This versatility makes it an essential tool in various industries.

Advantages of CNC Rotary Tables

• Improves production efficiency: The ability to automatically rotate the workpiece or tool increases production speed.
• Enhances product quality: The precision control of the CNC rotary table ensures accurate positioning, resulting in higher quality products.
• Reduces labour costs: Automation reduces the need for manual labour, thus reducing labour costs.

Worm Gear System in CNC Rotary Tables

The worm gear is a helical structure, similar to a propeller, and the worm is the gear that meshes with it. The design can provide a high transmission ratio, allowing for larger torque output in a smaller space. In CNC machines, rotary tables often use worm and worm gear drive systems because they provide precise positioning and stable rotary motion, making them ideal for machining tasks that require precise control and stability.worm gear System">

Why Choose Raydafon's CNC Rotary Tables?

Raydafon is one of the top suppliers of CNC rotary tables. With our innovative R&D and production technology, we can design CNC rotary tables that meet the needs of our customers. Our main products include 4-axis and 5-axis CNC rotary tables and horizontal 4-axis rotary tables for machine tools. We also provide solutions for CNC precision rotary tables or swing mechanisms, which are widely used in various industries such as 3C, automotive, energy, military, and aerospace. We are committed to becoming a reliable professional service provider and leading brand in China's machine tool industry. We encourage you to explore our product and contact us for purchase. Raydafon - your trusted partner in precision machining.

Frequently Asked Questions

Q: Can the products be customized?A: Yes, we offer product customization. Just provide your detailed requirements and we will design it accordingly.Q: What's the quality guarantee?A: We provide a one-year quality guarantee for all our products.Q: How long is the lead time?A: For common models, the lead time is about 5-7 workdays. For customized models, it may take about 30 workdays.Edited by Zqq
