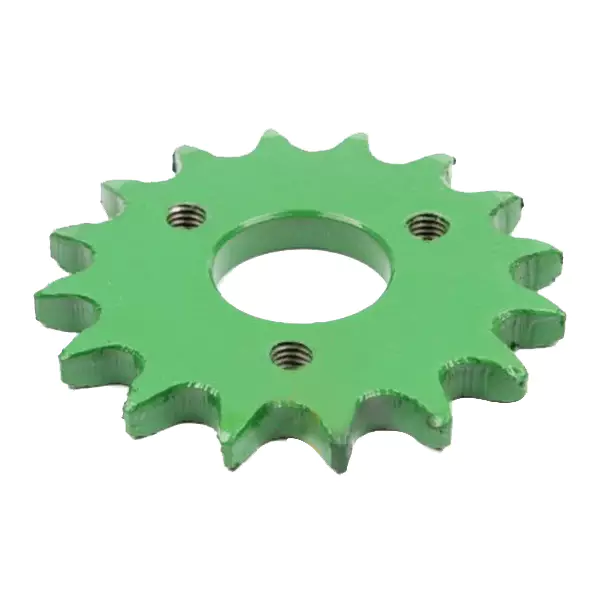

Z30028 Straw Walker Sprocket For John Deere Combine

Z30028 Straw Walker Sprocket For John Deere Combine

▍Destination of the Z30028 Straw Walker Sprocket The sprocket is an obligatory element of chain drive which serves for torque transfer between two in parallel located shaft by means of a flexible element - a chain.

▍Structure of the Z30028 Straw Walker Sprocket

Sprocket is a profiled wheel with teeth, which is characterized by the following parameters: width roller sprocket, chain pitch, the outer diameter of the sprocket, the number of sprocket teeth, width sprocket diameter fit on the shaft.

▍Application:

Spare part for John Deere combine ▍Features: One row sprocket.

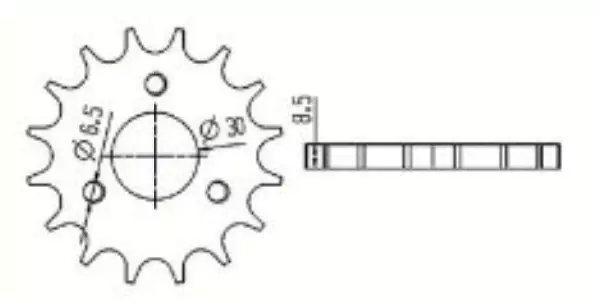

▍Parameters of the Z30028 Straw Walker Sprocket

Weight , W	kg	0.24
Inner diameter , d	mm	30
Outer diameter , D	mm	90
Number of teeth , Z		16
Number of mounting holes , N		3
Mounting holes diameter , Dm	mm	6
Height , H	mm	8.5

▍Usage of Z30028 Straw Walker Sprocket

Combine harvester John Deere: 1032, 1042, 1052, 1055, 1133, 1144, 1155, 1157, 1158, 925, 930, 932, 935, 940, 942, 945, 950, 952, 955, 960, 965,965H, 968H, 970, 975, 985 ▍Related Products

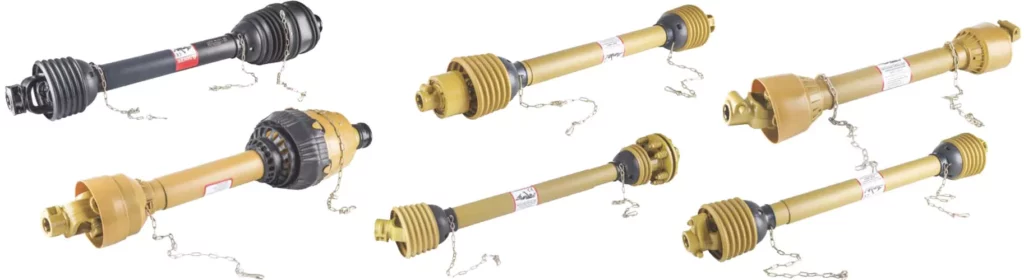

▍We Also Supply PTO Shafts & Agricultural Gearboxes
