06B Metric Roller Chain Sprockets

Raydafon Group's 06B Metric Roller Chain Sprockets deliver precise power transmission for machinery and vehicles, crafted from durable materials for superior reliability. Ideal for engineers and manufacturers, these sprockets enhance performance with smooth operation, solving wear issues and offering long-term value. Choose Raydafon Group for unmatched quality and efficiency in industrial applications.

Send Inquiry

Product Description

06B roller chain sprockets are manufactured for metric 06B roller chain and are manufactured in accordance with ISO, DIN, and BS228/3 standards. Our sprockets are precision manufactured from high-quality steel, are black oxide coated, and have hardened teeth on tooth counts 30 or less. 06B Metric Roller Chain Sprockets

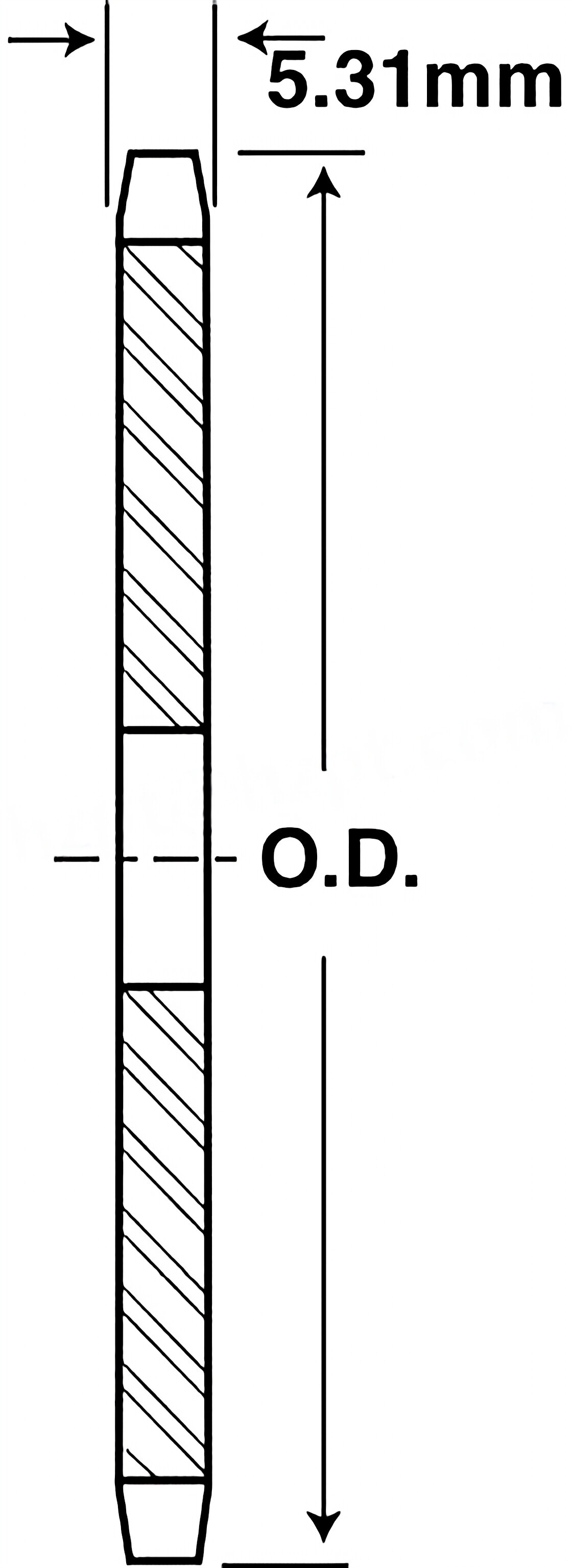

06B A-Plate Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Sprocket Weight (kg)
*06A15*	15	45.81mm	8mm	0.07
*06A16*	16	48.82mm	10mm	0.08
*06A17*	17	51.84mm	10mm	0.18
*06A18*	18	54.85mm	10mm	0.11
*06A19*	19	57.87mm	10mm	0.12
*06A20*	20	60.89mm	10mm	0.13
*06A21*	21	63.91mm	10mm	0.14
*06A22*	22	66.93mm	10mm	0.15
*06A23*	23	69.95mm	10mm	0.17
*06A24*	24	72.97mm	10mm	0.19
*06A25*	25	76.00mm	10mm	0.20
*06A26*	26	79.02mm	10mm	0.21
*06A27*	27	82.05mm	10mm	0.22
*06A28*	28	85.07mm	10mm	0.23
*06A29*	29	88.10mm	10mm	0.25
*06A30*	30	91.12mm	10mm	0.27
*06A32*	32	97.18mm	12mm	0.20
*06A35*	35	106.26mm	12mm	0.27
*06A36*	36	109.29mm	12mm	0.28
*06A38*	38	115.35mm	14mm	0.43
*06A40*	40	121.40mm	14mm	0.45
*06A42*	42	127.46mm	14mm	0.48
*06A45*	45	136.55mm	14mm	0.51
*06A48*	48	145.64mm	14mm	0.54
*06A54*	54	163.82mm	14mm	0.61
*06A57*	57	172.91mm	18mm	0.86
*06A60*	60	182.00mm	18mm	0.91
*06A64*	64	194.12mm	18mm	0.97
*06A70*	70	212.30mm	18mm	1.06
*06A72*	72	218.37mm	18mm	1.09
*06A76*	76	230.49mm	18mm	1.45
*06A80*	80	242.61mm	18mm	1.53
06A84	84	254.74mm	18mm	1.60
*06A90*	90	272.93mm	18mm	1.72
*06A95*	95	288.08mm	18mm	2.18
*06A96*	96	291.11mm	18mm	2.20
*06A114*	114	345.68mm	18mm	3.13

06B B-Hub Sprockets:

Sprocket Size	Tooth Count	Pitch Diameter	Stock Bore	Sprocket Weight (kg)
*06A15*	15	45.81mm	8mm	0.07
*06A16*	16	48.82mm	10mm	0.08
*06A17*	17	51.84mm	10mm	0.18
*06A18*	18	54.85mm	10mm	0.11
*06A19*	19	57.87mm	10mm	0.12
*06A20*	20	60.89mm	10mm	0.13
*06A21*	21	63.91mm	10mm	0.14
*06A22*	22	66.93mm	10mm	0.15
*06A23*	23	69.95mm	10mm	0.17
*06A24*	24	72.97mm	10mm	0.19
*06A25*	25	76.00mm	10mm	0.20
*06A26*	26	79.02mm	10mm	0.21
*06A27*	27	82.05mm	10mm	0.22
*06A28*	28	85.07mm	10mm	0.23
*06A29*	29	88.10mm	10mm	0.25
*06A30*	30	91.12mm	10mm	0.27
*06A32*	32	97.18mm	12mm	0.20
*06A35*	35	106.26mm	12mm	0.27
*06A36*	36	109.29mm	12mm	0.28
*06A38*	38	115.35mm	14mm	0.43
*06A40*	40	121.40mm	14mm	0.45
*06A42*	42	127.46mm	14mm	0.48
*06A45*	45	136.55mm	14mm	0.51
*06A48*	48	145.64mm	14mm	0.54
*06A54*	54	163.82mm	14mm	0.61
*06A57*	57	172.91mm	18mm	0.86
*06A60*	60	182.00mm	18mm	0.91
*06A64*	64	194.12mm	18mm	0.97
*06A70*	70	212.30mm	18mm	1.06
*06A72*	72	218.37mm	18mm	1.09
*06A76*	76	230.49mm	18mm	1.45
*06A80*	80	242.61mm	18mm	1.53
06A84	84	254.74mm	18mm	1.60
*06A90*	90	272.93mm	18mm	1.72
*06A95*	95	288.08mm	18mm	2.18
*06A96*	96	291.11mm	18mm	2.20
*06A114*	114	345.68mm	18mm	3.13

06B Taper Bushed Sprockets:

Hot Tags: 06B Roller Chain Sprockets, Metric Sprockets Manufacturer, Industrial Sprocket Supplier

Send Inquiry

Contact Info



Address

Luotuo Industrial Area, Zhenhai District, Ningbo City, China


Tel

86-574-87167707


E-mail

[email protected]

Get customized quotes for transmission components, gearboxes, and machinery. Our engineers will respond within 24 hours.

News Recommendations

What are the differences between single-acting and double-acting boom cylinders?View More >>

What are the common finishes for sheet metal parts?View More >>

What is the difference between a sheave and a pulley?View More >>

What materials are commonly used to manufacture gear racks?View More >>

How do hydraulic cylinder pressure and force affect vulcanizing machine performance?View More >>

How do you select the right size and specifications for a welded through hole cylinder?View More >>

Online

Raydafon

We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy

Reject Accept

Sprocket Size	Tooth Count	Pitch Diameter	Bushing Size	Max. Bushing Bore	(L)	(C)	Sprocket Weight (kg)	Bushing Weight (kg)
*06BTB18H*	18	54.85mm	1008	25.40mm	22.23mm	47.63mm	0.18	0.14
*06BTB19H*	19	57.87mm	1008	25.40mm	22.23mm	46.04mm	0.23	0.14
*06BTB20H*	20	60.89mm	1008	25.40mm	22.23mm	49.20mm	0.27	0.14
*06BTB21H*	21	63.91mm	1008	25.40mm	22.23mm	52.39mm	0.32	0.14
*06BTB22H*	22	66.93mm	1210	31.75mm	25.40mm	60.33mm	0.36	0.27
06BTB23H	23	69.95mm	1210	31.75mm	25.40mm	61.91mm	0.41	0.27
*06BTB24H*	24	72.97mm	1210	31.75mm	25.40mm	61.91mm	0.41	0.27
*06BTB25H*	25	76.00mm	1210	31.75mm	25.40mm	61.91mm	0.54	0.27
*06BTB26H*	26	79.02mm	1610	41.28mm	25.40mm	73.03mm	0.50	0.41
*06BTB28H*	28	85.07mm	1610	41.28mm	25.40mm	73.03mm	0.54	0.41
*06BTB30H*	30	91.12mm	1610	41.28mm	25.40mm	79.38mm	0.54	0.41
*06BTB32*	32	97.18mm	1610	41.28mm	25.40mm	82.55mm	0.59	0.41
*06BTB35*	35	106.26mm	1610	41.28mm	25.40mm	82.55mm	0.64	0.41
*06BTB36*	36	109.29mm	1610	41.28mm	25.40mm	82.55mm	0.64	0.41
*06BTB38*	38	115.35mm	1610	41.28mm	25.40mm	82.55mm	0.68	0.41
*06BTB40*	40	121.40mm	1610	41.28mm	25.40mm	82.55mm	0.86	0.41
*06BTB45*	45	136.55mm	1610	41.28mm	25.40mm	82.55mm	0.95	0.41
*06BTB48*	48	145.65mm	1610	41.28mm	25.40mm	82.55mm	1.04	0.41
*06BTB54*	54	163.82mm	1610	41.28mm	25.40mm	82.55mm	1.18	0.41
*06BTB57*	57	172.91mm	1610	41.28mm	25.40mm	82.55mm	1.25	0.41
*06BTB60*	60	182.00mm	1610	41.28mm	25.40mm	82.55mm	1.36	0.41
*06BTB70*	70	212.30mm	1610	41.28mm	25.40mm	82.55mm	1.68	0.41
*06BTB76*	76
