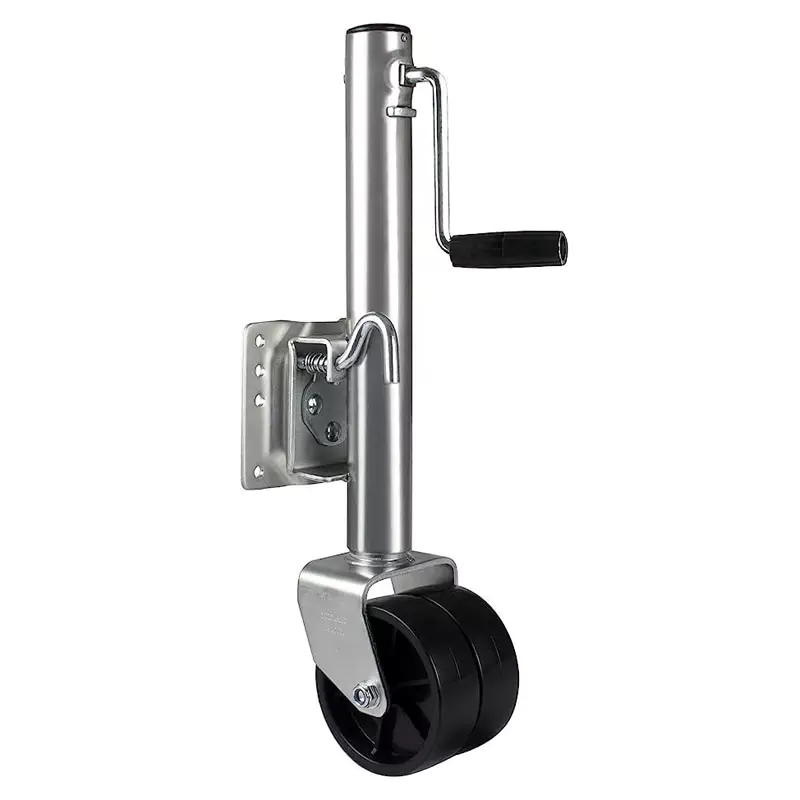

1500lbs Trailer Jack Jw1605 Jockey Wheel 6"double solid wheel

Trailer Jack Jw1605

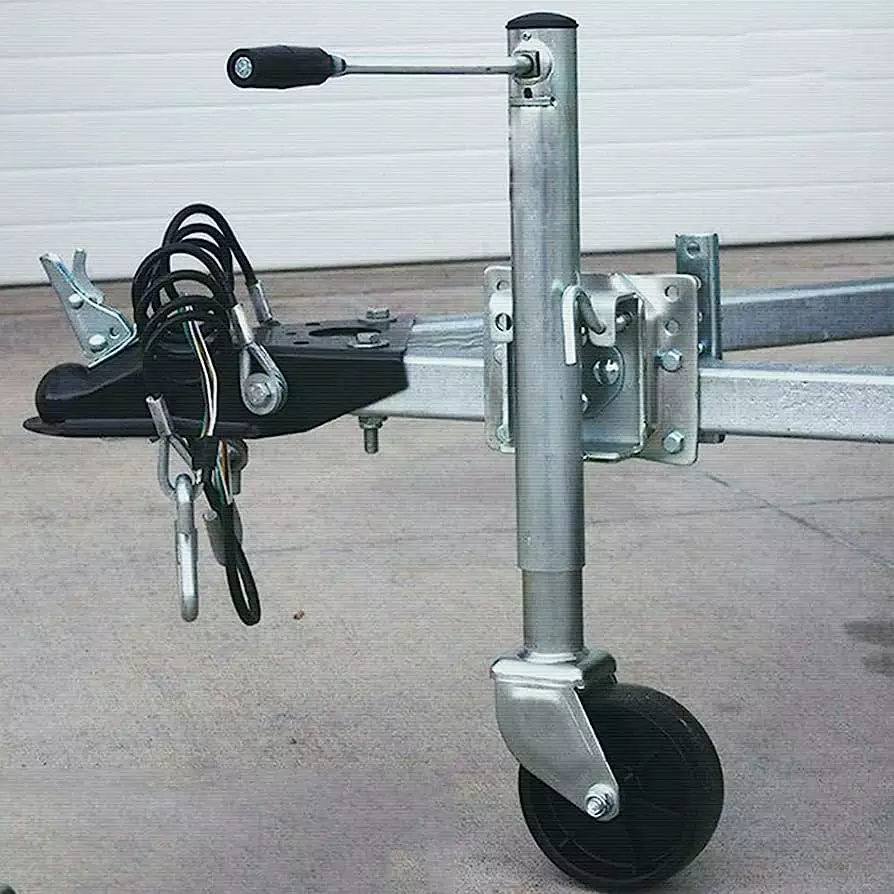

Our 1500 pound capacity dual wheel trailer jack is a massive and easy to manage trailer accessory. The rotating plate of the trailer jack allows for various installation configurations, making it easy to store and transport. Includes a built-in convenient U-bar handle locking handle. The bolt installation system of the jack can install up to 3 "x 5" rectangular or square trailer tongue beams. The crank used to lower and raise the jack has a rotating handle to make it aesthetically stable and ensure placement accuracy. Its lifting range is 10-1/2 inches, including two wheels with a diameter of 6 inches, making it easy to roll heavy attachments.

Large capacity, easy up and downLift heavy vehicles within a few secondsThe traction trailer jack is suitable for tongue sizes ranging from 3 inches to 5 inches and can support various vehicles with capacities up to 1000 pounds. Running at a 1:1 transmission ratio, the side winding handle with a metal wire handle helps with fast and smooth use.
Rotating design for easy storageThe heavy-duty rotating mechanism is designed to help you safely and easily retract the jack between two uses. When you need a jack, use a lever release device to quickly approach the jack, or store it when not needed.

Load	1500lbs
Lifting height	10"
Pipe Size	51mm/44mm
thickness of pipe	2mm
Wheel	6"double solid wheel
Surface	zinc plated

The Importance of Trailer Jacks

The trailer jack lifts the trailer to a certain point, allowing it to hook or unhook from any towing vehicle. These jacks can guide the trailer during storage. Common models include swivel joints, A-frame coupler, and landing legs. The horse trailer is equipped with a jack on the drawbar connected to the hitch. These jacks are an important component of safe pulling.Trailer jacks have the ability to handle various weights and lengths. Users must consider extending and withdrawing the length of their positions. If deployed, the device must raise the connector to a certain height in order to straighten the vehicle's coupling ball. The jack must retreat far enough to rise above the road surface during movement.

Major Function

• Raise and lower the trailer to connect to the connector or hook, and separate it from the ball.
• If the trailer is not fixed to the vehicle, keep the trailer in a horizontal position.
• A stable parked trailer for easy loading and unloading.

How will its Trailer Jack Work for You?

To determine whether the trailer jack is suitable for your trailer and determine its telescopic height, this is usually a measurement of the portable device. Measure from the bottom all the way to the installation point. These points vary depending on the type of jack. The A-frame model is measured all the way to the underside of the overhang. On the other hand, the pipeline installation jack is measured at the center of the pipeline. The jack with a bolted bracket is measured towards the midpoint of the bracket.

Types of Trailer Jack



JW1605	JW1602	TR1823	TR1819
Load:1500lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"double solid wheel	Load:1000lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"solid wheel	Lift load capacity:7000lbsSupport capacity: 8000lbsTravel:15" +13"Colse height:25.50"Expanded height:53.50"Pipe Size:65mm/57mm/51mm	Load capacity:2000lbsTravel:15"Pipe Size:57mm/51mmSurface: Black powder coatedOuter tube,Galvanized inner tube
TW510	TJ310	TJ715
Load capacity:5000lbsTravel:10"Colse height:480mmExpanded height:730mmPipe Size:57mm/51mmSurface: Black powder coated outer tubeGalvanized inner tube	Capacity: 3500lb10" lifting	7000lbs capacity15" lifting13" drop legsqare tubeTop wind
