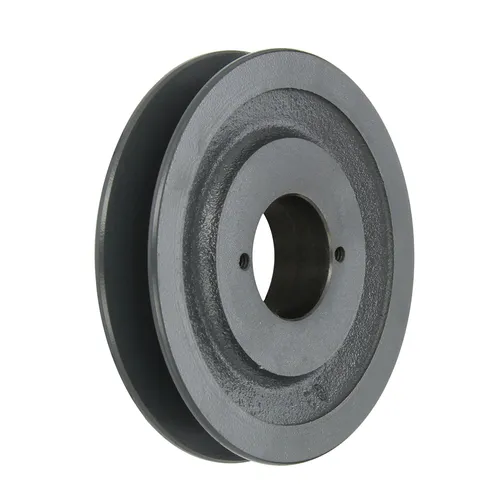

1TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All "C" Section Belts

1TC series single-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts. They range from 7.40" to 24.40" in diameter. Depending on the sheave size, they are made to use Q1 taper bushings, which we also stock. The majority of our 1TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated and painted for anti-corrosion, and all of them are balanced at the factory for smooth machinery operation.

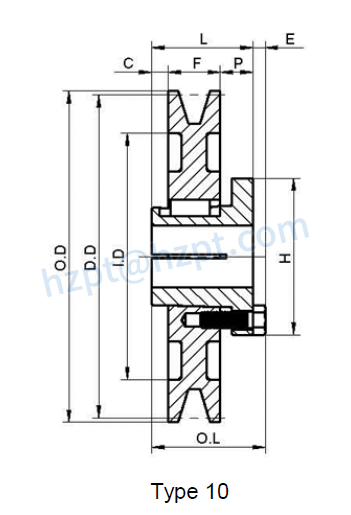

1TC Style Sheave Size Chart

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
1TC70	Q1	7.0	7.40	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	9.3
1TC72	Q1	7.2	7.60	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	10.1
1TC74	Q1	7.4	7.80	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	10.6
1TC76	Q1	7.6	8.00	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	11.4
1TC78	Q1	7.8	8.20	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	9.8
1TC80	Q1	8.0	8.40	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	9.9
1TC82	Q1	8.2	8.60	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	10.1
1TC84	Q1	8.4	8.80	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	11.0
1TC86	Q1	8.6	9.00	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	10.6
1TC88	Q1	8.8	9.20	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	11.6
1TC90	Q1	9.0	9.40	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	11.4
1TC92	Q1	9.2	9.60	10	2-25/32"	2-1/2"	3/4"	1/2"	4-1/8"	1-1/4"	-	-	9/32"	12.6
1TC94	Q1	9.4	9.80	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	14.8
1TC96	Q1	9.6	10.00	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	15.8
1TC98	Q1	9.8	10.20	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	15.9
1TC100	Q1	10.0	10.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	16.8
1TC102	Q1	10.2	10.60	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	16.1
1TC106	Q1	10.6	11.00	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	17.3
1TC110	Q1	11.0	11.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	17.5
1TC114	Q1	11.4	11.80	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	18.6
1TC120	Q1	12.0	12.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	19.5
1TC130	Q1	13.0	13.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	22.8
1TC160	Q1	16.0	16.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	28.5
1TC200	Q1	20.0	20.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	37.8
1TC240	Q1	24.0	24.40	16	2-25/32"	2-1/2"	1"	1/4"	4-1/8"	1-1/4"	3/4"	1-3/4"	9/32"	49.5

C-Section V-Belt Pulleys

Mechanical parts that resist corrosion may be challenging to find among other suppliers, but Raydafon is different. Explore our C-section V belt pulleys and verify that each is coated in phosphate and paint. These layers create the corrosion resistance coveted in the industrial business. You can be sure each C-section pulley is up to ARPM standards, which is why you can use our parts with your alternative brands. There are no frustrating conversions or adapters in play. Place our C-section sheaves into action to see your profits rise.Did you notice that our C-section V belt pulley dimensions accommodate several groove quantities? Go ahead and stock up on your spare parts. Being ready for any circumstance only keeps your production line on task. These sheaves will also last because grade 35 cast iron is the standard. You won't find any grade 25 metals in our stock. Try CX cogged belts, C-series classic V-belts and CC double-sided belts on our C-section sheaves. Each one fits like a glove. Our dynamically balanced parts provide smooth operations while your business moves ahead with success.

Types of TC Series Pulleys

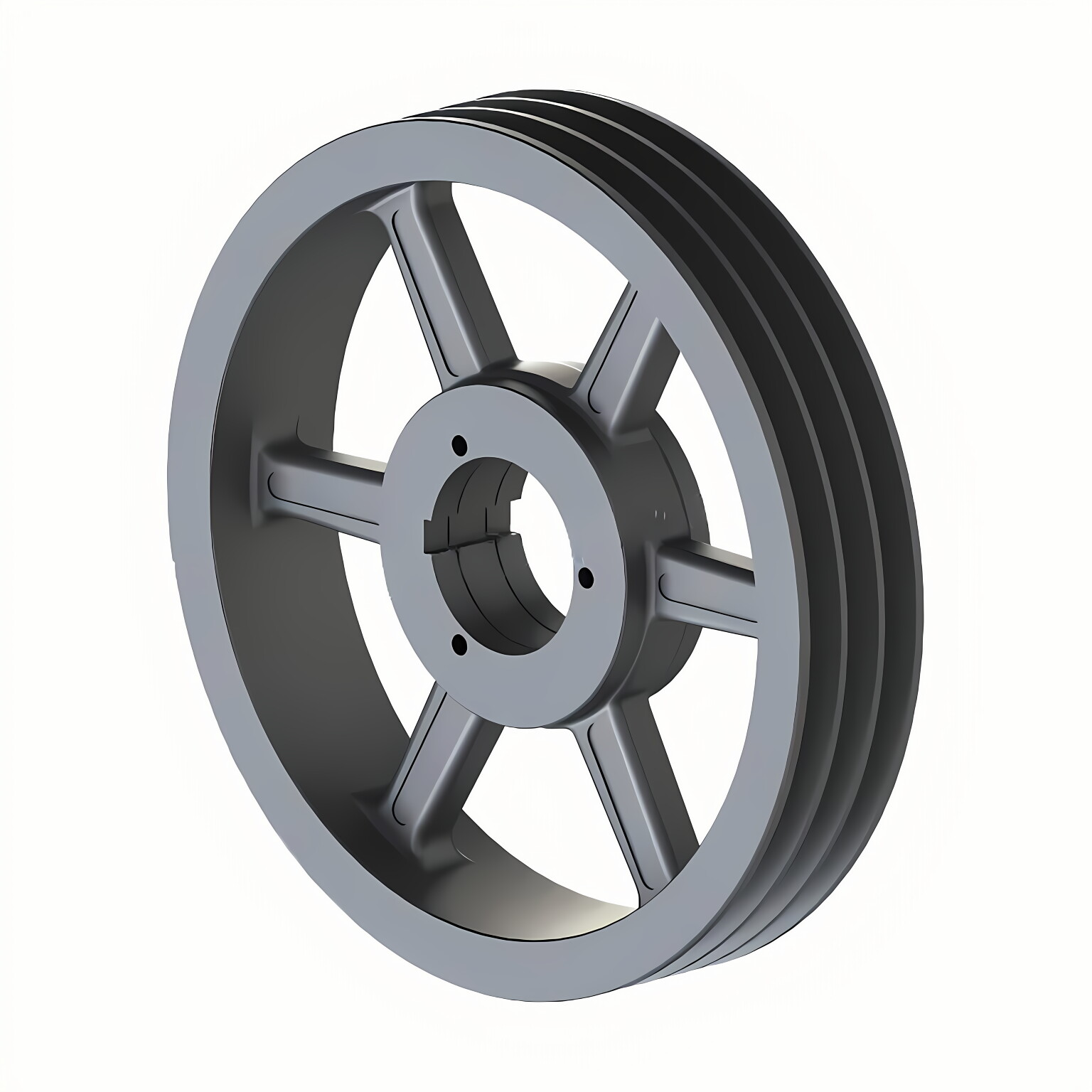

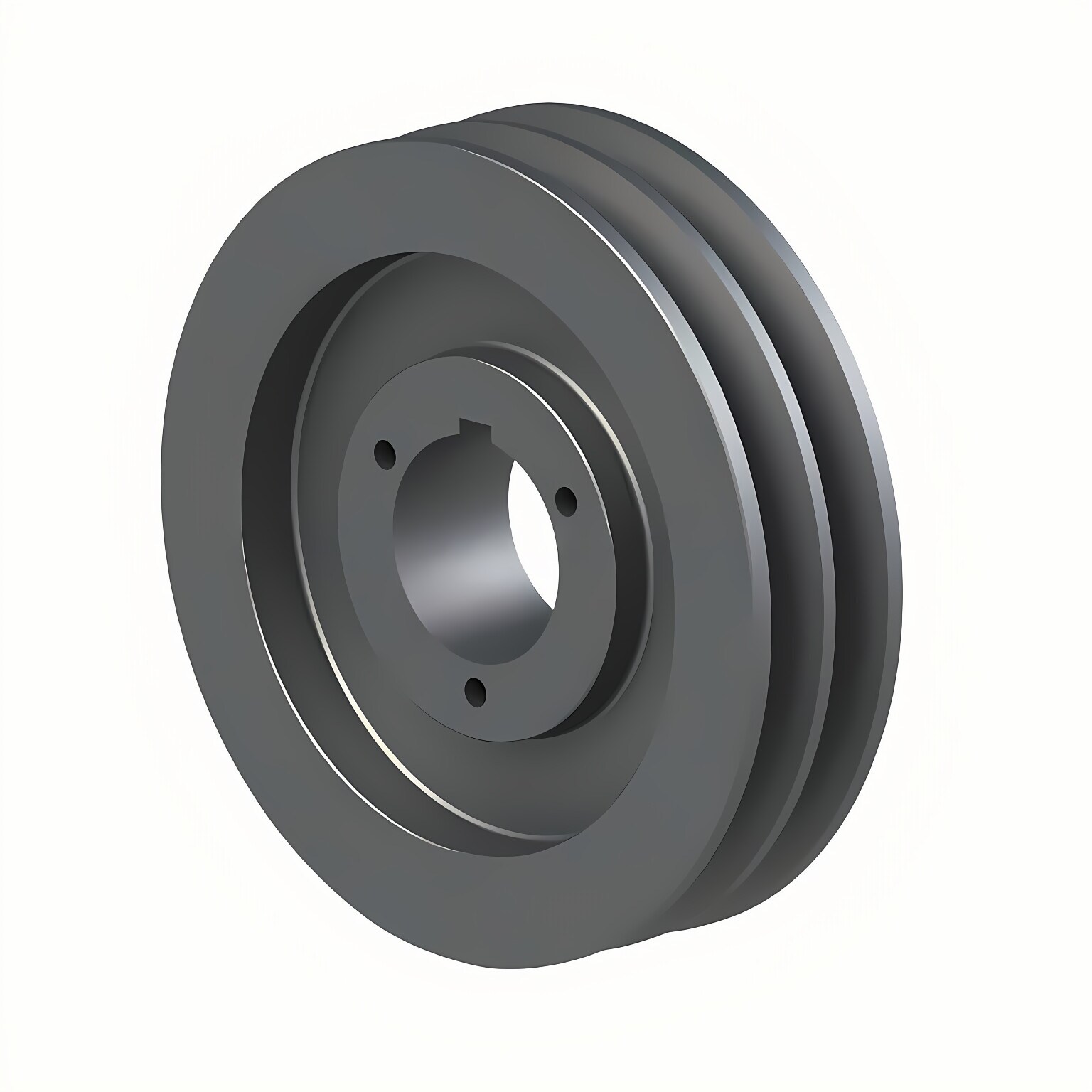

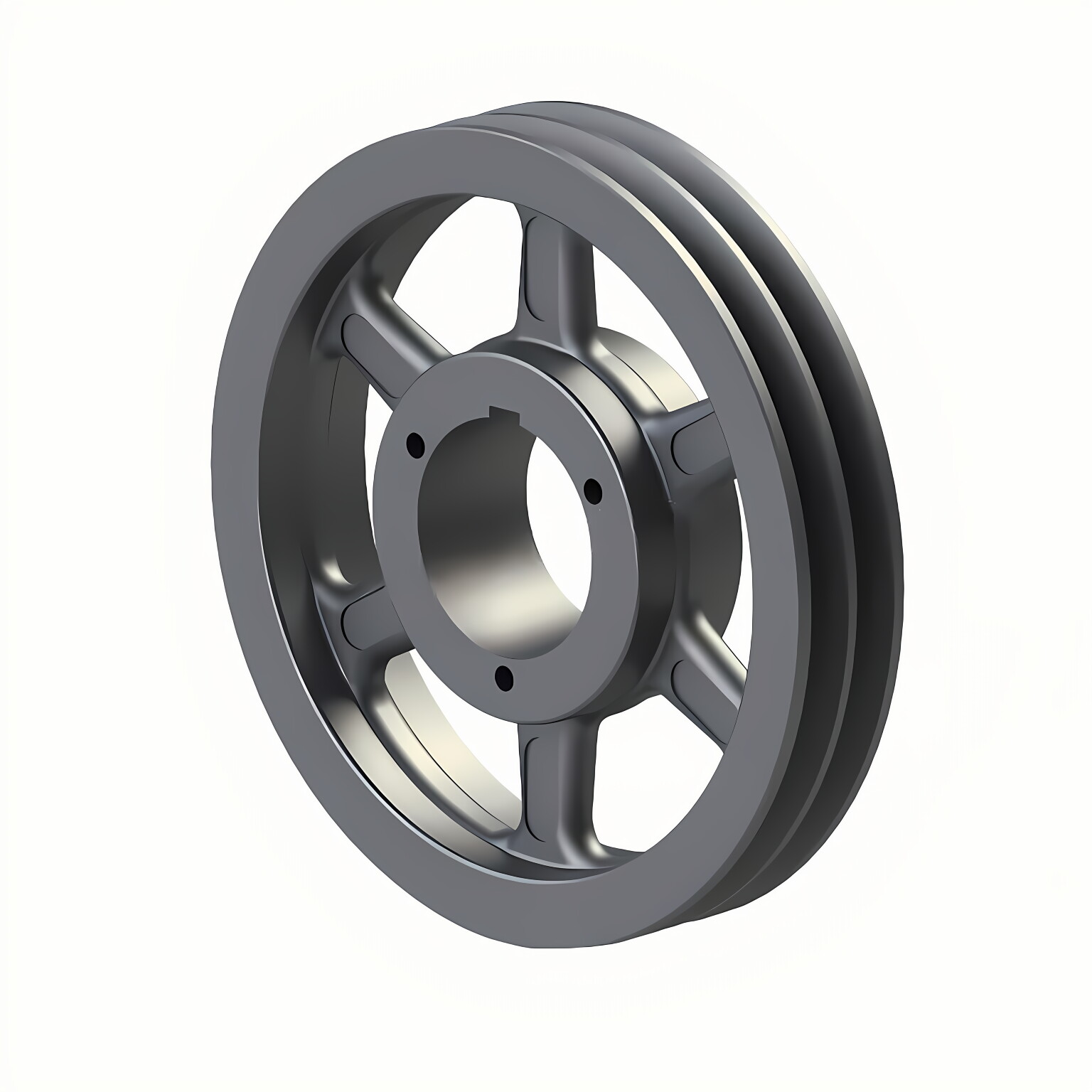

TC with STB bushing for C Belts	TC with STB bushing for C Belts	TC with STB bushing for C Belts
