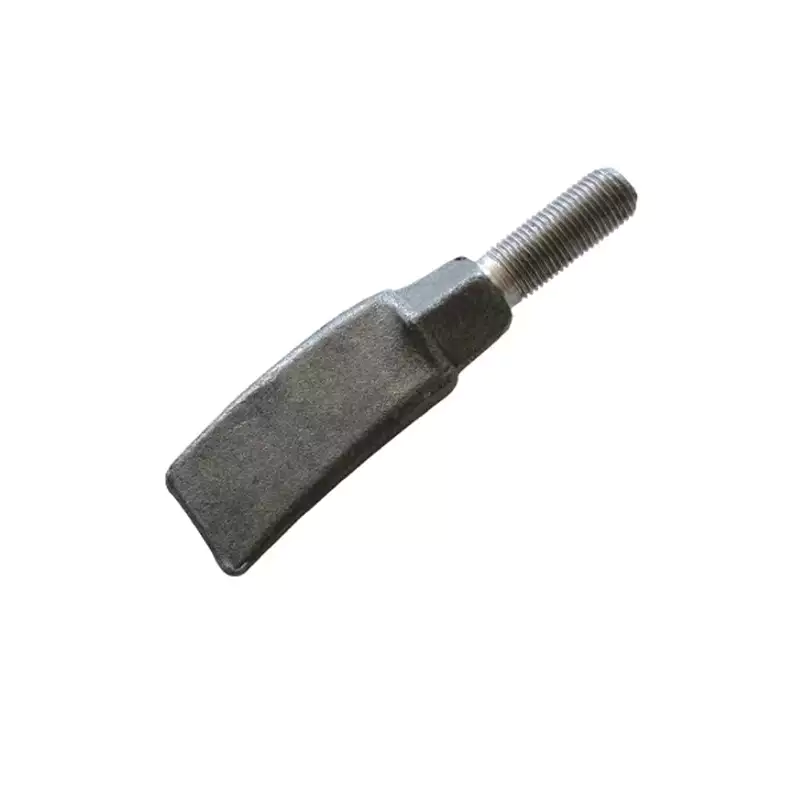

213057 Cylinder Spike Tooth For Combine Harvesters Concave

213057 Cylinder Spike Tooth For Combine Harvesters Concave

Introduction to Cylinder Spike Tooth

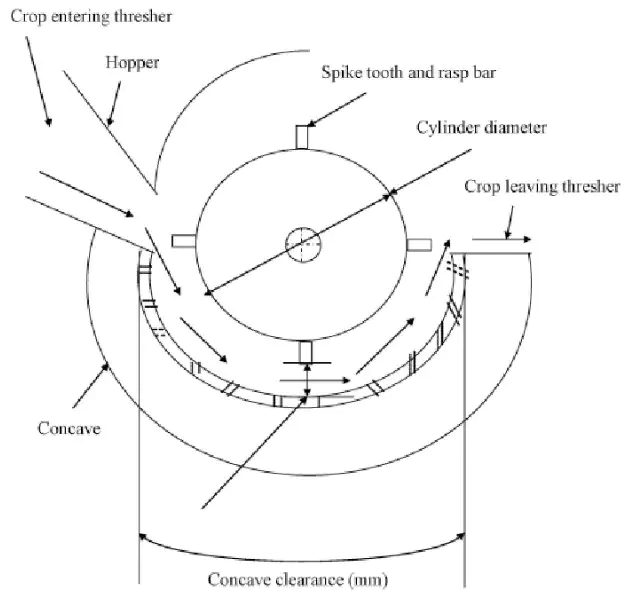

Cylinder spike tooth is a component used in agricultural machinery for threshing or separating crops. It is typically used in combine harvesters to separate grain from the straw. The teeth are positioned on a cylinder and rotate to grip the crop and remove the seeds or grains. This process is essential for efficient crop harvesting.

Applications of Cylinder Spike Tooth

Cylinder spike tooth is generally used in different parts of agricultural machinery such as combine harvesters and threshers. The teeth are typically found on the cylinder of these machines.

Cylinder Spike Tooth Compatibility

The 213057 Cylinder Spike Tooth is compatible with various brands and models of agricultural machinery. The table below provides a list of compatible machinery:

Other Agricultural Machinery Parts

We also provide other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, and concave. You can find all the agricultural machinery parts you need from us.

Signs You Need to Replace Cylinder Spike Tooth

There are several signs that indicate you need to replace the cylinder spike tooth:

1. Decreased threshing efficiency: If the threshing efficiency decreases, grain may not effectively separate from the crop stem, resulting in increased grain loss. This may indicate severe tooth wear, which can no longer provide enough cutting and peeling force.
2. Significant wear: Directly check the teeth on the cylinder. If you find broken, missing, severely worn, deformed, or blunted teeth, or a significant reduction in tooth height, it means that the cylinder's service life has come to an end, and you must replace new teeth or the entire cylinder.
3. Damage caused by foreign objects: During operation, if the machine inhales stones, metal fragments, or other hard debris, it may cause tooth breakage or damage, seriously affecting threshing function, and damaged teeth must be replaced in time.
4. Unusual noise: If the threshing part emits abnormal noise during machine operation, it may be due to parts' abnormal contact or impact resulting from tooth damage.
5. Increased power consumption: Due to tooth wear, the machine may require more power to achieve the same threshing effect, resulting in increased engine load or fuel consumption.

How to Choose Suitable Cylinder Spike Tooth

When choosing cylinder spike tooth, the following factors should be considered:

1. Crop type: Different crops have different requirements for teeth. For example, for crops with small grains and soft straw, such as wheat or rice, a tooth design more suitable for fine threshing can be selected. For crops with large grains and hard straw, such as corn, a more durable and stronger penetrating tooth design is needed.
2. Tooth shape and arrangement: Teeth come in various shapes, including straight, oblique, and curved teeth, each of which has specific applications. Density arrangement also affects threshing efficiency and the degree of crop damage. Generally, high-density arrangement is suitable for fine threshing, while low density is conducive to reducing straw damage.
3. Material and hardness: Tooth materials should have wear resistance, corrosion resistance, and some toughness to ensure stable performance under long-term use. Hardness selection is also critical. Overly hard teeth may cause premature wear or rapid crop damage, while overly soft teeth wear out quickly, affecting service life.
