24B Chain Sprockets

Raydafon Group presents the premium 24B Chain Sprockets, engineered with high-quality steel for exceptional durability and smooth operation in industrial machinery. Ideal for engineers and maintenance professionals, these sprockets ensure reliable performance, reduce downtime, and offer superior precision compared to standard models. Experience enhanced efficiency and peace of mind—upgrade your equipment today with Raydafon's trusted innovation.

Send Inquiry

Product Description

24B sprockets are the metric equivalent to ANSI 120. Though they have the same pitch, a 120 sprocket will not work with a 24B chain because of other slight dimensional differences. We supply standard stock-bore A, B, and C-Hub sprockets as well as taper bushed style. However, we also supply custom bored and custom configurations 24B sprockets from our in-house machining facility. 24B Chain Sprockets

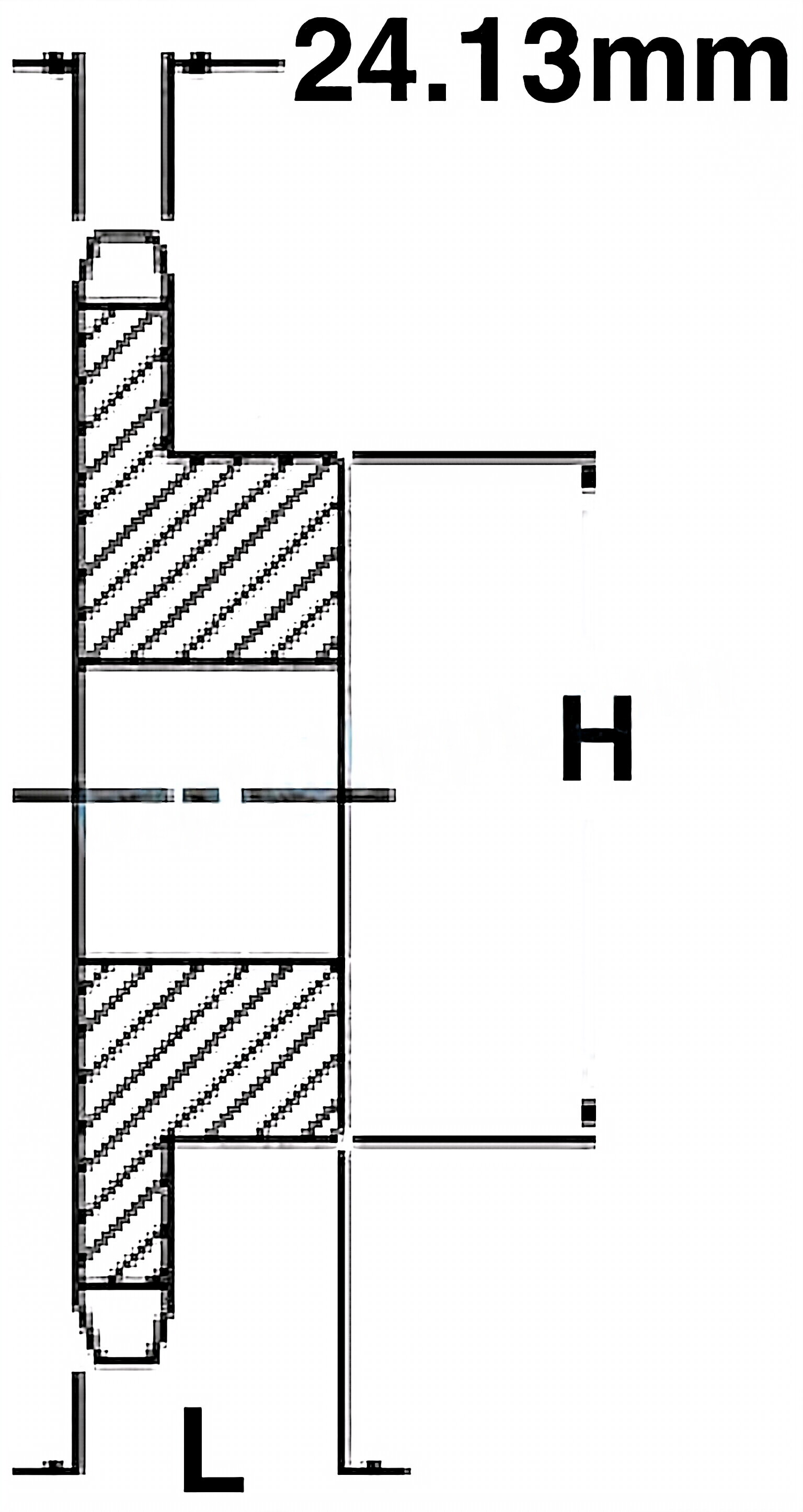

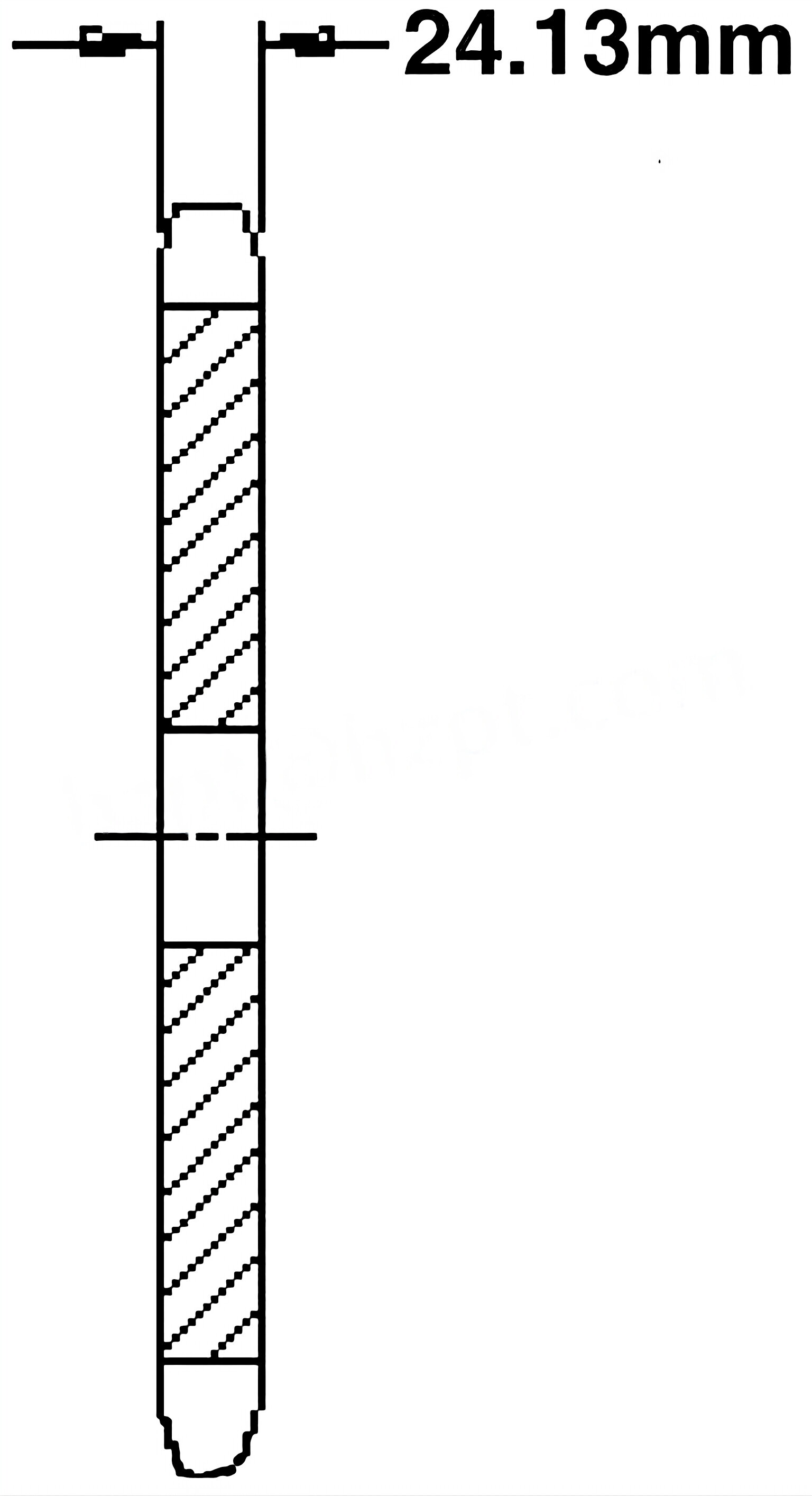

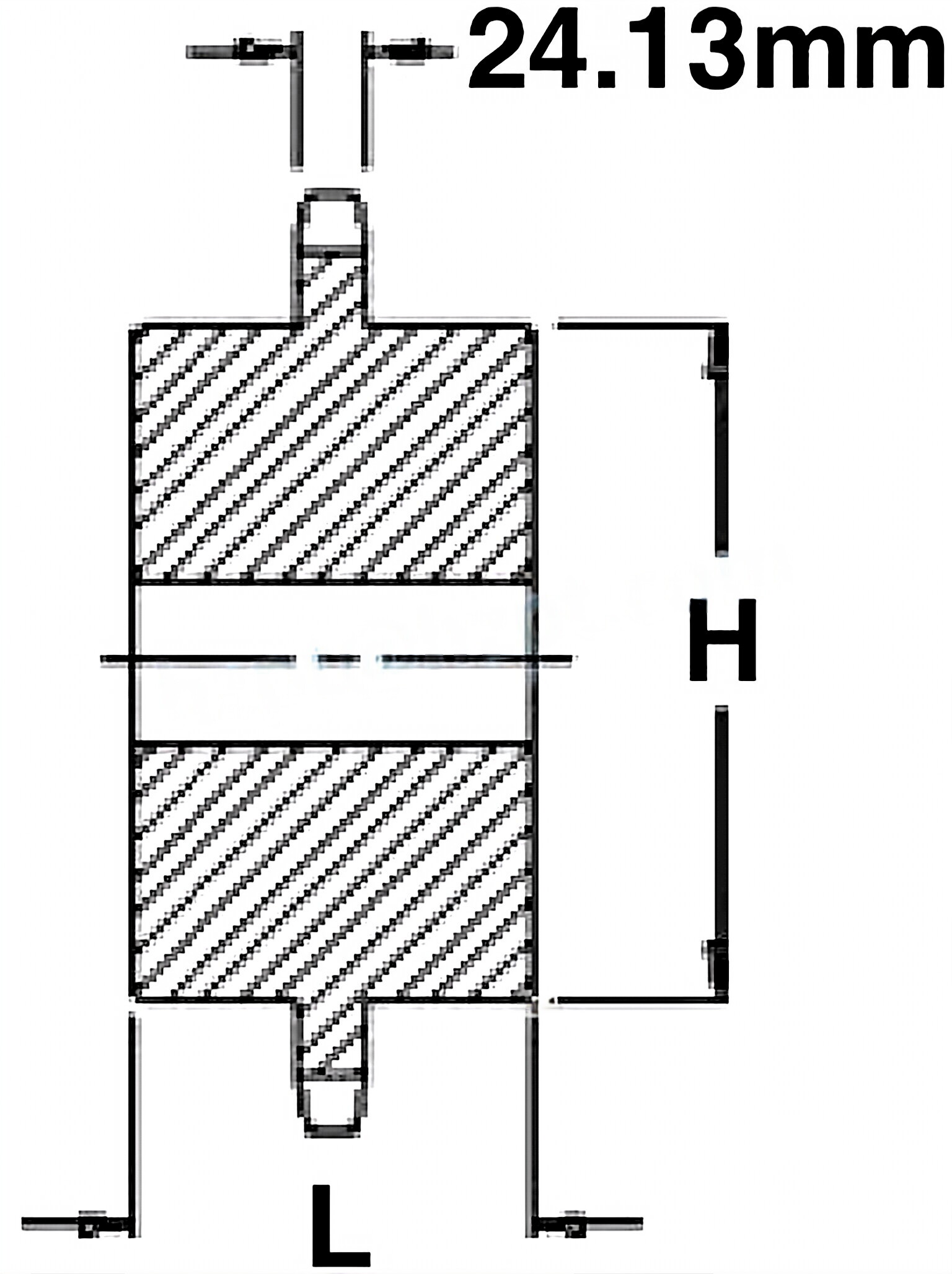

Type A, B, and C 24B Sprockets

Size	Pitch Diameter (mm)	Stock Bore (mm)	Max. Bore (mm)	Hub Dia. (mm)	LTB (mm)	Weight (kg)	Size	Stock Bore (mm)	Weight (kg)
24B9	111.40	20	45	69	45	2.02	24A9	20	1.69
24B10	123.29	20	52	80	45	2.61	24A10	20	1.88
24B11	135.23	25	60	90	50	3.77	24A11	20	2.06
24B12	147.21	25	67	102	50	4.77	24A12	20	2.68
24B13	159.20	25	76	114	50	5.91	24A13	20	3.06
24B14	171.22	32	86	127	60	6.68	24A14	32	3.72
24B15	183.25	32	92	140	60	7.49	24A15	32	4.31
24B16	195.29	32	92	140	60	9.08	24A16	32	4.86
24B17	207.35	32	92	140	60	9.76	24A17	32	5.44
24B18	219.41	32	92	140	60	10.49	24A18	32	6.13
24B19	231.48	32	92	140	60	11.21	24A19	32	7.03
24B20	243.55	32	92	140	60	12.26	24A20	32	7.94
24B21	255.63	32	92	140	60	13.38	24A21	32	8.62
24B22	267.72	32	92	140	60	13.67	24A22	32	9.76
24B23	179.80	32	92	140	60	14.74	24A23	32	10.43
24B24	291.90	32	92	140	60	15.48	24A24	32	11.35
24B25	303.99	32	92	140	60	16.38	24A25	32	12.47
24B26	316.09	40	102	150	65	19.43	24A26	40	13.39
24B27	328.19	40	102	150	65	20.39	24A27	40	14.53
24B28	340.29	40	102	150	65	21.34	24A28	40	15.89
24B29	352.39	40	102	150	65	22.79	24A29	40	17.02
24B30	364.49	40	102	150	65	24.25	24A30	40	18.39
24B31	376.60	40	102	150	65	26.19	24A31	40	20.02
24B32	388.71	40	102	150	65	28.12	24A32	40	21.66
24B33	400.82	40	102	150	65	30.05	24A33	40	23.29
24B34	412.93	40	102	150	65	31.99	24A34	40	24.93
24B35	425.04	40	102	150	65	33.93	24A35	40	26.56
24B36	437.15	40	102	152	65	35.86	24A36	40	28.19
24B38	461.37	40	102	152	65	39.73	24A38	40	31.46
24C42	509.83	40	102	152	95	45.31	24A42	40	40.99
24C45	546.19	40	102	152	95	50.71	24A45	40	48.14
24C48	482.54	40	102	152	102	57.43	24A48	40	55.29
24C57	691.62	40	133	178	102	76.05	24A57	40	76.73
24C60	727.99	40	133	178	102	80.05	24A60	40	85.19
24C76	922	40	133	191	114	129	24A76	40	116

Taper Bushed 24B Sprockets

Size	Pitch Diameter (mm)	Bushing Type	Max. Bore (mm)	Dimension L (mm)	Dimension C (mm)	Weight (kg)
24BTB11H	135.23	2012	50.80	31.75	90.49	2.28
24BTB12H	147.21	2012	50.80	31.75	90.49	2.49
24BTB13H	159.20	2517	63.50	44.45	107.95	2.77
24BTB14H	171.22	2517	63.50	44.45	107.95	3.54
24BTB15H	183.25	2517	63.50	44.45	107.95	4.31
24BTB16H	195.29	3020	76.20	50.80	133.35	4.77
24BTB17H	207.35	3020	76.20	50.80	133.35	5.45
24BTB18H	219.41	3020	76.20	50.80	133.35	6.13
24BTB19H	231.48	3020	76.20	50.80	133.35	6.81
24BTB20H	243.55	3020	76.20	50.80	133.35	7.49
24BTB21H	255.63	3020	76.20	50.80	133.35	7.94
24BTB22H	267.72	3020	76.20	50.80	133.35	8.75
24BTB23H	279.80	3020	76.20	50.80	133.35	9.53
24BTB24H	291.90	3020	76.20	50.80	133.35	10.67
24BTB25H	303.99	3020	76.20	50.80	133.35	11.8
24BTB26H	316.09	3020	76.20	50.80	133.35	12.93
24BTB27H	328.19	3020	76.20	50.80	133.35	13.50
24BTB28H	340.29	3020	76.20	50.80	133.35	14.70
24BTB29H	352.29	3020	76.20	50.80	133.35	14.75
24BTB30H	364.49	3020	76.20	50.80	133.35	15
