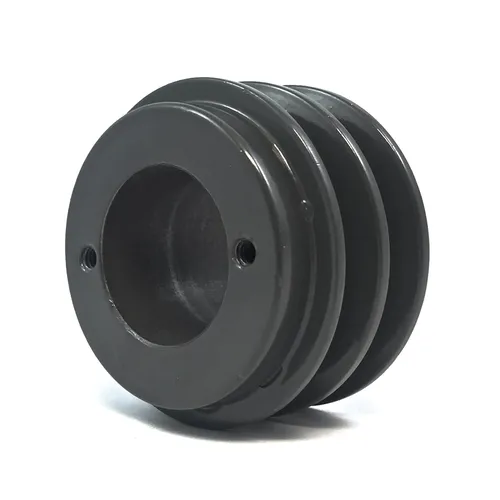

2AKH Series Cast Iron Double Groove Sheaves Pulleys for “4L” or “A” Belts

Raydafon Group presents the 2AKH Series Cast Iron Double Groove Sheaves Pulleys for "4L" or "A" Belts, a durable and precision-engineered solution for industrial belt-driven applications. Crafted from high-quality cast iron for superior strength and longevity, these pulleys ensure smooth power transmission and reduced vibration. Ideal for engineers, mechanics, and manufacturers, they enhance efficiency in machinery like conveyors and agricultural equipment, delivering reliable performance that saves time and minimizes downtime. With their robust design and seamless compatibility, stand out from competitors for unmatched durability. Trust Raydafon Group to power your projects with excellence.

Send Inquiry

Product Description

2AKH series pulleys are manufactured for 2 banded A-Series V-Belts or two single A-Series V-Belts, as well as multiple 3L and 4L v-belts can also be used with these pulleys. 2AKH series pulleys are made to use H-series bushings and are commonly known as double AKH bushed pulleys and range in diameter from 3.05" to 18.25," but custom ones are also available upon request. 2AKH series pulleys are typically used in medium to heavy-duty agricultural and industrial applications. Our double v-belt pulleys are manufactured using state-of-the-art techniques combined with premium high-performance and high-strength features like grade 35 cast iron instead of grade 25.These pulleys use an H-style bushing. This bushing type has a bore range of 3/8" to 1-1/2" and 10mm to 38mm. We stock a complete line of these bushings as well.

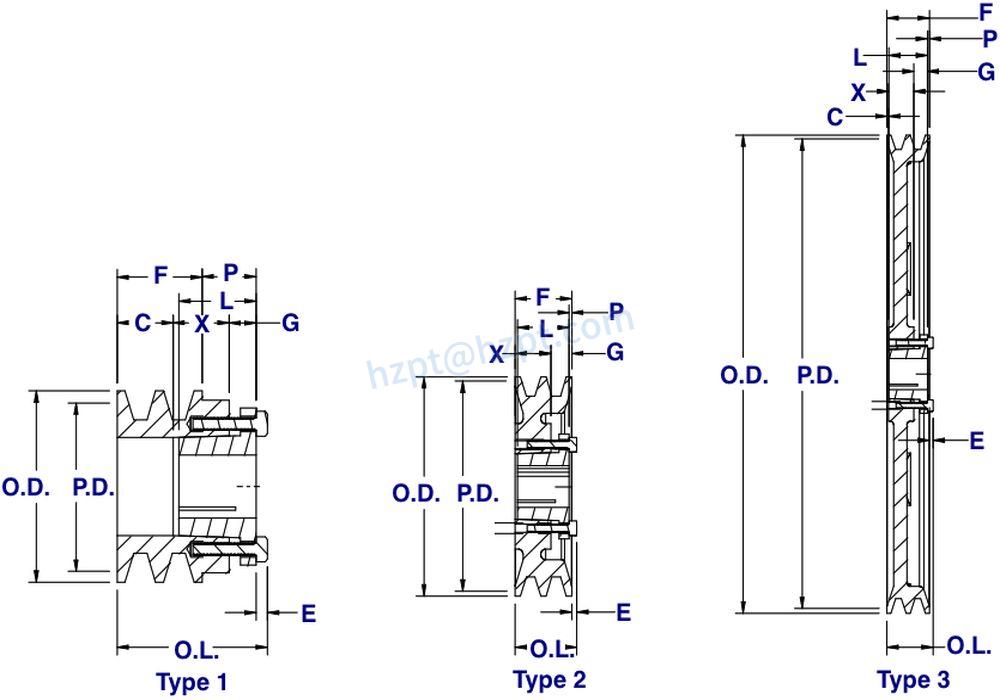

2AKH-Series Pulley Size Chart

Size	Outside Diameter	Pitch Diameter (4L/A)	Pitch Diameter (3L)	Type	Dimension (O.L.)	Dimension (F)	Dimension (L)	Dimension (P)	Dimension (C)	Dimension (X)	Dimension (G)	Dimension (E)	Pulley Weight (LBS)
2AK30H	3.05"	2.80"	2.46"	1	2-7/16"	1-3/8"	1-1/4"	7/8"	15/16"	7/8"	7/16"	3/16"	1.4
2AK32H	3.25"	3.00"	2.66"	1	2-7/16"	1-3/8"	1-1/4"	7/8"	15/16"	7/8"	7/16"	3/16"	1.7
2AK34H	3.45"	3.20"	2.86"	1	2"	1-3/8"	1-1/4"	7/16"	1/2"	7/8"	7/16"	3/16"	1.8
2AK39H	3.75"	3.50"	3.16"	1	2"	1-3/8"	1-1/4"	7/16"	1/2"	7/8"	7/16"	3/16"	1.8
2AK41H	3.95"	3.70"	3.36"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	1.9
2AK44H	4.25"	4.00"	3.66"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	2.4
2AK46H	4.45"	4.20"	3.86"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	2.5
2AK49H	4.75"	4.50"	4.16"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	3.1
2AK51H	4.95"	4.70"	4.36"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	3.2
2AK54H	5.25"	5.00"	4.66"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	3.4
2AK56H	5.45"	5.20"	4.86"	2	1-1/2"	1-3/8"	1-1/4"	1/16"	--	7/8"	7/16"	3/16"	3.6
2AK59H	5.75"	5.50"	5.16"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	3.4
2AK61H	5.95"	5.70"	5.36"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	3.3
2AK64H	6.25"	6.00"	5.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	3.9
2AK74H	7.25"	7.00"	6.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	4.9
2AK84H	8.25"	8.00"	7.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	5.8
2AK94H	9.25"	9.00"	8.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	6.1
2AK104H	10.25"	10.00"	9.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	7.7
2AK114H	11.25"	11.00"	10.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	8.5
2AK124H	12.25"	12.00"	11.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	9.5
2AK134H	13.25"	13.00"	12.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	11.9
2AK144H	14.25"	14.00"	13.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	11.9
2AK154H	15.25"	15.00"	14.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	13.3
2AK184H	18.25"	18.00"	17.66"	3	1-1/2"	1-3/8"	1-1/4"	1/16"	0"	7/8"	7/16"	3/16"	16.8

Product Description:

V-belt Pulleys are found in drive designs in the agriculture, textile, printing, mining, and office equipment industries.1)Widely used in North America with good hardness and strength2)Suitable for 3L/4L/5L or A/B belt or cross-section3)Material: Cast iron4)Finish: Gray Powder Paint

Our V-belt Pulley includes:

· Light Duty Bored To Size Pulleys(AK,BK,2AK,2BK,3BK series)· Light Duty Taper Bore Pulleys(AK-H, BK-H,2AK-H,2BK-H series)· Split taper bushed Pulleys(1TB,2TB,3TB series)· Heavy Duty Q.D. Pulleys(1B,2B,3B series)· Light Duty Variable Speed Pulleys(1VP,2VP,1VL,1VM series)· Single Groove Pulleys(OK, O.L., AL series)· Made To Order Designs 2AKH Series Cast Iron Double Groove Sheaves Pulleys for “4L” or “A” Belts

Technological Processing

Company Profile

Raydafon is a professional manufacturer of mechanical parts. Our main products are belt pulleys, sprockets, taper sleeves, coupling, and other transmission parts. Its products are mainly exported to Germany, Britain, France, and other European countries, with an annual export value of 18 million U.S. dollars, accounting for more than 65% of the total output. The annual output value reached 200 million yuan.Our products all adopt international, European, and American advanced industrial standards, use precise and good processing equipment, develop reasonable production technology, apply efficient and flexible management systems, and improve the quality management system to ensure that the product quality is good and the price is affordable.Our factory adheres to the enterprise concept of "quality: the basis of enterprise survival, integrity: the basis of enterprise development, service: the source of enterprise development, low price: the instrument of enterprise development." We are always looking forward to the presence of customers at home and abroad, seeking win-win benefits and joint cause development. 2AKH Series Cast Iron Double Groove Sheaves Pulleys for “4L” or “A” Belts

Warehouse Stock

The warehouse covers an area of 5000 square meters and can provide all kinds of standard models A/B/C/Z, with complete quantity and large quantity in stock. Meanwhile, it accepts all sorts of non-standard customization for drawing production. The daily production capacity is 10 tons, and the delivery time is short. 2AKH Series Cast Iron Double Groove Sheaves Pulleys for “4L” or “A” Belts

Packaging & Shipping

Experienced Workers Packing Pulleys Carefully, safe wooden cases keep parts from being injured or damaged during sea or air shipment. 2AKH Series Cast Iron Double Groove Sheaves Pulleys for “4L” or “A” Belts
