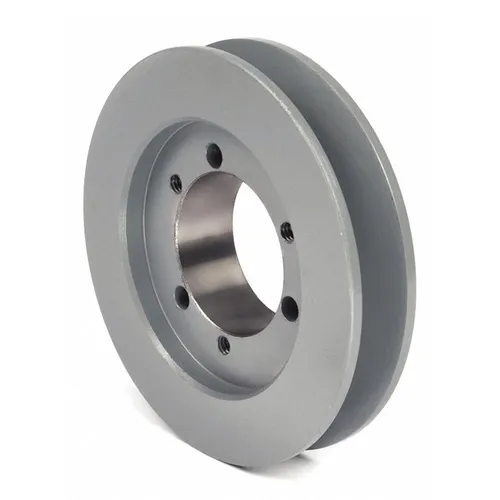

3V series single-groove QD (quick detachable) bushed sheaves are manufactured for 3V, 3VX, banded 3V, and banded 3VX belts. They range from 2.20" to 19.00" in diameter. Depending on the sheave size, they are made to use a JA, SH, SDS, or SK QD bushing, which we also stock. Most of our single-groove 3V QD sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Single-Groove 3V QD Sheave Size Chart

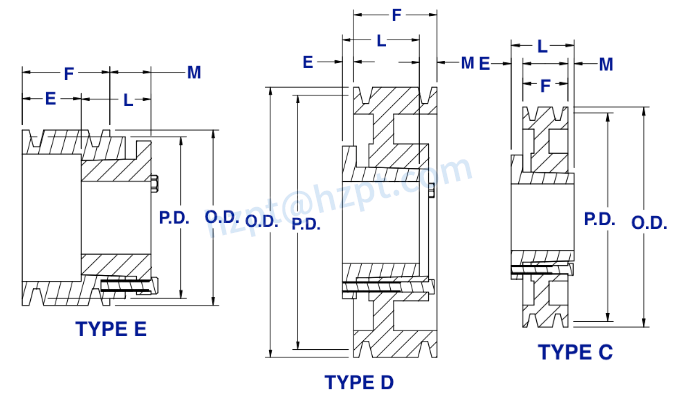

Size	Bushing Type	Type	Pitch Diameter	Outside Diameter	(E)	(F)	(L)	(M)	Weight (LBS)
13V220JA	JA	E	2.15"	2.20"	5/8	11/16	1	15/16	0.4
13V235JA	JA	E	2.30"	2.35"	19/32	11/16	1	29/32	0.4
13V250JA	JA	E	2.45"	2.50"	19/30	11/16	1	29/32	0.5
13V265JA	JA	D	2.60"	2.65"	3/8	11/16	1	1/16	0.6
13V280JA	JA	D	2.75"	2.80"	3/8	11/16	1	1/16	0.7
13V300JA	JA	D	2.95"	3.00"	3/8	11/16	1	1/16	0.8
13V315JA	JA	D	3.10"	3.15"	3/8	11/16	1	1/16	0.9
13V335JA	JA	D	3.30"	3.35"	3/8	11/16	1	1/16	1.0
13V365SH	SH	D	3.60"	3.65"	21/32	11/16	1 5/16	1/32	1.3
13V412SH	SH	D	4.07"	4.12"	21/32	11/16	1 5/16	1/32	1.8
13V450SH	SH	D	4.45"	4.50"	21/32	11/16	1 5/16	1/32	2.1
13V475SH	SH	D	4.70"	4.75"	21/32	11/16	1 5/16	1/32	2.4
13V500SH	SH	D	4.95"	5.00"	21/32	11/16	1 5/16	1/32	2.7
13V530SH	SH	D	5.25"	5.30"	21/32	11/16	1 5/16	1/32	2.9
13V560SH	SH	D	5.55"	5.60"	21/32	11/16	1 5/16	1/32	3.0
13V600SH	SH	D	5.95"	6.00"	21/32	11/16	1 5/16	1/32	3.2
13V650SH	SH	D	6.45"	6.50"	21/32	11/16	1 5/16	1/32	4.2
13V690SH	SH	D	6.85"	6.90"	21/32	11/16	1 5/16	1/32	4.4
13V800SDS	SDS	D	7.95"	8.00"	21/32	11/16	1 5/16	1/32	5.8
13V1060SDS	SDS	D	10.55"	10.60"	21/32	11/16	1 5/16	1/32	7.9
13V1400SK	SK	C	13.95"	14.00"	25/32	11/16	1 15/16	15/32	14.8
13V1900SK	SK	C	18.95"	19.00"	25/32	11/16	1 15/16	15/32	24.0

Matching 3V, 3VX Series V-Belt

(1) 3V-Series Deep Wedge V-BeltsClassic 3V-Series V-Belts have a 0.38" top-width, 0.31" thickness, and a 38° angle, which also classifies them as a deep-wedge v-belt. 3V series belts are designed to be more compact with more drive capability than the standard 40° angle v-belts. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 3V-series v-belts we supply are manufactured under ISO 9001 specifications and ARPM Standards; they are oil and heat-resistant and directly interchange with other brands. 3V belts are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability. 3V series belts are used in most general heavy-duty industrial applications along with Heating, ventilation, air conditioning (HVAC), lawn and garden equipment, and agricultural equipment. We also stock a complete line of high-power v-belts along with the accompanying v-belt pulleys/ sheaves.(2) 3VX Cogged V-Belts3VX cogged v-belts are designated by having a 0.38" top-width and 0.31" thickness. Our cogged 3VX v-belts are manufactured with raw-edge sidewalls to eliminate slippage and increase efficacy, saving operation costs. They are also manufactured by ARPM standards and are oil and heat-resistant. 3VX belts are constructed from a high-quality chloroprene compound with high-strength polyester chords and have a top fabric built from a cotton polyester blend. Besides the performance, durability, and energy savings benefits, our cogged v-belts will work with existing stand pulleys/ sheaves.(3) 3V-Series Banded V-Belts3V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 3V-series v-belts have a 0.38" top-width per belt (band/ rib).(4) 3VX Banded Cogged V-BeltsAll our v-belts are manufactured by ARPM specifications and offer superior performance and durability. All our v-belts are manufactured by ARPM specifications and provide excellent performance and durability. Due to their design, banded 3VX cogged v-belts run smoother, more relaxed, and typically outlast a standard banded C v-belt. They also offer a higher efficiency than ordinary banded v-belts, which means fewer energy costs.

Accessories QD Bushings

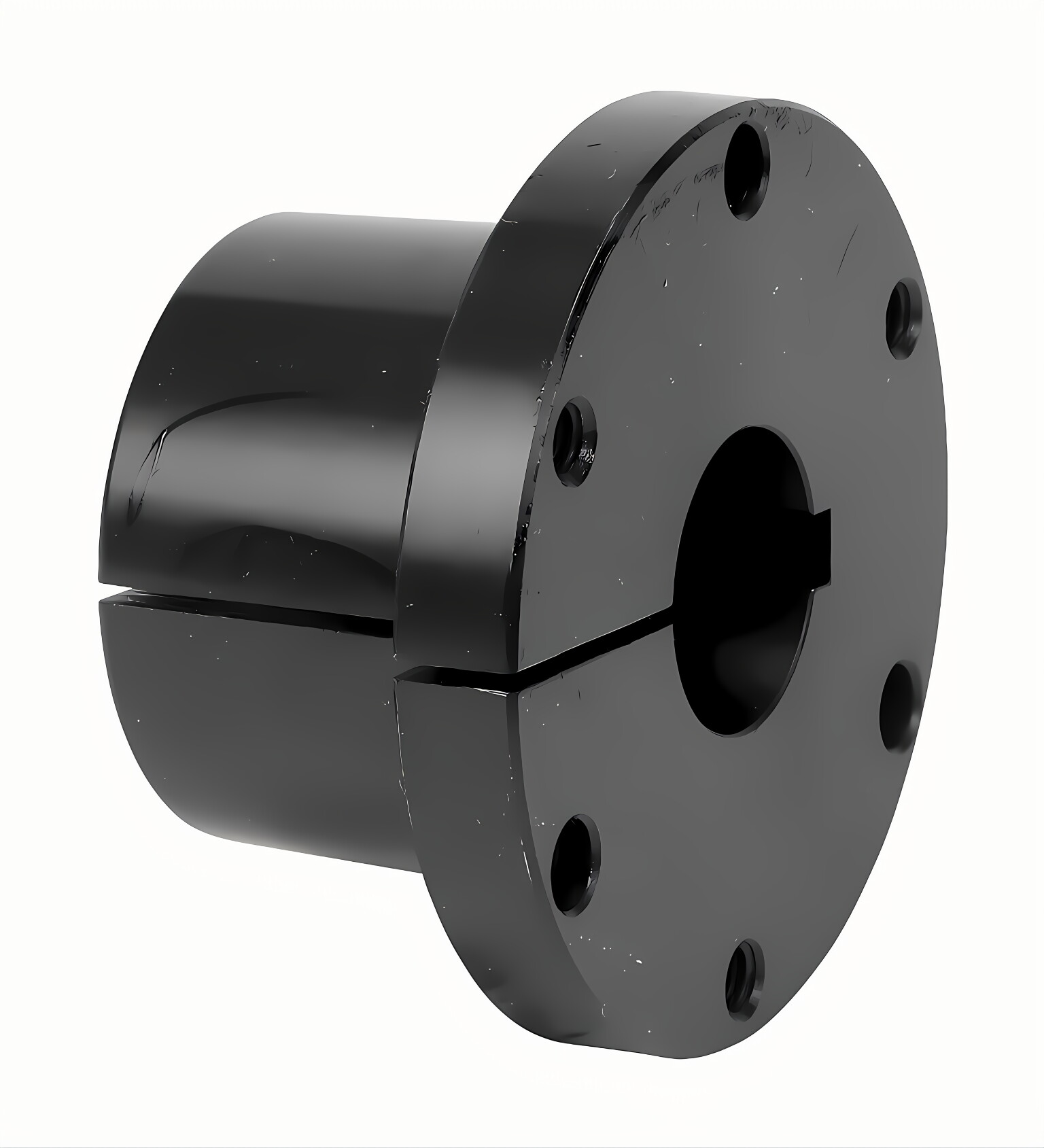

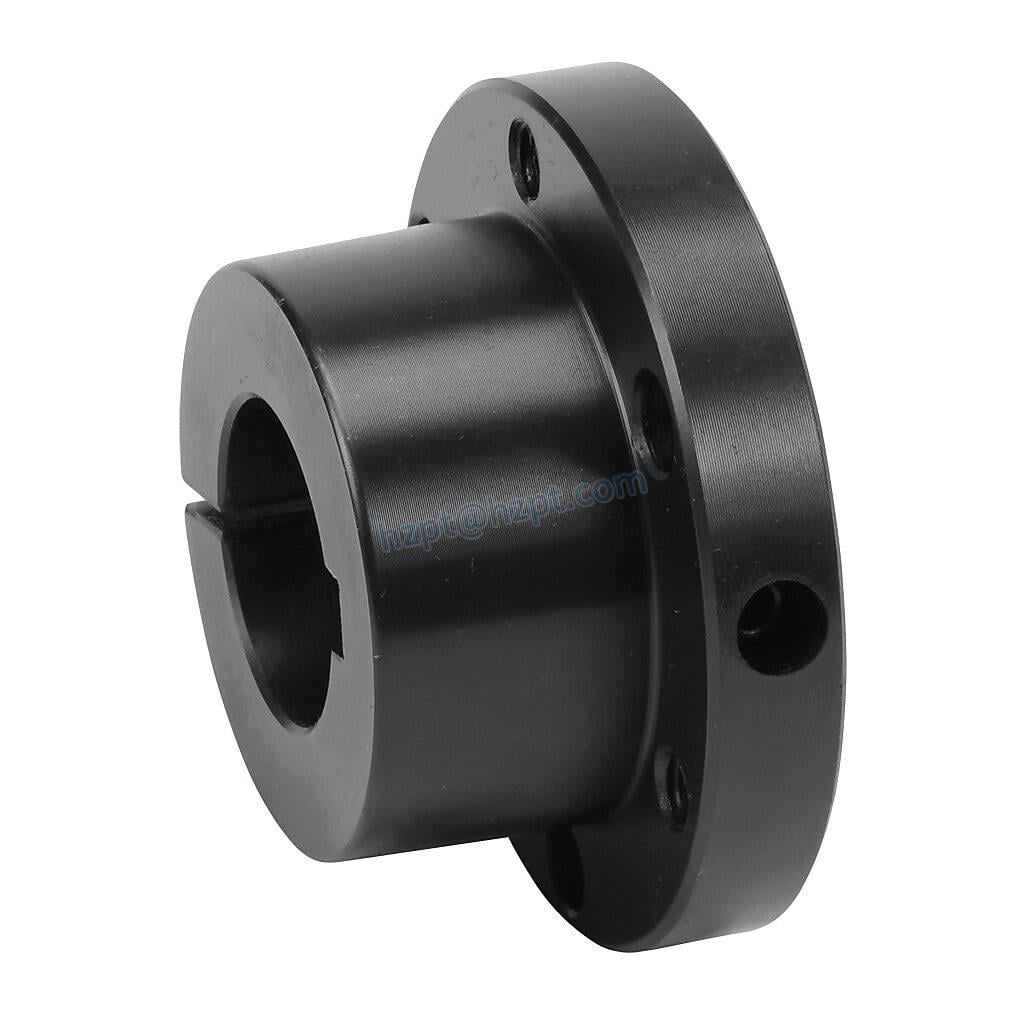

QD bushings are utilized throughout the industrial power transmission and agricultural industry for various sprockets, sheaves, pulleys, and synchronized drives. They are designed for easy installation and easy uninstallation; they are also commonly referred to as quick-disconnect bushings. QD bushings can help conventional mounting with the flange outboard and reverse mounting to where the flange is inboard and utilize a single split that extends through the entire bushing length. Our QD bushings interchange with other brands and are made from high-grade steel precision machined for perfect application fitment. QD bushings' benefits over different styles include; ease of installation/ uninstall, superior holding power, and extreme strengths. We stock all the standard sizes of QD bushings and supply custom QD bushings upon request, including stainless steel ones. QD bushings are found in some of the most rugged applications worldwide; contact our customer service team today for a quote or additional information on our premium QD bushings.

Matters Needing Attention in the Assembly of the Tapered Sleeve Pulley

1. Gasoline must be used for the first cleaning before and after the assembly of the tapered sleeve pulley to ensure that the parts are clean and dry to ensure that the mating surfaces are tightly fitted without oil stains and have sufficient friction.2. Before assembling with hexagon socket head bolts, it should be washed with gasoline and dried. Do not apply lubricating oil or grease in the bolts or screw holes to ensure sufficient friction and self-locking ability after the bolts are tightened.3. When the three hexagon socket bolts are about to be installed, they need to be tightened in turn to ensure that the tapered sleeve is subjected to uniform axial force and that the pulley and the tapered sleeve are well positioned coaxially.4. Before installation, check and measure the length of the hexagon socket head bolts for assembly to ensure that the assembly bolts can withstand the bottom end of the blind hole of the taper sleeve after tightening to ensure that the tapered surface fits tightly and to ensure that the bolts are subjected to the reverse thrust of the bottom end of the blind hole, resulting in double The same anti-loosening effect as the nut principle.5. After the tapered sleeve pulley is tightened, check and adjust the relative position of the primary and driven pulleys by pulling the wire to ensure that the two pulleys are on the same plane and the belt tension is moderate.6. The pulley cover should be intact and installed firmly to ensure that the belt is broken or the pulley is loosened and withdrawn during operation, resulting in a significant safety accident.7. After many years of long-term operation of mechanical equipment, the condition of the inner hole and the chain groove should be regularly checked, there may be damage, and the spare parts should be replaced in time if any defects are found.

Usage Scenario of Pulleys

Pulleys are mainly used for long-distance transmission of power, such as the output of small diesel engines, agricultural vehicles, tractors, automobiles, mining machinery, machining equipment, textile machinery, packaging machinery, lathes, forging machines, and some small horsepower motorcycles, transmission of agricultural machinery power, air compressors, reducers, reducers, generators, gins, etc.
