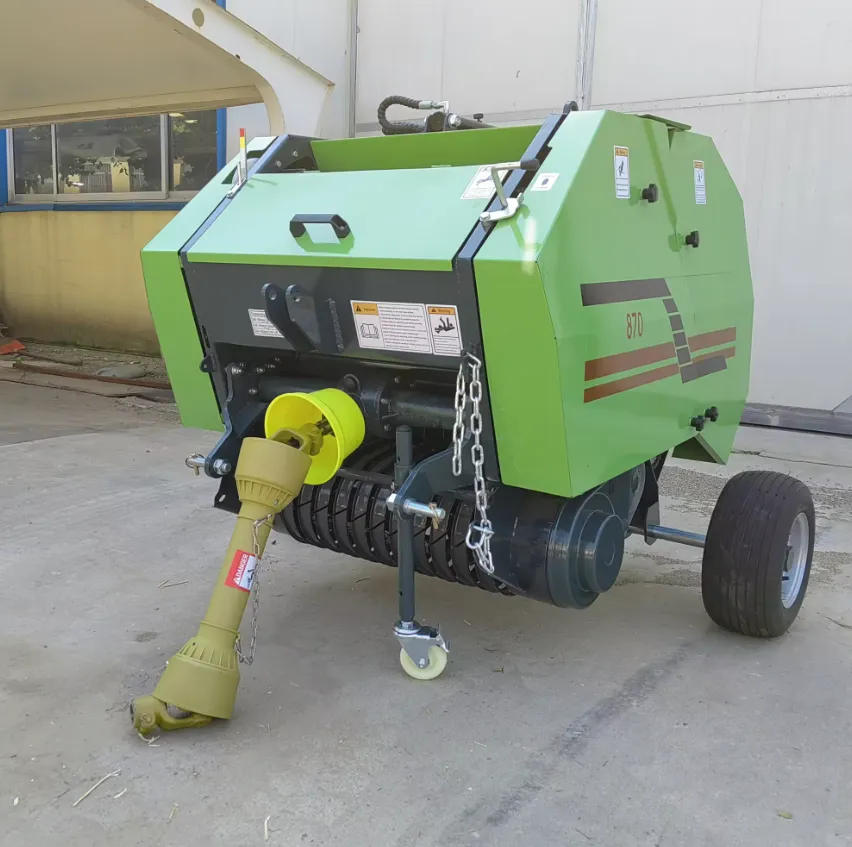

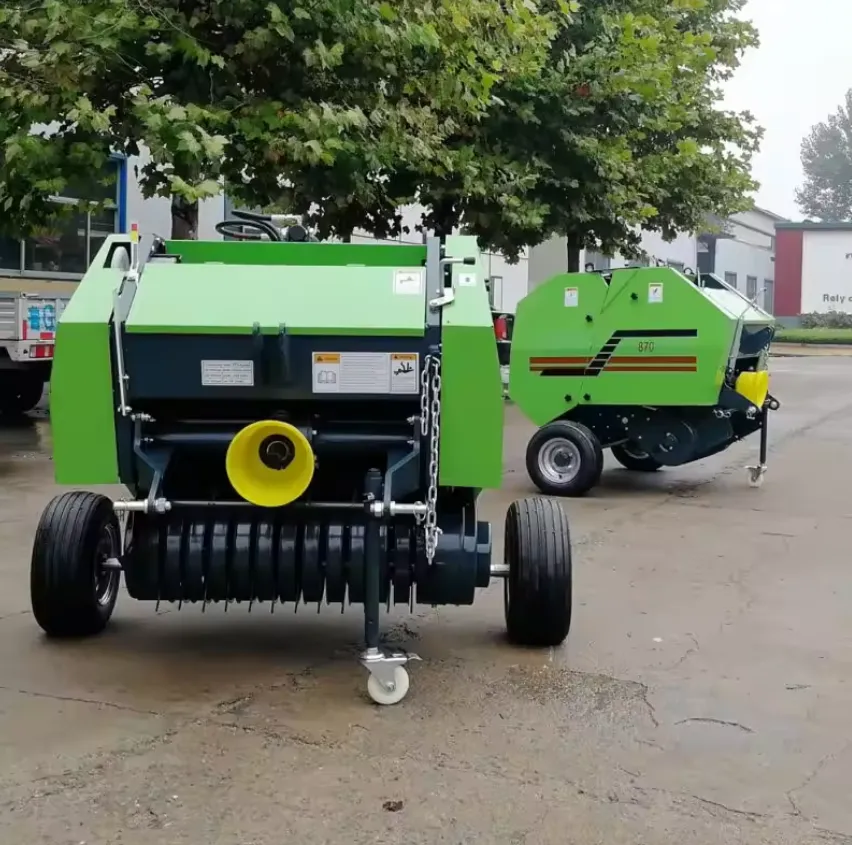

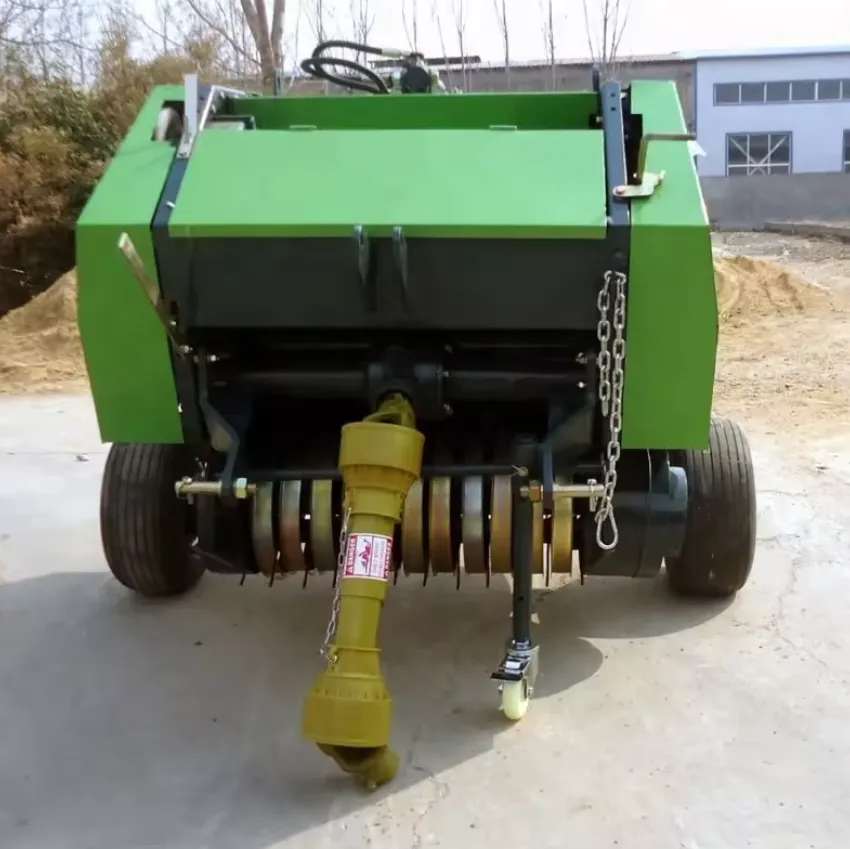

3x3 Round Hay Baler

Introducing the 3x3 round hay baler, a robust machine designed to make the process of hay baling more efficient and less labor-intensive. This modern round baler operates at a speed of 3-10km/h and is brand new. It is available in two model numbers: RXYK0850 and RXYK0870. The machine is ideal for picking up and baling a variety of materials such as grass, alfalfa, wheat, and rice straw. It is compact with dimensions of 1300x1300x1350mm and weighs 425kg. It comes with a 2-year warranty and is certified by ISO and CE. No overseas service is provided.

Advantages of the 3x3 Round Hay Baler

This advanced round hay baler offers numerous advantages:

1. Compact and Lightweight: Despite its robust performance, the baler has a compact size and light weight, making it easy to maneuver and transport.
2. High Operating Speed: With an operating speed of 3-10km/h, it allows for efficient baling operations.
3. Versatility: It is designed for a wide range of applications, capable of baling diverse materials such as grass, alfalfa, wheat, and rice straw.
4. Quality Assurance: The baler comes with a 2-year warranty and is ISO and CE certified, assuring you of its quality and reliability.

5. Easy Operation: The round baler features straightforward controls, making it easy to operate even for those new to using such machinery.
6. Power Requirement: It can be operated using 20-50HP, making it suitable for use with a variety of tractors.

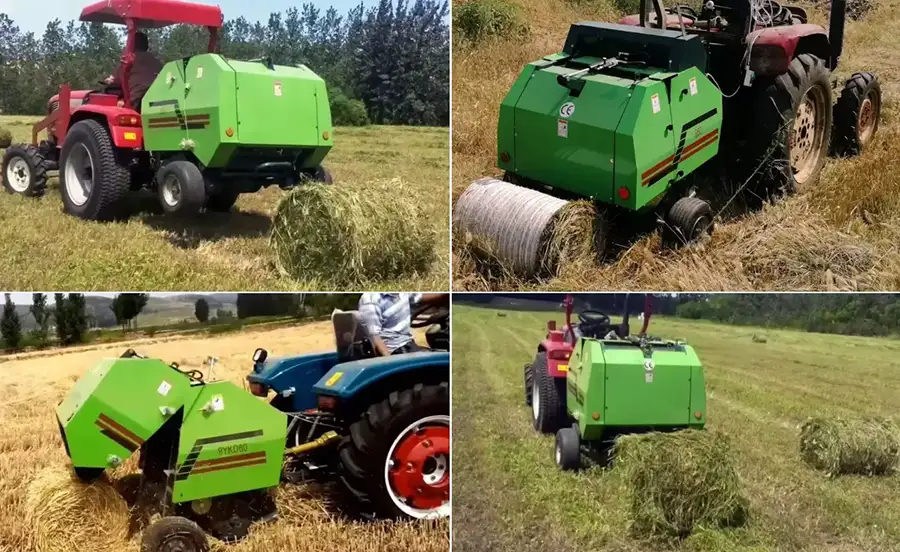

Applications of the 3x3 Round Hay Baler

The 3x3 round hay baler is designed for a wide range of applications:

1. Farm Use: It is ideal for use on farms for creating bales from materials such as grass and alfalfa.
2. Crop Residue Management: It can be used for baling crop residues like wheat and rice straw, facilitating their disposal or use for other purposes.
3. Landscaping: The baler can be used in landscaping applications, for creating bales of grass and other plant materials for easy transportation and disposal.
4. Composting: It can be used for baling organic materials that can be used as composting materials.
5. Animal Feed: The bales created can be used as feed for animals in farms and ranches.
6. Industrial Use: In some industries, the baled materials can be used as raw materials for production processes.

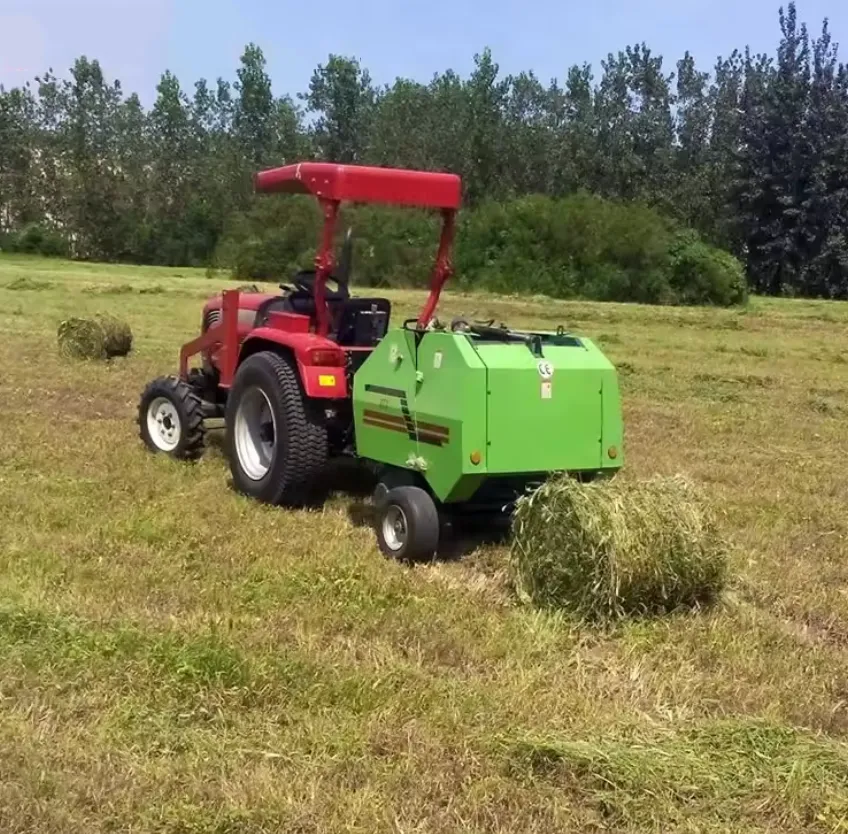

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler operates by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. Here is a step-by-step overview of how it works:

1. Preparing the Tractor: Ensure that the tractor is fitted with the necessary power take-off (PTO) shaft and hydraulic connections to run the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the Baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism, ensuring a firm and stable connection.
3. Adjusting Settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the Pickup Attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. This attachment consists of rotating tines or belts that collect the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale Formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers.
6. Bale Ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to a Tractor

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the 3x3 Round Hay Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller Inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or Net Wrap System: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO Maintenance: Inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components.
6. Check Hydraulic System: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

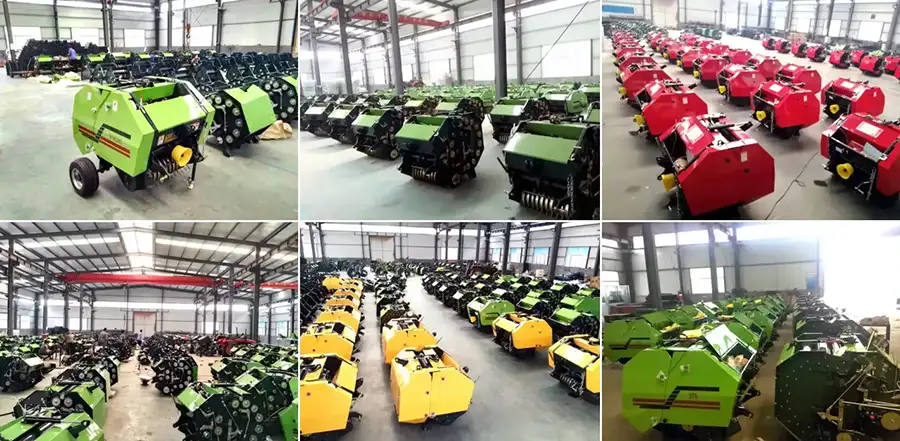

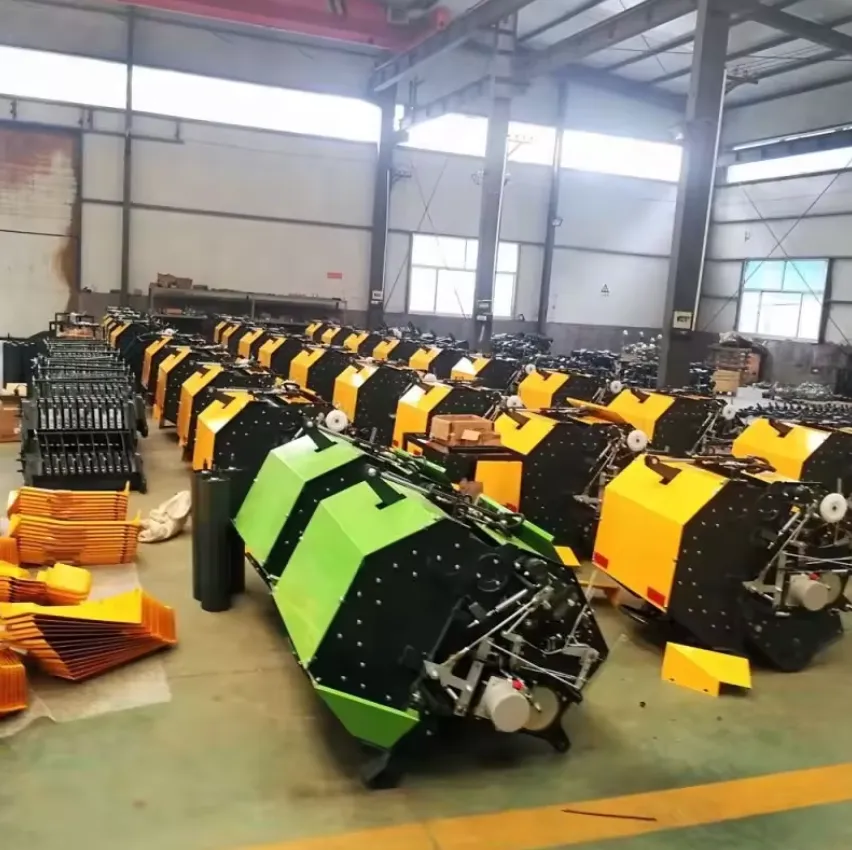

Raydafon Agricultural Machinery Co., Ltd. brings to the table a wealth of experience in the research and development of agricultural machinery. Boasting a team of over 100 employees, including 20 technical staff and five senior R&D personnel, Raydafon is equipped with two advanced casting, forging, machining, heat treatment, and lacquering production lines. The company utilizes CAD computer-aided design system, ensuring strong production technology and advanced equipment.

With over ten years of production experience, Raydafon produces a wide range of farming machinery, planting machinery, harvesting machinery, and their accessories. These products are set up by the main tractor manufacturers in China. Raydafon's main products include PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. All these products are complete in specifications, excellent in performance, and reliable in quality.

Raydafon's products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. The company's commitment to quality, professionalism, and customer satisfaction makes it a trusted choice for agricultural machinery such as the mini hay round baler.

Author: Yjx
