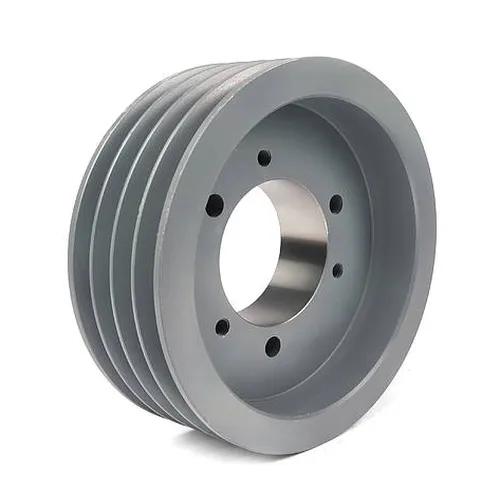

4B QD Bushed Sheaves Pulleys for “A” and “B” Belts

4B series pulleys are manufactured for A, AX, AA, 4L, B, BX, BB, and 5L v-belts, ranging from 3.75" to 38.35" in diameter. Depending on the pulley size, they are made to use with SH, SD, SK, SF, or E QD bushings, which we also stock. Most of our four-groove 4B QD bushed pulleys are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation. The main benefit of using a QD (quick detachable) pulley is that if the bushing (hub) breaks, you don't have to replace the whole assembly, or if just the pulley gets worn out, the same principle applies. The other significant benefit is that there is a broader range of bore options with QD pulleys than with the "fixed-bore" style.

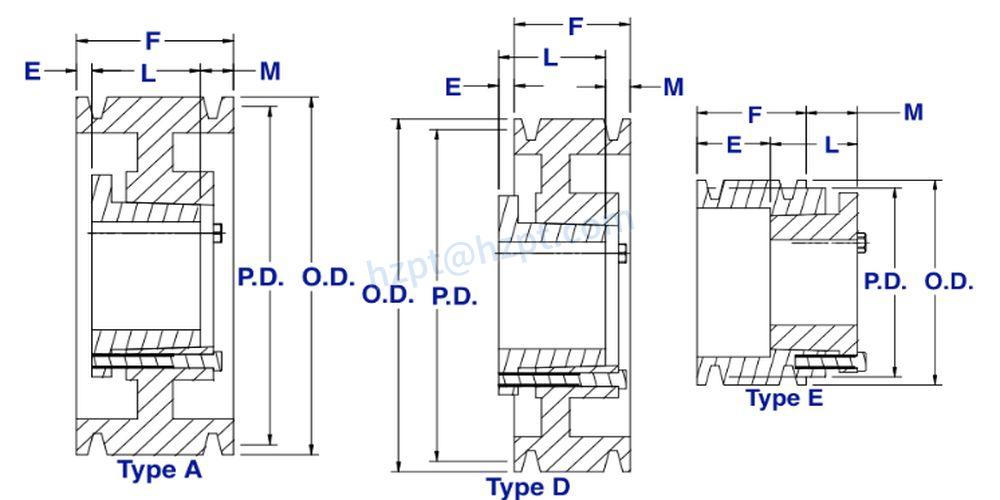

4B Style QD Bushed Pulley Size Chart

Size	Bushing Type	Pulley Type	Pitch Diameter (5L/B)	Pitch Diameter (4L/ A)	Outside Diameter	(E)	(F)	(L)	(M)	Pulley Weight (LBS)
4B34SD	SD	E	3.4"	3.0"	3.75"	2-15/32"	3-1/4"	1-13/16"	1-1/32"	5.5
4B36SD	SD	E	3.6"	3.2"	3.95"	2-15/32"	3-1/4"	1-13/16"	1-1/32"	5.8
4B38SD	SD	E	3.8"	3.4"	4.15"	2-15/32"	3-1/4"	1-13/16"	1-1/32"	6.2
4B40SD	SD	E	4.0"	3.6"	4.35"	2-15/32"	3-1/4"	1-13/16"	21/32"	6.6
4B42SD	SD	E	4.2"	3.8"	4.55"	2-15/32"	3-1/4"	1-13/16"	21/32"	6.9
4B44SD	SD	E	4.4"	4.0"	4.75"	2-15/32"	3-1/4"	1-13/16"	21/32"	7.2
4B46SD	SD	A	4.6"	4.2"	4.95"	21/32"	3-1/4"	1-13/16"	25/32"	7.6
4B48SD	SD	A	4.8"	4.4"	5.15"	21/32"	3-1/4"	1-13/16"	25/32"	8.0
4B50SD	SD	A	5.0"	4.6"	5.35"	21/32"	3-1/4"	1-13/16"	25/32"	8.4
4B52SD	SD	A	5.2"	4.8"	5.55"	21/32"	3-1/4"	1-13/16"	25/32"	8.8
4B54SD	SD	A	5.4"	5.4"	5.75"	21/32"	3-1/4"	1-13/16"	25/32"	9.2
4B56SD	SD	A	5.6"	5.2"	5.95"	21/32"	3-1/4"	1-13/16"	25/32"	9.6
4B58SD	SD	A	5.8"	5.4"	6.15"	21/32"	3-1/4"	1-13/16"	25/32"	10.0
4B60SD	SD	A	6.0"	5.6"	6.35"	21/32"	3-1/4"	1-13/16"	25/32"	10.4
4B62SD	SD	A	6.2"	5.8"	6.55"	21/32"	3-1/4"	1-13/16"	25/32"	10.8
4B64SD	SD	A	6.4"	6.0"	6.75"	21/32"	3-1/4"	1-13/16"	25/32"	12.0
4B66SD	SD	A	6.6"	6.2"	6.95"	21/32"	3-1/4"	1-13/16"	25/32"	12.4
4B68SD	SD	A	6.8"	6.4"	7.15"	21/32"	3-1/4"	1-13/16"	25/32"	13.0
4B70SK	SK	A	7.0"	6.6"	7.35"	7/32"	3-1/4"	1-15/16"	1-3/32"	13.5
4B74SK	SK	A	7.4"	7.0"	7.75"	7/32"	3-1/4"	1-15/16"	1-3/32"	14.0
4B80SK	SK	A	8.0"	7.6"	8.35"	7/32"	3-1/4"	1-15/16"	1-3/32"	15.5
4B86SK	SK	A	8.6"	8.2"	8.95"	7/32"	3-1/4"	1-15/16"	1-3/32"	17.0
4B94SK	SK	A	9.4"	9.0"	9.75"	7/32"	3-1/4"	1-15/16"	1-3/32"	19.0
4B110SK	SK	A	11.0"	10.6"	11.35"	7/32"	3-1/4"	1-15/16"	1-3/32"	22.0
4B124SK	SK	A	12.4"	12.0"	12.75"	7/32"	3-1/4"	1-15/16"	1-3/32"	29.0
4B136SK	SK	A	13.6"	13.2"	13.95"	7/32"	3-1/4"	1-15/16"	1-3/32"	34.0
4B154SF	SF	A	15.4"	15.0"	15.75"	5/32"	3-1/4"	2-1/16"	1-1/32"	39.0
4B160SF	SF	A	16.0"	15.6"	16.35"	5/32"	3-1/4"	2-1/16"	1-1/32"	42.0
4B184SF	SF	A	18.4"	18.0"	18.75"	5/32"	3-1/4"	2-1/16"	1-1/32"	47.0
4B200SF	SF	A	20.0"	19.6"	20.35"	5/32"	3-1/4"	2-1/16"	1-1/32"	51.0
4B250E	E	D	25.0"	24.6"	25.35"	5/32"	3-1/4"	2-3/4"	21/32"	73.0
4B300E	E	D	30.0"	29.6"	30.35"	5/32"	3-1/4"	2-3/4"	21/32"	86.0
4B380E	E	D	38.0"	37.6"	38.35"	5/32"	3-1/4"	2-3/4"	21/32"	109.0

QD Bushed PulleysQD Bushed Pulleys are manufactured to exact tolerances. They are available with different diameters and can be statically balanced or dynamically balanced. These pulleys are manufactured from gray cast iron that ranges from GG 25 to GG 30. They have a strength of 207 Mpa and a hardness of 187 to 241.QD Bushings have full split flanges on one side and a straight flange around the outside diameter. The flange is a tight fit and requires a hex head cap screw to install the component. When tightening the screws, the flange compresses and draws the established part tight on the bushing.Why Choose Our QD Bushed Pulley?QD Bushed Pulleys offer numerous advantages over traditional V-Belt pulleys. They are more cost-effective and are well-suited for use with non-critical ratio drives. They feature a radially shaped cylindrical lining that reduces friction inside the hole and constricts the motion of mechanical parts. They work well in conjunction with hubs found in sprockets.
