50-100 Double Acting Double Axis Flange Type MDC Series Compact Mold Cylinder

50-100 Double Acting Double Axis Flange Type MDC Series Compact Mold Cylinder

The double acting double axis flange type MDC series compact mold cylinder is an innovative hydraulic cylinder designed specifically for mold applications. With its exceptional features, reliable performance, and compact design, this cylinder offers outstanding functionality and efficiency in industrial settings that require precise control and optimal productivity. Whether used in injection molding machines, die-casting equipment, or other mold-related applications, the double acting double axis flange type MDC series compact mold cylinder provides reliable and versatile performance.· MDC is a compact hydraulic cylinder (cx) with an electrical box and ram rod to control the neutron position of the mold accurately.· Hydraulic cylinder suitable for plastic mold use.

Compact Mold Cylinder Model Description:

Compact Mold Cylinder Characteristic Data:

Compact Mold Cylinder Structure Chart:

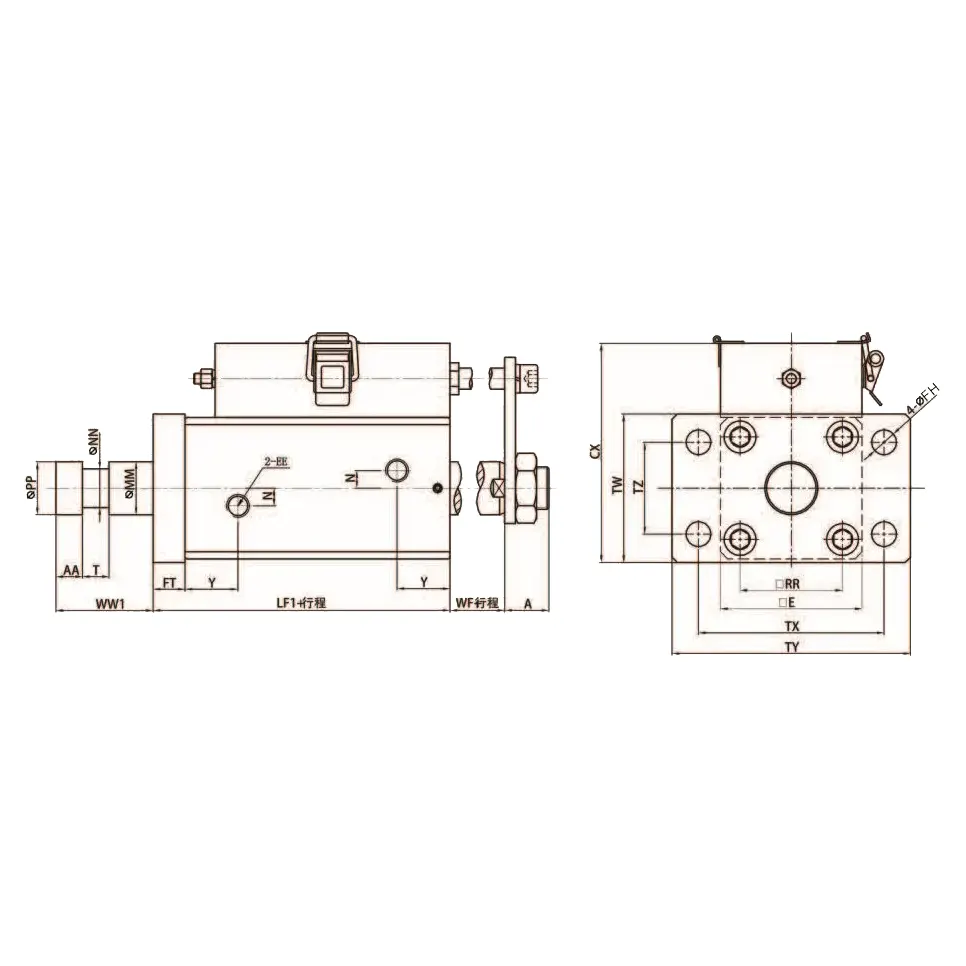

Piston Rod Connection Size Diagram:

Electrical Box Buckle Position, Oil Port Position, And Distribution Outlet Position:

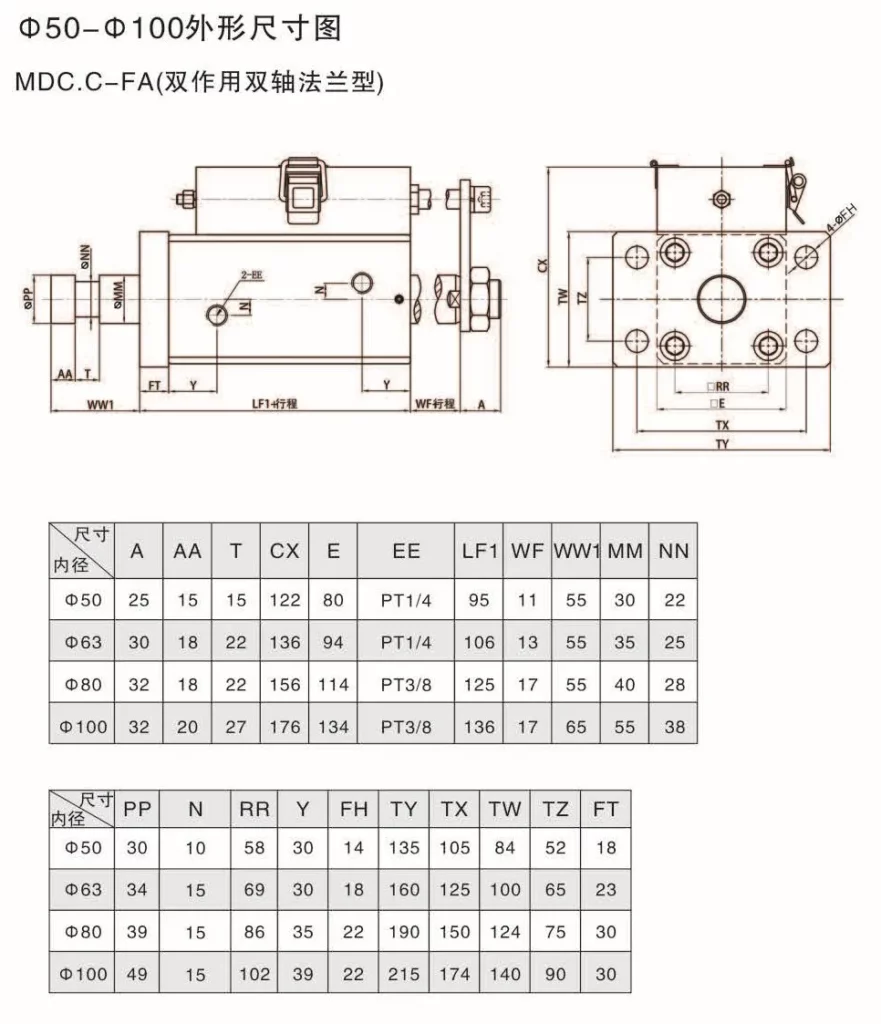

50-100 Double Acting Double Axis Flange Type MDC Series Compact Mold Cylinder Parameter:

Key Characteristics and Benefits Of 50-100 Double Acting Double Axis Flange Type MDC Series Compact Mold Cylinder:

1. Double Acting Design:

• The Double Acting Double Axis Flange Type MDC Series Compact Mold Cylinder operates in both directions, allowing for bi-directional movement.
• This design enables efficient and precise control over the mold's opening and closing actions, enhancing operational flexibility and productivity.

2. Double Axis Configuration:

• This cylinder is designed for double-axis movement, providing linear motion along two directions.
• The double-axis configuration is ideal for applications requiring more complex mold actions, ensuring enhanced flexibility and versatility.

3. Flange Type Construction:

• The flange-type design of the MDC Series Compact Mold Cylinder allows for easy installation and integration into mold systems.
• The flange provides a secure and rigid mounting connection, ensuring stability and reliable performance during operation.

4. Compact and Space-Saving:

• The MDC Series Compact Mold Cylinder features a compact design that optimizes space utilization in mold systems with limited clearance.
• Its space-saving construction allows for easy integration into tight spaces, ensuring efficient use of available workspace.
