6TC Series Cast Iron Sheaves with Split Taper Bushings for Use with All “C” Section Belts

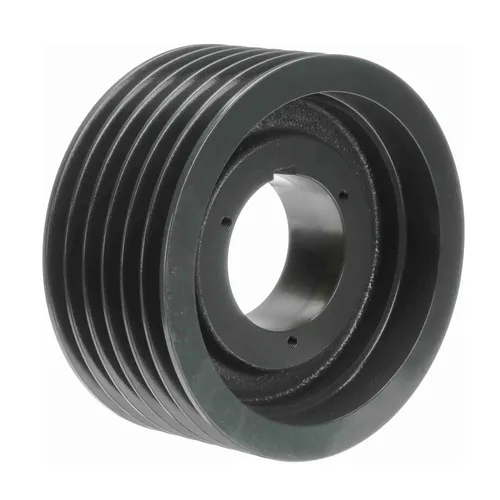

6TC series six-groove sheaves are manufactured for C, CX, banded belts, and CC v-belts; they range from 7.40" to 24.40" in diameter. Depending on the sheave size, they are made to use Q2 taper bushings, which we also stock. Most 6TC sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

6TC Style Sheave Size Chart

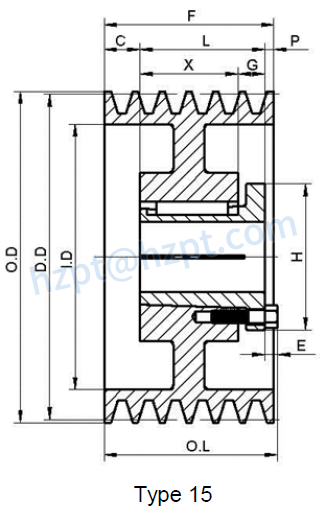

Size	Bushing Type	Pitch Diameter	Outside Diameter	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Sheave Weight (LBS)
6TC70	Q2	7.0	7.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	29.9
6TC72	Q2	7.2	7.60	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	33.6
6TC74	Q2	7.4	7.80	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	33.3
6TC76	Q2	7.6	8.00	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	37.9
6TC78	Q2	7.8	8.20	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	33.5
6TC80	Q2	8.0	8.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	37.6
6TC82	Q2	8.2	8.60	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	34.0
6TC84	Q2	8.4	8.80	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	37.0
6TC86	Q2	8.6	9.00	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	35.0
6TC88	Q2	8.8	9.20	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	39.4
6TC90	Q2	9.0	9.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	36.8
6TC92	Q2	9.2	9.60	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	41.0
6TC94	Q2	9.4	9.80	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	39.4
6TC96	Q2	9.6	10.00	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	43.6
6TC98	Q2	9.8	10.20	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	42.0
6TC100	Q2	10.0	10.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	47.3
6TC102	Q2	10.2	10.60	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	44.4
6TC106	Q2	10.6	11.00	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	45.4
6TC110	Q2	11.0	11.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	47.0
6TC114	Q2	11.4	11.80	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	49.6
6TC120	Q2	12.0	12.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	51.0
6TC130	Q2	13.0	13.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	56.0
6TC160	Q2	16.0	16.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	72.0
6TC200	Q2	20.0	20.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	88.3
6TC240	Q2	24.0	24.40	15	6-1/4"	3-1/2"	1"	1-3/4"	4-1/8"	6-1/4"	3/4"	2-3/4"	9/32"	108.0

6TC Series Sheave Pulleys Features

• Manufactured from grey cast iron
• Pulley & pulley groove specification conforms to IS 3142 & ISO 4183 standards
• Ease of installation and removal
• Facilitates easy selection of different bore and key-way requirements
• Statically balanced

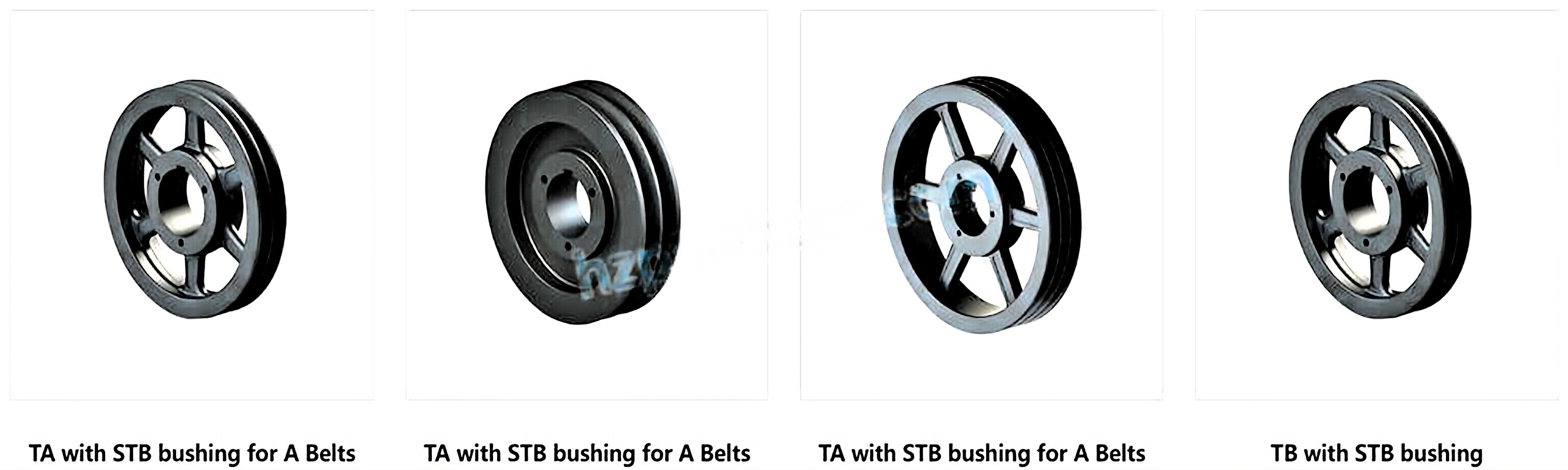

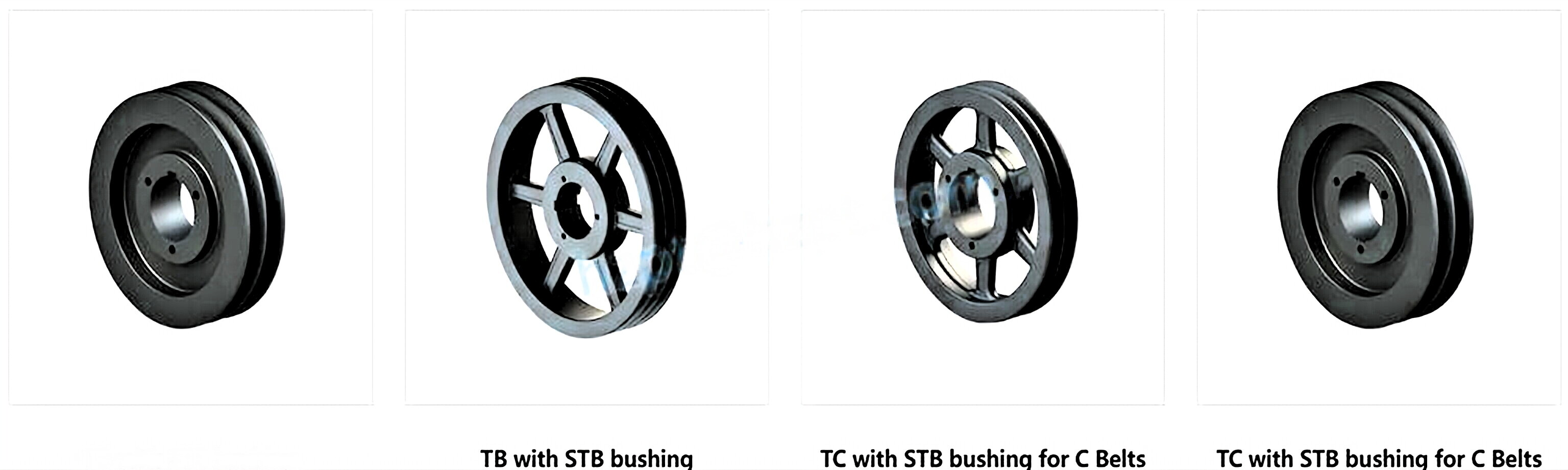

V-belt Pulley American Stanard -- TA/TB/TC Series

The American standard pulley is manufactured according to the American ANSI standard. Its primary material is gray iron, which is suitable for 2L, 3L, 4L, 5L, A， B, C, D, 3V, 5V, 8V belts, J, L, and M multi-ribbed belts. American standard pulley product types: A.K., B.K., TA, T.B., T.C., B, C, D, 3V, 5V, 8V, J, L, M, V.P., V.L., V.M. Taper bushing pulleys are used in conjunction with STB, Q.D. or T.B. taper bushings.
