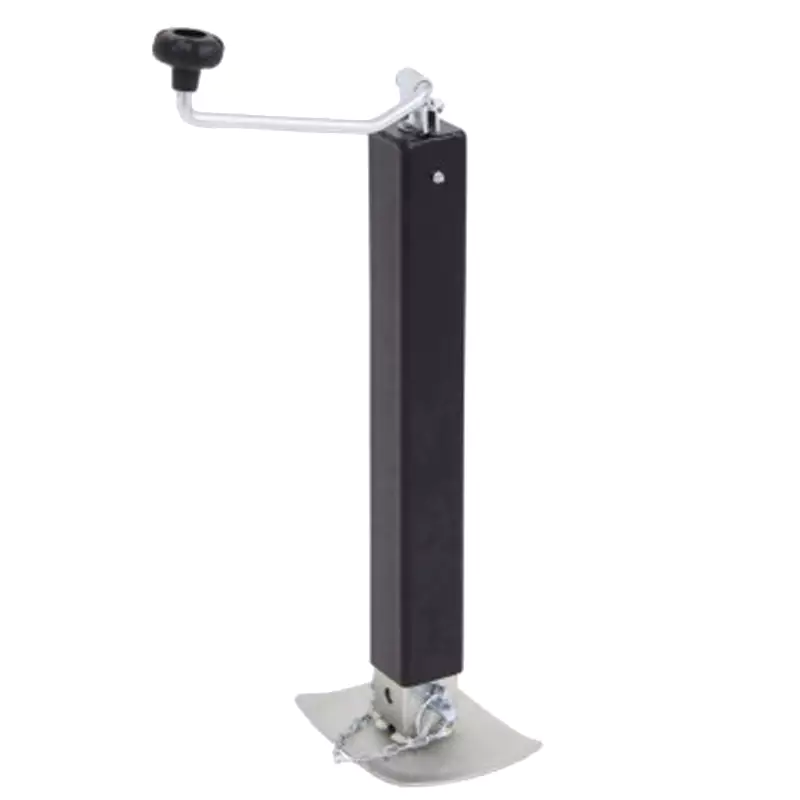

7000LBS Trailer Jack TJ715 Top Wind 15" Lifting Sqare Tube

7000LBS Trailer Jack

The trailer jack is an important component of safe towing. If you need to add or replace jacks on the trailer, the following information can help you choose among various jacks to find the appropriate one.The basic function of a trailer jack is to raise and lower the trailer in order to connect the connector to the ball on the hitch and disconnect it from the ball. When the trailer is not connected to the towing vehicle, keep the trailer level. Stabilize the trailer for loading and unloading, as well as during trailer parking

TJ7157000lbs capacity15" lifting13" drop legsqare tubetop wind



How to Choose a Suitable Trailer Jack？

Trailer jacks have different weights and lengths. Remember to consider the length of the jack in the retracted and extended positions. When extended, the jack must lift the connector to a height high enough to clear the hitch ball from the vehicle. When you travel, the jack must retract far enough to leave the ground. The following information can help you find a jack with the appropriate weight, capacity, and length for your application:

1. Determine the height of the jack

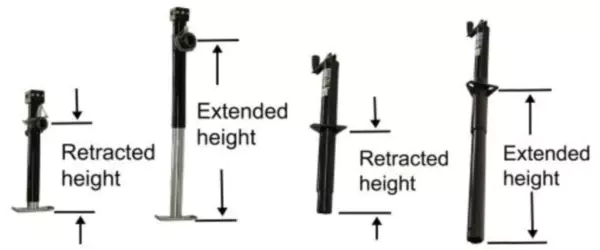

Jack dimensions for retracted and extended positionsTo determine if the jack is suitable for your trailer, you need to know the height at which it retracts and extends. These dimensions are usually used for jacks. They are carried from the bottom of the jack (including any possible feet) to the installation point. The installation points may vary depending on the type of socket. The standard A-frame jack is usually measured to the bottom of the mounting flange. Measure the installation jack of the pipeline to the center of the installation pipeline. Jacks with bolts on the bracket are usually measured to the centerline of the bracket.Measurement of trailer tongue weight Trailer tongue weight scale

2. Trailer tongue weight

The weight of the trailer drawbar (TW) is the downward pressure exerted by the connector on the ball head of the hitch. Usually, TW is 10% to 15% of the total trailer weight (GTW), and GTW is the weight of the trailer when fully loaded. For example, a 5000 pound trailer has a 500 to 750 pound TW pressed onto a ball.Choose a socket with a capacity that matches or exceeds your TWIf you are unsure of your TW, you can check our trailer towing reminder page for more information on how to weigh the trailer tongue. The Sherline trailer tongue weight scale can greatly simplify the weighing of trailer tongue.Due to manufacturing processes and costs, many jacks of different sizes and weights have similar prices. So you can use a jack that can easily exceed the TW of your trailer, but it won't be too big or too expensive. For example, you can use a 2000 pound jack for a 3500 GTW multi-purpose trailer, although the estimated TW is approximately 525 pounds.

3. Trailer tongue height

Measure the height from the ground to the bottom of the trailer coupling connector with the trailer level and parked on a level groundThe extension height of the jack should be approximately 4 "higher than the horizontal height of the connector, so that you can lift it over the ball used to connect and disconnect the trailerThe jack should be retracted enough to be shorter than the connector height of a horizontal trailerWhen the trailer is towed, it should also retract (or rotate to one side) to clean the ground. To ensure that the jack can clean uneven ground, the higher it retracts, the better.

Types of Trailer Jack

JW1605	JW1602	TR1823	TR1819
Load:1500lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"double solid wheel	Load:1000lbsLifting height:10"Pipe Size:51mm/44mmThickness of pipe: 2mmWheel:6"solid wheel	Lift load capacity:7000lbsSupport capacity: 8000lbsTravel:15" +13"Colse height:25.50"Expanded height:53.50"Pipe Size:65mm/57mm/51mm	Load capacity:2000lbsTravel:15"Pipe Size:57mm/51mmSurface: Black powder coatedOuter tube,Galvanized inner tube
TW510	TJ310	TJ715
Load capacity:5000lbsTravel:10"Colse height:480mmExpanded height:730mmPipe Size:57mm/51mmSurface: Black powder coated outer tubeGalvanized inner tube	Capacity: 3500lb10" lifting	7000lbs capacity15" lifting13" drop legsqare tubeTop wind
