8V Series Cast Iron Fourteen-Groove Pulley Sheaves with Split Taper Bushings

8V Series Cast Iron Fourteen-Groove Pulley Sheaves with Split Taper Bushings

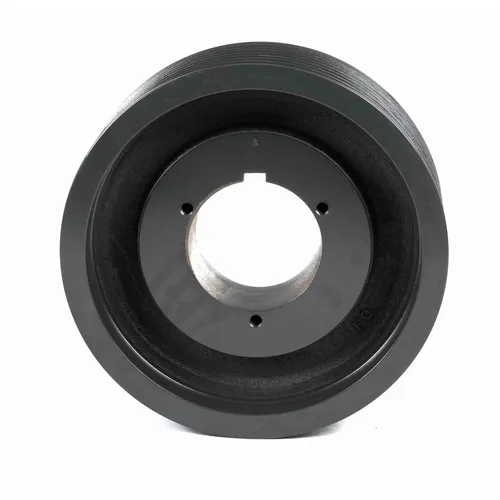

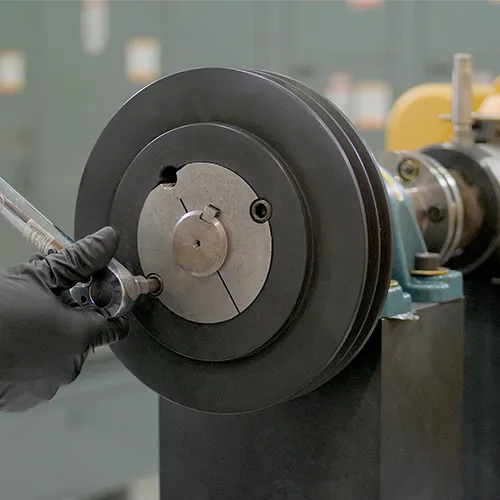

8V series fourteen-groove taper bushed sheaves are manufactured for 8V and 8V banded v-belts. They range from 12.5" to 64.0" in diameter. Depending on the sheave size, they are made to use U2 or W2 split-taper bushings, which we also stock. Most of our fourteen-groove 8V split taper sheaves are manufactured from a high-strength grade 35 cast iron, are phosphate-coated, and are painted for anti-corrosion. All of them are balanced at the factory for smooth machinery operation.

Fourteen-Groove 8V Split Taper Sheave Size Chart

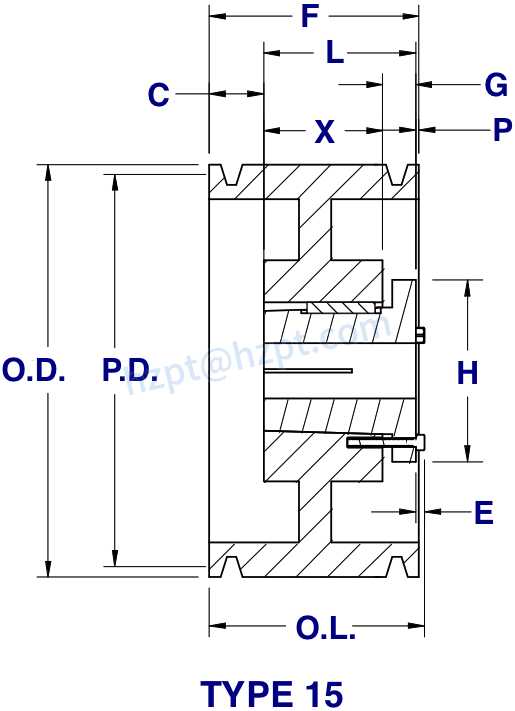

Sheave Size	Bushing	Pitch Diameter (P.D.)	Outside Diameter (O.D.)	Type	(O.L.)	(L)	(P)	(C)	(H)	(F)	(G)	(X)	(E)	Weight (LBS)
14U8V125	U2	12.3	12.5	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	220.0
14U8V132	U2	13.0	13.2	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	261.0
14U8V140	U2	13.8	14.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	300.0
14U8V150	U2	14.8	15.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	370.0
14U8V160	U2	15.8	16.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	415.0
14U8V170	U2	16.8	17.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	440.0
14U8V180	U2	17.8	18.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	450.0
14U8V190	U2	18.8	19.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	470.0
14U8V200	U2	19.8	20.0	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	490.0
14U8V212	U2	21.0	21.2	15	16-1/8"	10-1/8"	5"	1"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	510.0
14U8V224	U2	22.2	22.4	15	16-1/8"	10-1/8"	2-1/4"	3-3/4"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	459.0
14U8V300	U2	29.8	30.0	15	16-1/8"	10-1/8"	2-1/4"	3-3/4"	8-3/8"	16-1/8"	1-1/2	8-5/8"	15/32"	710.0
14U8V400	W2	39.8	40.0	15	16-1/8"	11-1/4"	1-1/2"	3-3/8"	12-1/2"	16-1/8"	1-7/8	9-3/8"	9/16"	840.0
14U8V480	W2	47.8	48.0	15	16-1/8"	11-1/4"	1-1/2"	3-3/8"	12-1/2"	16-1/8"	1-7/8	9-3/8"	9/16"	1140.0
14U8V530	W2	52.8	53.0	15	16-1/8"	11-1/4"	1-1/2"	3-3/8"	12-1/2"	16-1/8"	1-7/8	9-3/8"	9/16"	1234.0
14U8V580	W2	57.8	58.0	15	16-1/8"	11-1/4"	1-1/2"	3-3/8"	12-1/2"	16-1/8"	1-7/8	9-3/8"	9/16"	1450.0
14U8V640	W2	63.8	64.0	15	16-1/8"	11-1/4"	1-1/2"	3-3/8"	12-1/2"	16-1/8"	1-7/8	9-3/8"	9/16"	1550.0

Related Matching 8V, 8V Banded Series V-Belt

(1) 8V-Series V-Belts

Classic 8V-Series V-Belts have a 0.63" top-width, 0.53" thickness, and a 38° angle. Additionally, 8V V-belts are one of the oldest styles of V-Belts in the industry. Because of their long-term success and economical operation, they are also one of the industry's most widely used belt series. The premium 8V-series v-belts we supply are manufactured under ISO 9001 specifications, are oil and heat resistant, and directly interchange with other brands. They are constructed of a natural rubber compound with polyester cords and use cotton with a polyester blend cover for high durability.

(2) 8V-Series Banded V-Belts

8V-series v-belts are a part of the "classic" lineup of v-belts because they are one of the oldest style belts used and one of the most common. Our belts are manufactured by ARPM standards and offer superior strength, durability, and performance. 8V-series v-belts have a 1.0" top-width per belt (band/ rib).

Related Split Taper Bushings

Split taper bushings are amongst the most common bushings utilized due to their high integral strength, simplicity of installation and uninstall, and high holding power for successfully coupling a shaft onto a drive or idler component. Split taper bushings are utilized in a broad range of sheaves, conveyor pulleys, and sprockets. Our high-quality split taper bushings are manufactured from high-grade steel or cast and interchange with any other brand, designed as a flanged bushing with a tapered barrel attached that contains one slit on each side. We stock split taper bushings ranging from the G-series to W2-series and in inch and metric bore sizes that range from 0.375" up to 7.438". For additional information or to get a quote on our high-strength split taper bushings, please contact our customer support team, and we will be happy to assist you.

7 Things That Should Be Paid Attention in the Assembly of Tapered Sleeve Pulley

Taper-sleeve pulley is a new mechanical transmission connecting component commonly used in European and American countries. The 8-degree outer tapered surface is tightly connected with the inner tapered surface of the pulley, significantly improving the centering accuracy of the transmission parts. Taper sleeve size is a standard series design. Its internal hole keyway is processed according to ISO standards. The versatility and interchangeability are excellent and suitable for various occasions. The inner hole and the chain groove may be damaged when the transmission parts run for a long time. Taper sleeves of the exact specification can be used again. Therefore, the service life of the transmission parts is greatly improved, the maintenance cost is reduced, and time is saved.1. Before and after the pulley assembly, gasoline must be used to ensure that all parts are clean and dry to ensure that the mating surface is tightly matched without oil stains and has sufficient friction.2. The hexagon socket head cap bolts for assembly should also be washed with gasoline and dried before assembly. Do not apply lubricating oil or grease in the bolts or screw holes to ensure sufficient frictional self-locking ability after the bolts are fastened.3. When the three hexagon socket head bolts are about to be installed, they need to be tightened in turns to ensure that the tapered sleeve is subjected to uniform axial force and that the pulley and the tapered sleeve are well positioned coaxially.4. Check and measure the length of the hexagonal socket head bolts for assembly before installation to ensure that the assembly bolts can withstand the bottom end of the blind hole of the taper sleeve after tightening to ensure that the tapered surface fits tightly and to ensure that the bolts are subjected to the reverse thrust at the bottom of the blind hole, resulting in The anti-loosening effect of the double nut principle is the same.5. After the pulley is tightened, check and adjust the relative position of the primary and driven pulley by pulling the wire to ensure that the two pulleys are on the same plane and the belt tension is moderate.6. The pulley cover should be intact and installed firmly to ensure that the belt is broken or the pulley is loosened and withdrawn during operation, resulting in a significant safety accident.7. The tapered sleeve is a vulnerable part. It should be checked before each assembly, and the spare parts should be replaced in time if any defects are found. After a long operation, the inner hole and the chain groove may be damaged.

8V Series Sheaves Common Applications

• Machine tools
• Crushers, shredders, breakers, classifiers, shaker screens
• Material conveyor systems
• Fans, blowers, and exhausters
• Pumps and compressors
• Woodworking saws, mills, planers, lathes

Technological Processing
