94-Series Sprockets

94 series engineer class sprockets are used for a wide verity of chain sizes. For cast sprockets, these sizes include 4019, SS4, 4, 40SP, 94R, and LXS4019. These sprockets are typically supplied as cast material but we can also supply them as steel for longer operation. The below chart shows the standard tooth counts, as well as dimensions for each size.

Cast 94-Series Sprockets

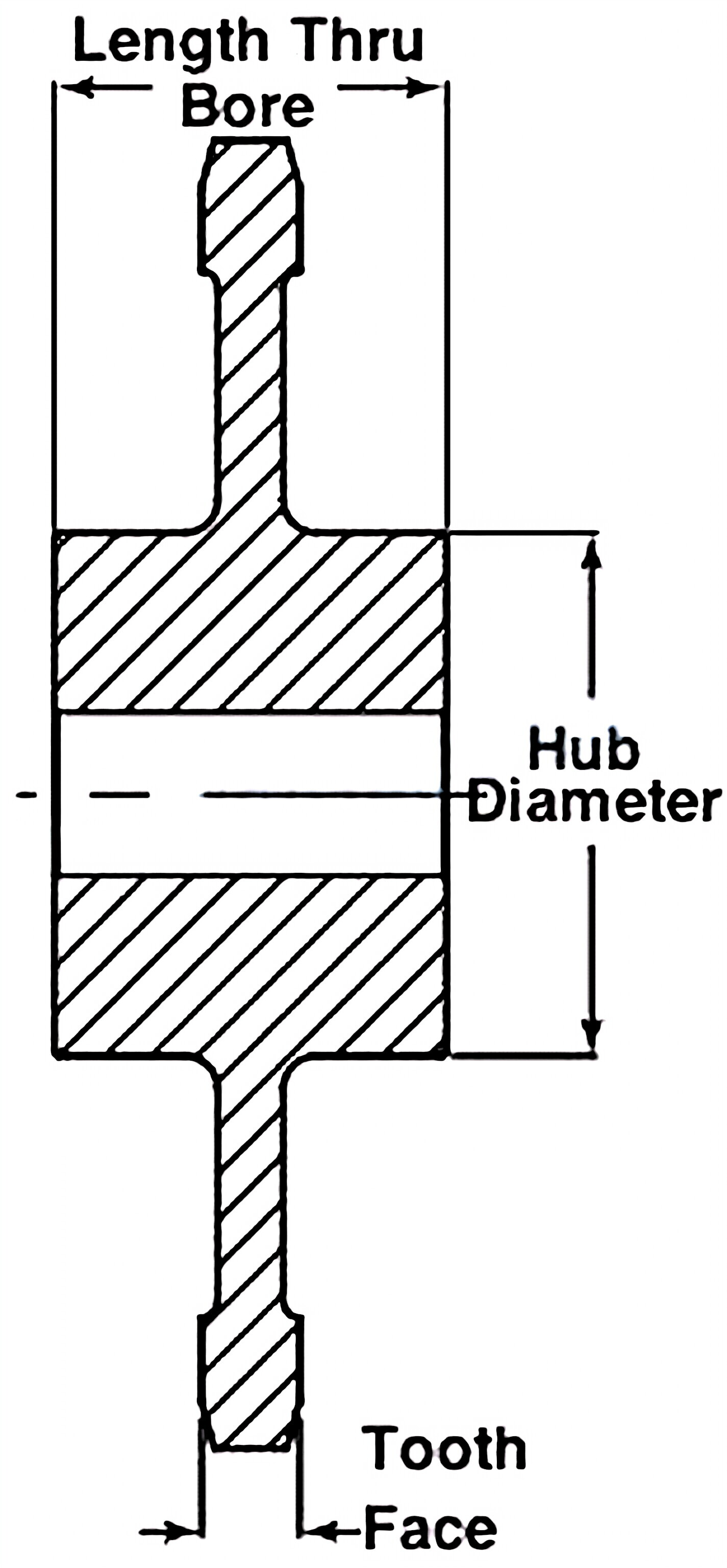

Note: Tooth Face at Pitch Line: 0.750"/ Roller Diameter: 1.500"

Sprocket Size	Tooth Count	Style	Pitch Diameter	Hub Diameter	Length Through Bore	Maximum Bore	Weight (LBS)
94C5	5	C	6.81"	4.50"	3.00"	2.50"	12
94C6	6	C	8.00"	5.00"	3.00"	3.00"	14
94C7	7	C	9.22"	6.00"	3.00"	4.00"	18
94C8	8	C	10.45"	6.00"	3.00"	4.00"	24
94C9	9	C	11.70"	6.00"	3.00"	4.00"	30
94C10	10	C	12.94"	6.00"	3.00"	4.00"	40
94C11	11	C	14.19"	6.00"	3.00"	4.00"	45
94C12	12	C	15.45"	6.00"	3.00"	4.00"	61
94C14	14	C	17.89"	6.00"	3.00"	4.00"	76
94C15	15	C	19.24"	7.00"	4.00"	5.00"	86
94C18	18	C	23.04"	8.00"	5.00"	6.00"	115
94C19	19	C	24.30"	8.00"	5.00"	6.00"	125
94C22	22	C	28.11"	8.00"	5.00"	6.00"	165
