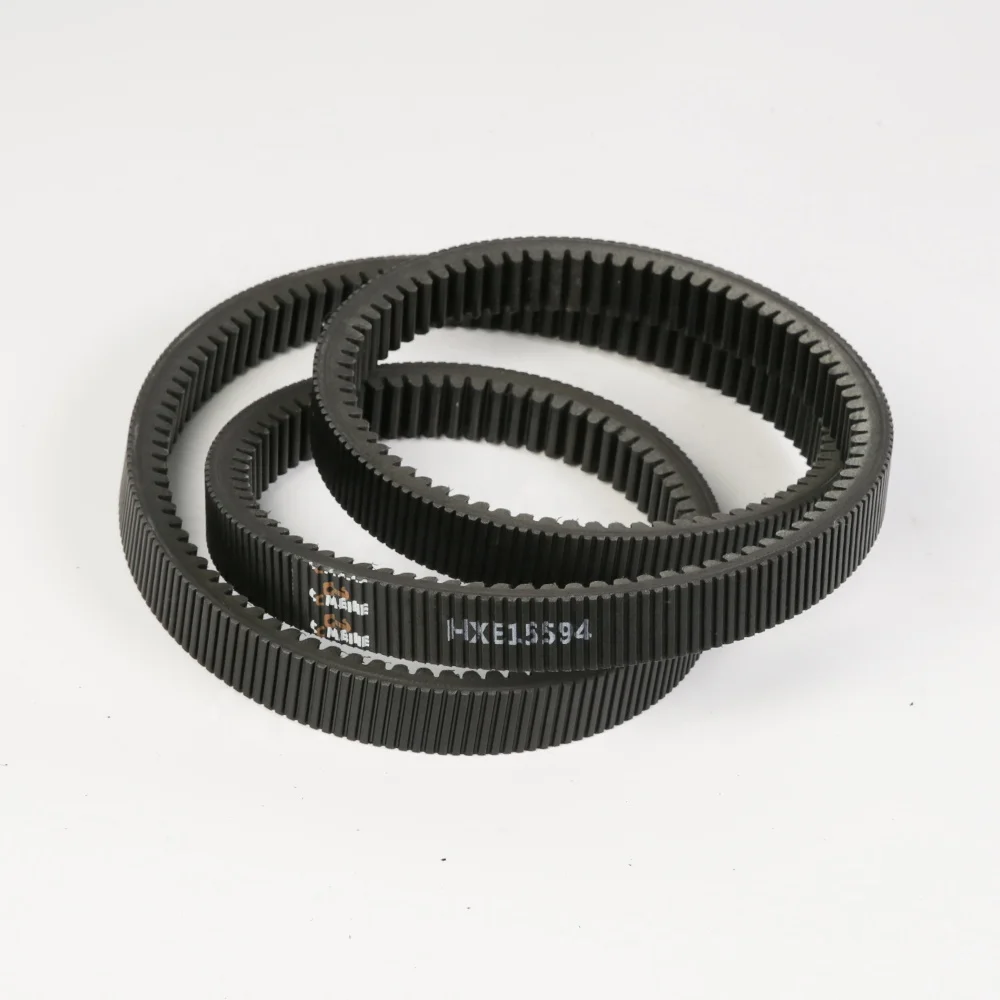

Agricultural belt, also known as V-belt, is an essential component in agricultural machinery. It is responsible for transmitting power from the engine to various parts of the machine, allowing it to perform tasks such as harvesting, plowing, and irrigation effectively. Agricultural belts are made of high-quality rubber material, ensuring durability, flexibility and resistance to wear and tear.
Here is a table of the specifications of agricultural belts:
[ninja_tables id="410625"]Agricultural belts are used in different agricultural machines for various purposes. Here are some common applications:
The agricultural belt is mostly used in the PTO (Power Take-Off) part of the tractor, connecting the tractor to the attached agricultural machinery such as plows, seeders, harvesters, shredders, water pumps, and others.
The agricultural belt is used in the main transmission system, transmitting power from the engine to the threshing drum, cutting table, cleaning system, and other moving parts.
Agricultural belts are used in cultivators such as rotary tillers, plows, deep tillers and others. The belts are used to transfer power from the tractor to the working parts of the cultivators.
Transmission belts are used in power pumps and rotating sprinkler systems. The belts transfer power from the tractor to the water pump or other driving parts.
Belts are used to drive mixing and cutting modules in feed mixers, silage cutters, and other equipment.
Our agricultural belt replacement for John Deere Combines can also be used in other agricultural machinery of different brands and models, here is a table showing some of these:
In addition to agricultural belts, we also provide other agricultural machinery parts including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, and others. We have everything you need for your agricultural machinery.
Here are some signs that indicate you may need to replace your agricultural belt:
If there are cracks, fraying, thinning, or rubber blockage on the surface of the belt, it indicates that the belt has worn out significantly. The strength and stability have been greatly reduced, and it should be replaced promptly.
The belt should run at an appropriate tension. If the belt is too slack and sags more than the specified value when pressed by hand or the belt length cannot maintain the original tension after continuous use, it means that the belt has lost its elasticity and tension and needs to be replaced.
If you hear a sharp whistling sound at the belt during the operation of the agricultural machinery or feel that the machine's power output is insufficient, the speed has dropped, and it may be caused by belt slipping. It should be checked for adequate friction and replaced if necessary.
Normal working agricultural belts will have some temperature rise, but if it is too hot, even hot to the touch, it may be due to excessive fatigue of the belt, internal damage, or excessive tension. This situation can accelerate the aging and damage of the belt and should be stopped immediately for inspection and replacement.
If you smell the burnt rubber smell or see the melting and burning marks on the belt, it means that the belt is in a heavily overloaded state, and partial or complete damage may have occurred. It must be replaced immediately.
When the belt is about to fail or fail, it may cause additional vibration or noise during the operation of the machine, due to the uneven transmission of power. It should be stopped for inspection, and the problem belt should be replaced promptly.
When choosing an agricultural belt, several factors must be considered to ensure that the belt is suitable for your machine and can operate efficiently. These factors include:
Agricultural machinery commonly uses V-belts (also known as triangular belts). According to the width and thickness of different models, there are A, B, C, D, and other models. Choose a belt that matches the original belt's model number or refer to the specifications provided by the agricultural machinery manufacturer.
Measure or calculate the exact length of the required belt based on the instructions of your agricultural machinery to ensure that the new belt can be installed smoothly and maintain proper tension.
The belt needs to bear the engine's output power of agricultural machinery, so ensure that the new belt's rated power is greater than or equal to the power required by the transmission system.
Belts made of high-quality rubber materials have better wear resistance, high-temperature resistance, oil resistance, aging resistance, and other properties.
The belt must be compatible with the groove width and depth of the belt pulley to ensure good meshing and avoid slipping or premature wear.
