The Agricultural Belt is a type of belt used in agricultural machinery for transferring power from the engine to various components of the machine. It is an essential part of agricultural machinery and is used in several applications.

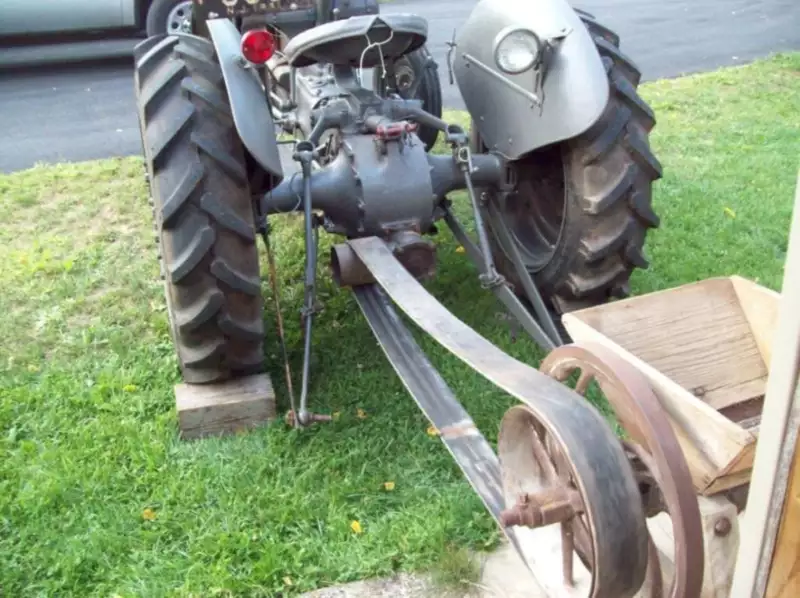

The Agricultural Belt is mainly used in the PTO (Power Take-Off) section of tractors, connecting the tractor to various farming tools such as plows, seeders, harvesters, crushers, water pumps, etc.
The Agricultural Belt is used in the main drive system of combine harvesters, transferring the power from the engine to the threshing drum, cutter bar, cleaning system, and other moving components.
The Agricultural Belt is used in tillage machinery such as rotary tillers, plows, deep cultivators to transfer power from the tractor to the working components of the tillage machinery.
The Agricultural Belt is used in power pumps and rotating sprinkler systems, transferring power from the tractor to the pump or other driving components.
The Agricultural Belt is used in feed mixers, silage cutters, and other equipment to drive mixing and cutting functions.
The following table lists the compatible brands and models for our Agricultural Belt:
| Brand | Model |
|---|---|
| John Deere | 3325, 3365, 3395 |
| Case IH | 1680, 1682, 1688 |
| New Holland | CR920, CR940, CR960 |
We also offer other parts for agricultural machinery such as agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, etc. You can find all the agricultural machinery parts you need from us.
The following are signs that indicate the need for replacing the Agricultural Belt:
Check the surface of the belt for cracks, frayed edges, thinning, rubber block detachment, or exposure of the fabric layer. These all indicate that the belt is severely worn, reducing its strength and stability, and should be replaced immediately.
The Agricultural Belt should run in an appropriate tension state. If the belt is too loose and sags more than the specified value when pressed by hand or cannot maintain the original tension due to elongation after continuous use, the belt has lost elasticity and tension and needs to be replaced.
If you hear a sharp squeaking sound at the belt during operation or feel insufficient power output and decreased speed, it is likely that the belt is slipping. In this case, you should not only check the tension but also check if the belt has sufficient friction. If necessary, the belt needs to be replaced.
A normal working Agricultural Belt will have a slight temperature rise, but if it feels very hot or even hot to the touch, it may be due to excessive fatigue of the belt, internal structure damage, or excessive tension causing heat accumulation. This situation can accelerate the aging and damage of the belt and should be stopped immediately for inspection and replacement.
If you smell the odor of burnt rubber or see melting or burn marks on the Agricultural Belt, it means that the belt is in a serious overload state and has possibly suffered partial or complete damage. You must replace the belt immediately.
When the Agricultural Belt fails or is about to fail, it may cause additional vibration or noise during machine operation due to uneven transmission. In this case, you should stop the machine for inspection, find out the cause, and replace the problem belt in time.

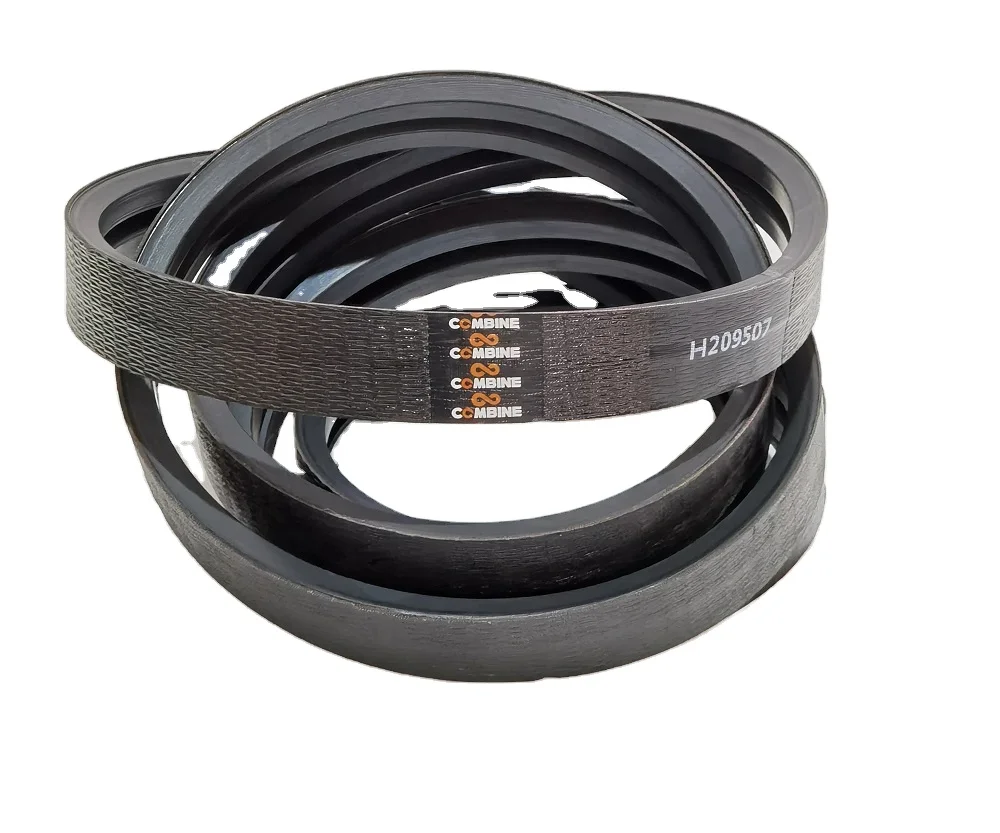

The most commonly used belt type in agricultural machinery is the V-belt (also known as a triangular belt). Depending on the width and thickness, there are many different models such as A, B, C, D, etc. When selecting, it is important to choose a belt that matches the model of the original belt or refer to the specifications provided by the manufacturer.
Measure the exact length of the required Agricultural Belt or calculate it according to the instructions for the agricultural machinery. Ensure that the new belt can be installed smoothly and maintain an appropriate tension after installation.
The Agricultural Belt needs to bear the engine output power of agricultural machinery. Therefore, it is important to ensure that the rated power of the new belt is greater than or equal to the power required by the transmission system.
A high-quality rubber compound Agricultural Belt has better wear resistance, high-temperature resistance, oil resistance, and aging resistance performance.
The Agricultural Belt must match the groove width and depth of the belt pulley to ensure good meshing and avoid slipping or premature wear.
