Agricultural spare part plastic paddle/rubber paddle for harvester H135235

Agricultural Spare Part Plastic Paddle/Rubber Paddle for Harvester H135235

The agricultural spare part plastic paddle/rubber paddle for harvester H135235 is an essential component of agricultural machinery that plays a crucial role in the harvesting process. It is responsible for moving crops from the cutting platform to the threshing mechanism, where grains are separated from the rest of the plant.

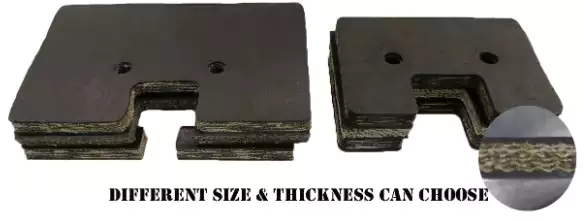

Material： Rubber: natural rubber. No use circle tire- Core of cable : canvas. No nylon line. Description： New natural rubber, hardness 40 HD, high wear-resistingCanvas in middle to provide enough strength Size & Thickness： Different sizes and thickness can choose to match your demand

PRODUCT SPECIFICATIONS



Item Name	Rubber paddle
COMBINE No.	4G1117
OEM Ref. No.	1318493C2
Size	102*192 *11
Weight	0.32kg
Application	Case-IH COMBINE: 1680,1682, 2188, 2377, 2388,2588

Item Name	Rubber paddle
COMBINE No.	4G1084
OEM Ref. No.	1317480C2
Size	144*102*11
Weight	0.086kg
Application	CASE1640,1644,1660,1666,1670,2144,2166,2344,2366

Item Name	Rubber paddle
COMBINE No.	4G1085
OEM Ref. No.	1303116C1
Size	146*71*9
Weight	0.150kg
Application	CASE 1420,1440,1460,1470,1480,1482,1620,1640,1644,1660,1666, 1670,1680,1682,1688,2144,2166,2188,2344,2366,2377,2388

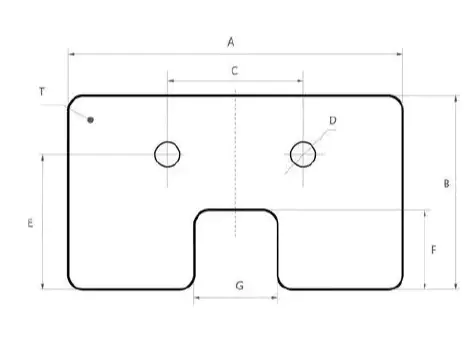

Ref. No.	A	B	C	D	E	F	G	T
101622-B	190	100	113	10	48	38	21	9
H135235	150	80	80	10	39	33	37	12
397856	154	80						9
60545.0	154	100	52	8.5	33	22	36	9
619298.2	107	80	52	8.5	33	22	36	9
642644	154	124	52	8.5	33	22	36	9
H137276	147	107	77	10	37	32	34	12
H137277	195	108	77	10	39	39	35	12
	204	100	88	8.5	45	40	42	9
H1303116C1	145	60	78	10	29	29	39	9
036276	154	78						9
69.9245	110	84						11
71.5466	93	80						11
	107	80	52	8.5	45	29	35	9
	154	100	52	8.5	40	26	34	9
	154	78	52	8.5	43	29	34	9
	154	124	52	8.5	41	26	34	9
	154	127	60	8.5	64	50	34	9
	134	39	52	8.5	53	30	40	9
	184	101	88	8.5	46	15	42	9
	152.5	80	54.5	6.5	34	30	32.5	9
	152	80	88	8.5	37	36	40	9
	120	109	88	8.5	41	33	40	9
	146	110	88	8.5	42	34	40	9
	186	100	88	8.5	41	34	40	9
	148	86	58	6.5	40	35	36	9
	174	85	58	6.5	40	35	34	9
	109	85	58	6.5	39	35	37	9
	146	71	79.4	8.5	44	32	37.4	9
	145	104	79.4	8.5	42	38	39	9

- The data are presented for your reference. - More sizes can be supplied according to your specification.

Applications

• Harvesters
• Combines
• Forage harvesters

It is typically located in the threshing mechanism of the agricultural machinery and operates in tandem with the concave, rasp bars, and other components of the threshing system.

Compatibility

Our agricultural spare part plastic paddle/rubber paddle for harvester H135235 is compatible with a range of agricultural machinery brands and models. Below is a table of compatible machinery:

Brand	Model
John Deere	STS, S660, S670
Claas	Lexion, Tucano
New Holland	CR, CX, TC, TX, TF

Other Agricultural Machinery Parts

In addition, we offer a range of other agricultural machinery parts, including agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, concave, and more. Whatever agricultural machinery part you need, you can find it here.

Signs of Wear and Tear

• Reduced threshing efficiency
• Uneven crop flow
• Increased vibration and noise
• Visible cracks or damage

If any of the above signs are present, it is recommended to replace the agricultural spare part plastic paddle/rubber paddle for harvester H135235 to ensure optimal harvesting efficiency.

Choosing the Right Part

• Check the compatibility with your machinery
• Consider the quality of the material
• Look for a reputable supplier
• Ensure timely replacement to prevent further damage

Choosing the right agricultural spare part plastic paddle/rubber paddle for harvester H135235 is crucial to ensure the efficient and smooth operation of your agricultural machinery. Author: Miya
