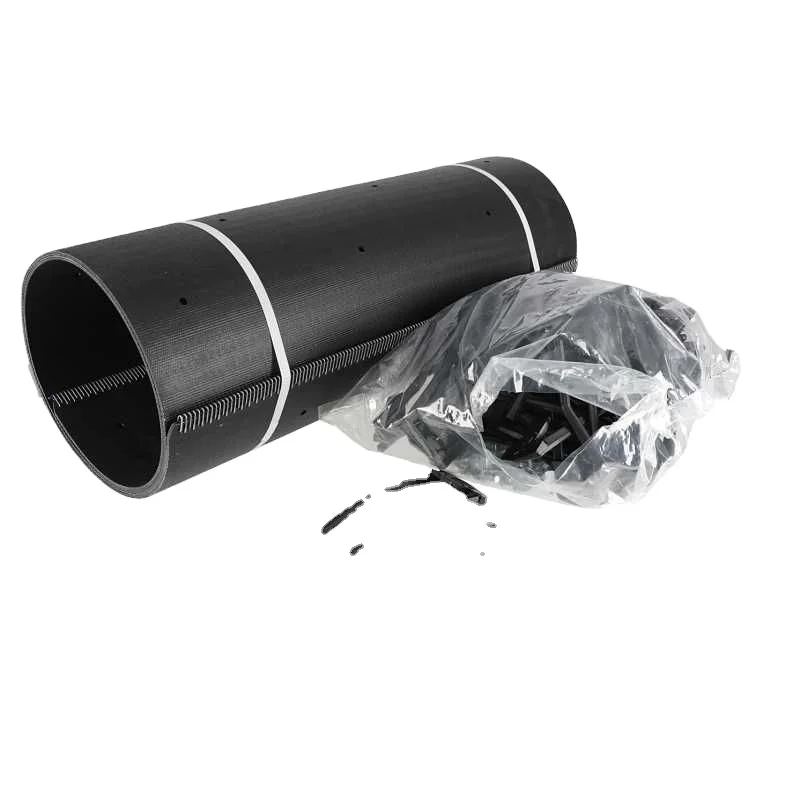

AH147909 22" x 66.53" 60 Teeth Draper Belt Set for harvester

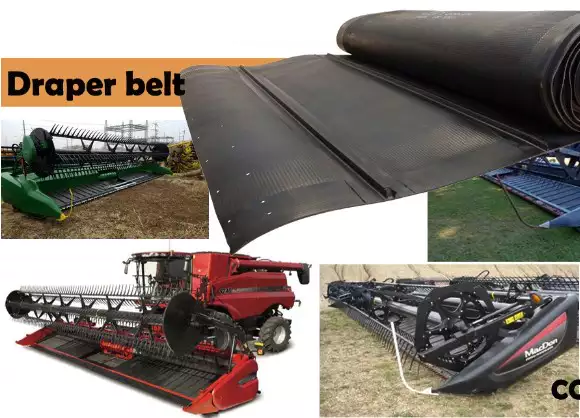

Draper belt

NO.:	Replaced OEM No.	Application	Main sizes
4G1188	AH203047, AXE12053	JD 925D 930D 936D	1524x1600.2
4G1189	AXE12533	JD 625D 630D 635D 640D 725D 730D 735D 740D	1405x1473.5
4G1186	1009382, AH225872??AXE11897, AXE14603??AXE14603-A	JD 635D	1004x9071.1
4G1187	AXE14731, AH229394?? AXE11896, AXE15008	JD 730D	1004x7546.8
4G1183	AH159534, AXE39583	JD 930D	914x7721.6
4G1184	AH159535, AXE39584	JD 936D	914x8432.3
4G1185	AH159536, AXE39585	JD 936D	914x10668
More items information you need, please contact us

Step 2 (for Single V-Guide ):If the one you need is not in our products list, you need you to give us the sizes in below picture:- the length of reinforcement rod. - size A- the distance from guide rail to the edge of draper belt. - Size B- the total width of draper belt- the distance from the edge of reinforcement rod to the edge of draper belt. - Size C- the size of reinforcement rod.

Total width??mm??	Total width??inch??	A	B	C
914	36	874	132	20
1004	39.54	964	85	20
1405	55.3	1365	152.5	20
1524	60	1484	212	20
Please provide us above the sizes, then we can calculate the cost accordingly.

Step 2 (for Double V-Guide ):If the one you need is not in our products list, you need you to give us the sizes in below picture:- the total width of draper belt - size W1- the total width of reinforcement rod - Size W2- the size of Guide rails - size W3, W4, H

W1	W2	W3	W4	H	L
1000	870	8	12	8	Arbitrary length customization
1010	870	8	12	8
1060	1025	8	12	8
1260	1170	8	12	8
1490	1340	8	12	8
1570	1420	8	12	8
Please provide us above the sizes, then we can calculate the cost accordingly.



AH147909 22" x 66.53" 60 Teeth Draper Belt Set for Harvester

The AH147909 22" x 66.53" 60 Teeth Draper Belt Set is an essential part of a harvester that helps with the harvesting process. This particular belt set is designed to fit a wide range of harvester models and is durable enough to withstand heavy use.

Product Function and Position

The AH147909 22" x 66.53" 60 Teeth Draper Belt Set is responsible for driving the draper and ensuring that the harvested crop is properly conveyed and delivered to the combine. It typically sits in the front of the harvester, just beneath the header, and works in conjunction with the reel to deliver the crop to the threshing drum.

Production and Customization

Our company specializes in producing high-quality replacement parts for a variety of harvester models, including the AH147909 22" x 66.53" 60 Teeth Draper Belt Set. We offer several advantages over other manufacturers:

• Highly competitive prices
• Expert technical support and advice
• Fast and reliable delivery

We can also customize the AH147909 22" x 66.53" 60 Teeth Draper Belt Set to fit specific harvester models upon request.

Compatible Harvester Models

Brand	Model
John Deere	9570 STS, 9650 STS, 9660 STS, 9670 STS, 9750 STS, 9760 STS, 9770 STS, 9860 STS, CTS, CTS II, T560, T660
Case IH	7010, 7120, 8010, 8120, 9120, AFX8010, AFX8120, AFX9120
New Holland	CR940, CR960, CR970, CR980, CR9040, CR9060, CR9070, CR9080
