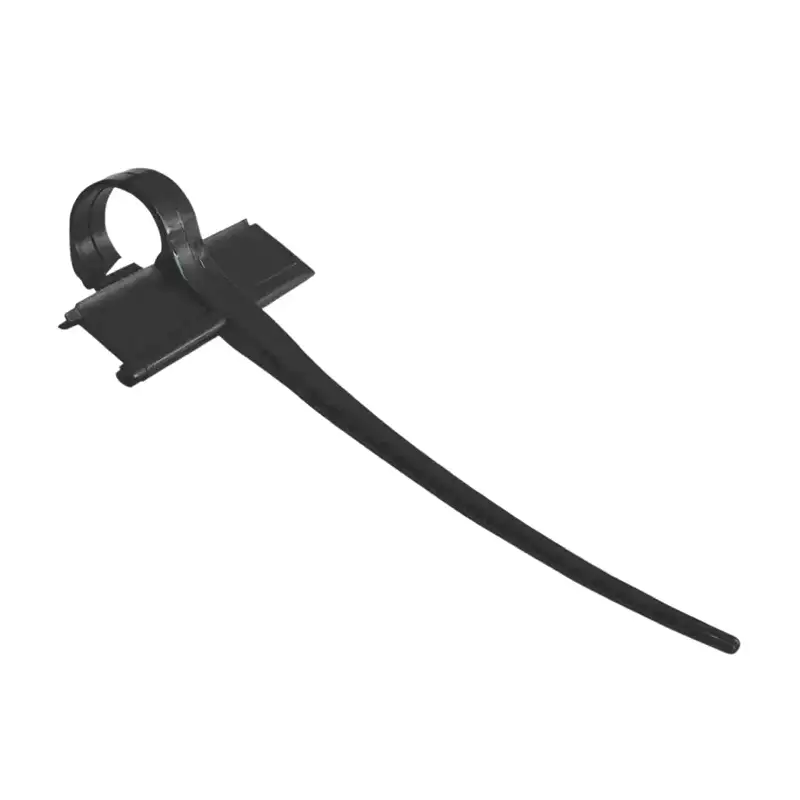

AH153175/ 410856A1/105212 Doule Wing Nylon plastic spring tine poly reel finger rake tines with OEM original genuine quality

AH153175/410856A1/105212 Doule Wing Nylon Plastic Spring Tine Poly Reel Finger Rake Tines with OEM Original Genuine Quality

Introduction to Spring Tine

Spring tines are agricultural machine parts designed to loosen and aerate the soil without damaging its structure by vibrating up and down elastically. Spring tines have been widely applied in various agricultural machines due to their flexibility and effectiveness in handling different soil types. Below is a table showing the specifications of popular spring tines:[ninja_tables id="412473"]

Applications of Spring Tine in Agricultural Machines

Spring tines have been applied in various agricultural machines to perform different tasks. Here are some examples:

1. Tillage Equipment

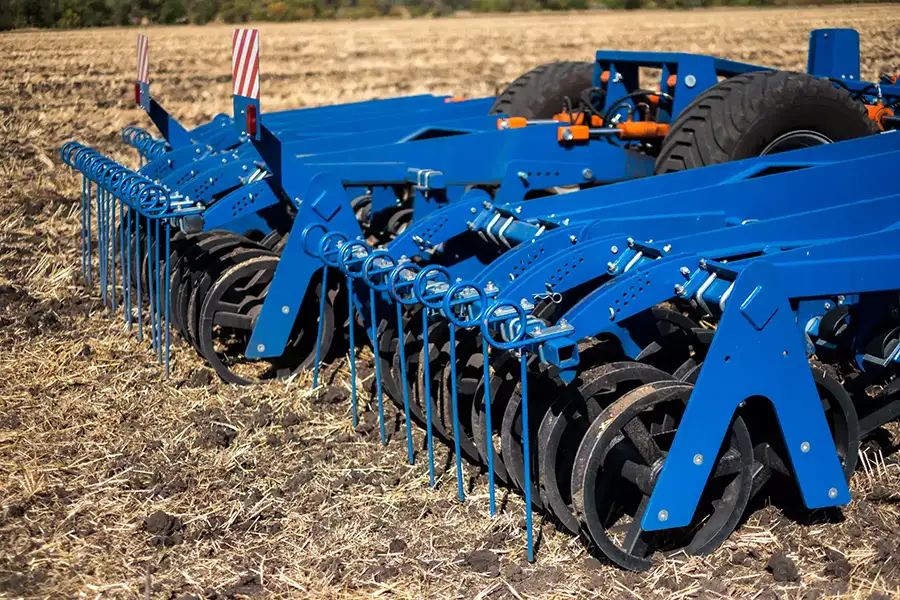

Spring tines are used as loosening components in light tillage equipment, such as garden plows, seedbed cultivators, and shallow plows. They can effectively loosen the soil and cut off weed roots without damaging the soil structure.

2. Lawn Management Equipment

Spring tines are installed on rotors in lawn mowers, rotary harrows, and multifunctional lawn management machines to comb the grass, remove dead grass, and increase the ventilation and drainage of the lawn. They can also remove stones and debris from grass.

3. Pre-seeding Tools

Spring tines are used to break up crop residues and level the soil surface before seeding. Some agricultural machines use spring tine structures to facilitate the entry and germination of seeds.

4. Orchard Management Machines

Spring tines are applied in small and flexible orchard cultivators or dedicated orchard sweepers, where they protect tree trunks from damage and remove weeds and fallen leaves.

5. Mulch Film Recycling Machines

Some mulch film recycling machines use designs with spring tines to scrape and collect agricultural films on the ground.

Applications of AH153175/410856A1/105212 Spring Tine in Agricultural Machines

The AH153175/410856A1/105212 spring tine can be applied in various agricultural machines, including but not limited to:

Brand	Model	Machine Part
John Deere	100, 110, 110H, 115, 115H, 120, 120H, 123, 130, 135, 135H, 140, 150, 150H, 155, 160, 170, 175, 180, 185, 190, 195, 200, 210, 220, 230, 235, 240, 245, 250, 255, 260, 265, 270, 275, 280, 285, 290, 295, 300, 310, 315, 320, 330, 335, 340, 350, 355, 360, 370, 375, 380, 385, 390, 395, 400, 410, 415, 420, 430, 435, 440, 450, 455, 460, 466, 470, 475, 480, 485, 490, 496, 499, 500, 610, 630, 635, 640, 650, 670, 512, 522, 1100	Reel Finger Tine
Case IH	4200, 4300, 4400, 4500, 4600, 4700, 4800, 4900	Reel Finger Tine
AGCO	5500, 5540, 5600, 5660, 5680, 5850, 5900, 8200	Reel Finger Tine

Other Agricultural Machine Parts We Offer

Apart from spring tines, we also provide a variety of other agricultural machine parts, including but not limited to agricultural chains, agricultural gearbox, pulley, sprocket, coupling, PTO shaft, and concave.

When to Replace Spring Tine

Here are some signs indicating that spring tines need to be replaced:

1. Serious Wear and Tear

Check the tip and main part of the spring tine. If the metal blade becomes obviously thinner, deformed, fractured, or rusted, and it can no longer penetrate the soil or perform work effectively, it means that the spring tine is excessively worn and needs to be replaced.

2. Loss of Elasticity

If the spring tine loses its elasticity and cannot vibrate up and down freely to adapt to the ground undulation and cut off the weeds, it may indicate that the spring has fatigued and needs to be replaced.

3. Twisted, Broken, or Permanently Deformed Spring Parts

If the spring parts appear twisted, broken or permanently deformed, it suggests that they need to be replaced.

4. Decreased Work Efficiency

If the soil is not loosened deeply enough, or the crop residue is not cleaned thoroughly, or the work efficiency is lower than before, it may be caused by the decreased effectiveness of the spring tine.

5. Crop Damage

If the spring tine becomes abnormally sharp due to wear or deformation, it may cut the roots or plants of the crops and cause unexpected damage.

How to Choose Suitable Spring Tine

Here are some factors you need to consider when choosing suitable spring tines:

1. Application Type

Based on the specific purpose of the agricultural machine, such as tillage, weeding, or crop residue cleaning, determine the type of spring tine required. Different types of tasks require different shapes and hardness of spring tines. For example, tilling may require wider and more elastic spring tines, while weeding may require sharper and harder spring tines.

2. Material and Quality

The material of the spring tine has a significant impact on its durability and work efficiency. High-quality spring tines are usually made of wear-resistant and corrosion-resistant metal materials, such as carbon steel, alloy steel, or stainless steel, and are treated with surface processing techniques, such as heat treatment and electroplating, to improve their wear resistance and corrosion resistance.

3. Dimension Specification

Determine the length, width, and thickness of the required spring tine. These parameters should match the design of the agricultural machine to ensure correct installation and effective operation.

4. Strength and Toughness

The strength and resilience of the spring directly affect the working effect of the spring tine. Ensure the effective cutting and loosening effect of the spring tine while preventing damage to the soil structure or mechanical system caused by excessive spring force.Author: Miya
