AKH Series Cast Iron Single Groove Sheaves Pulleys for "4L" or "A" Belts

Raydafon Group's AKH Series Cast Iron Single Groove Sheaves Pulleys, designed for "4L" or "A" belts, offer unparalleled durability and precision in power transmission. Crafted from robust cast iron, these pulleys ensure reliable performance, reduce downtime, and enhance efficiency for industrial and automotive applications. They are ideal for engineers, mechanics, and businesses seeking cost-effective, long-lasting solutions. Experience smoother operations and peace of mind with our trusted quality. Upgrade to Raydafon's superior pulleys today for seamless power transfer!

Send Inquiry

Product Description

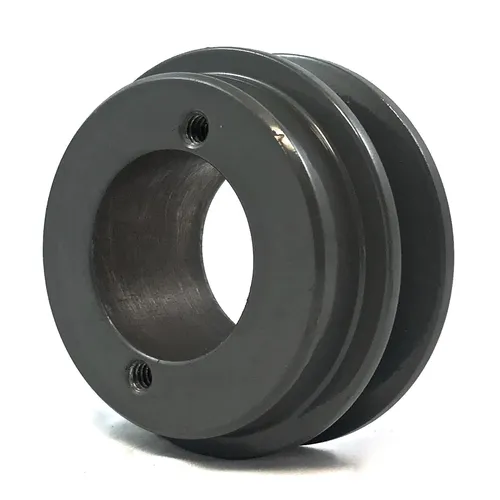

AKH series cast iron bushed pulleys are manufactured for A-series v-belts, A.X. v-belts, 3L, and 4L belts. AKH series pulleys range in diameter from 3.05" to 18.25", but custom ones are available upon request. These pulleys use an H-style bushing. This bushing type has a bore range of 3/8" to 1-1/2" and 10mm to 38mm. AKH pulleys range in diameter from 3.05" to 18.25", but custom ones are available upon request. We stock a complete line of these bushings as well.

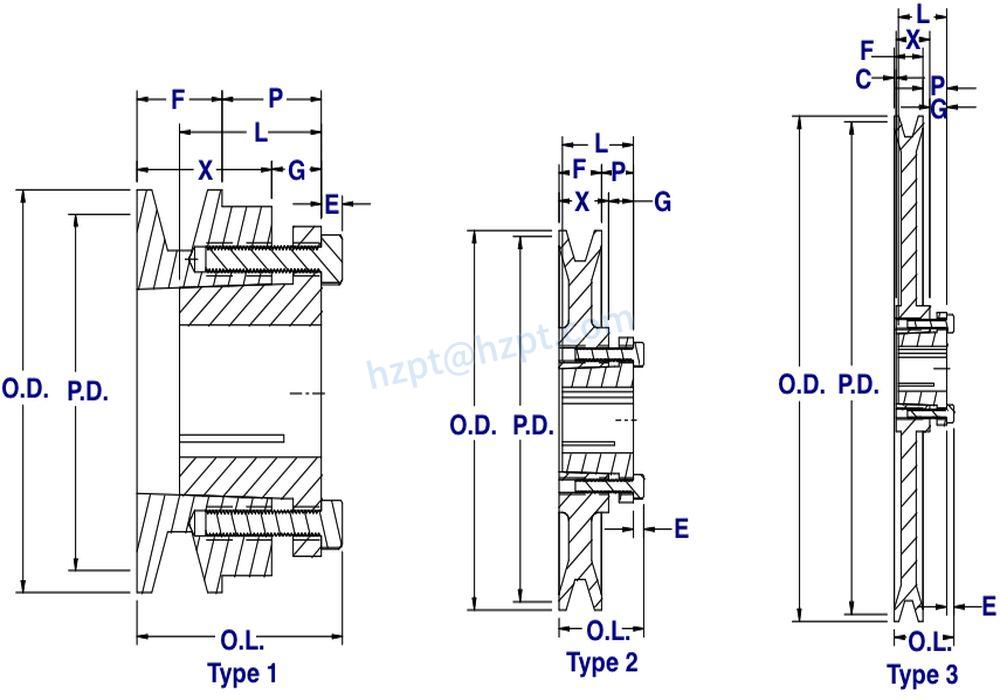

AKH-Series Pulley Size Chart

AKH Series Cast Iron Single Groove Sheaves Pulleys for "4L" or "A" Belts

Size	Outside Diameter	Pitch Diameter (4L/A)	Pitch Diameter (3L)	Type	Dimension (O.L.)	Dimension (F)	Dimension (L)	Dimension (P)	Dimension (C)	Dimension (X)	Dimension (G)	Dimension (E)	Pulley Weight (LBS)
AK30H	3.05"	2.80"	2.46"	1	1-13/16"	3/4"	1-1/4"	7/8"	--	1-3/16"	7/16"	3/16"	0.2
AK32H	3.25"	3.00"	2.66"	1	1-13/16"	3/4"	1-1/4"	7/8"	--	1-3/16"	7/16"	3/16"	0.3
AK34H	3.45"	3.20"	2.86"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.4
AK39H	3.75"	3.50"	3.16"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.5
AK41H	3.95"	3.70"	3.36"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.5
AK44H	4.25"	4.00"	3.66"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.5
AK46H	4.45"	4.20"	3.86"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.5
AK49H	4.75"	4.50"	4.16"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.6
AK51H	4.95"	4.70"	4.36"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.7
AK54H	5.25"	5.00"	4.66"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.7
AK56H	5.45"	5.20"	4.86"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.7
AK59H	5.75"	5.50"	5.16"	2	1-1/2"	3/4"	1-1/4"	9/16"	--	7/8"	7/16"	3/16"	0.9
AK61H	5.95"	5.70"	5.36"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.4
AK64H	6.25"	6.00"	5.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.5
AK66H	6.45"	6.20"	5.86"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.5
AK69H	6.75"	6.50"	6.16"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.5
AK71H	6.95"	6.70"	6.36"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.7
AK74H	7.25"	7.00"	6.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.7
AK79H	7.75"	7.50"	7.16"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.8
AK84H	8.25"	8.00"	7.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	1.9
AK89H	8.75"	8.50"	8.16"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	2.0
AK94H	9.25"	9.00"	8.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	2.1
AK99H	9.75"	9.50"	9.16"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	2.2
AK104H	10.25"	10.00"	9.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	2.3
AK109H	10.75"	10.50"	10.16"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	3.5
AK114H	11.25"	11.00"	10.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	3.8
AK124H	12.25"	12.00"	11.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	3.4
AK134H	13.25"	13.00"	12.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	4.0
AK144H	14.25"	14.00"	13.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	3.8
AK154H	15.25"	15.00"	14.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	4.3
AK184H	18.25"	18.00"	17.66"	3	1-1/2"	3/4"	1-1/4"	9/16"	0"	7/8"	7/16"	3/16"	4.5

Product Specifications

Series	AKH Series
Material	cast iron G3000
Surface Treatment	Black Oxide, E-coat, phosphating blacking, powder coating, painting, and Other coatings available upon request
Machining Process	Forging and Machining, Precision Machining and Large Machining,Investment Casting of Lost Wax, Pressure Die
Heat Treatment	Quenching & Tempering, Carburizing & Quenching,High-frequency Hardening, Carbonitriding
Inspection	Raw material, bath analysis, blank physical and chemical analysis, First check, metallography hardness permeating layer, semi-finished product inspection, Adhesion test, finished product inspection
Standard	European Standard & American Standard
Balance	Static & Dynamic Balance
