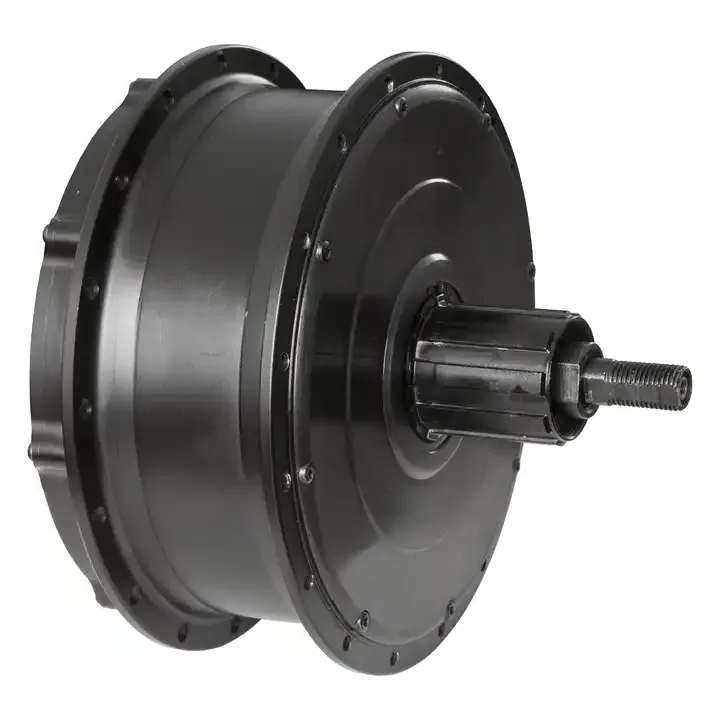

ALL-IN-ONE Motor P160 Rear Hub Motor Kit E-Bike Motor Wheel with Built-in Battery

Introducing the ALL-IN-ONE motor P160 rear hub motor kit e-bike motor wheel with a built-in battery. This product is designed with a cutting-edge brushless motor and operates at a voltage of 36V. The model number for this state-of-the-art product is P160SWXRC30, and it is primarily designed for normal bikes. The wheel size is 16, and it features an integrated controller and battery. The motor operates at 1-11 speeds with a rated voltage of 36v and an efficiency of 90%. The maximum torque of the motor is 30. This product is carefully packaged in a carbon box with bubble wrap and is shipped from Shanghai.

P160 ALL-IN-ONE Rear Hub Motor Specifications

Item No.	P160SWXRDC30/P160SWXRC30
Diameter	162mm±1mm
Width	135±2mm
Brake types	Disc brake/ V brake
Outlet position	No cable
Free-wheel types	Cassette & Whirl
Gears	1-12s
Spoke no.	20H，24H，28H，32H，36H
Spoke types	14g
Controller	Internal
Sensor	Internal
Battery	10Ah
Rated power	250W
Max. power	300W
Max. torque	30N·m
Rated voltage	30V
Rated input current	8.3A
Reduction ratio	1 : 13.5
Grade-ability	＞20%
Efficiency	＞90%
Revolution	160-260RPM
Applicable wheel diameter	14-29inch
Color	Black/Silver
Noise	＜50dB
Operation temperature	-20-45℃
Storage temperature	-20-45℃
Waterproof & Dust-proof	IP65
Weight	4.0KGS

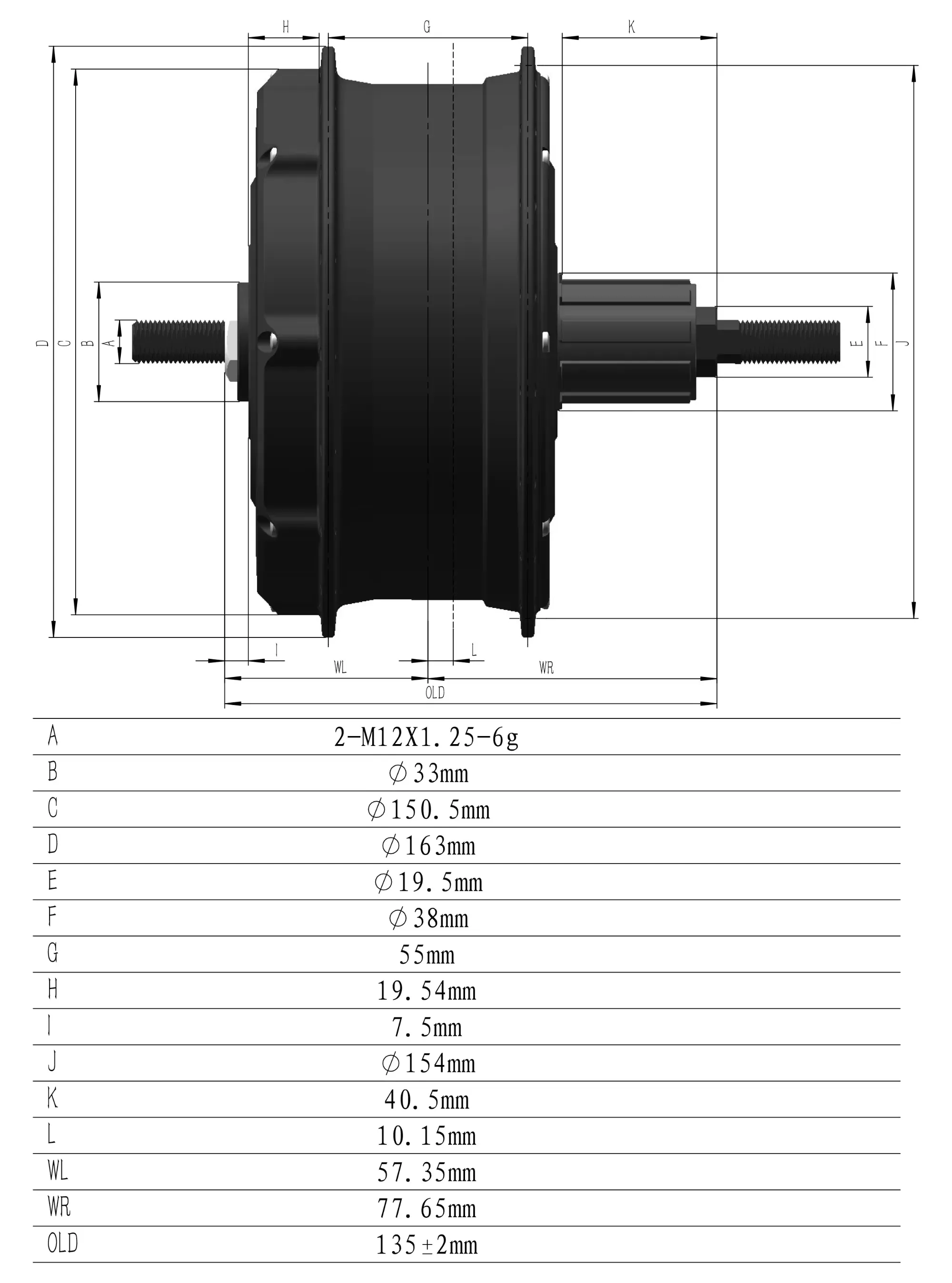

P160 ALL-IN-ONE Rear Hub Motor Dimension

Advantages of the P160 ALL-IN-ONE Rear Hub Motor

The P160 ALL-IN-ONE rear hub motor boasts numerous advantages that set it apart from other products in the market. Here are just a few:

1. Built-in 7Ah battery, controller, and sensor, providing an all-in-one solution for e-bike power systems.
2. Dynamic torque sensing system, ensuring optimal performance based on riding conditions.
3. Slope induction system, offering enhanced efficiency on uphill rides.
4. Support for extended range battery, allowing for longer rides without frequent recharges.
5. Support for GPS positioning, providing added convenience for navigation and tracking.
6. Wireless control, offering easy and convenient operation of the e-bike.

As an experienced manufacturer, we can produce this high-quality product that meets all these specifications and more.

Applications of the P160 ALL-IN-ONE Rear Hub Motor

The P160 ALL-IN-ONE Rear Hub Motor is a versatile component that can be used in various applications:

1. Electric Bike Conversion: This motor can convert a standard pedal bicycle into an electric bike, enhancing the overall riding experience.
2. Commuting: E-bikes equipped with this motor are ideal for commuting, providing assistance for longer distances and hilly terrain.
3. Eco-friendly Transportation: E-bikes powered by this motor offer an environmentally friendly alternative for short to medium-distance commuting.
4. Recreational Riding: This motor can enhance recreational riding experiences, allowing riders to tackle challenging terrain or extend their riding range.
5. Cargo and Delivery Services: This motor is suitable for delivery services, allowing businesses to transport goods efficiently in urban areas.
6. Fitness and Health: This motor allows riders to balance exercise and assistance, adjusting the level of motor assistance based on their fitness level and desired workout intensity.

How Does the ALL-IN-ONE Rear Hub Motor for Ebike System Work?

The ALL-IN-ONE Rear Hub Motor for e-bike system operates through several integrated components:

1. Motor: The motor, built into the wheel hub, generates the necessary torque and power to propel the e-bike forward.
2. Controller: The controller manages the operation of the motor, regulating the flow of electric current from the battery to the motor.
3. Battery: The battery supplies electrical energy to the motor and can be recharged using a charger connected to a power source.
4. Sensors: Sensors provide feedback to the controller, allowing it to adjust the motor assistance based on the rider's needs.
5. User Interface: The user interface allows the rider to select different power modes and monitor the battery level.
6. Electric Assistance: The motor provides additional torque to assist the rider's pedaling effort, propelling the e-bike forward.

Choose the Right ALL-IN-ONE Rear Hub Motor for Electric Bicycle

Choosing the right ALL-IN-ONE Rear Hub Motor for an electric bicycle depends on several factors:

1. Power and Torque: Evaluate the power and torque output of the motor.
2. Battery Voltage and Capacity: Check the voltage and capacity of the battery that is compatible with the motor.
3. Assistance Modes: Determine which mode you prefer and ensure that the motor supports it.
4. Compatibility: Ensure that the motor is compatible with your bicycle frame and wheel size.
5. Weight: Consider the weight of the motor.
6. Integration and Ease of Installation: Consider the installation process and whether it requires any specific tools or expertise.

Maintenance of the ALL-IN-ONE Rear Hub Motor

Proper maintenance of an ALL-IN-ONE Rear Hub Motor for an electric bicycle is important:

1. Regular Cleaning: Keep the motor clean and free from dirt, dust, and debris.
2. Check and Tighten Bolts: Periodically inspect the motor and its mounting bolts to ensure they are secure.
3. Lubrication: Some ALL-IN-ONE Rear Hub Motors may require periodic lubrication.
4. Battery Maintenance: Follow the battery manufacturer's guidelines for maintenance, charging, and storage.
5. Sensor Alignment: Regularly check their alignment.
6. Inspect Wiring: Check the wiring connections leading to and from the motor.
7. Brake Adjustment: If your motor features regenerative braking, ensure that the brake system is properly adjusted.

Why Choose Raydafon's ALL-IN-ONE Rear Hub Motor for Electric Bicycle?

Raydafon Electric Technology Co Ltd. is dedicated to the R&D, manufacturing, and worldwide marketing of high-end electric bicycle parts. All our products are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment and advanced production lines and established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design.At present, our main products include super-mini wireless motors, super-mini intelligent motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, water bottle Li-Ion batteries, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking the high-end electrical components of electric bicycles. If you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.Author: Yjx
